TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-24

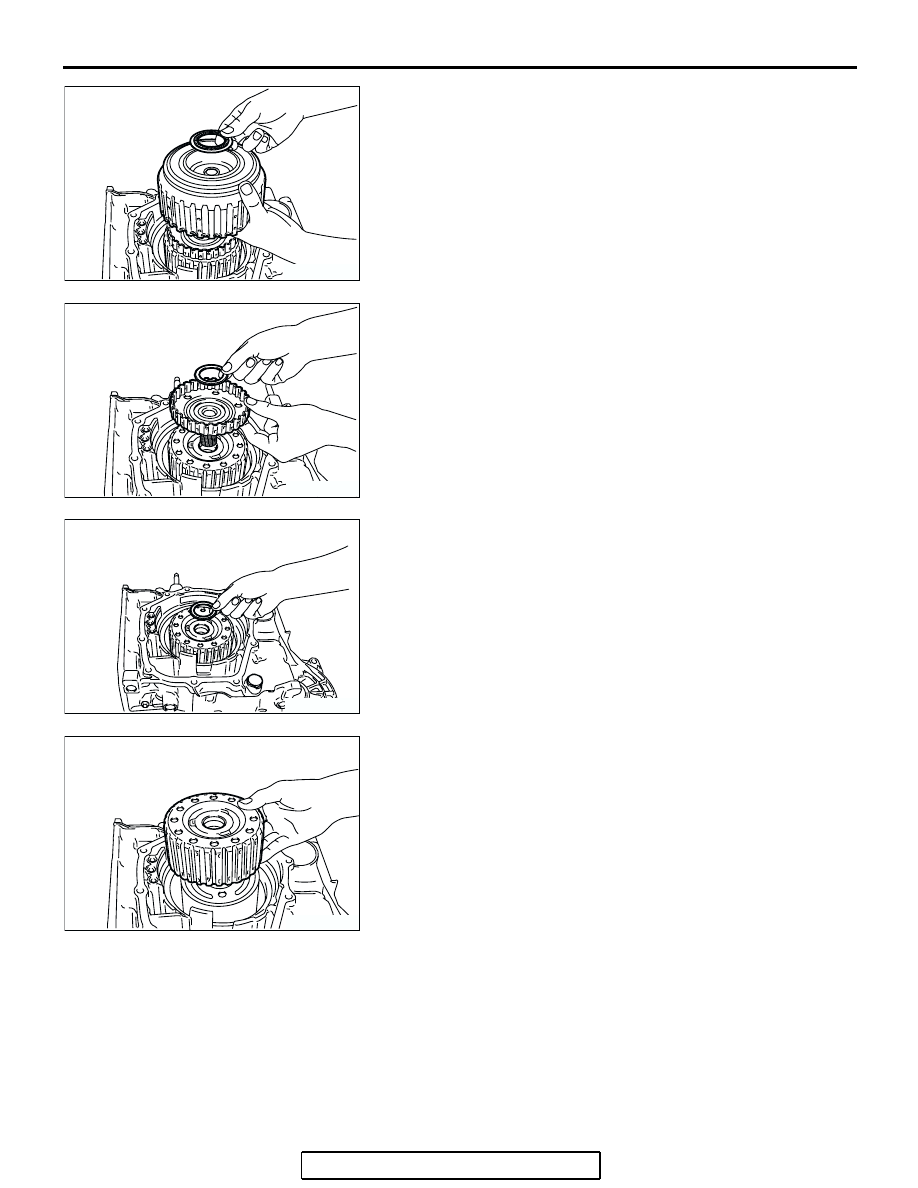

40.Remove the reverse and overdrive clutch and thrust bearing

number 7.

41.Remove overdrive clutch hub and thrust bearing number 6.

42.Remove thrust bearing number 5.

43.Remove the planetary reverse sun gear.

AK300465

AK300466

AK300467

AK300468

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-25

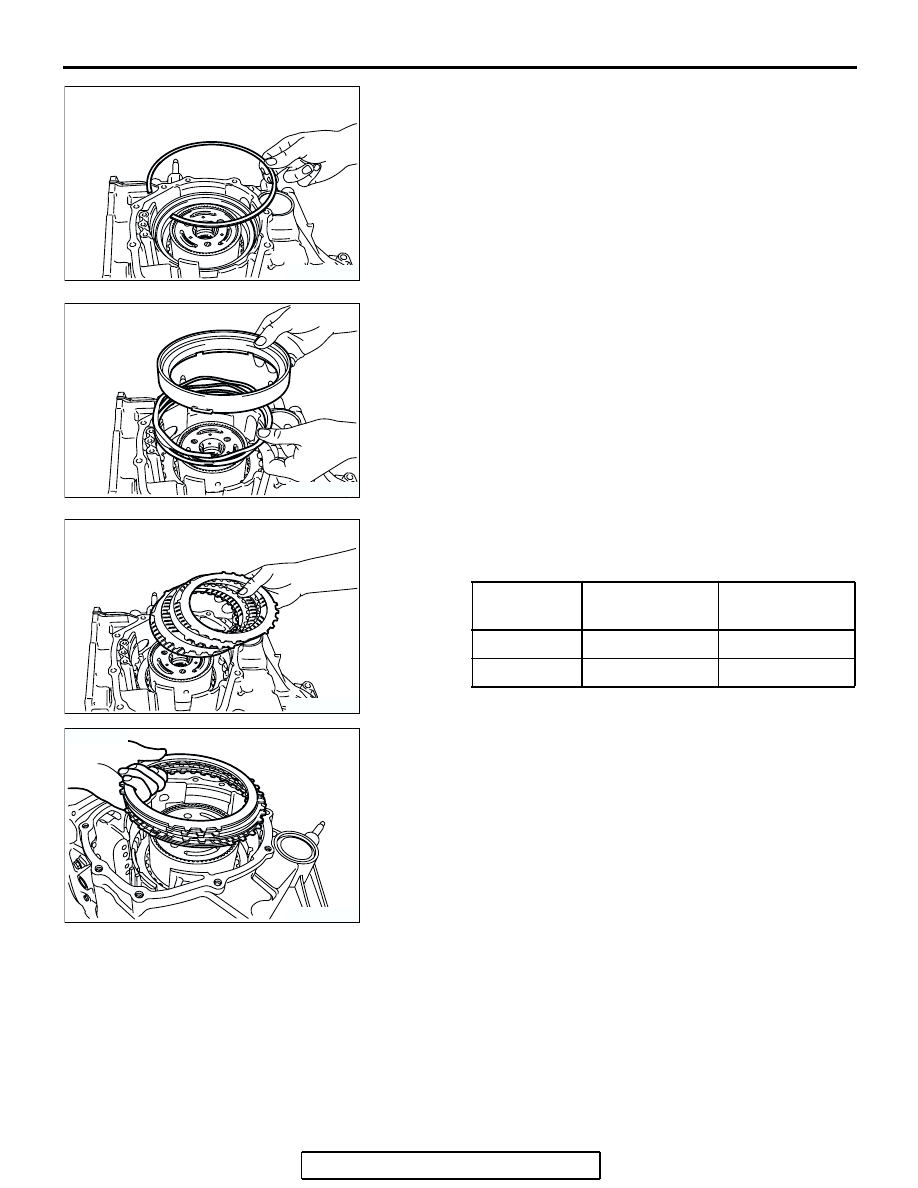

44.Remove the snap ring.

45.Remove the second brake piston and the return spring.

46.Remove the pressure plate, second brake discs and second

brake plates.

Number of second brake discs and plates:

AK300469

AK300470

A/T MODEL

SECOND
BRAKE DISC

SECOND
BRAKE PLATE

F4A4B

3

2

F4A5A

4

3

AK300471

<F4A4B>

AK202266

<F4A5A>

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-26

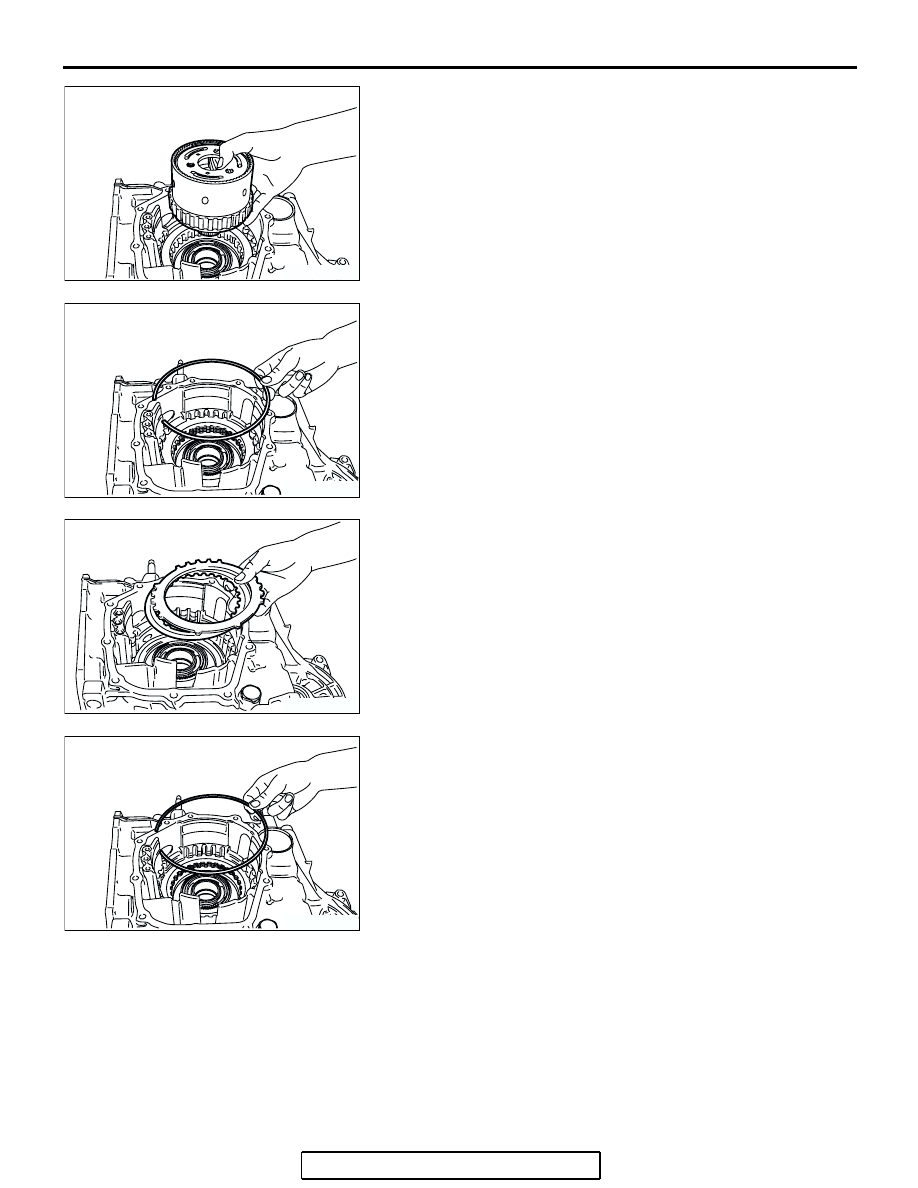

47.Remove the planetary carrier assembly.

48.Remove the snap ring.

49.Remove the reaction plate and the brake disc.

50.Remove the snap ring.

AK300472

AK300473

AK300474

AK300475

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-27

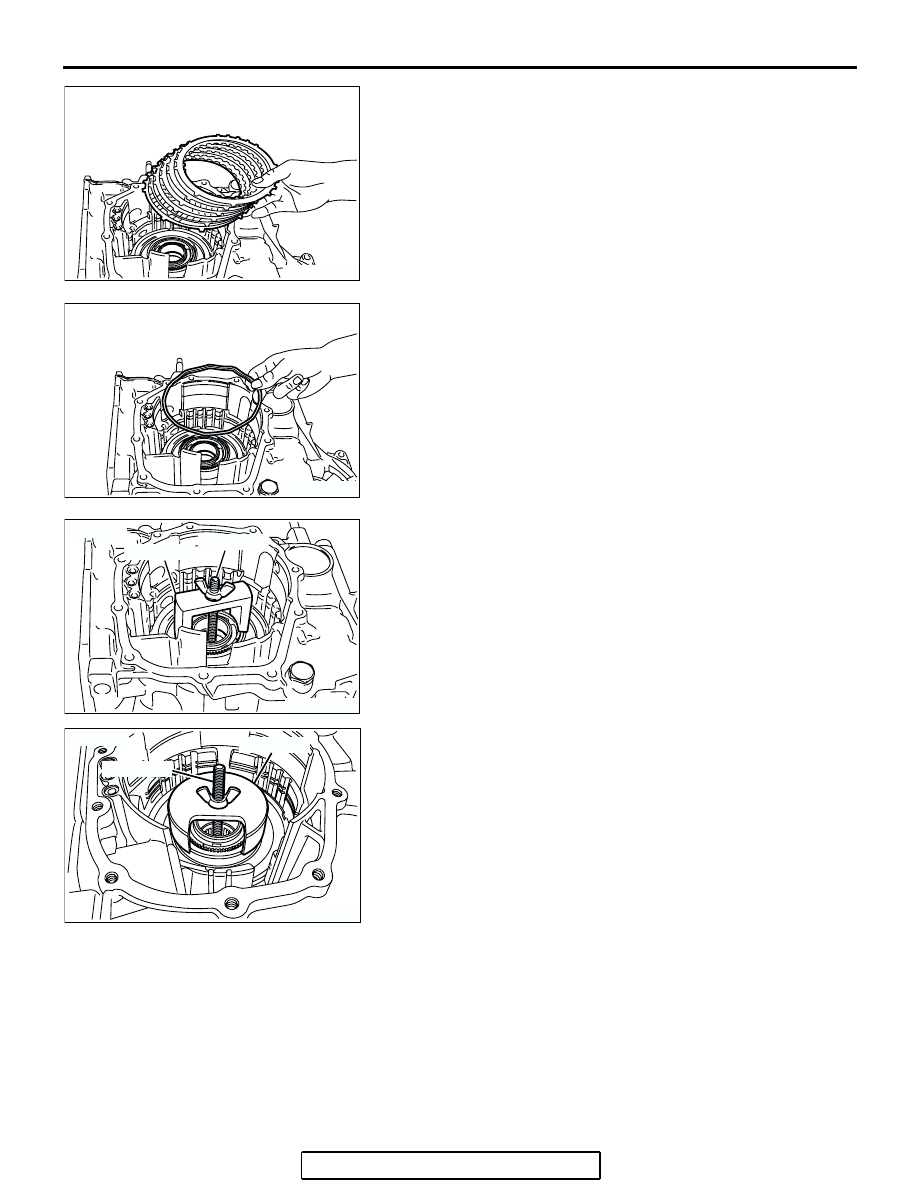

51.Remove the brake plates (five pieces), brake discs (six

pieces) and pressure plate.
NOTE: *Includes the brake discs removed in step 48.

52.Remove the wave spring.

53.Remove the one-way clutch inner race and low-reverse

brake piston as follows:

(1) Using special tools MD998903 <F4A4B> or MD998338

<F4A5A> and MD998924, compress the one-way clutch
inner race.

(2) Remove the snap ring.
(3) Remove the special tools.
(4) Remove the one-way clutch inner race, O-ring, spring

retainer, return spring and low-reverse brake piston.

AK300476

AK300477

AK300478AE

MD998924

MD998903

<F4A4B>

AK202273AC

MD998924

MD998338

<F4A5A>
