AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-178

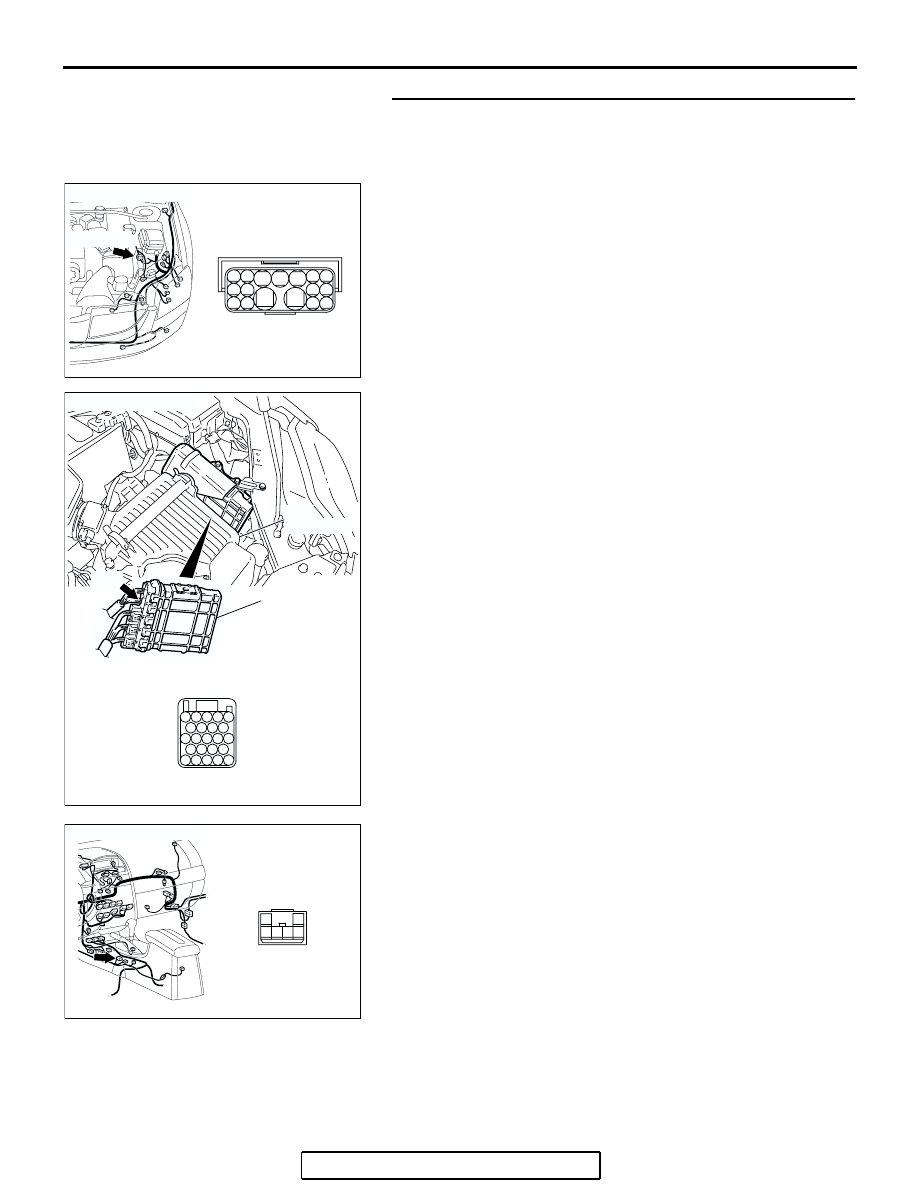

STEP 12. Check intermediate connector A-13, PCM
connector B-20 and shift switch assembly connector C-20
for loose, corroded  or damaged terminals, or terminals
pushed back in the connector.
Q: Are the connectors and terminals in good condition?

YES : Go to Step 13.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC306223

A-13 (GR)

AB

CONNECTOR: A-13

1

4

7

8

2 3

5

13

14

17

15

12

16

11

10

9

6

AC306248AH

CONNECTOR: B-20

PCM

AIR
CLEANER

JAE

41

37

32

40

39

23

21 22

35

31

30

26

36

27

43

42

25

24

38

34

29

33

28

B-20

AC306349AB

CONNECTOR: C-20

4

3

1

5 6

2

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-179

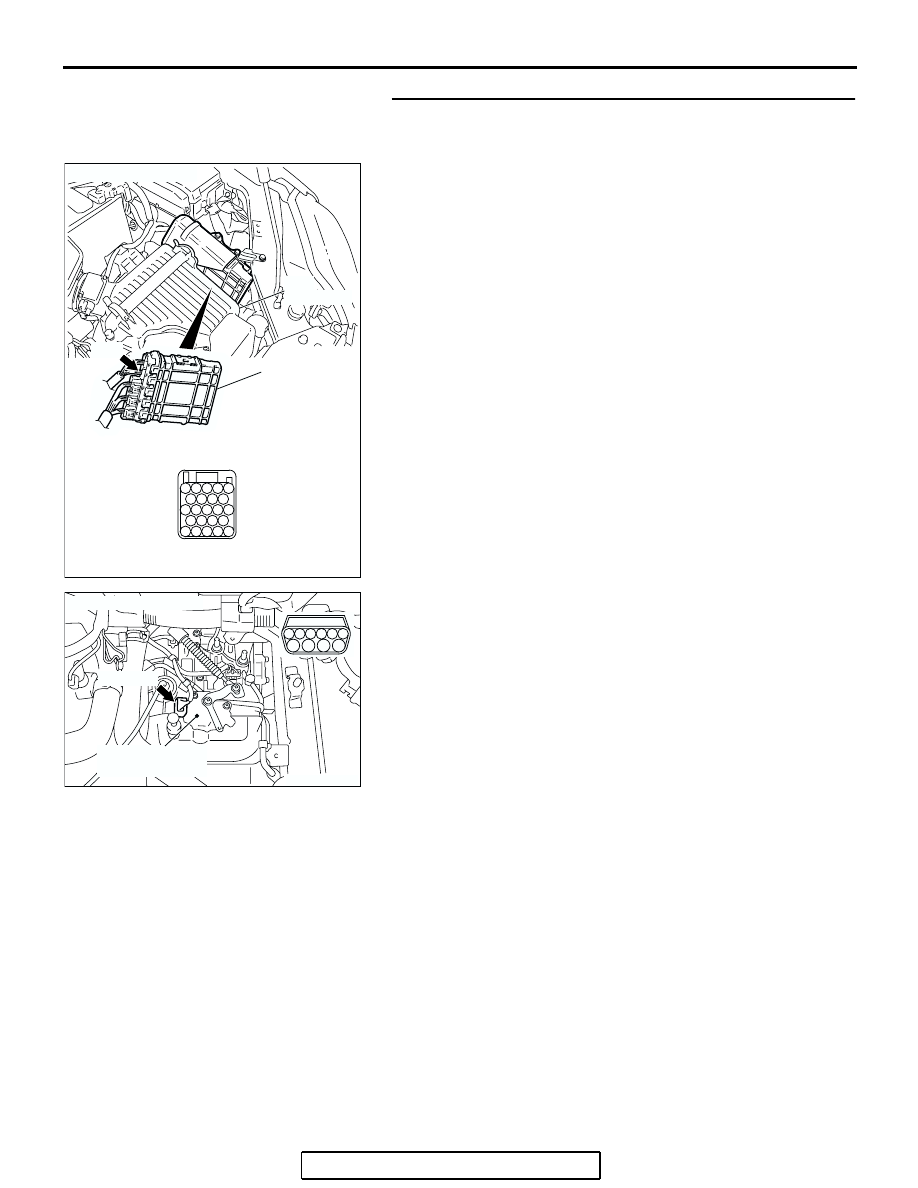

STEP 13. Check the harness for damage between PCM
connector B-20 terminal 39 and transmission range switch
connector B-110 terminal 1.
Q: Is the harness wire in good condition?

YES : Go to Step 20.
NO :  Repair or replace the harness wire.

AC306248AH

CONNECTOR: B-20

PCM

AIR
CLEANER

JAE

41

37

32

40

39

23

21 22

35

31

30

26

36

27

43

42

25

24

38

34

29

33

28

B-20

AC210068

CONNECTOR: B-110

B-110 (B)

AE

TRANSMISSION
RANGE SWITCH

1

7

2

8

3

5

9

4

10

6

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-180

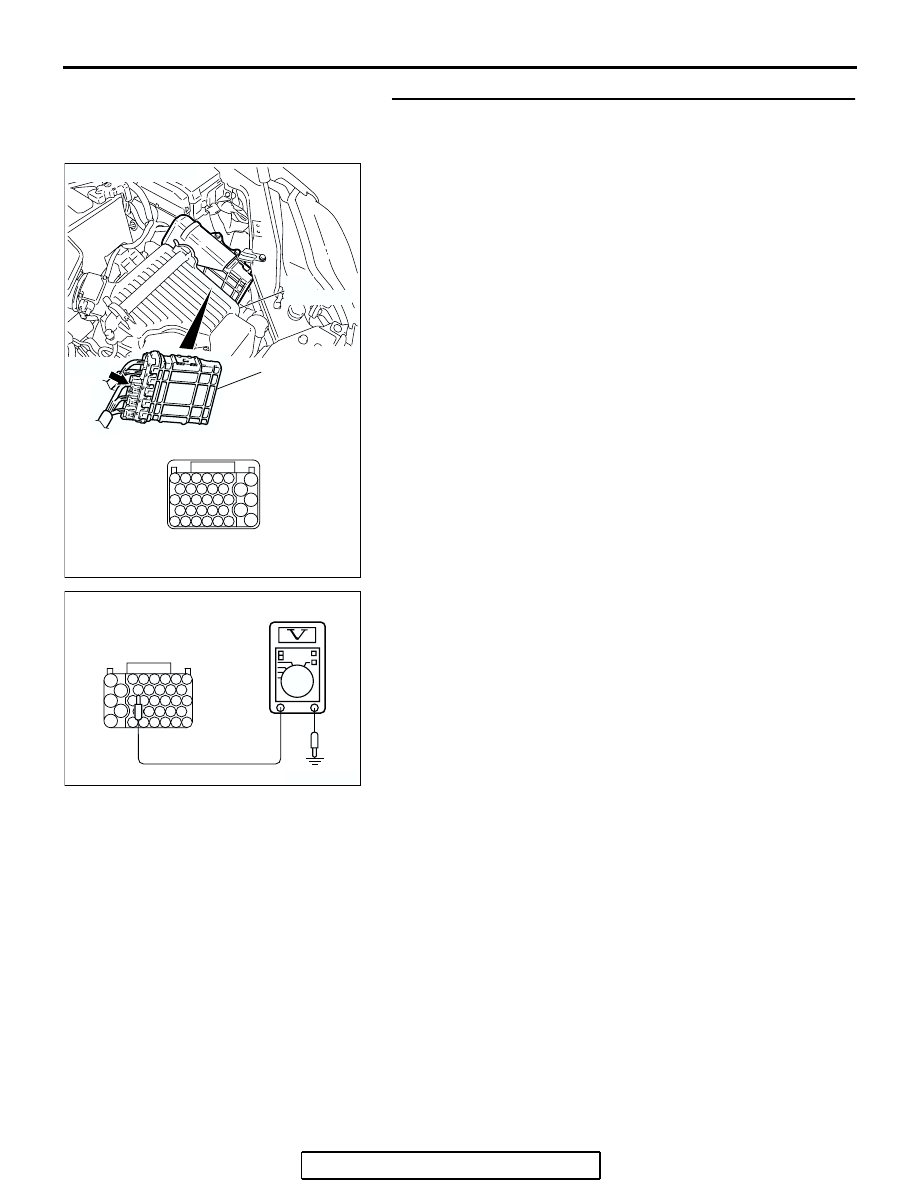

STEP 14. Measure the transmission range switch output
voltage at PCM connector B-21 by using check harness
special tool MB991923. ("3" position)
Measure the voltage between terminal 62 and ground.

• When transmission range is "P," voltage should measure

0.5 volt or less.

• When transmission range is "R," voltage should measure

0.5 volt or less.

• When transmission range is "N," voltage should measure

0.5 volt or less.

• When transmission range is "D," voltage should measure

0.5 volt or less.

• When transmission range is "3," voltage should equal bat-

tery positive voltage.

• When transmission range is "2," voltage should measure

0.5 volt or less.

• When transmission range is "L," voltage should measure

0.5 volt or less.

Q: Is the measured voltage within the specified range?

YES : Go to Step 16.
NO :  Turn the ignition switch to the "LOCK" (OFF) position.

Go to Step 15.

AC306248AC

B-21
(B)

CONNECTOR: B-21

PCM

AIR
CLEANER

73

80

54

67

60

71 72

77 78 79

64

51

59

58

65

52

66

53

75

74

76

81 82

83

63

JAE

62

68

61

55

69

56

70

57

AC306068

51

58

71

64

77

76

83

70

63

57

73 72

75 74

80

82 81

79 78

54

67

JAE

62

69

56

61

68

55

59

66

60

53

65

52

AB

B-21 HARNESS
CONNECTOR:
COMPONENT SIDE

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-181

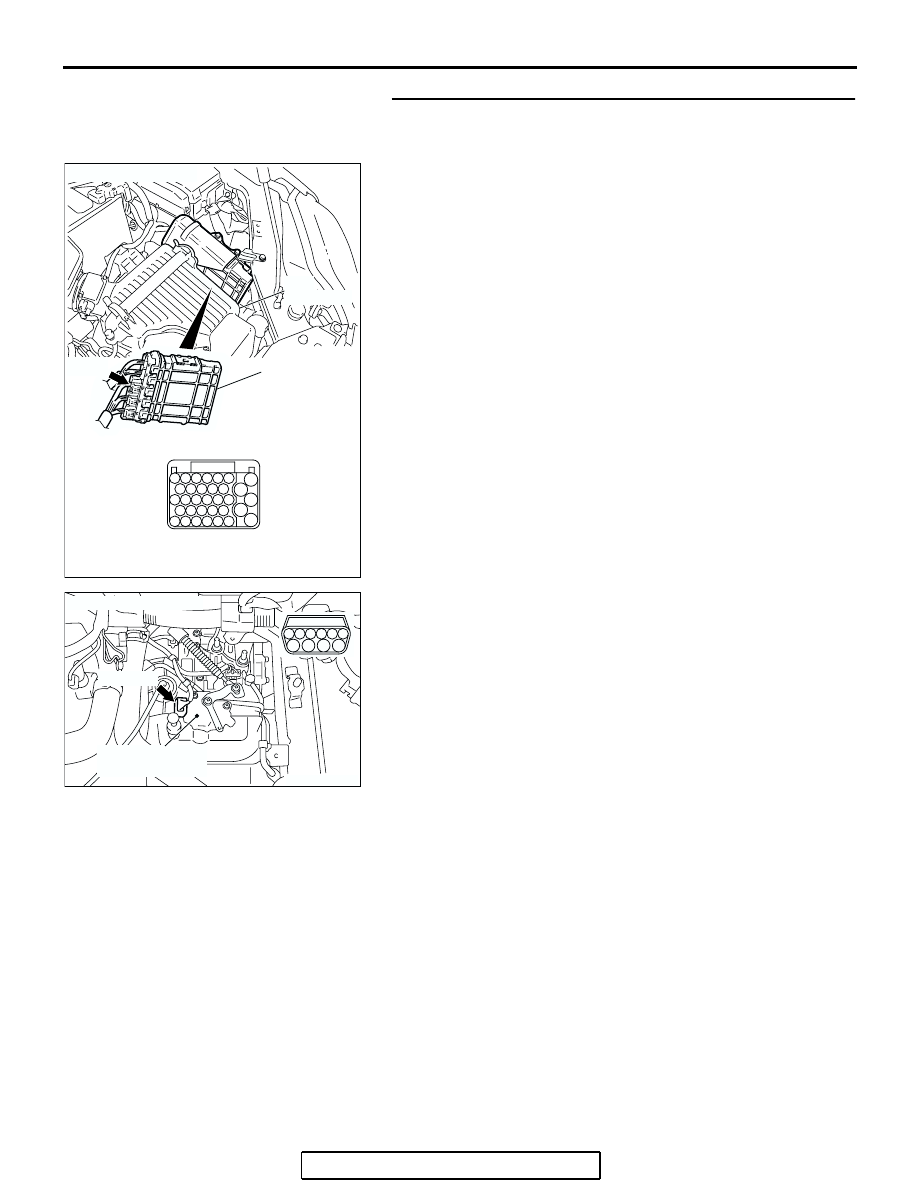

STEP 15. Check the harness for damage between PCM
connector B-21 terminal 62 and transmission range switch
connector B-110 terminal 5.
Q: Is the harness wire in good condition?

YES : Go to Step 20.
NO :  Repair or replace the harness wire.

AC306248AC

B-21
(B)

CONNECTOR: B-21

PCM

AIR
CLEANER

73

80

54

67

60

71 72

77 78 79

64

51

59

58

65

52

66

53

75

74

76

81 82

83

63

JAE

62

68

61

55

69

56

70

57

AC210068

CONNECTOR: B-110

B-110 (B)

AE

TRANSMISSION
RANGE SWITCH

1

7

2

8

3

5

9

4

10

6
