AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-94

Judgement Criteria

• Output speed: no signal change. (4 seconds)

• If DTC 23 (P0720) is set consecutively four times,

the transaxle is locked into 3rd gear or 2nd gear
as a fail-safe measure, and the "N" range light
flashes once per second.

Check Conditions

• Transmission range switch position: D, 3, 2 or L.

• Input speed: 500 r/min or more.

• Transmission fluid temperature sensor voltage:

4.5 volts or less.

• Rapid output speed change: -31.9 r/min / 0.016

second or less.

Judgement Criteria

• Output speed: [(input speed - 200 r/min) / gear

ratio] or less. (4 seconds)

• If DTC 23 (P0720) is set consecutively four times,

the transaxle is locked into 3rd gear or 2nd gear
as a fail-safe measure, and the "N" range light
flashes once per second.

.

OBD-II DRIVE CYCLE PATTERN

Start the engine, and drive for 5 seconds, with 1st
gear fixed (L range or 1st gear in sport mode), at 20
km/h (12 mph) or more with 50% or more of throttle
valve opening. Then stop the vehicle, and drive
again for 5 seconds, with 1st gear fixed (L range or
1st gear in sport mode), at 20 km/h (12 mph) or more
with 50% or more of throttle valve opening.

.

TROUBLESHOOTING HINTS (THE MOST
LIKELY CAUSES FOR THIS CODE TO BE
SET ARE:)

• Malfunction of the output shaft speed sensor

• Malfunction of the transfer drive gear or driven

gear

• Damaged harness or connector

• Malfunction of the PCM

DIAGNOSIS

Required Special Tool:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A

STEP 1. Using scan tool MB991958, check data list item 23:
Output Shaft Speed Sensor.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

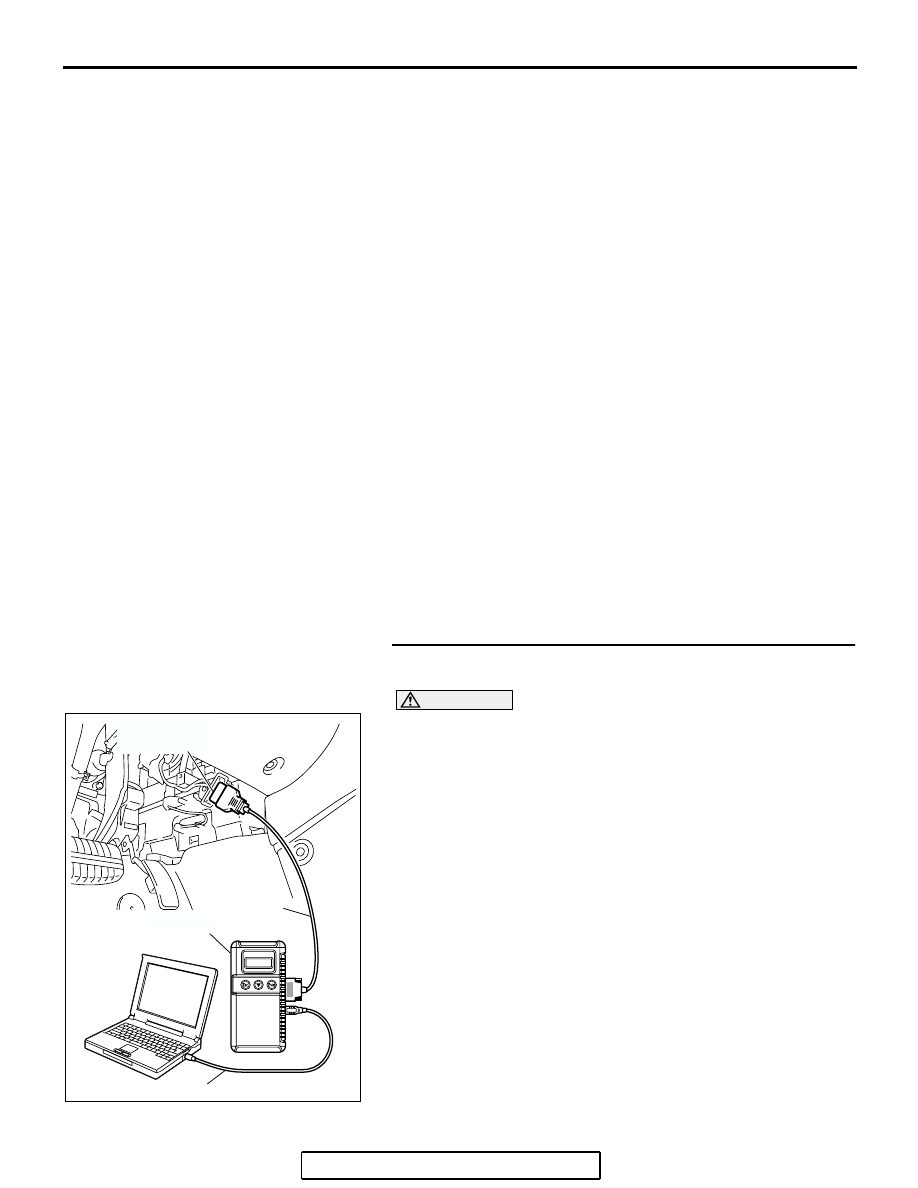

(1) Connect scan tool MB991958 to the data link connector.
(2) Start the engine.
(3) Set scan tool MB991958 to the data reading mode.

• Item 23: Output Shaft Speed Sensor.

• When driving at a constant speed of 50km/h

(31mph), the display should be "1,400

− 1,700 r/min"

(Gear range: 3rd gear).

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor within the specified range?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-14

.

NO :  Go to Step 2.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-95

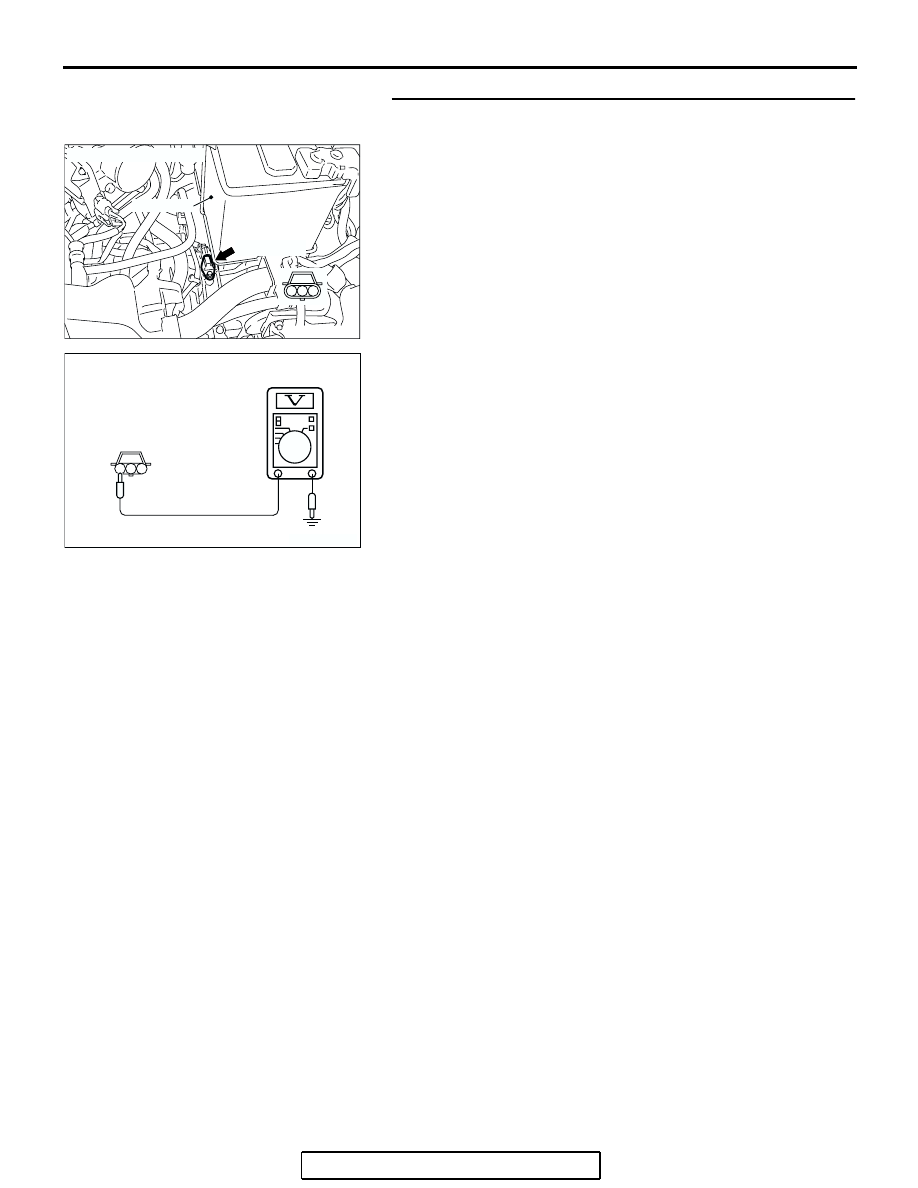

STEP 2. Measure the power supply voltage at the output
shaft speed sensor connector B-107.
(1) Disconnect connector B-107 and measure at the harness

side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal 3 and ground.

• The voltage should measure battery positive voltage.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage battery positive voltage?

YES : Go to Step 5.
NO :  Go to Step 3.

AC305353AC

CONNECTOR: B-107

BATTERY

B-107 (GR)

3

2

1

3 2 1

AC210661

B-107 HARNESS
CONNECTOR:
COMPONENT SIDE

AB

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-96

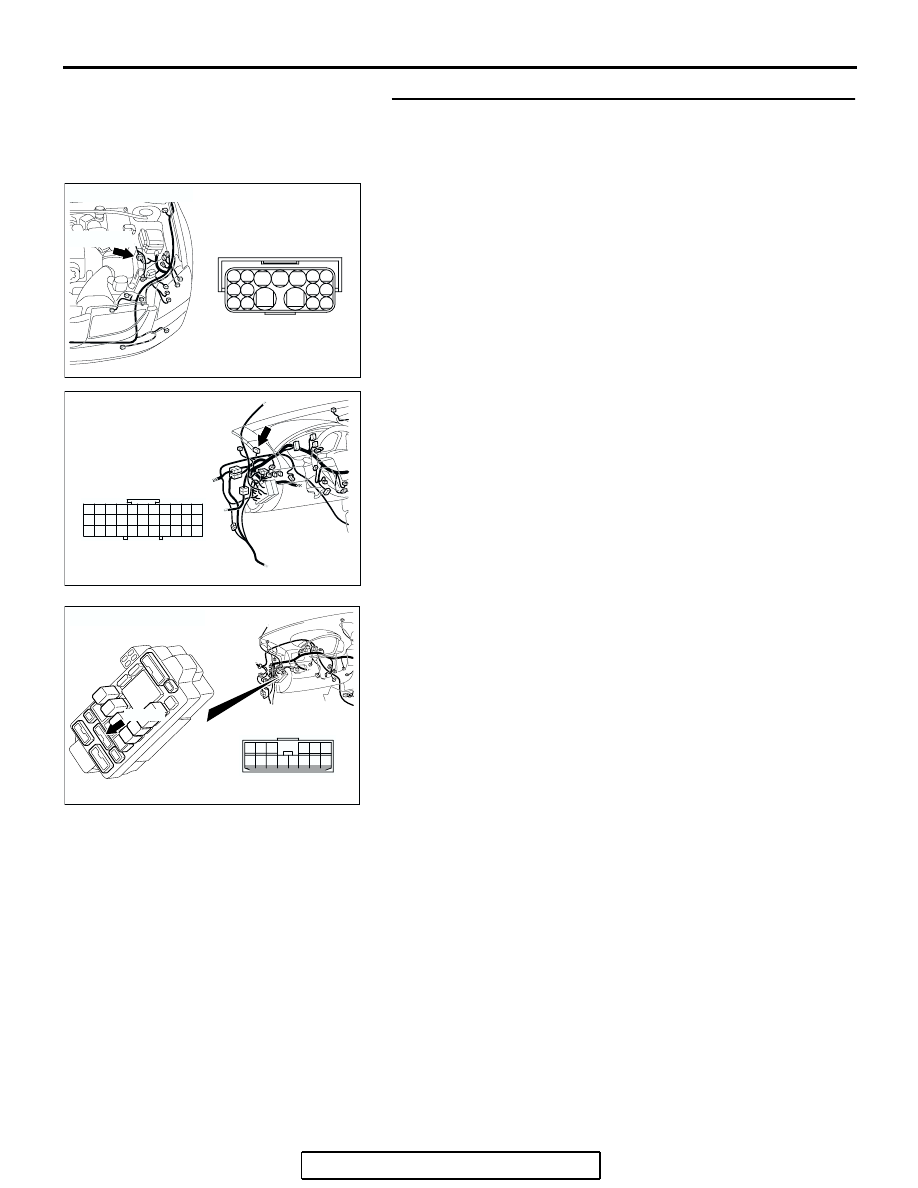

STEP 3. Check intermediate connector A-13, joint
connector (1) C-01 and junction block connector C-214 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Are the connectors and terminals in good condition?

YES : Go to Step 4.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC306223

A-13 (GR)

AB

CONNECTOR: A-13

1

4

7

8

2 3

5

13

14

17

15

12

16

11

10

9

6

AC305231

CONNECTOR: C-01

AS

33

22

11

28

17

16

15

14

13

12

25

2324

2627

3

1 2

4 5

21

20

19

18

29 30

32

31

7

6

8

10

9

AC207120

CONNECTOR: C-214

AU

C-214

6

1

7

2

9

8

10

3

5

12

11

4

1314

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-97

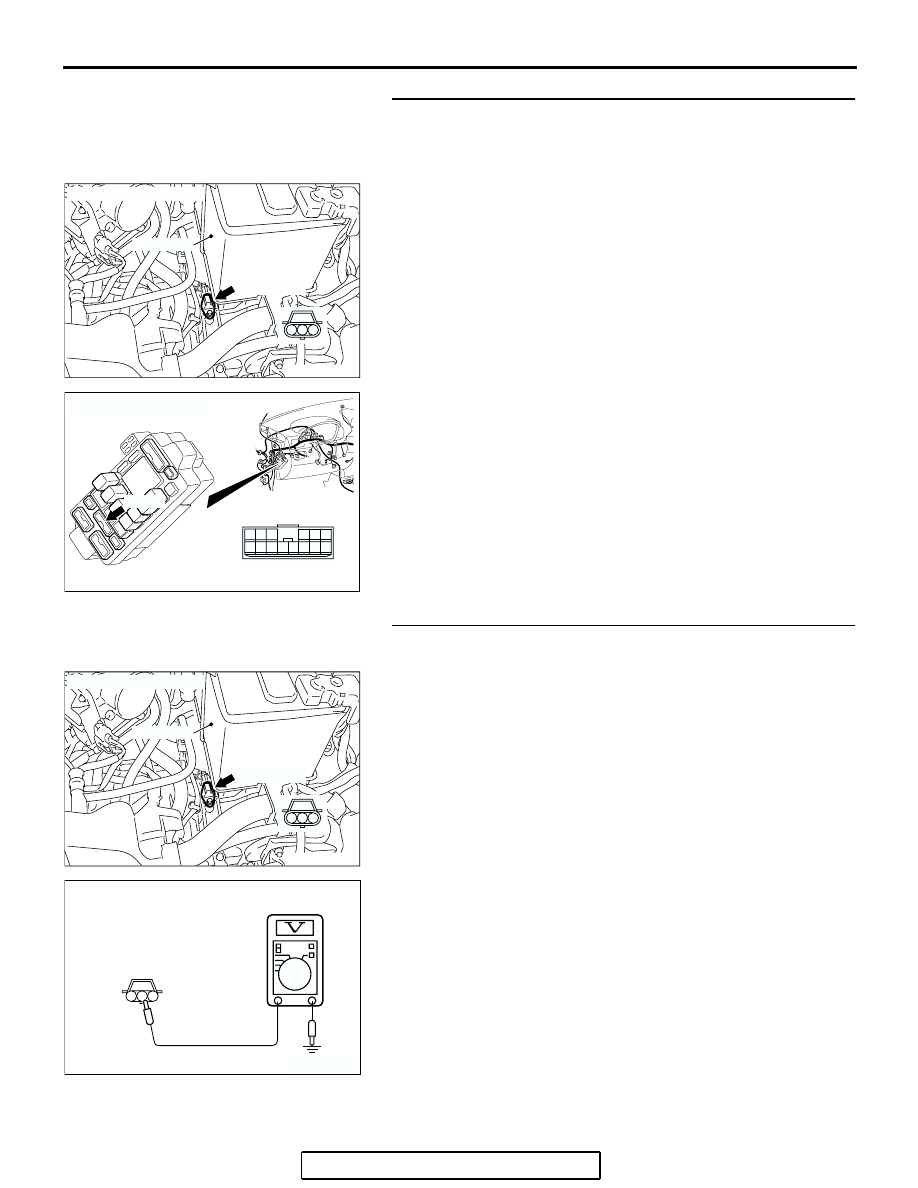

STEP 4. Check the harness for open circuit or short circuit
to ground between the output shaft speed sensor
connector B-107 terminal 3 and the junction block
connector C-214 terminal 12.
Q: Is the harness wire in good condition?

YES : Go to Step 5.
NO :  Repair or replace the harness wire.

STEP 5. Measure the PCM to speed sensor output voltage
at the output shaft speed sensor connector B-107.
(1) Disconnect connector B-107 from the speed sensor and

measure voltage at the harness side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal 2 and ground.

• The voltage should measure between 4.5 and 4.9 volts.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage between 4.5 and 4.9 volts?

YES : Go to Step 11.
NO :  Go to Step 6.

AC305353AC

CONNECTOR: B-107

BATTERY

B-107 (GR)

3

2

1

AC207120

CONNECTOR: C-214

AU

C-214

6

1

7

2

9

8

10

3

5

12

11

4

1314

AC305353AC

CONNECTOR: B-107

BATTERY

B-107 (GR)

3

2

1

3 2 1

AC210662

B-107 HARNESS
CONNECTOR:
COMPONENT SIDE

AB
