Mitsubishi Galant 9G. Manual - part 466





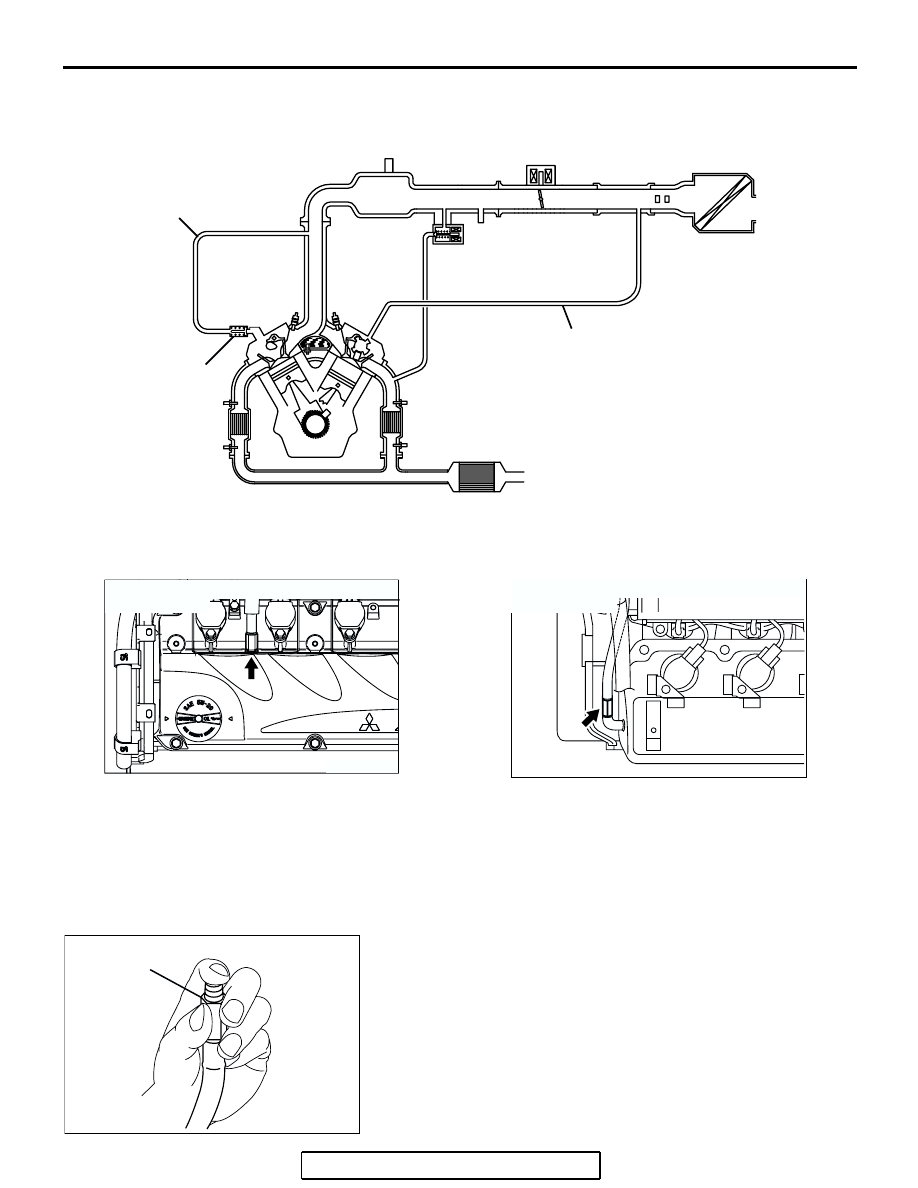

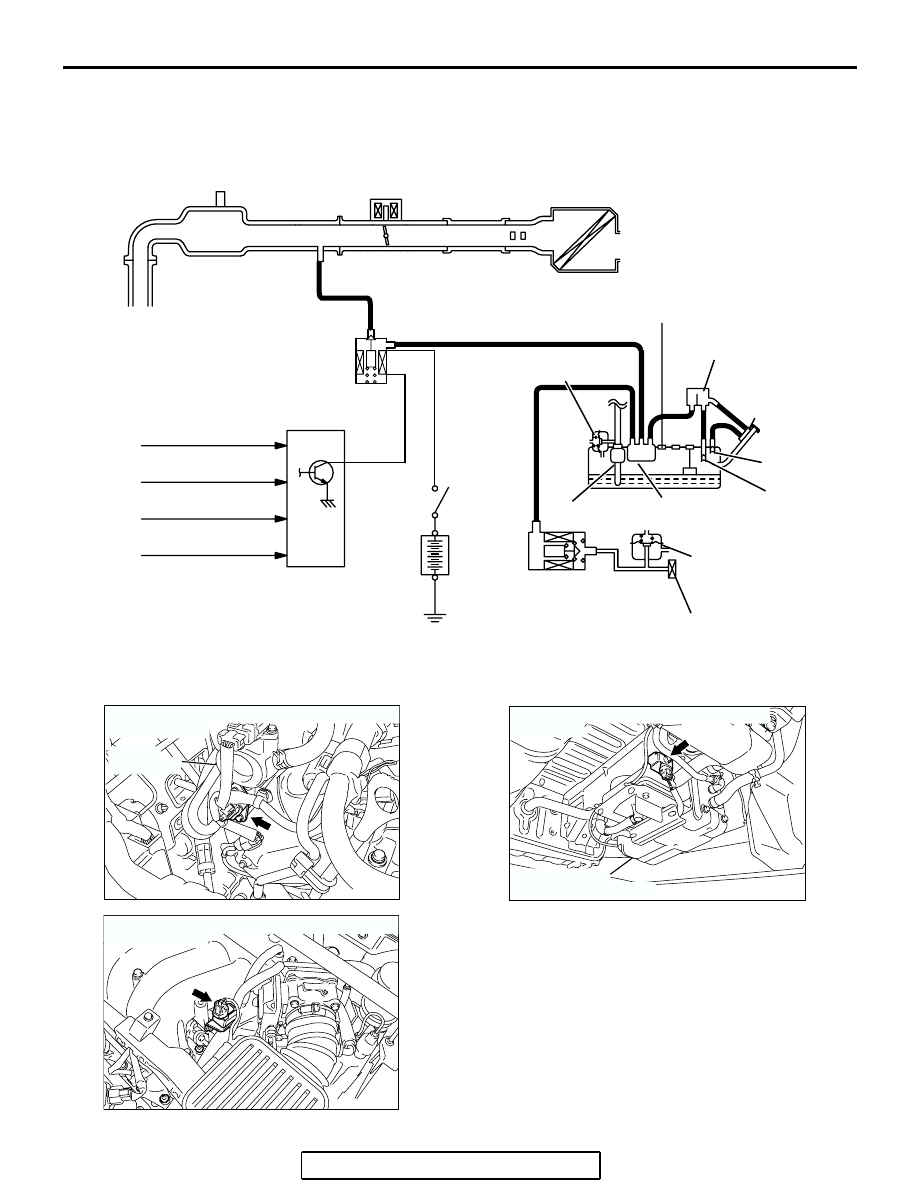

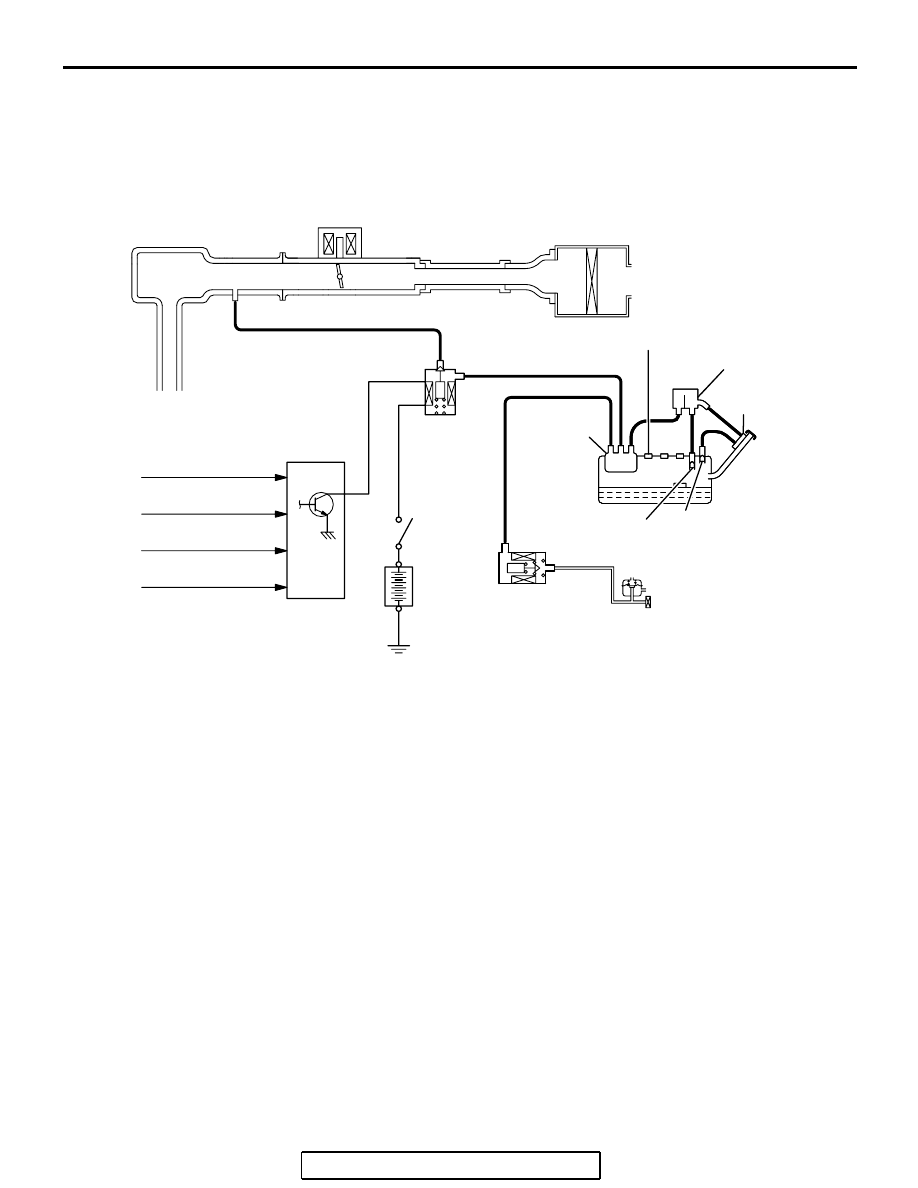

EMISSION CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-82

<3.8L ENGINE>

COMPONENT LOCATION

M1173007400189

POSITIVE CRANKCASE VENTILATION SYSTEM
CHECK

M1173001100232

1. Remove the positive crankcase ventilation (PCV) valve from

the rocker cover, then reconnect the PCV valve to the
vacuum supply hose.

2. With the engine idling, put your finger on the open end of the

PCV valve, and check for negative pressure (vacuum).
NOTE: At this time, the plunger in the PCV valve should
move back and forth as the open end is covered and uncov-
ered.

3. If negative pressure is not felt, clean or replace the PCV

valve. Inspect the vacuum supply hose and vacuum supply
hose port for restriction or plugged condition.

AK303639

POSITIVE CRANKCASE
VENTILATION VALVE

VENTILATION HOSE

BREATHER HOSE

AB

AK301395AB

POSITIVE CRANKCASE VENTILATION VALVE
<2.4L ENGINE>

AK203691AC

POSITIVE CRANKCASE VENTILATION VALVE
<3.8L ENGINE>

AK203692

POSITIVE CRANKCASE
VENTILATION VALVE

AC

EMISSION CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-83

POSITIVE CRANKCASE VENTILATION VALVE
CHECK

M1173001200228

1. Hold the positive crankcase ventilation (PCV) valve with the

vacuum side down. Insert a thin rod, and using light
pressure, depress the end of the PCV valve spring by 5

− 10

mm (0.2

− 0.3 inch). Release pressure on the rod to see if

the PCV valve spring will lift the rod to its original position.

2. If the rod returns quickly to its original position, the PCV

valve is OK. If the stick does not return quickly, clean or
replace the PCV valve.

EVAPORATIVE EMISSION CONTROL SYSTEM

GENERAL DESCRIPTION (EVAPORATIVE EMISSION SYSTEM)

M1173005100706

The evaporative emission (EVAP) system prevents
fuel vapors generated in the fuel tank from escaping
into the atmosphere.
Fuel vapors from the fuel tank flow through the vapor
pipe/hose to be stored temporarily in the EVAP can-
ister.
When the vehicle is in operation, fuel vapors stored
in the EVAP canister flow through the EVAP purge
solenoid, purge port and intake manifold plenum to
the combustion chamber.
When the engine coolant temperature is low or when
the intake air quantity is small (when the engine is at
idle, for example), the powertrain control module
(PCM) brings the EVAP purge solenoid into the OFF
state to shut off the fuel vapor flow to the intake man-
ifold plenum. This ensures driveability when the
engine is cold or running under low load and also
stabilizes the emission level.

An EVAP ventilation solenoid is provided between
the EVAP canister and atmosphere to monitor for
OBD-II EVAP leaks. This solenoid is normally OFF.
However, it turns ON when monitoring the OBD-II
EVAP leaks and shuts off the atmosphere flow to the
EVAP canister. Then the fuel tank differential pres-
sure sensor monitors the fuel vapor pressure to
detect OBD-II EVAP leaks. The fuel overflow limiter
valve and the leveling valve prevent fuel from being
overfilled. The fuel overflow limiter valve and the lev-
eling valve prevents fuel leaks if the vehicle is rolled
over in an accident.
The EVAP ventilation valve releases the air from the
fuel tank through the EVAP canister into the atmo-
sphere when the fuel tank pressure increases due to
refueling, etc. The EVAP ventilation valve and the air
filter supply the atmospheric air to the EVAP canister
when the fuel tank pressure decreases.

AK301831

5 – 10 mm

(0.2 – 0.3 in)

THIN ROD
(VERY SMOOTH)

POSITIVE
CRANKCASE
VENTILATION
VALVE

VACUUM SIDE

AB

EMISSION CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-84

SYSTEM DIAGRAM
<2.4L ENGINE>

AK300555

FUEL TANK DIFFERENTIAL
PRESSURE SENSOR

LIQUID SEPARATOR

EVAPORATIVE
EMISSION
CANISTER

EVAPORATIVE
EMISSION
PURGE
SOLENOID
ON: OPEN

PCM

BAROMETRIC PRESSURE
SENSOR

INTAKE AIR TEMPERATURE
SENSOR

ENGINE COOLANT
TEMPERATURE SENSOR

MASS AIRFLOW SENSOR

FUEL
TANK

MFI RELAY

FUEL OVERFLOW
LIMITER VALVE

FUEL CUT
OFF VALVE

LEVELING VALVE

EVAPORATIVE EMISION
VENTILATION VALVE

AIR FILTER

EVAPORATIVE EMISSION
VENTILATION SOLENOID
ON: CLOSED

AB

EMISSION CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-85

<3.8L ENGINE>

COMPONENT LOCATION

M1173007500205

AK401681

FUEL TANK DIFFERENTIAL
PRESSURE SENSOR

EVAPORATIVE
EMISSION
CANISTER

LEVELING
VALVE

FUEL CUT
OFF VALVE

FUEL
OVERFLOW
LIMITER
VALVE

EVAPORATIVE
EMISSION
PURGE
SOLENOID
ON: OPEN

PCM

BAROMETRIC PRESSURE
SENSOR

INTAKE AIR TEMPERATURE
SENSOR

ENGINE COOLANT
TEMPERATURE SENSOR

MASS AIRFLOW SENSOR

FUEL
TANK

MFI
RELAY

FUEL
PUMP

EVAPORATIVE
EMISSION
VENTILATION VALVE

AIR FILTER

EVAPORATIVE
EMISSION
VENTILATION SOLENOID
ON: CLOSED

AB

LIQUID
SEPARATOR

FUEL PRESSURE
REGULATOR

AK303004AB

EVAPORATIVE EMISSION PURGE SOLENOID
<2.4L ENGINE>

INTAKE
MANIFOLD

AK303005AB

EVAPORATIVE EMISSION PURGE SOLENOID
<3.8L ENGINE>

AK303006 AB

EVAPORATIVE EMISSION VENTILATION
SOLENOID

EVAPORATIVE
EMISSION CANISTER
