WINDOW GLASS

TSB Revision

BODY

42-20

REAR WINDOW GLASS

REMOVAL AND INSTALLATION

M1422001600122

Required Special Tool:

• MB990480: Glass Holder

Pre-removal and Post-installation Operation
• Roof Drip Moulding Removal and Installation (Refer to

GROUP 51, Garnishes and Moulding

P.51-6

.)

• Rear Pillar Trim and Rear Shelf Trim Removal and Instal-

lation (Refer to GROUP 52A, Trims

P.52A-10

.)

AC305560

AB

N

N

N

N

1

2

N

2

3

4

5

AC306513

AC306005

AC306006

AC306007

AC306008

ADHESIVE: 3M™ AAD PART NO. 8609 SUPER FAST URETHANE AND 3M™ AAD PART NO. 8608 SUPER FAST
URETHANE PRIMER OR EQUIVALENT

AB

SECTION A – A

SECTION C – C

SECTION B – B

UNITS: mm (in)

1

A

A

C

C

B

B

SEAL LINE

CENTER

SEAL LINE

CERAMIC LINE

3

16 (0.63)

16 (0.63)

16 (0.63)

15.5 (0.610)

15.5

(0.610)

PRIMER

1

2

1

11.5 (0.453)

SEAL LINE

CENTER

PRIMER

5

1

SEAL LINE CENTER

PRIMER

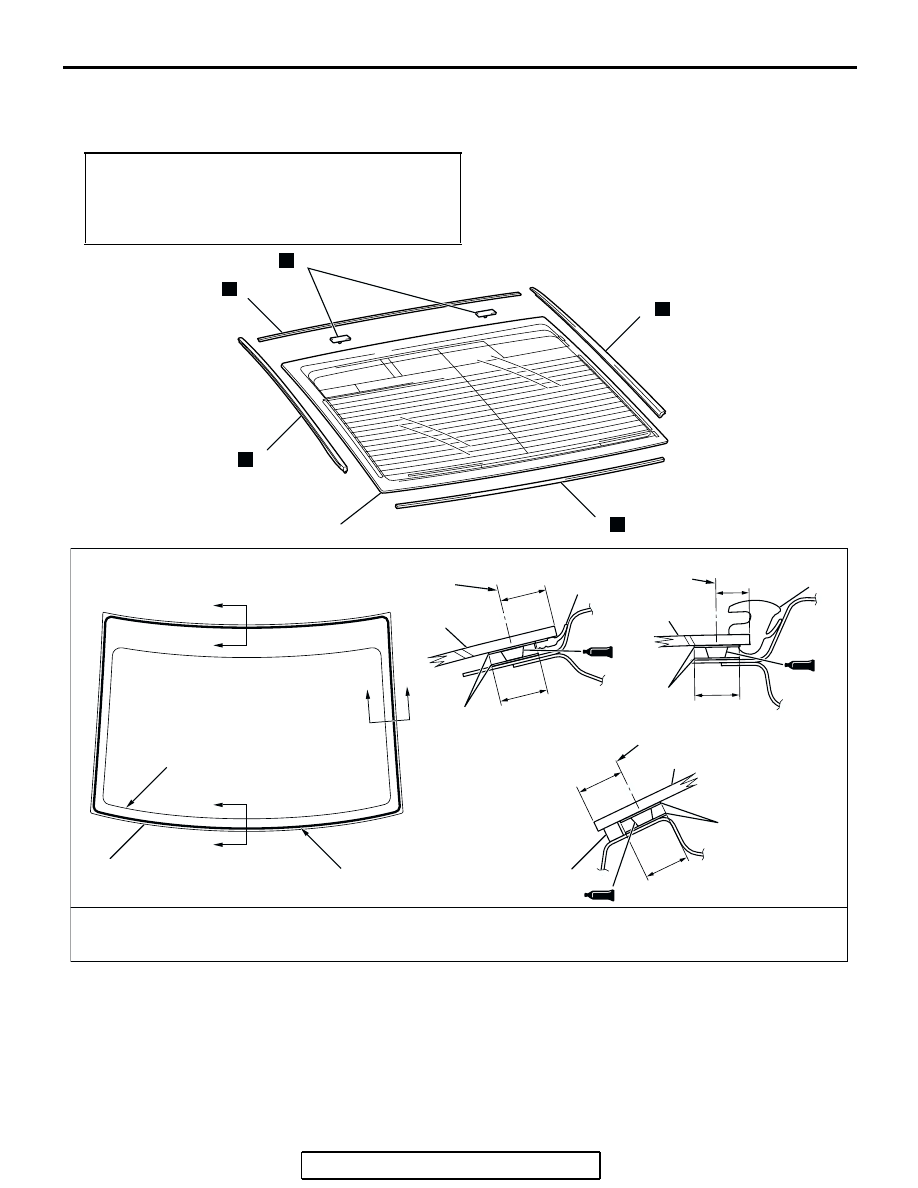

REMOVAL STEPS

<<A>>>B<<

1. REAR WINDOW GLASS

>>A<<

2. REAR WINDOW SIDE MOLDING

>>A<<

3. REAR WINDOW UPPER MOLDING

>>A<<

4. GLASS STOPPER

>>A<<

5. REAR WINDOW SPACER

WINDOW GLASS

TSB Revision

BODY

42-21

REMOVAL SERVICE POINT

.

<<A>> REAR WINDOW GLASS REMOVAL

Remove the rear window glass using the same procedure as
for the windshield (Refer to

P.42-15

).

INSTALLATION SERVICE POINTS

.

>>A<< REAR WINDOW SPACER/GLASS STOP-
PER/REAR WINDOW UPPER MOLDING/REAR
WINDOW SIDE MOLDING INSTALLATION

CAUTION

Leave the degreased parts for 3 or more minutes to dry
well, before starting on the next step. Do not touch the
degreased parts.
1. Use 3M

 AAD Part number 8906 or equivalent. to degrease

the inside and outside edges of the rear window glass and
the surface of the body flange.

WINDOW GLASS

TSB Revision

BODY

42-22

2. Install the rear window spacer and glass stopper to the

specified positions so that there are no adrift or bent
surfaces inside the rear window glass.

3. Install the rear window upper molding and side molding to

the rear window glass.

.

>>B<< REAR WINDOW GLASS INSTALLATION

Install the rear window glass in the same way as for the wind-
shield installation (Refer to

P.42-15

).

AC306514

AC306009

AC306012

AC107207

AC306011

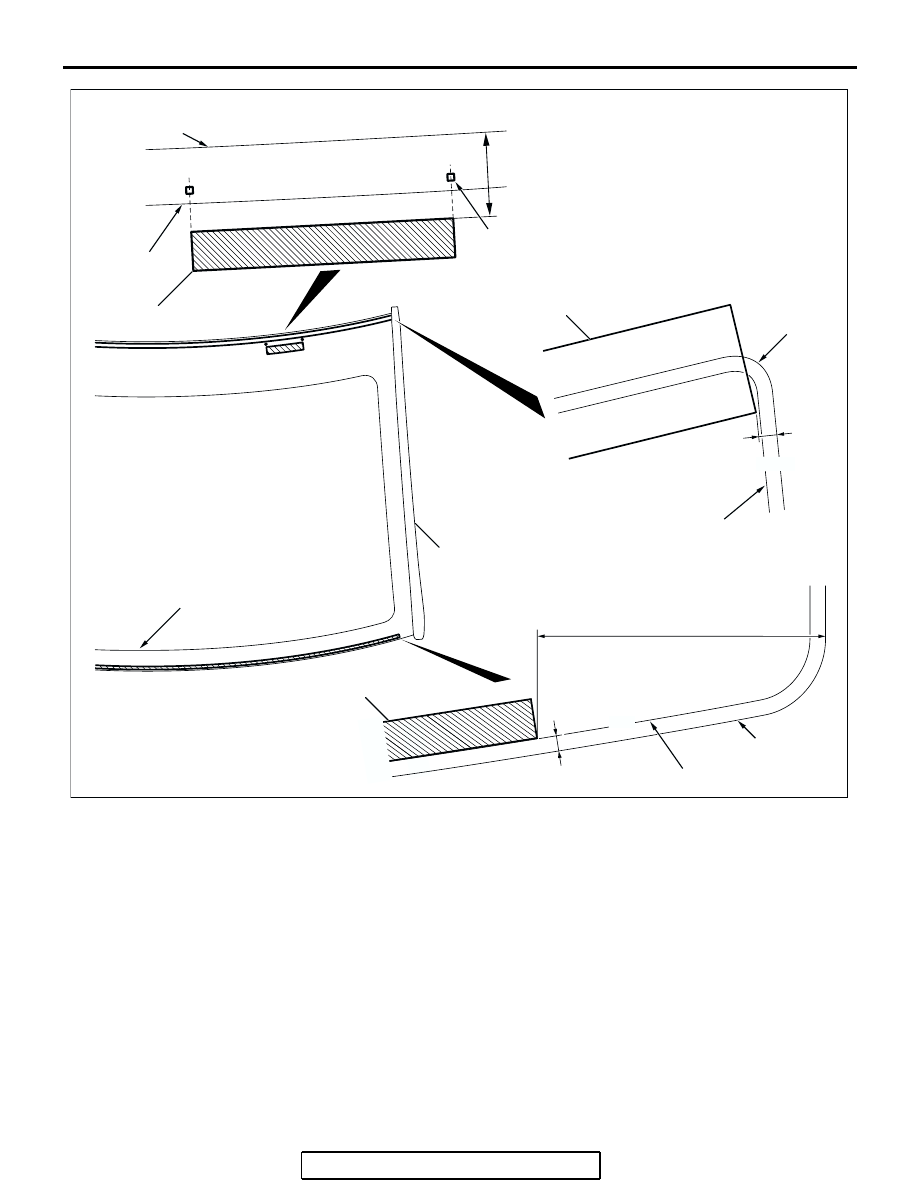

REAR WINDOW GLASS SPACER, GLASS STOPPER AND REAR WINDOW GLASS MOLDING
INSTALLATION POSITION

GLASS STOPPER

GLASS END LINE

ALIGN THE GLASS STOPPER END
WITH THE REAR WINDOW GLASS MARK.

REAR WINDOW GLASS

21.5 ± 0.5 (0.846 ± 0.020)

CERAMIC END

LINE

UNITS: mm (in)

AB

GLASS END
LINE

REAR WINDOW
GLASS SPACER

GLASS END
LINE

REAR WINDOW GLASS
UPPER MOLDING

37 ± 3 (1.5 ± 0.12)

CERAMIC LINE

CERAMIC END LINE

CERAMIC END LINE

2.5 ± 2.5

(0.984 ± 0.984)

2 ± 1

(0.08 ± 0.04)

DOOR

TSB Revision

BODY

42-23

DOOR

GENERAL DESCRIPTION

M1423000100246

OPERATION

.

CENTRAL DOOR LOCKING SYSTEM

The central door locking system operates the door
lock actuator to lock or unlock the doors using the
door lock switch built into the front power window
(main or sub) switch or key cylinder built into the
driver's side door outside handle. The system has
the following operations and features:

• All doors can be locked using the door lock

switch built into the front power window (main or
sub <RH>) switch.

• Insert the key into the driver's key cylinder and

turn once to the unlock side to unlock the driver's
door. Turn the key once again to the unlock side
to unlock all doors.

• The key reminder function automatically unlocks

all doors when door lock operation is performed
and the front doors are opened while the key is
inserted into the ignition switch.

.

POWER WINDOWS

When the power window (main or sub) switch is
operated, the door windows will open or close. This
system has the following operations and features:

• A power window lock switch on the power win-

dow main switch prevents the door window glass
from opening/closing with the front passenger's
and rear power window sub switch.

• The power window of the door window glass can

be opened/closed for 30 seconds with the timer
function after the ignition switch is turned OFF.
(The timer expires if the front door <LH or RH> is
opened when the timer is in operation).

• The power window main switch contains a

one-touch down switch that will automatically
open the driver's side door window only.

CENTRAL DOOR LOCKING SYSTEM DIAGNOSIS

M1427000700217

The central door locking system is controlled by the
simplified wiring system (SWS). Refer to GROUP
54B, SWS Diagnosis

P.54B-59

.

POWER WINDOW DIAGNOSIS

M1429000700224

The power window is controlled by the simplified wir-
ing system (SWS). Refer to GROUP 54B, SWS
Diagnosis

P.54B-59

.

DOOR DIAGNOSIS

INTRODUCTION TO GLASS AND DOOR DIAGNOSIS

M1423007300241

Glass and door faults include water leaks and
improper opening and closing. Causes for these
faults can include faults in the glass, weatherstrip,
drain hole, waterproof film or door installation.

GLASS AND DOOR DIAGNOSTIC TROUBLESHOOTING STRATEGY

M1423006700246

Use these steps to plan your diagnostic strategy. If
you follow them carefully, you will be sure that you
have exhausted most of the possible ways to find a
glass and door fault.
1. Gather information from the customer.

2. Verify that the condition described by the

customer exists.

3. Find the malfunction by following the Symptom

Chart.

4. Verify malfunction is eliminated.
