FRONT BUMPER  ASSEMBLY

TSB Revision

EXTERIOR

51-2

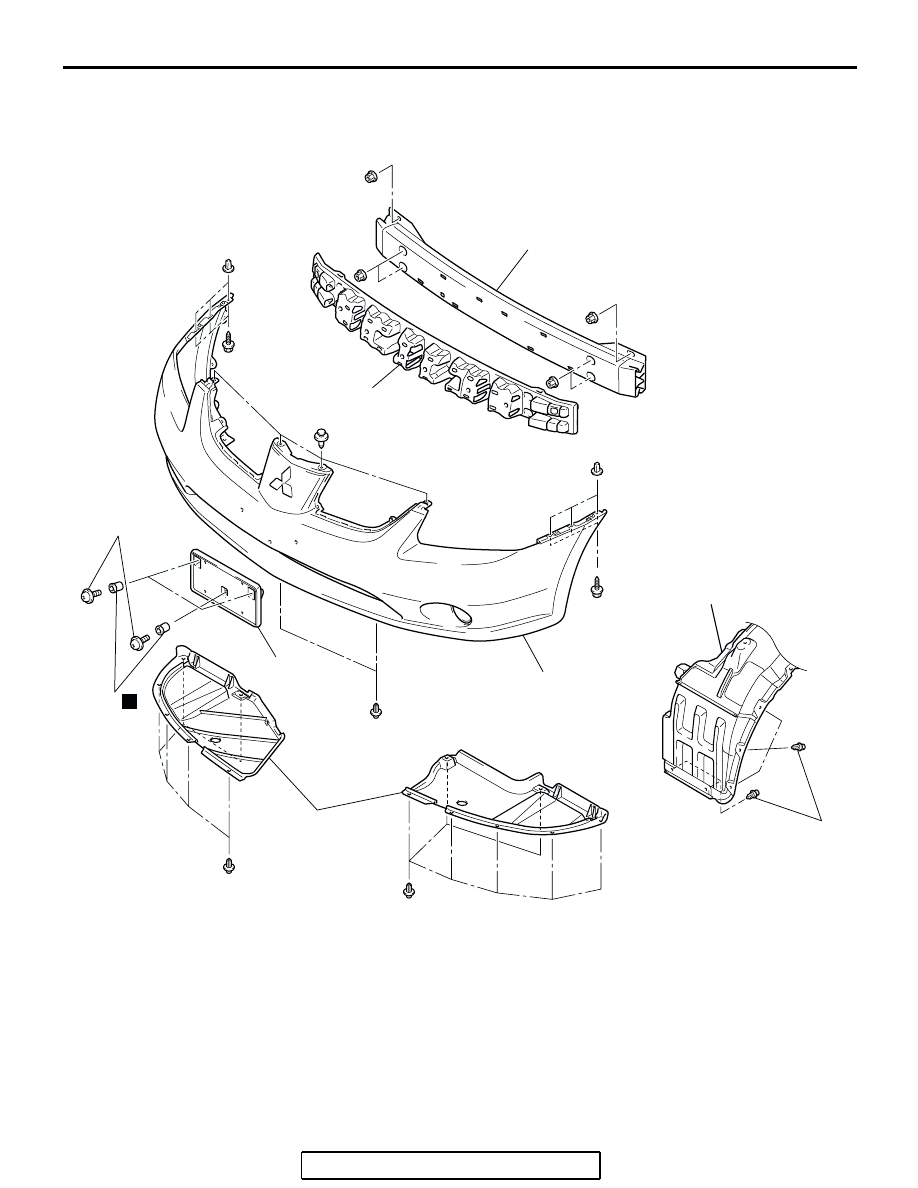

FRONT BUMPER ASSEMBLY

REMOVAL AND INSTALLATION

M1511001400499

AC305875

1

5

7

6

4

2

3

SPLASH SHIELD

0.9 ± 0.1 N·m
8 ± 1 in -lb

AB

N

REMOVAL STEPS
• RADIATOR GRILLE (REFER TO

P.51-5

).

1. SPLASH SHIELD MOUNTING CLIPS
2. FRONT BUMPER UNDER COVER
3. RUBBER NUT
4. LICENSE PLATE GARNISH

• FOG LIGHT CONNECTOR

CONNECTION

5. FRONT BUMPER ASSEMBLY
6. FRONT BUMPER CORE
7. FRONT BUMPER

REINFORCEMENT ASSEMBLY

REMOVAL STEPS (Continued)

FRONT BUMPER ASSEMBLY

TSB Revision

EXTERIOR

51-3

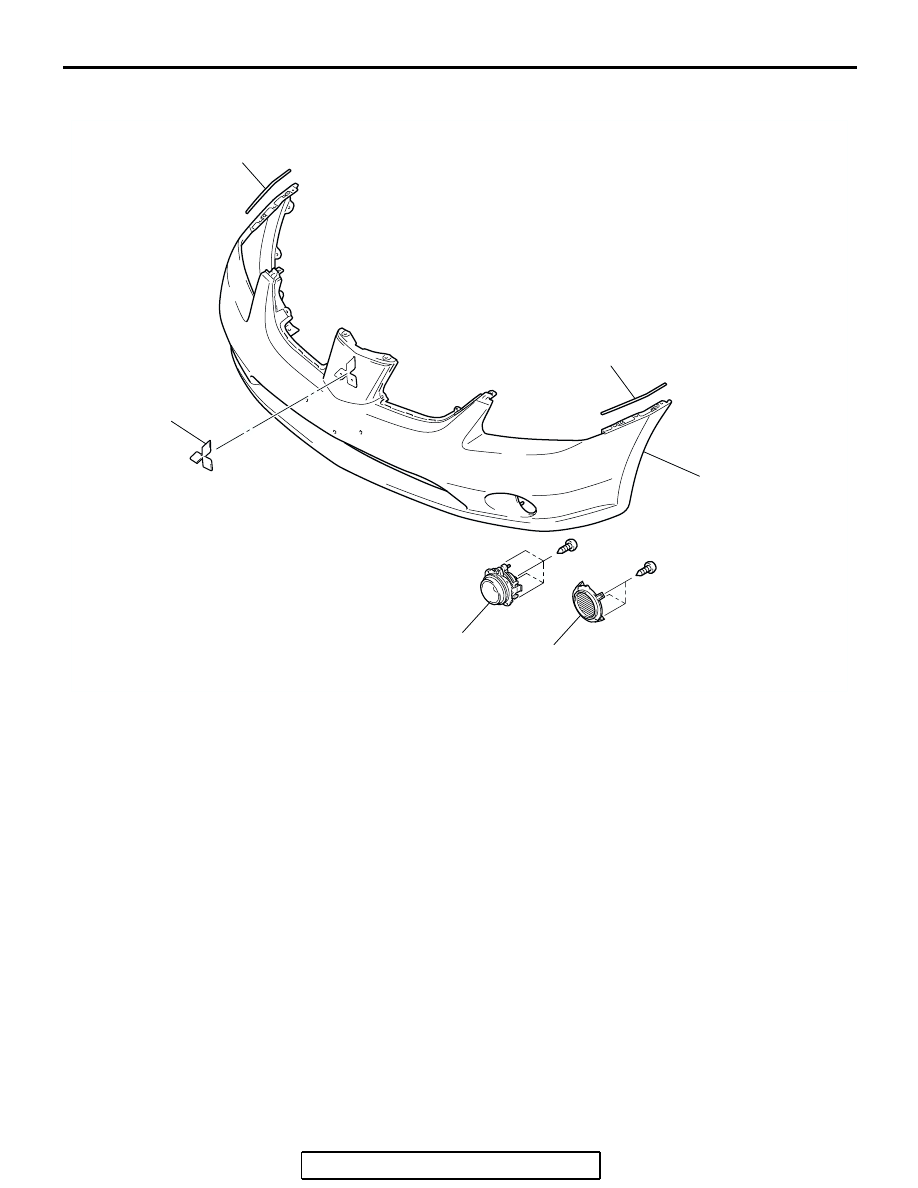

DISASSEMBLY AND ASSEMBLY

M1511001600493

AC305876

1

2

2

3

4

5

AB

DISASSEMBLY STEPS
1. THREE-DIAMOND MARK
2. PAD
3. FOG LIGHT  ASSEMBLY

4. FOG  LIGHT HOLE COVER

(VEHICLES WITHOUT FOG
LIGHTS)

5. FRONT BUMPER FACE

DISASSEMBLY STEPS (Continued)

REAR BUMPER ASSEMBLY

TSB Revision

EXTERIOR

51-4

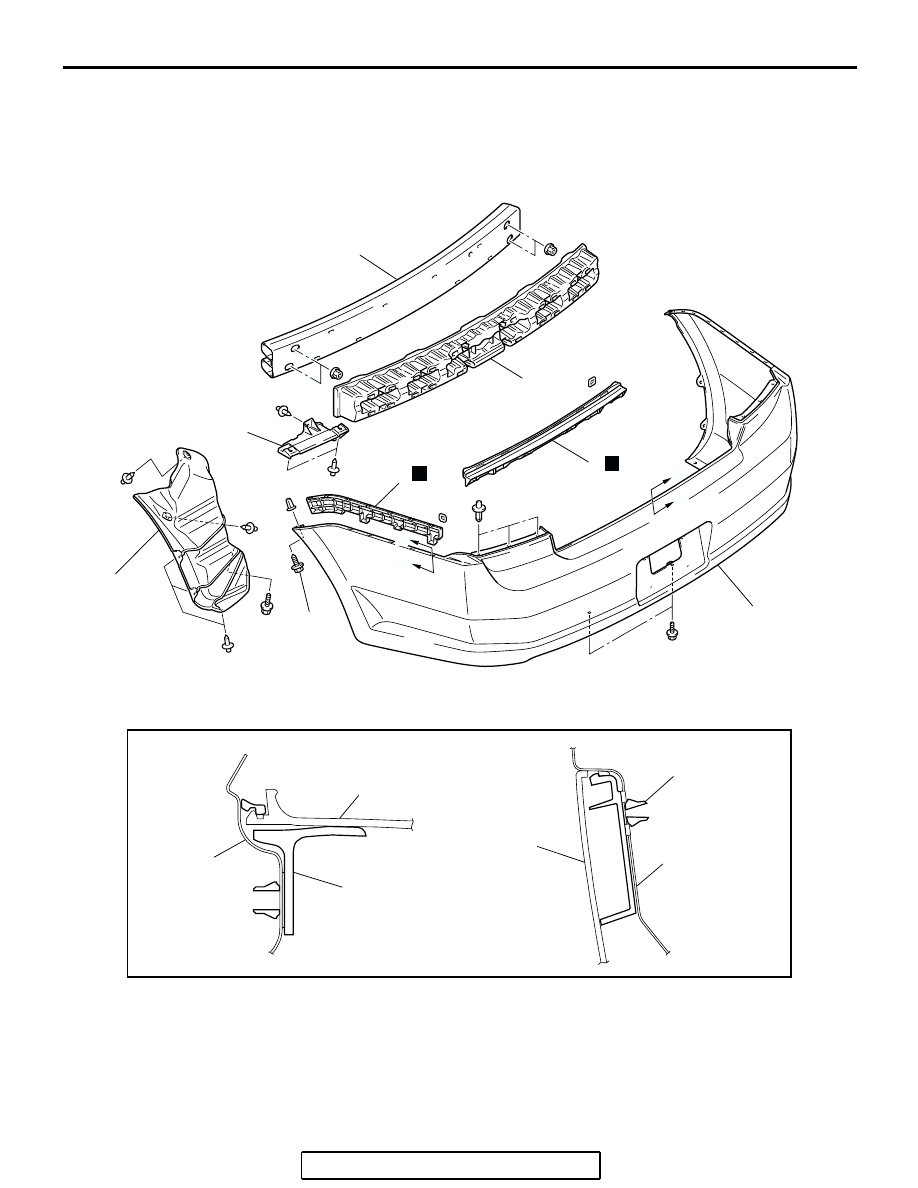

REAR BUMPER ASSEMBLY

REMOVAL AND INSTALLATION

M1511001900427

AC306448 AB

1

3

2

4

5

6

7

8

N

N

B

B

A

A

AC306484

SECTION A – A

SECTION B – B

REAR END OUTER

PANEL

SIDE OUTER PANEL

4

3

3

5

AB

REMOVAL STEPS
• REAR COMBINATION LIGHT

(REFER TO GROUP 54A, REAR
COMBINATION LIGHT

P.54A-119

).

• REAR END TRIM REFER TO

GROUP 52A,  TRIMS

P.52A-10

).

1. REAR SPLASH SHIELD
2. TAPPING SCREW

3. REAR BUMPER ASSEMBLY
4. REAR BUMPER CENTER BRACKET
5. REAR BUMPER SIDE BRACKET
6. REAR BUMPER CORE
7. REAR END OUTER PLATE
8. REAR BUMPER REINFORCEMENT

REMOVAL STEPS (Continued)

RADIATOR GRILLE

TSB Revision

EXTERIOR

51-5

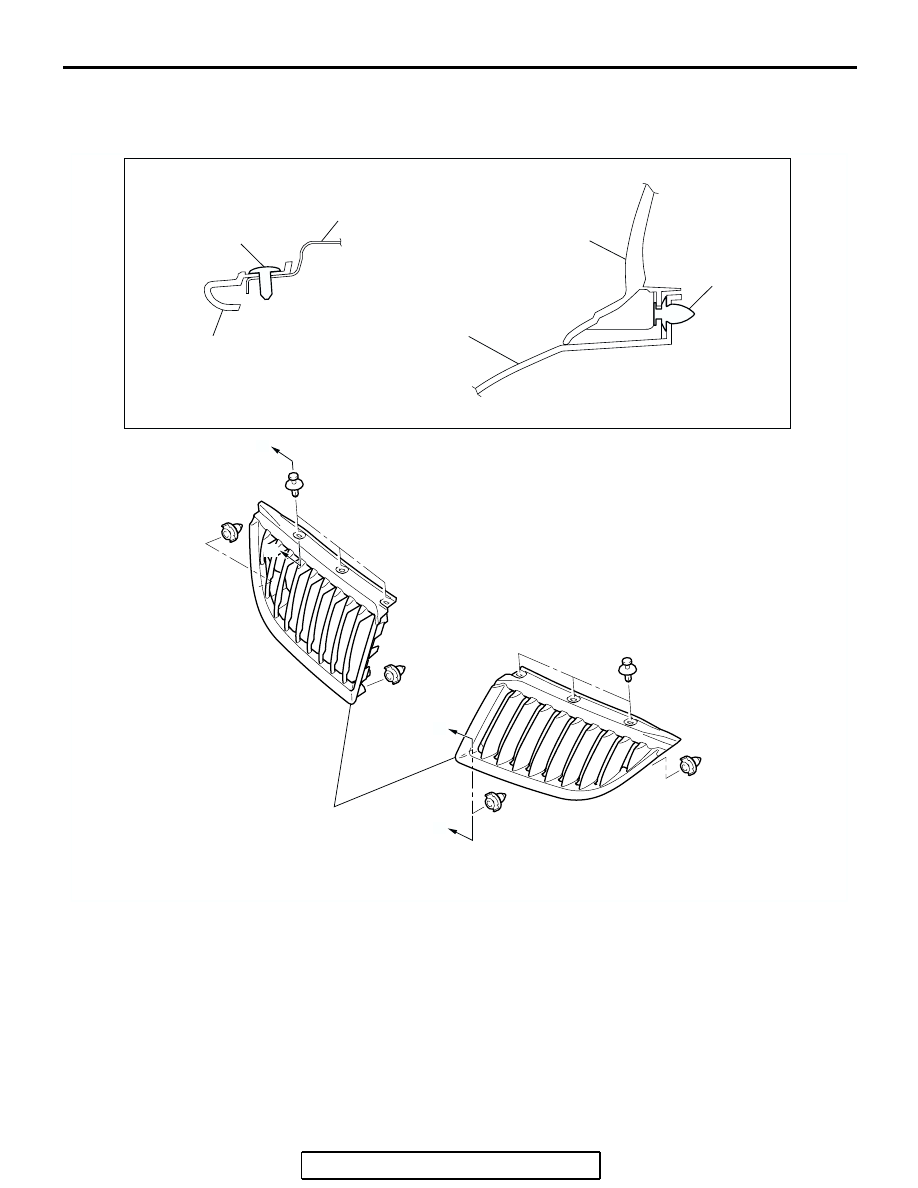

RADIATOR GRILLE

REMOVAL AND INSTALLATION

M1511002900237

AC306184

AB

SECTION B – B

SECTION A – A

CLIP

CLIP

RADIATOR GRILLE

RADIATOR GRILLE

RADIATOR GRILLE

FRONT BUMPER

FRONT END

UPPER BAR

B

B

A

A
