CHARGING SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-16

REMOVAL SERVICE POINT

.

<<A>> GENERATOR ASSEMBLY REMOVAL

Remove the generator assembly from above the vehicle.

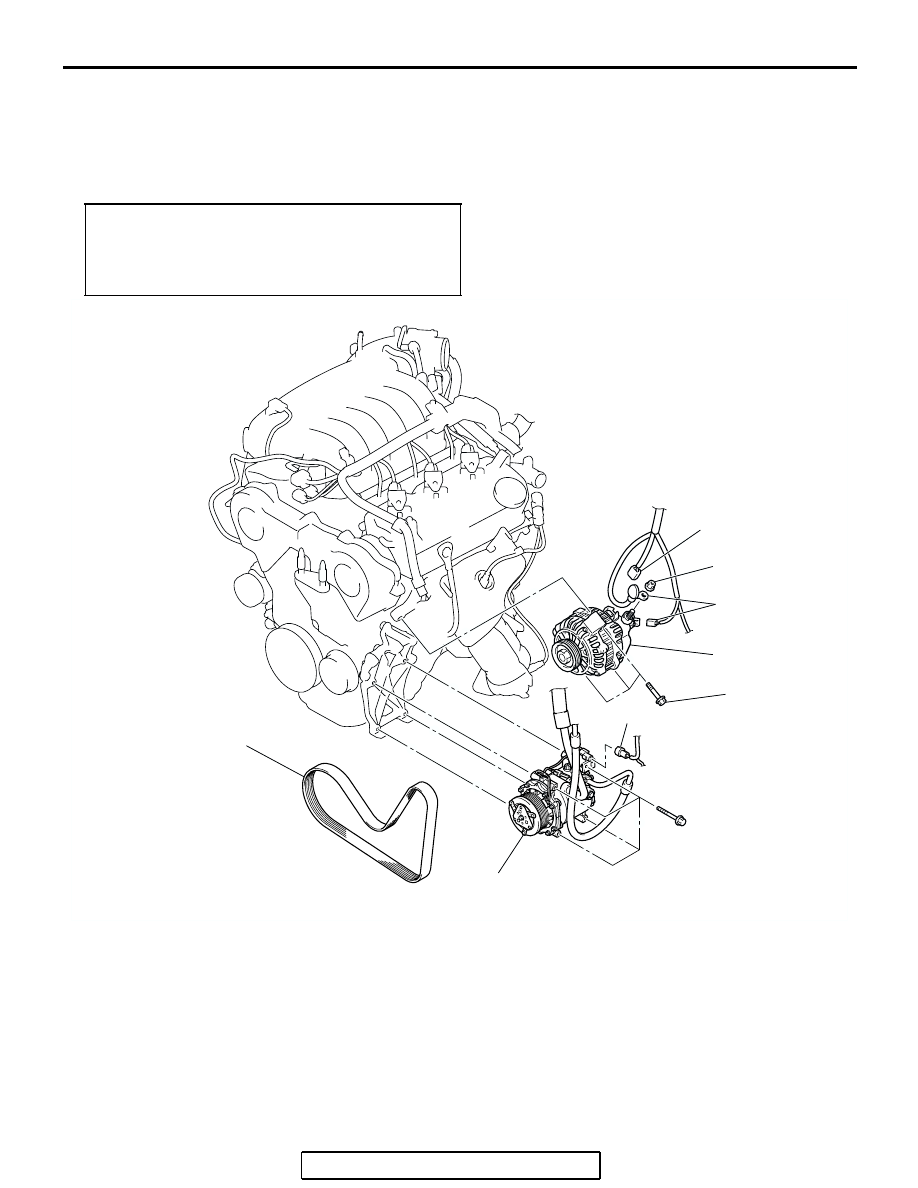

REMOVAL AND INSTALLATION <3.8L ENGINE>

M1161001400601

Pre-removal and Post-installation Operation
• Under Cover Removal and Installation (Refer to GROUP

51, Under Cover

P.51-11

).

• Side Under Cover Removal and Installation  (Refer to

GROUP 51, Under Cover

P.51-11

).

AC306926

49 ± 9 N·m
36 ± 7 ft-lb

1

2

3

4

5

AB

2

12 ± 2 N·m
102 ± 22 in-lb

REMOVAL STEPS

1.

GENERATOR DRIVE  BELT

2.

GENERATOR CONNECTOR

3.

A/C COMPRESSOR ASSEMBLY
CONNECTOR

<<A>>

4.

A/C COMPRESSOR ASSEMBLY

<<B>>

5.

GENERATOR ASSEMBLY

REMOVAL STEPS (Continued)

CHARGING SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-17

REMOVAL SERVICE POINT

.

<<A>> A/C COMPRESSOR ASSEMBLY REMOVAL

Remove the compressor from the compressor bracket with the
hose still attached.
NOTE: Place the removed A/C compressor where it will not be
a hindrance when removing and installing the generator, and
secure it with a cord or wire.

.

<<B>> GENERATOR ASSEMBLY REMOVAL

Move the A/C compressor assembly to one side, and then
remove the generator assembly from under the vehicle.

CHARGING SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-18

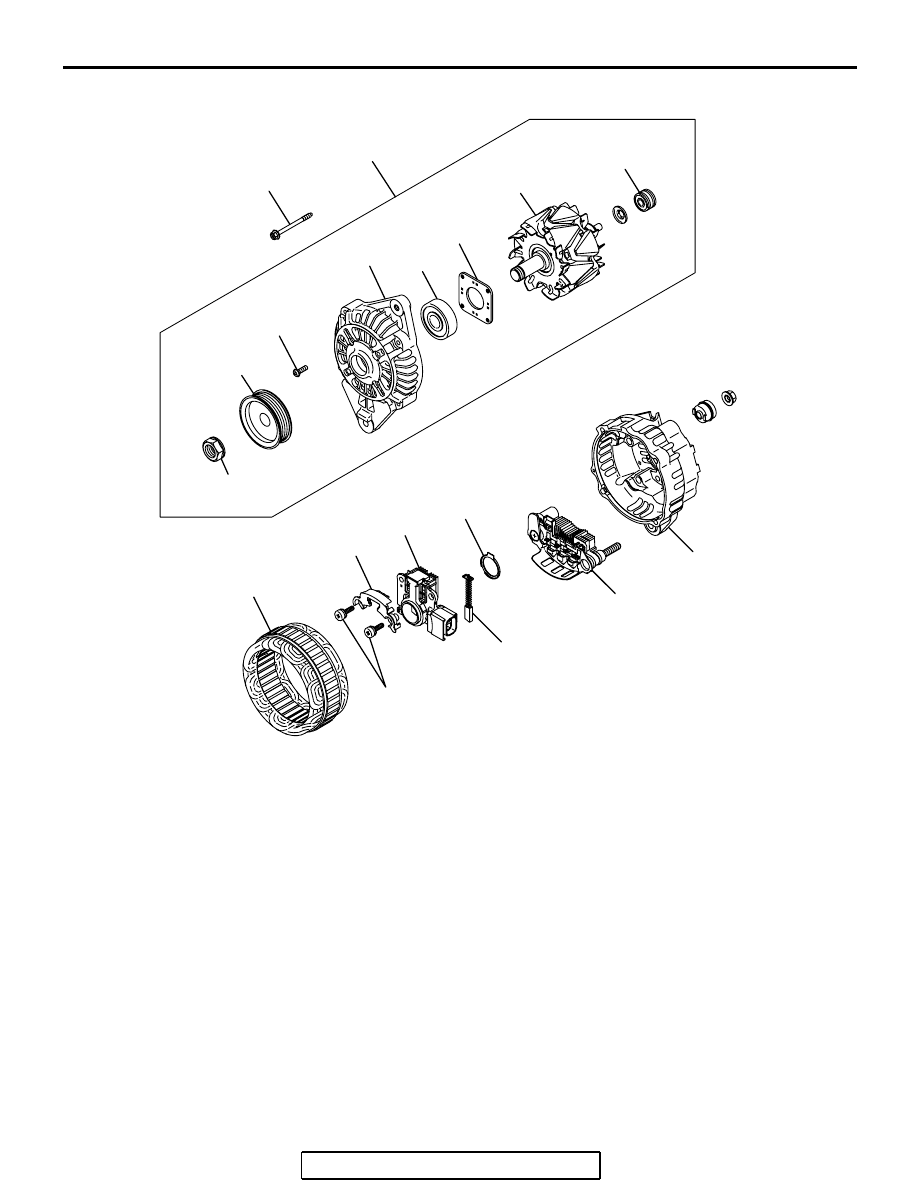

DISASSEMBLY AND ASSEMBLY

M1161001600188

<2.4L ENGINE>

AK101047

1

2

7

6

5

3

4

8

9

10

12

13

14

11

AD

4.4 ± 1.0 N·m
39 ± 9 in-lb

3.7 ± 0.7 N·m
33 ± 6 in-lb

3.7 ± 0.7 N·m
33 ± 6 in-lb

118 ± 19 N·m
87 ± 14 ft-lb

DISASSEMBLY STEPS

<<A>>

1. FRONT BRACKET ASSEMBLY

<<B>>

2. GENERATOR PULLEY

>>B<<

3. ROTOR ASSEMBLY
4. REAR BEARING
5. BEARING RETAINER
6. FRONT BEARING
7. FRONT BRACKET

<<C>>

8. STATOR
9. PLATE

>>A<<

10. REGULATOR ASSEMBLY
11. BRUSH
12. SLINGER
13. RECTIFIER
14. REAR BRACKET

DISASSEMBLY STEPS (Continued)

CHARGING SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-19

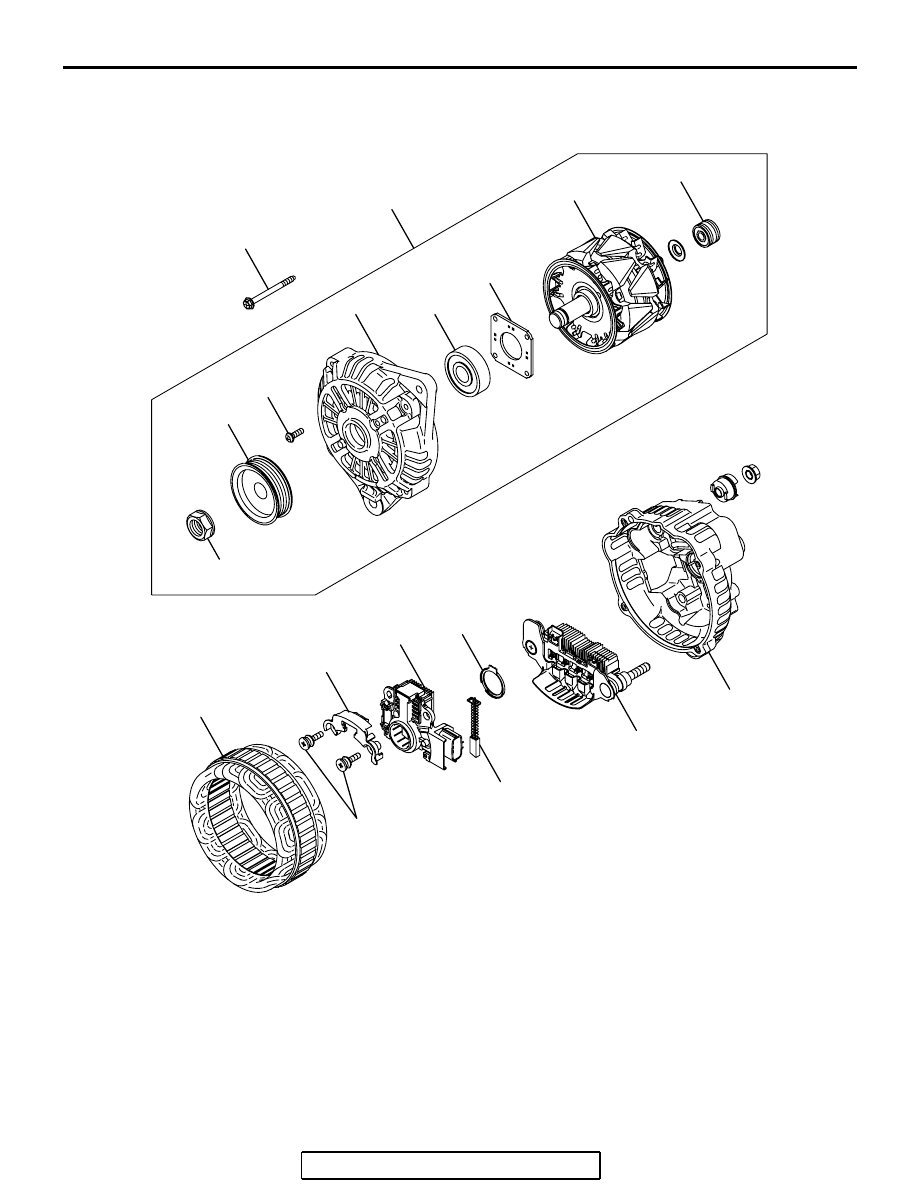

<3.8L ENGINE>

AK102249

1

2

7

6

5

3

4

8

9

10

12

13

14

11

4.4 ± 1.0  N·m
39 ± 9 in-lb

3.7 ± 0.7 N·m
33 ± 6 in-lb

3.7 ± 0.7 N·m
33 ± 6 in-lb

AB

118 ± 19 N·m
87 ± 14 ft-lb

DISASSEMBLY STEPS

<<A>>

1.

FRONT BRACKET ASSEMBLY

<<B>>

2.

GENERATOR PULLEY

>>B<<

3.

ROTOR ASSEMBLY

4.

REAR BEARING

5.

BEARING RETAINER

6.

FRONT BEARING

7.

FRONT BRACKET

<<C>>

8. STATOR
9. PLATE

>>A<<

10. REGULATOR ASSEMBLY
11. BRUSH
12. SLINGER
13. RECTIFIER
14. REAR BRACKET

DISASSEMBLY STEPS (Continued)
