Mitsubishi Galant 9G. Manual - part 264





MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-132

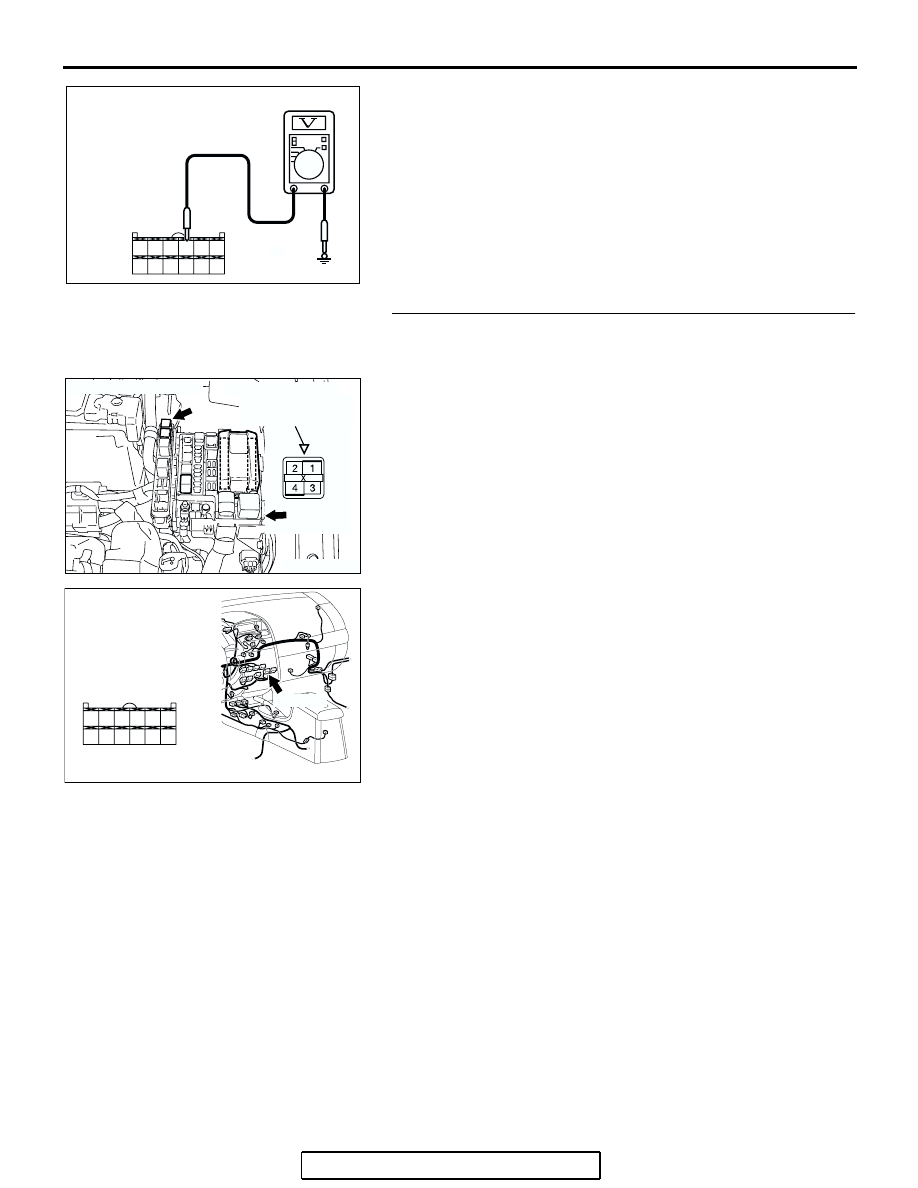

(4) Measure the voltage between A/C-ECU connector C-09

terminal No.23 and ground.

• The measured value should be approximately 12 volts

(battery positive voltage).

Q: Does the measured voltage correspond with this range?

YES : Go to Step 18.
NO :   Go to Step 17.

STEP 17. Check the wiring harness between A/C
compressor clutch relay connector B-18X (terminal 4) and
A/C-ECU connector C-09 (terminal 23).

AC209365

21

22

23

24

25

26

27

28

29

30

31

32

CONNECTOR C-09
(HARNESS SIDE)

GV

AC305977AJ

CONNECTOR: B-18X

RELAY BOX SIDE

FRONT OF
VEHICLE

JUNCTION BLOCK
TRIANGLE MARK

AC305233

C-09 (B)

HARNESS SIDE

21

22

23

24

25

26

27

28

29

30

31

32

BB

CONNECTOR: C-09

MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-133

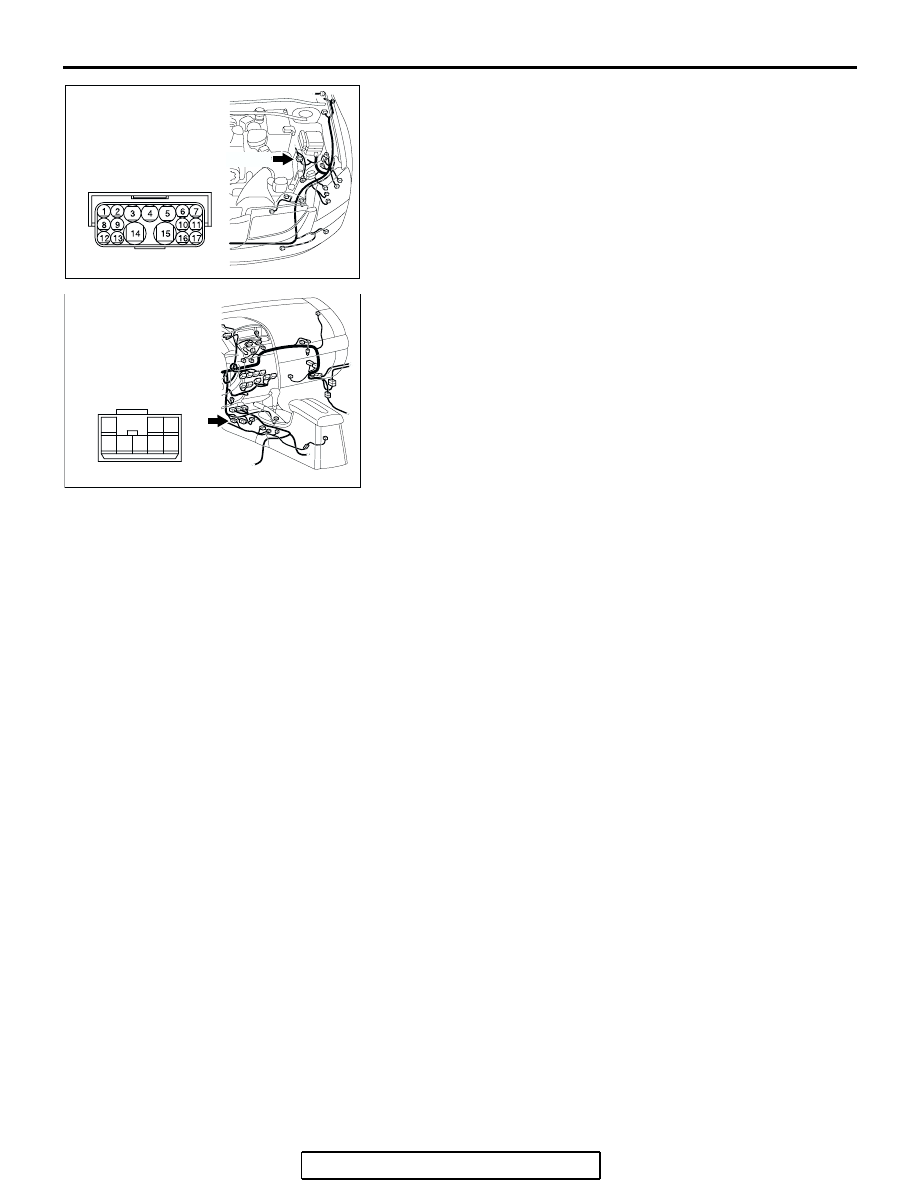

NOTE: Also check intermediate connectors A-13 and C-23 for
loose, corroded, or damaged terminals, or terminals pushed
back in the connector. If intermediate connector A-13 or C-23 is
damaged, repair or replace the connector as described in
GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between A/C compressor clutch

relay connector B-18X (terminal 4) and A/C-ECU
connector C-09 (terminal 23) in good condition?
YES :
It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-14

.

NO :  Repair the wiring harness. Check that the air

conditioning works normally.

AC305210

A-13 (GR)

AR

CONNECTOR: A-13

AC305233BL

CONNECTOR: C-23

8

3

1

4 5 6

2

7

MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-134

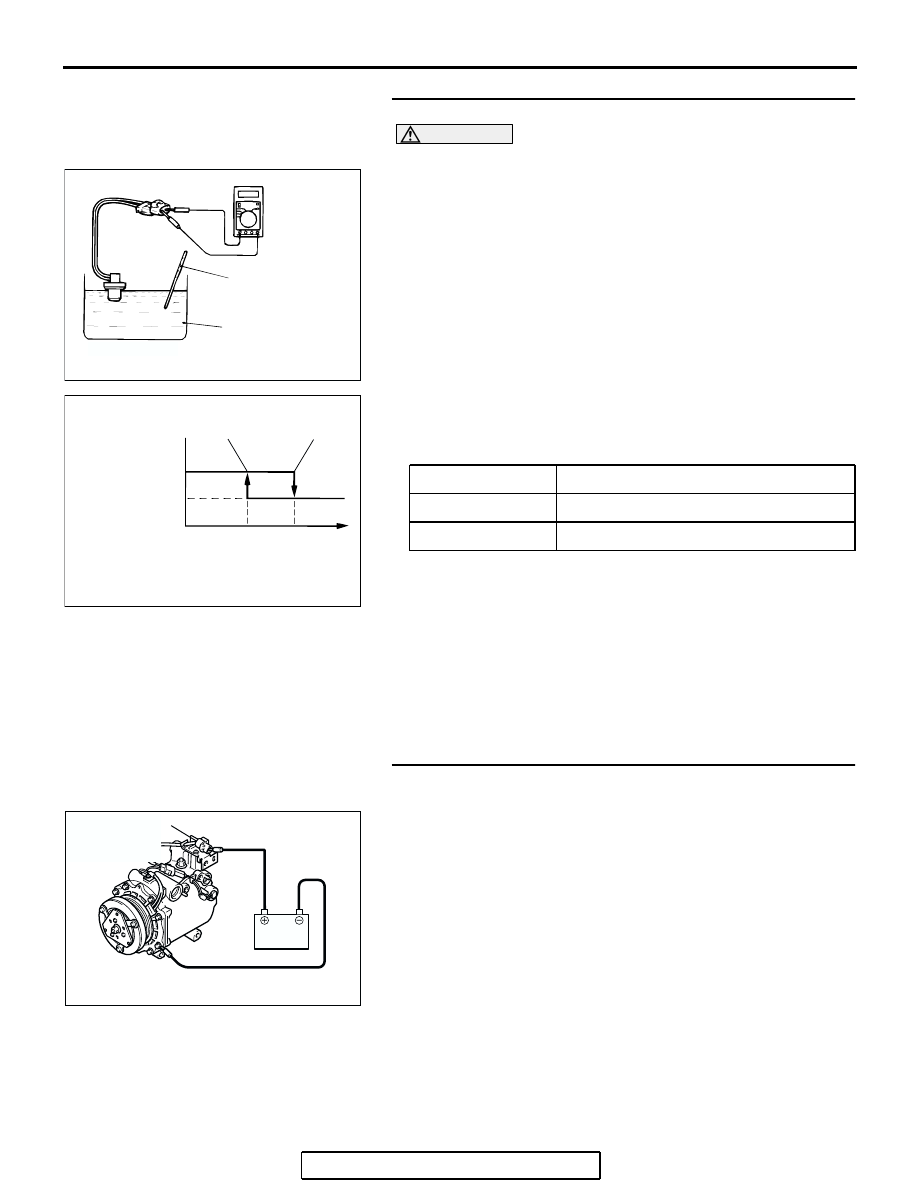

STEP 18. Check the refrigerant temperature switch.

CAUTION

Do not heat more than necessary.
(1) Dip the metal part of the cooling temperature switch into

engine oil and increase the oil temperature using a gas
burner or similar.

(2) When the oil temperature reaches the standard value,

check that voltage is supplied between the terminals.

Standard value:

NOTE: When the oil temperature is 155

°

C (311

°

F) or more

and there is no continuity, the resistance will not be 2

 or

lower until the oil temperature reduces to 125

°

C (257

°

F) or

less.

Q: Is the refrigerant temperature switch operating

properly?
YES :
Go to Step 19.
NO :  Replace the refrigerant temperature switch. Check

that the air conditioning works normally.

STEP 19. Check the air conditioning compressor clutch
operation.
Connect the compressor connector terminal to the battery posi-
tive (+) terminal and ground the battery’s negative (-) terminal
to the compressor unit. At that time, the air conditioning com-
pressor clutch should make a definite operating sound.
Q: Can the sound (click) of the air conditioning

compressor clutch operation be heard?
YES :
Go to Step 20.
NO :  Replace the compressor magnet clutch. Check that

the air conditioning works normally.

ITEM

TEMPERATURE

Less than 2 ohms Slightly below 155

°C (311°F)

No continuity

155

°C (311°F) or more

AC100787

THERMOMETER

ENGINE OIL

AB

AC100810

LESS THAN 2

Ω

NO CONTINUITY

125˚C
(
257˚F)

155˚C
(
311˚F)

OIL TEMPRATURE

AE

AC206292AB

A/C COMPRESSOR
CLUTCH
CONNECTOR

MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-135

STEP 20. Check the air thermo sensor.
Measure the resistance between connector terminals 1 and 2
under at least two different temperatures. The resistance val-
ues should generally match those in the graph.
NOTE: The temperature at the check should not exceed the
range in the graph.
Q: Is the air thermo sensor in good condition?

YES : Go to Step 21.
NO :  Replace the air thermo sensor. Check that the air

conditioning works normally.

STEP 21. Check the ambient air temperature sensor.
Measure the resistance between the sensor terminals under at
least two temperatures. The resistance values should meet the
values shown.
NOTE: The temperature should be within the shown range.
Q: Is the ambient air temperature  sensor in good

condition?
YES :
Go to Step 22.
NO :  Replace the ambient air temperature sensor. Check

that the air conditioning works normally.

AC001043

RESISTANCE k

8

6

4

2

0

-10

0

 10

 20

 30

   40

TEMPERATURE ˚C(˚F)

AB

(14)

(32)

(50)

(86)

(104)

(68)

AC209942AB

REGISTANCE
k

10

20

30

40

0

0

20

(32) (68)

TEMPERATURE ˚C (˚F)

40

(104)

60

(140)

-20

(-4)

-30

(-22)
