Mitsubishi Galant 9G. Manual - part 178

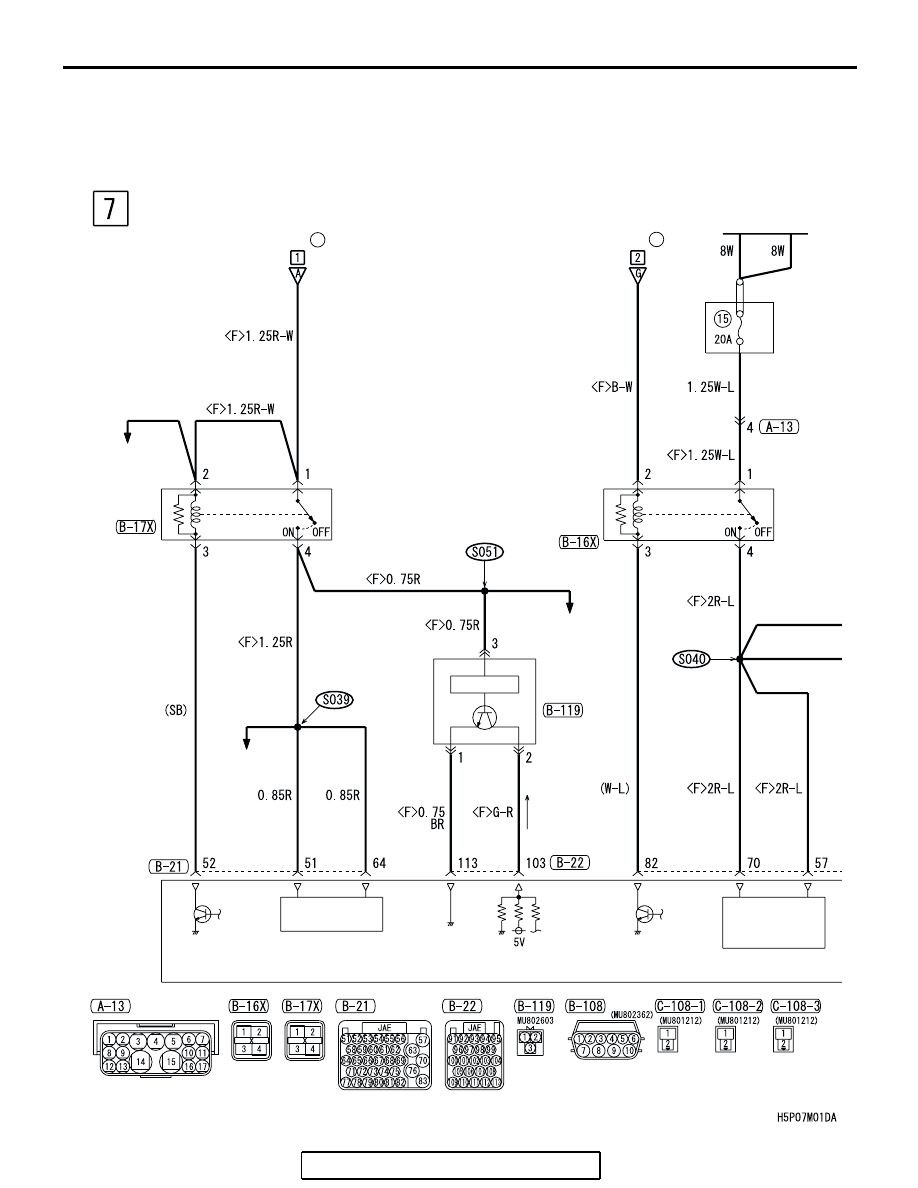

INVECS-II 4A/T <3.8L ENGINE>

TSB Revision

CIRCUIT DIAGRAMS

90-74

INVECS-II 4A/T <3.8L ENGINE> (CONTINUED)

RELAY BOX

 (FUSE     )

9

MFI SYSTEM

MFI
RELAY

MFI SYSTEM

POWER
SUPPLY

SOLENOID
VALVE POWER
SUPPLY

CRANKSHAFT
POSITION
SENSOR

MFI SYSTEM

(FUSE     )

22

BATTERY

RELAY
BOX

A/T
CONTROL
RELAY

JOINT
CONNECTOR (1)

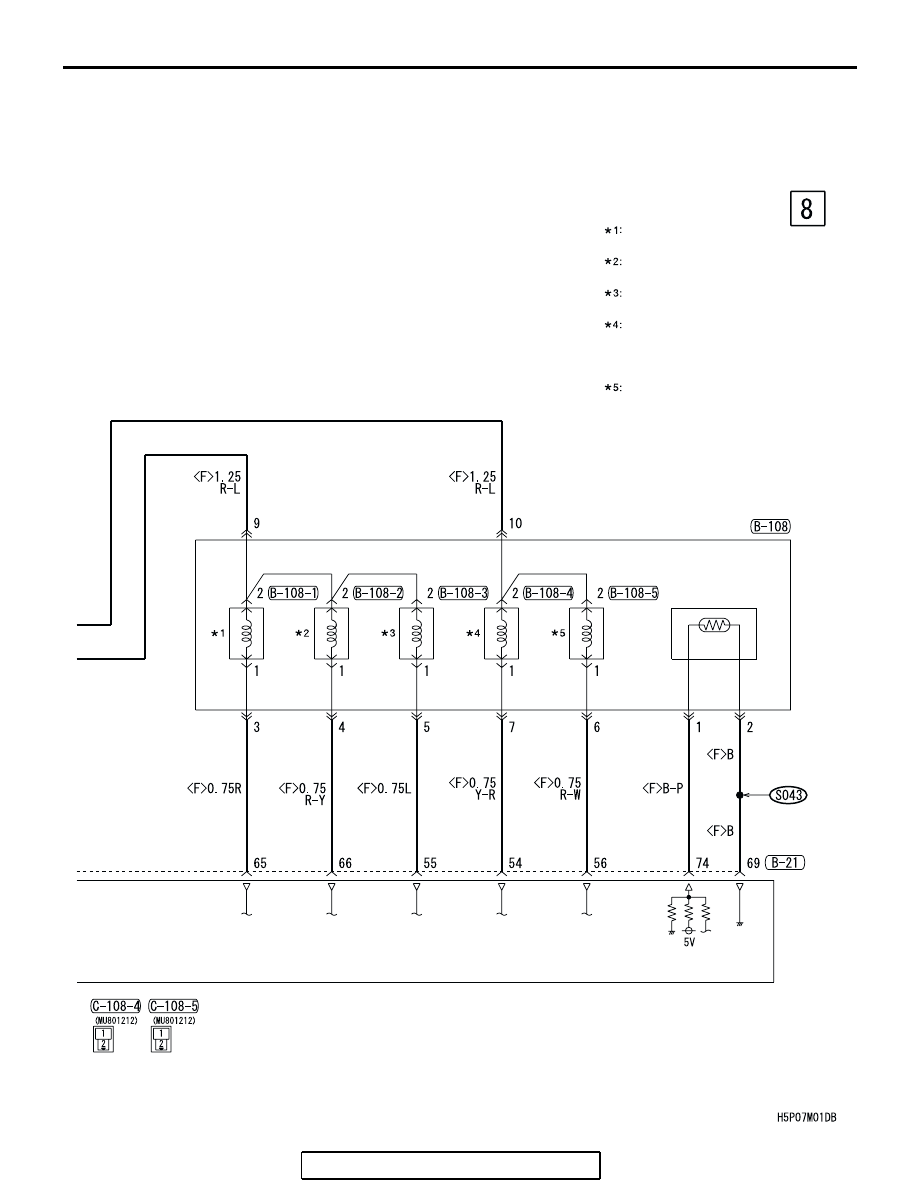

INVECS-II 4A/T <3.8L ENGINE>

TSB Revision

CIRCUIT DIAGRAMS

90-75

POWERTRAIN CONTROL MODULE

A/T CONTROL
SOLENOID
VALVE ASSEMBLY

NOTE

UNDERDRIVE
SOLENOID
VALVE
SECOND
SOLENOID
VALVE
OVERDRIVE
SOLENOID
VALVE
TORQUE
CONVERTER
CLUTCH
CONTROL
SOLENOID
VALVE
LOW AND
REVERSE
SOLENOID
VALVE

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW
SB : SKY BLUE     BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET

TRANSMISSION
FLUID
TEMPERATURE
SENSOR

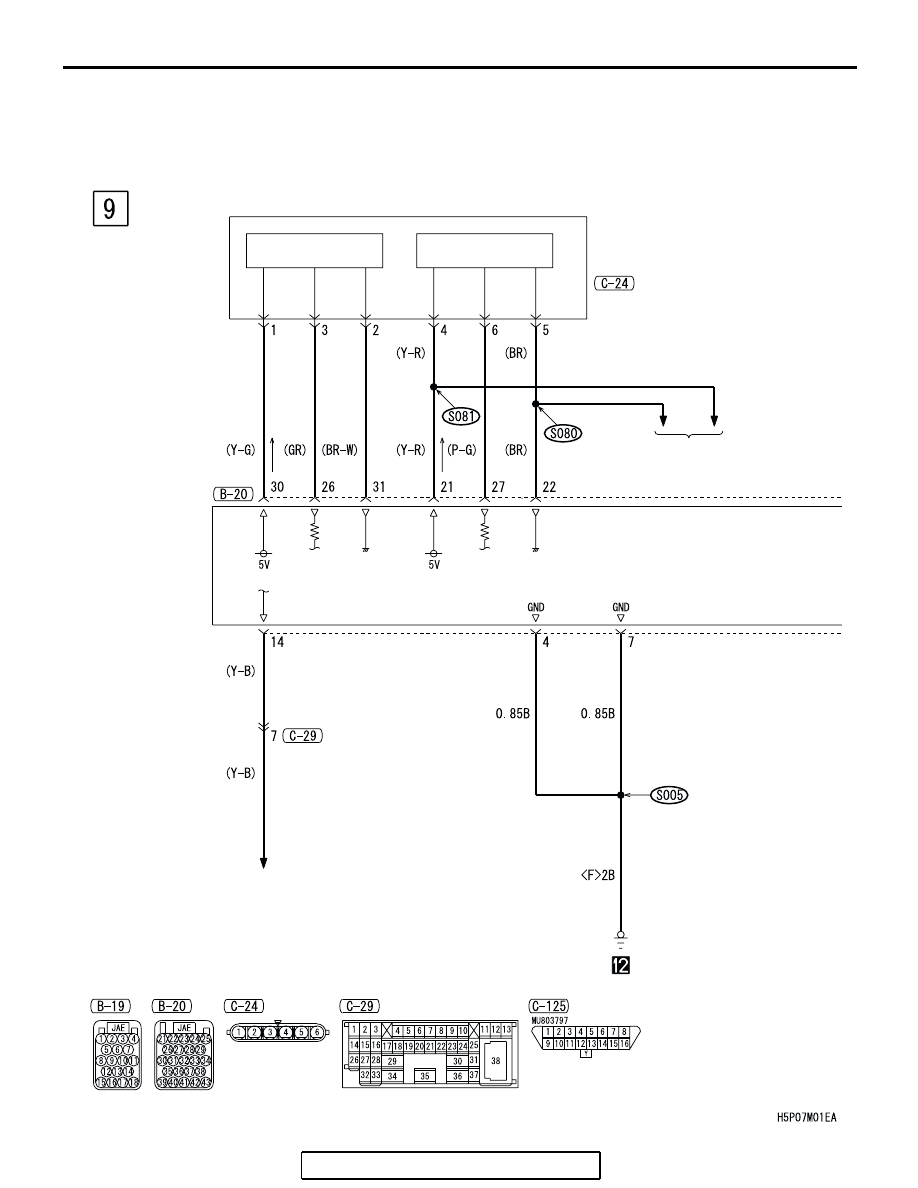

INVECS-II 4A/T <3.8L ENGINE>

TSB Revision

CIRCUIT DIAGRAMS

90-76

INVECS-II 4A/T <3.8L ENGINE> (CONTINUED)

MFI SYSTEM

MULTI-CENTER
DISPLAY <LOW>

ACCELERATOR
PEDAL
POSITION
SENSOR

(MAIN)

(SUB)

HALL IC

HALL IC

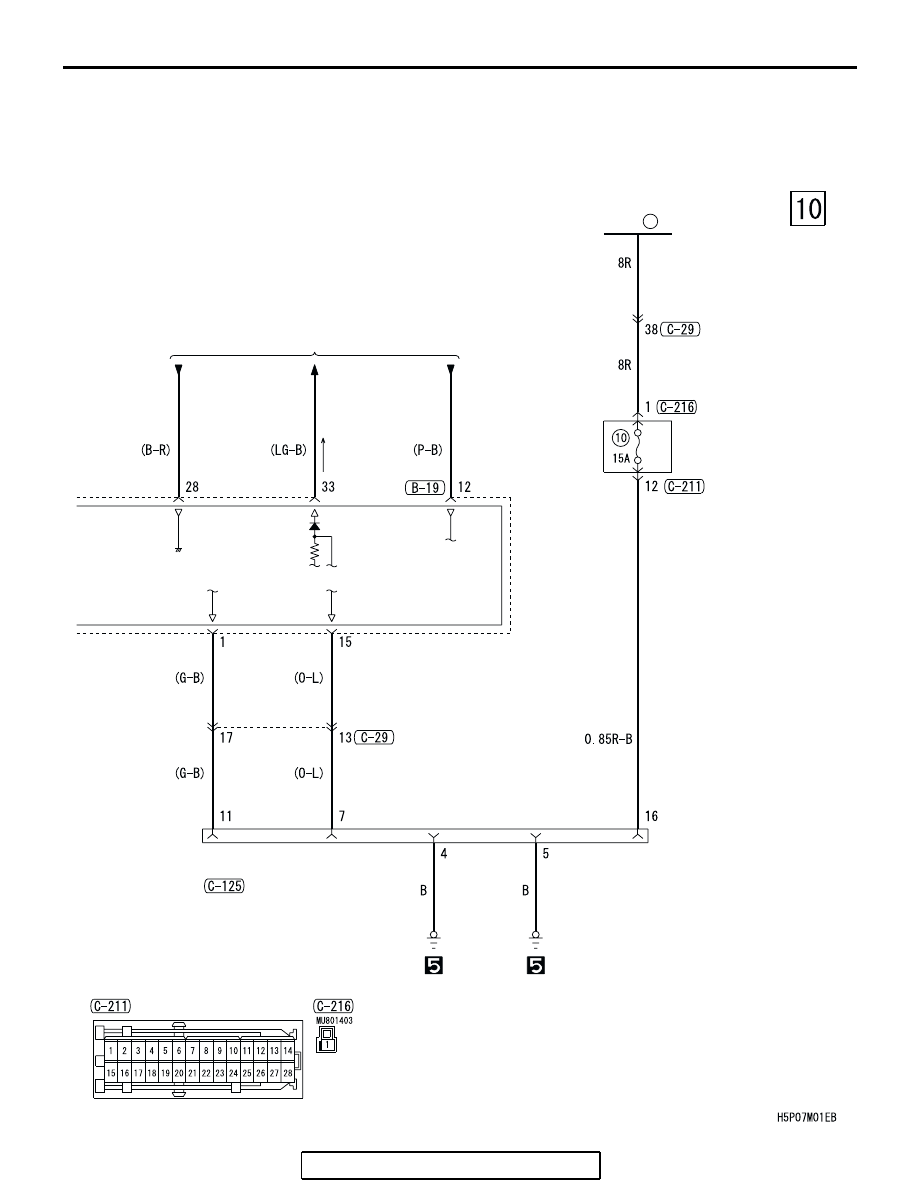

INVECS-II 4A/T <3.8L ENGINE>

TSB Revision

CIRCUIT DIAGRAMS

90-77

DATA LINK
CONNECTOR

POWERTRAIN
CONTROL
MODULE

JUNCTION
BLOCK

FUSIBLE
LINK

1

AUTO-CRUISE
CONTROL SYSTEM

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE
BR :BROWN     O : ORANGE     GR : GRAY     R : RED     W : WHITE
SB : SKY BLUE     P : PINK      Y : YELLOW     V : VIOLET
