JOINT CONNECTOR

TSB Revision

CIRCUIT DIAGRAMS

90-14

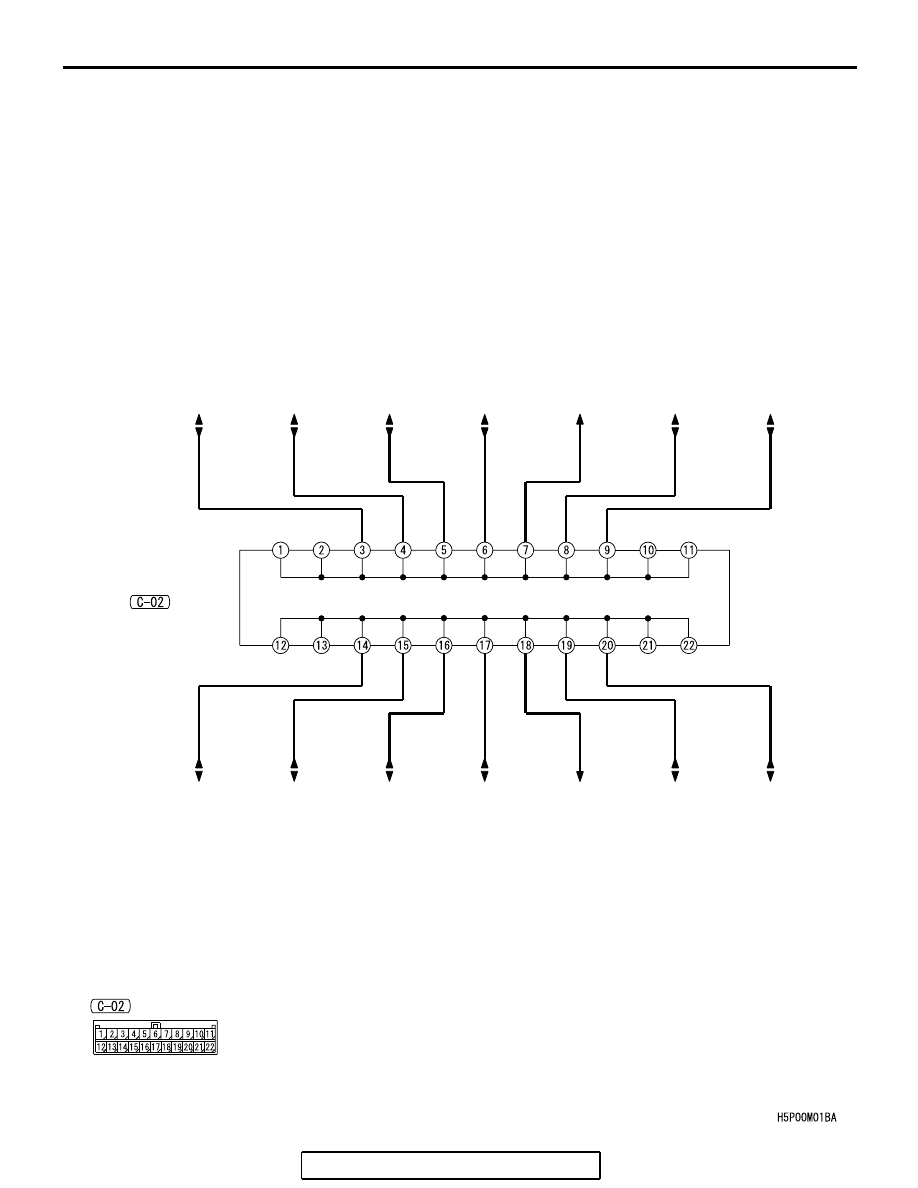

JOINT CONNECTOR (CONTINUED)

SRS-ECU

SRS-ECU

ETACS-ECU

A/C-ECU

ETACS-ECU

A/C-ECU

COMBINATION
METER

COMBINATION
METER

DATA LINK
CONNECTOR

MULTI-CENTER
DISPLAY UNIT

DATA LINK
CONNECTOR

MULTI-CENTER
DISPLAY UNIT

·ABS-ECU
·POWERTRAIN
 CONTROL
 MODULE

·ABS-ECU
·POWERTRAIN
 CONTROL
 MODULE

JOINT
CONNECTOR
(3)

CENTRALIZED JUNCTION

TSB Revision

CIRCUIT DIAGRAMS

90-15

CENTRALIZED JUNCTION

M1901000301013

FUSIBLE LINK AND FUSE

ENGINE COMPARTMENT

NO. POWER SUPPLY

CIRCUIT

NAME

RATED
CAPACITY (A)

HOUSING
COLOR

LOAD CIRCUIT

1

Battery/Generator

(Fusible link No.27)

Fusible

link

80

Black

Fuse Nos.5, 6, 9 and 10 (in junction

block) circuit

2

30

Pink

Radiator fan motor

3

60

Yellow

ABS-ECU and ABS/TCL-ECU

4

40

Green

Ignition switch circuit

5

30

Pink

Fuse Nos.3 and 4 (in junction block

circuit), front power window regulator

motor, power seat assembly, power

window main switch and rear power

window regulator motor

6

Fuse

15

Blue

Fog light and fog light relay

7

20

Yellow

Heated seat assembly and heated

seat switch

8

15

Red

Horn (High), horn (Low) and horn

relay

9

20

Yellow

Camshaft position sensor, crankshaft

position sensor, engine oil control

valve, evaporative emission purge

solenoid, evaporative emission

ventilation solenoid, exhaust gas

recirculation valve, heated oxygen

sensor, immobilizer-ECU, injector,

mass airflow sensor, MFI relay,

powertrain control module and throttle

actuator control motor relay

10

10

Red

A/C compressor assembly and

A/C-ECU

11

15

Blue

ABS-ECU, ABS/TCL-ECU,

high-mounted stoplight, powertrain

control module and rear combination

light

12

13

7.5

Brown

Generator

14

10

Red

ETACS-ECU

15

20

Yellow

A/T control solenoid valve and

powertrain control module

16

Front-ECU (Headlight

relay: High)

10

Red

Headlight (RH) and headlight (High:

RH)

17

10

Red

Headlight (LH) and headlight (High:

LH)

18

Front-ECU (Field

effect transistor for

headlight: Low)

10

Red

Headlight (RH) and headlight (Low:

RH)

CENTRALIZED JUNCTION

TSB Revision

CIRCUIT DIAGRAMS

90-16

19

Front-ECU (Field

effect transistor for

headlight: Low)

Fuse

10

Red

Headlight (LH) and headlight (Low:

LH)

20

Front-ECU (Taillight

relay)

7.5

Brown

A/C-ECU, A/T selector lever position

illumination light, air bag off indicator

light (passenger’s side), combination

meter, fog light switch, front

combination light (RH), front side

marker light (RH), glove box light,

hazard warning light switch, heated

seat switch, multi-center display unit,

radio, CD player, CD changer, rear

combination light (RH), rheostat, seat

belt warning light (passenger’s side)

and TCL switch

21

7.5

Brown

Front combination light (LH), front

side marker light (LH), license plate

light and rear combination light (LH)

22

Battery/Generator

(Fusible link No.27)

10

Red

A/C-ECU, column switch,

combination meter, ETACS-ECU,

front-ECU, key reminder switch, multi-

center display unit, radio, CD player,

CD changer and vanity mirror light

23

Ignition switch (ACC)

10

Red

A/C-ECU, accessory socket relay,

ETACS-ECU, multi-center display

unit, radio, CD player and CD

changer

24

Battery/Generator

(Fusible link No.27)

15

Blue

Fuel pump module

25

Ignition switch (ACC)

30

Green

Front-ECU and windshield wiper

motor

26

Battery/Generator

(Fusible link No.27)

Fusible

link

20

Light blue Condenser fan motor

27

Generator

120

Battery, front-ECU, fusible link Nos.1,

2, 3, 4, 5 and 26 and fuse Nos.6, 7, 8,

9, 10, 11, 13, 14, 15, 22 and 24 (in

relay box)

NO. POWER SUPPLY

CIRCUIT

NAME

RATED
CAPACITY (A)

HOUSING
COLOR

LOAD CIRCUIT

CENTRALIZED JUNCTION

TSB Revision

CIRCUIT DIAGRAMS

90-17

AC208462AB

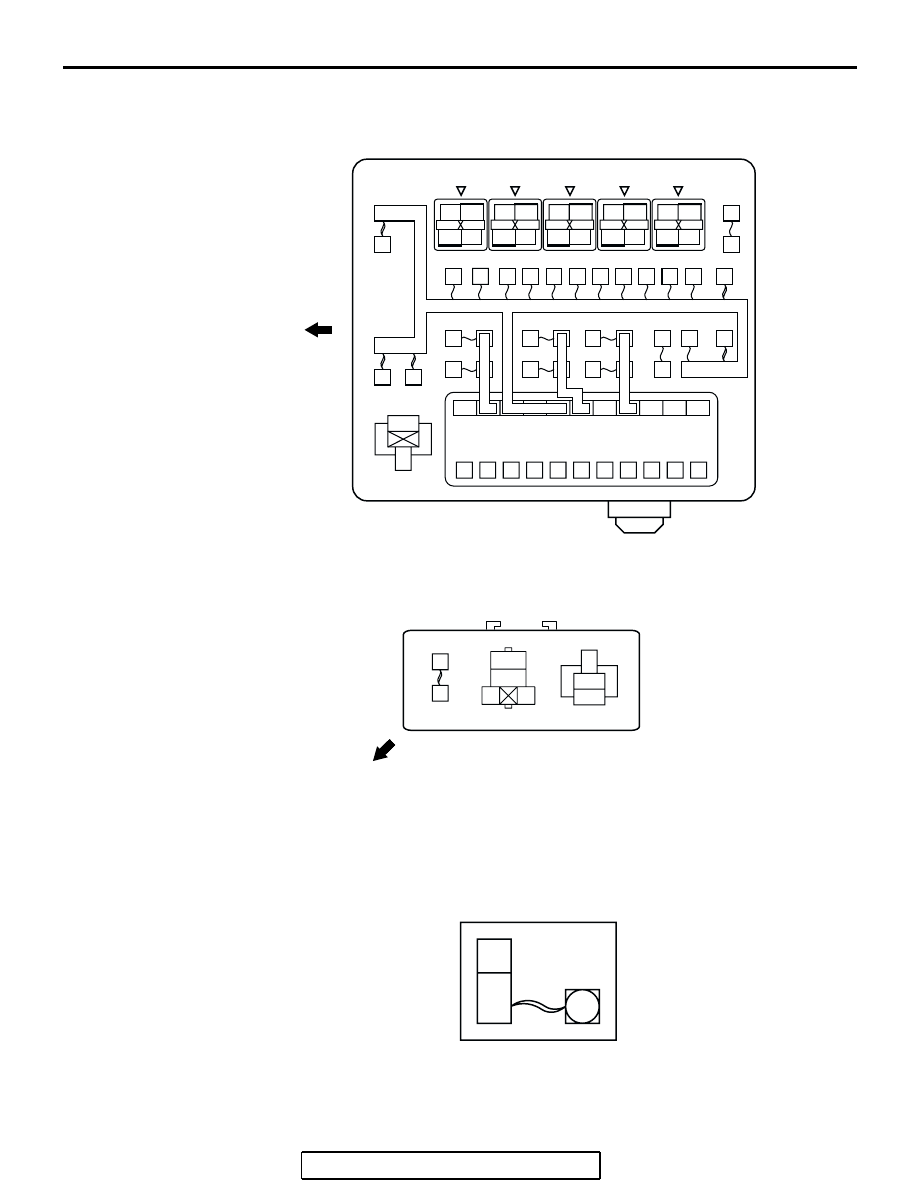

(RELAY BOX IN ENGINE COMPARTMENT)

FRONT OF VEHICLE

1

2

3

4

5

25

6

7

8 9 10 11 12 13 14 15 24

16

17

18

19

20

21

23 22

AC303418

(RELAY BOX IN ENGINE COMPARTMENT)

FRONT OF VEHICLE

26

AB

AC207745

(CONNECTED DIRECTLY TO BATTERY POSITIVE TERMINAL)

27

AG
