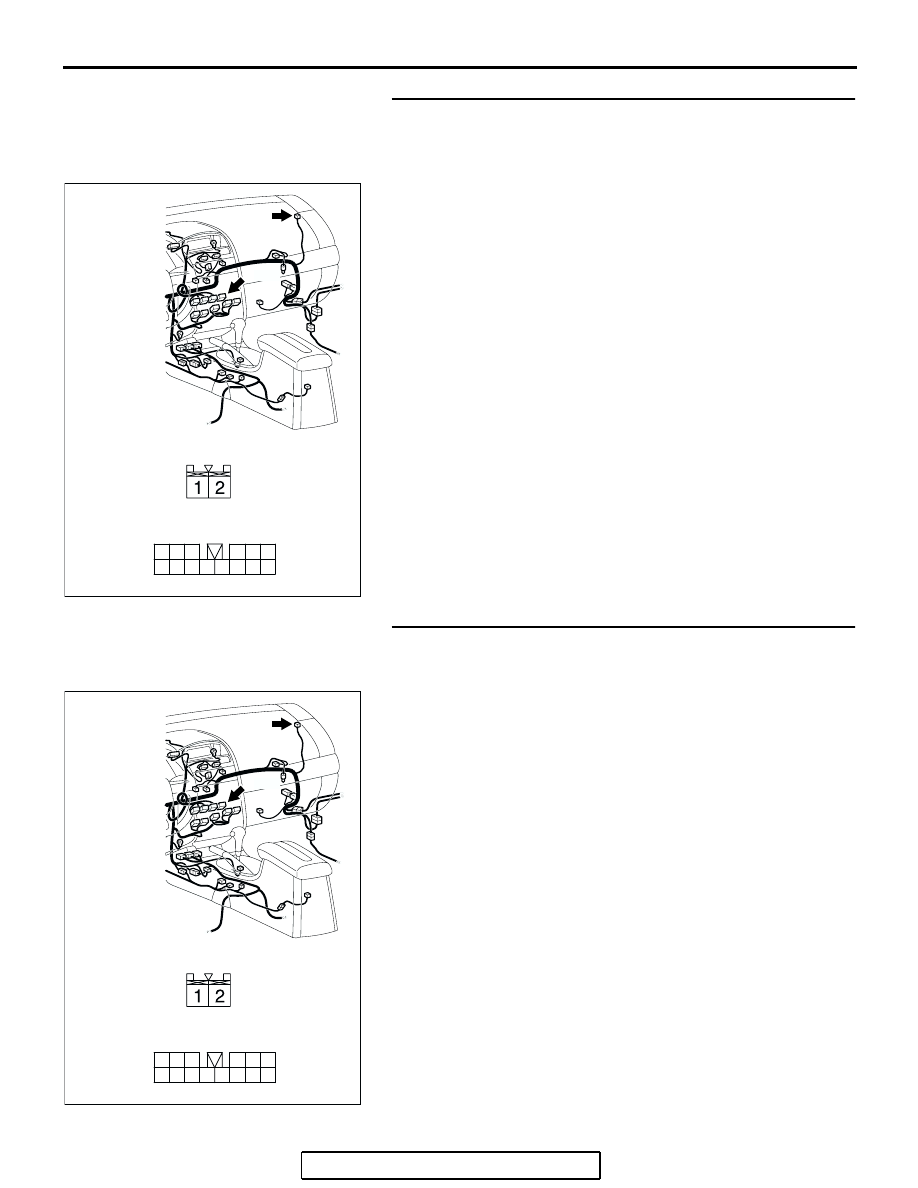

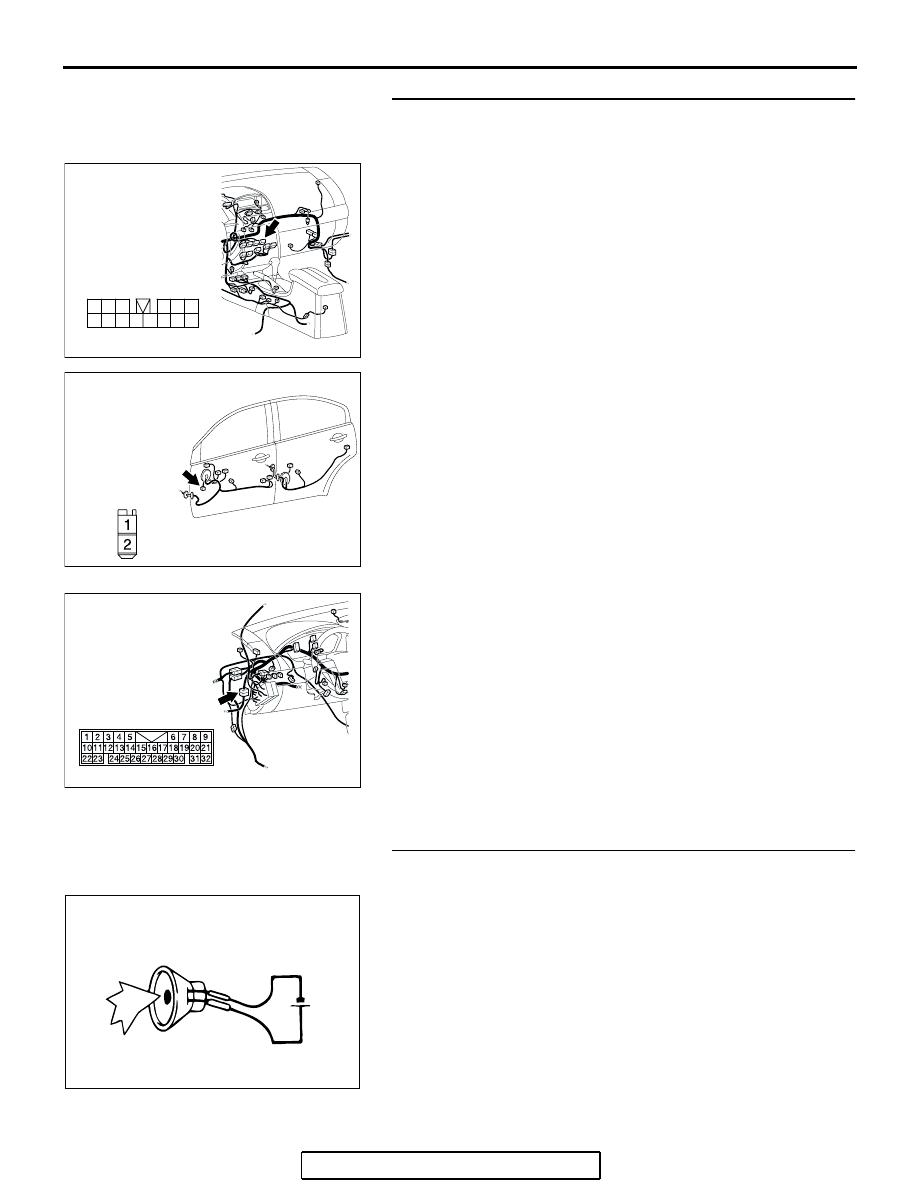

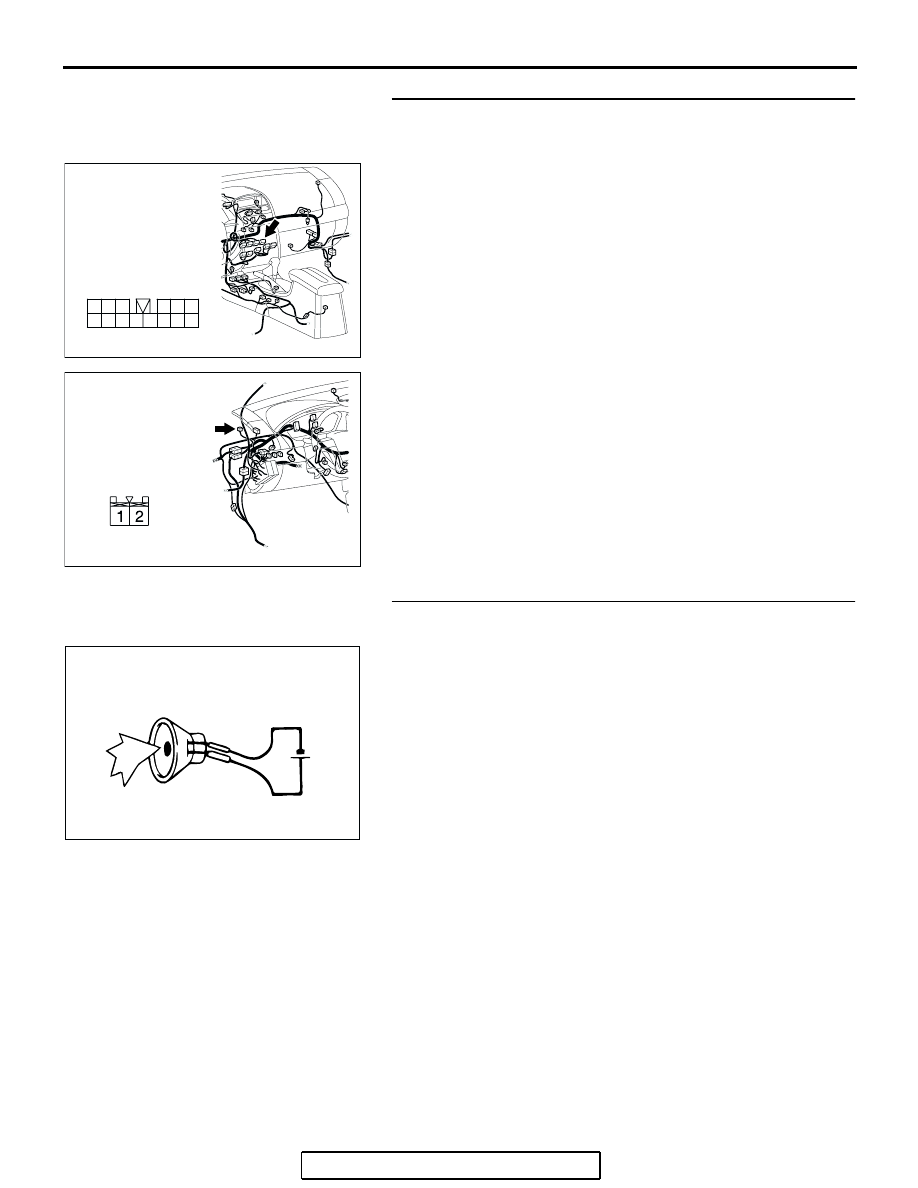

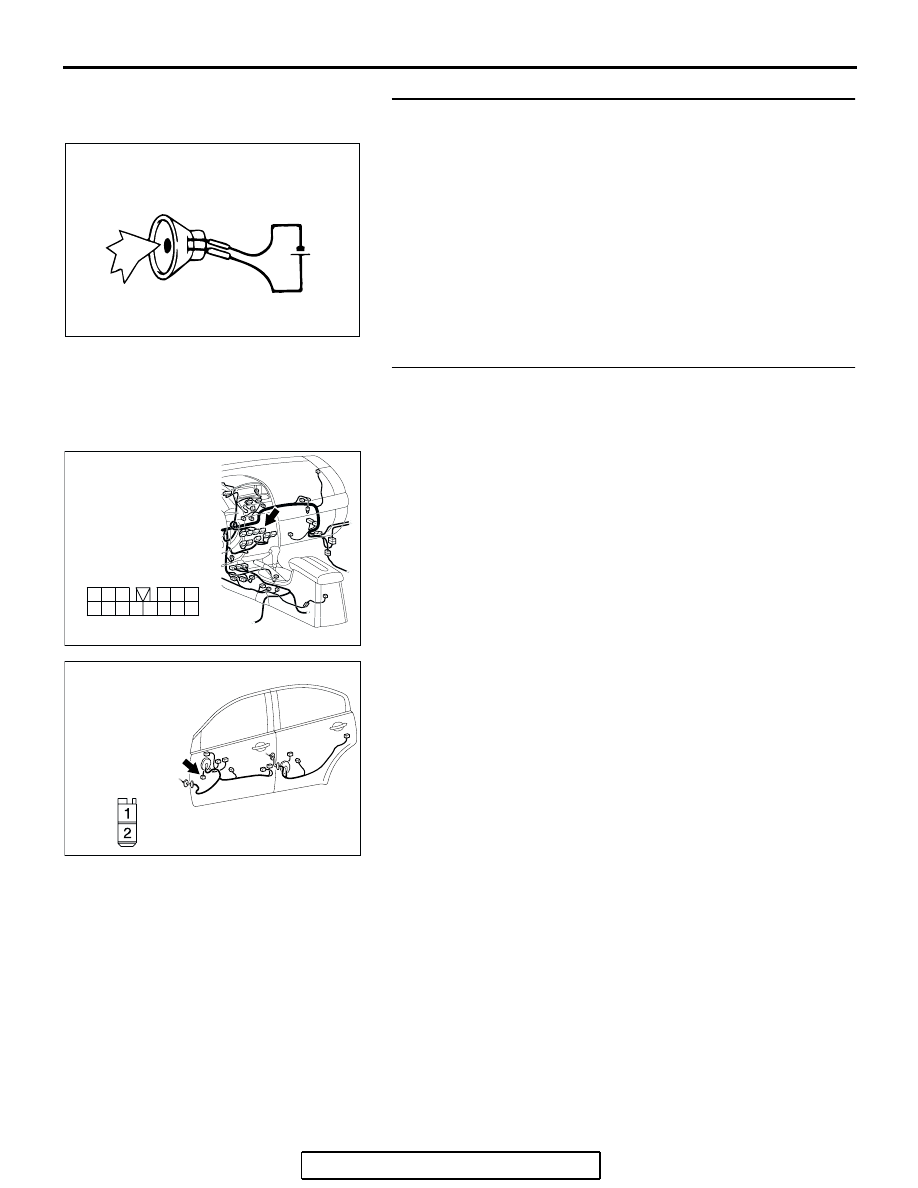

RADIO WITH CD PLAYER TSB Revision CHASSIS ELECTRICAL 54A-160 STEP 4. Check the wiring harness between tweeter (LH) C-129 (terminals 1 and 2) and radio and CD player sound. STEP 5. Check the tweeter (RH). (2) Check that the tweeter (RH) generates noise when a five-volt voltage is applied on the tweeter (RH) terminal. Q: Is the tweeter (RH) generating noise? YES : Go to Step 6. sound. AC305233 HARNESS SIDE 3 4 12 14 6 13 5 1110 8 2 7 1 BY CONNECTOR: C-111 AC305231CX CONNECTOR: C-129 C-129 (B) HARNESS SIDE ACX01868AB 5V |
