Mitsubishi Galant 9G. Manual - part 1531





WHEEL AND TIRE DIAGNOSIS

TSB Revision

WHEEL AND TIRE

31-6

WHEEL BALANCER CALIBRATION CHECKING FLOW CHART

AC000040

Balance wheel.

Rotate wheel 1/2 turn.

Imbalance = 5 g (0.18 oz) or less

Imbalance = more than 5 g (0.18 oz)

Rebalance wheel.

Rotate wheel 1/4 turn.

Imbalance = 5 g (0.18 oz) or less

Imbalance = more than 5 g (0.18 oz)

Verify wheel is properly centered.
Verify cones, cup, and wing nut are clean,
undamaged, and appropriate for wheel.
Make necessary corrections, then recheck
wheel balance.

Attach a 5-g (0.18-oz) weight to the outer rim.
Is the imbalance 5 ± 2 g (0.18 ± 0.06 oz) at 170



190 degrees away from the 5-g (0.18-oz) weight?

YES

NO

Attach a 5-g (0.18-oz) weight to the inner rim at 180
degrees opposite the weight on the outer rim.
Is the imbalance 5 ± 2 g (0.18 ± 0.06 oz) at 170



190 degrees away from both 5-g (0.18-oz) weights?

YES

NO

Balancer does not require
calibration.

Balancer requires calibration.
Contact balancer manufacturer.

ZERO CALIBRATION
CHECK

STATIC BALANCE
CHECK

DYNAMIC BALANCE
CHECK

AD

ON-VEHICLE SERVICE

TSB Revision

WHEEL AND TIRE

31-7

ON-VEHICLE SERVICE

TIRE INFLATION PRESSURE CHECK

M1311000900323

NOTE: For information on tire inflation pressure, refer to the
label attached to the center pillar on the driver's side.

TIRE WEAR CHECK

M1311001000345

Measure the tread depth of the tires.

Minimum limit: 1.6 mm (0.06 inch)

If the remaining tread depth is less than the minimum limit,
replace the tire.
NOTE: When the tread depth of the tires is reduced to 1.6 mm
(0.06 inch) or less, wear indicators will appear.

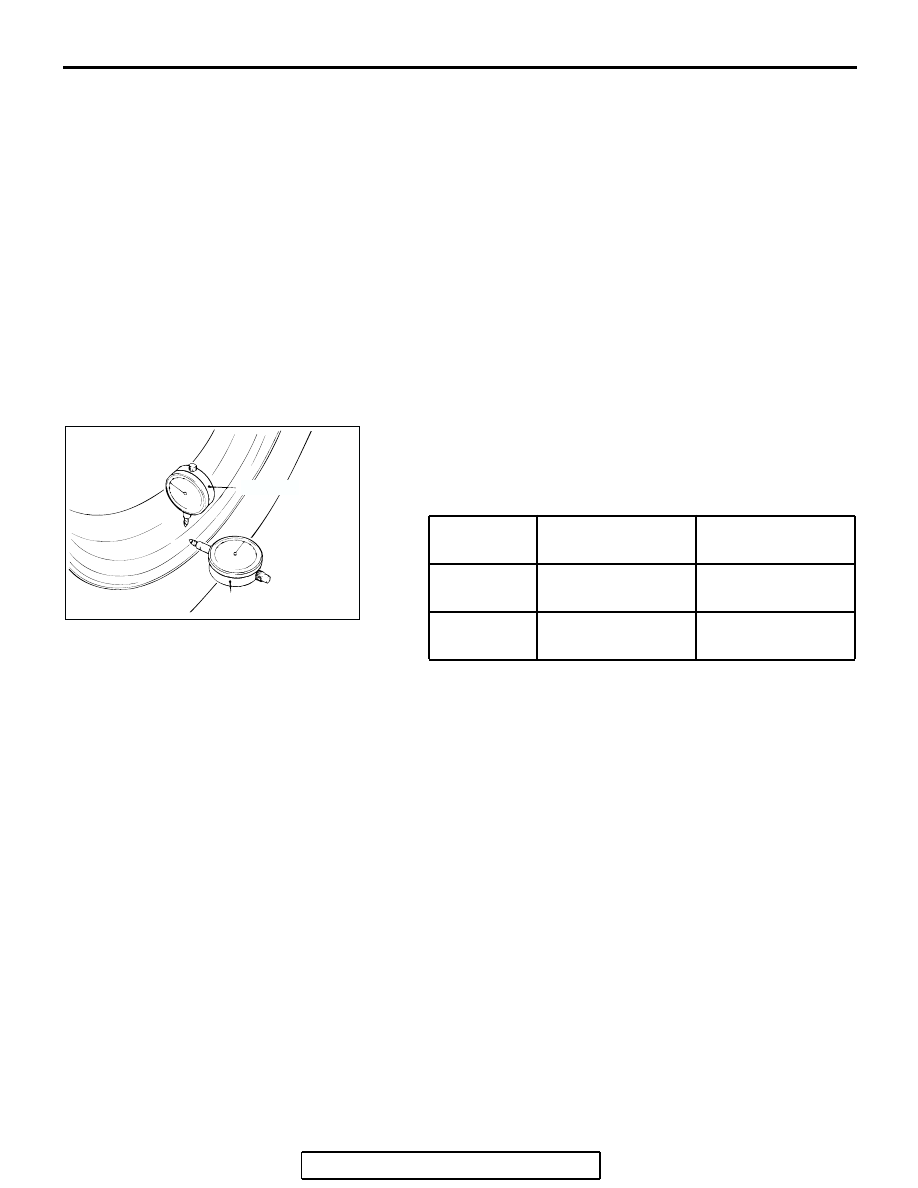

WHEEL RUNOUT CHECK

M1311001100364

Jack up the vehicle so that the wheels are clear of the floor.
While slowly turning the wheel, measure wheel runout with a
dial indicator.

Limit:

If wheel runout exceeds the limit, replace the wheel.

WHEEL AND TIRE

INSTALLATION SERVICE POINT

M1311001300302

Tighten the wheel nuts to the specified torque.

Tightening torque: 98

± 10 Nm (73 ± 7 ft-lb)

ITEM

STEEL WHEEL

ALUMINUM
WHEEL

Radial runout 1.2 mm (0.05 inch)

or less

1.0 mm (0.04 inch)
or less

Lateral
runout

1.2 mm (0.05 inch)
or less

1.0 mm (0.04 inch)
or less

ACX00651AB

LATERAL

RADIAL

SPECIFICATIONS

TSB Revision

WHEEL AND TIRE

31-8

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATION

M1311001600295

GENERAL SPECIFICATIONS

M1311000200324

.

<2.4L ENGINE>

NOTE:

.

The * mark indicates optional item.

PCD (Pitch Circle Diameter) indicates the pitch circle diameter of the wheel installation holes.

.

ITEM

SPECIFICATION

Wheel nut

98

± 10 N⋅m (73 ± 7 ft-lb)

ITEM

DE MODEL

ES MODEL
SRHYL4M
SRHYSL9M
SRHYL5M

SRPYL4M
SRPYSL9M
SRPYL5M
SRXYL4M
SRXYSL9M
SRXYL5M

Wheel

Type

Steel type

Steel type or
Aluminum type*

Aluminum type

Size

16

× 6 1/2JJ

Amount of wheel
offset mm (in)

46 (1.8)

Pitch circle diameter
(PCD) mm (in)

114.3 (4.50)

Tire

Size

P215/60 R16 94H

Spare wheel

Type

Steel type

Size

16

× 4T

Amount of wheel
offset mm (in)

40 (1.5)

Pitch circle diameter
(PCD) mm (in)

114.3 (4.50)

Spare tire

Size

T125/70 D16

SPECIFICATIONS

TSB Revision

WHEEL AND TIRE

31-9

<3.8L ENGINE>

NOTE:

.

The * mark indicates optional item.

PCD (Pitch Circle Diameter) indicates the pitch circle diameter of the wheel installation holes.

SERVICE SPECIFICATIONS

M1311000300406

ITEM

LS MODEL

GTS MODEL

SRHEL4M
SRHEL5M

SRPEL4M
SRGEL5M
SRGEL4M

Wheel

Type

Steel type or
Aluminum type*

Aluminum type

Aluminum type

Size

16

× 6 1/2JJ

17

× 7JJ

Amount of wheel
offset mm (in)

46 (1.8)

Pitch circle diameter
(PCD) mm (in)

114.3 (4.50)

Tire

Size

P215/60 R16 94H

P215/55 R17 93V

Spare wheel

Type

Steel type

Size

16

× 4T

Amount of wheel
offset mm (in)

40 (1.5)

Pitch circle diameter
(PCD) mm (in)

114.3 (4.50)

Spare tire

Size

T125/70 D16

ITEM

LIMIT

Tread depth of tire mm (in)

Minimum 1.6 (0.06)

Wheel runout
<Aluminum wheel>

Radial runout mm (in)

1.0 (0.04) or less

Lateral runout mm (in)

1.0 (0.04) or less

Wheel runout
<Steel wheel>

Radial runout mm (in)

1.2 (0.05) or less

Lateral runout mm (in)

1.2 (0.05) or less
