REAR SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-30

>>B<< INSTALLATION OF REAR SEAT CUSHION
ASSEMBLY

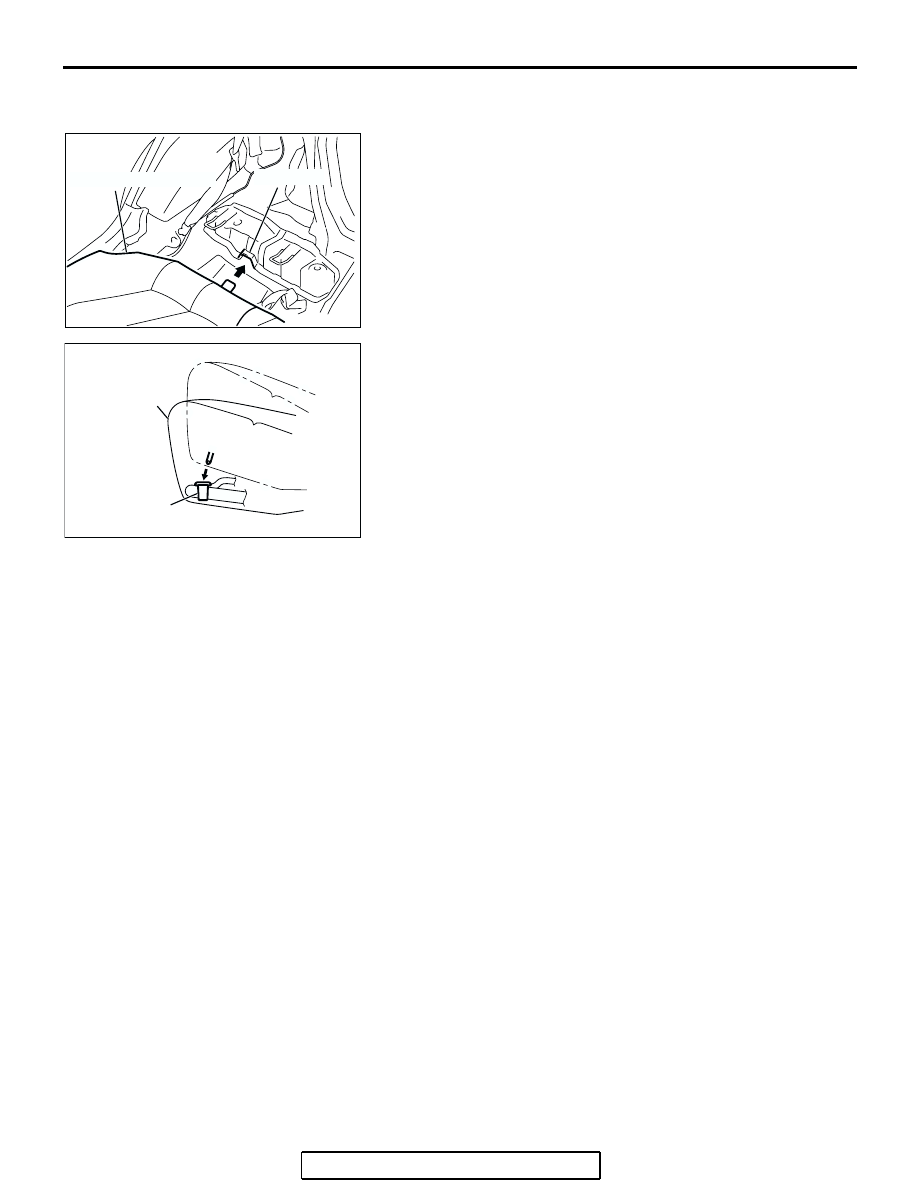

1. Fit the rear seat cushion into the bracket securely.

2. Fit the rear seat cushion into the rear seat hook securely.

AC308697

REAR SEAT CUSHION

BRACKET

AB

AC005521AB

REAR SEAT
HOOK

REAR SEAT
CUSHION
ASSEMBLY

REAR SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-31

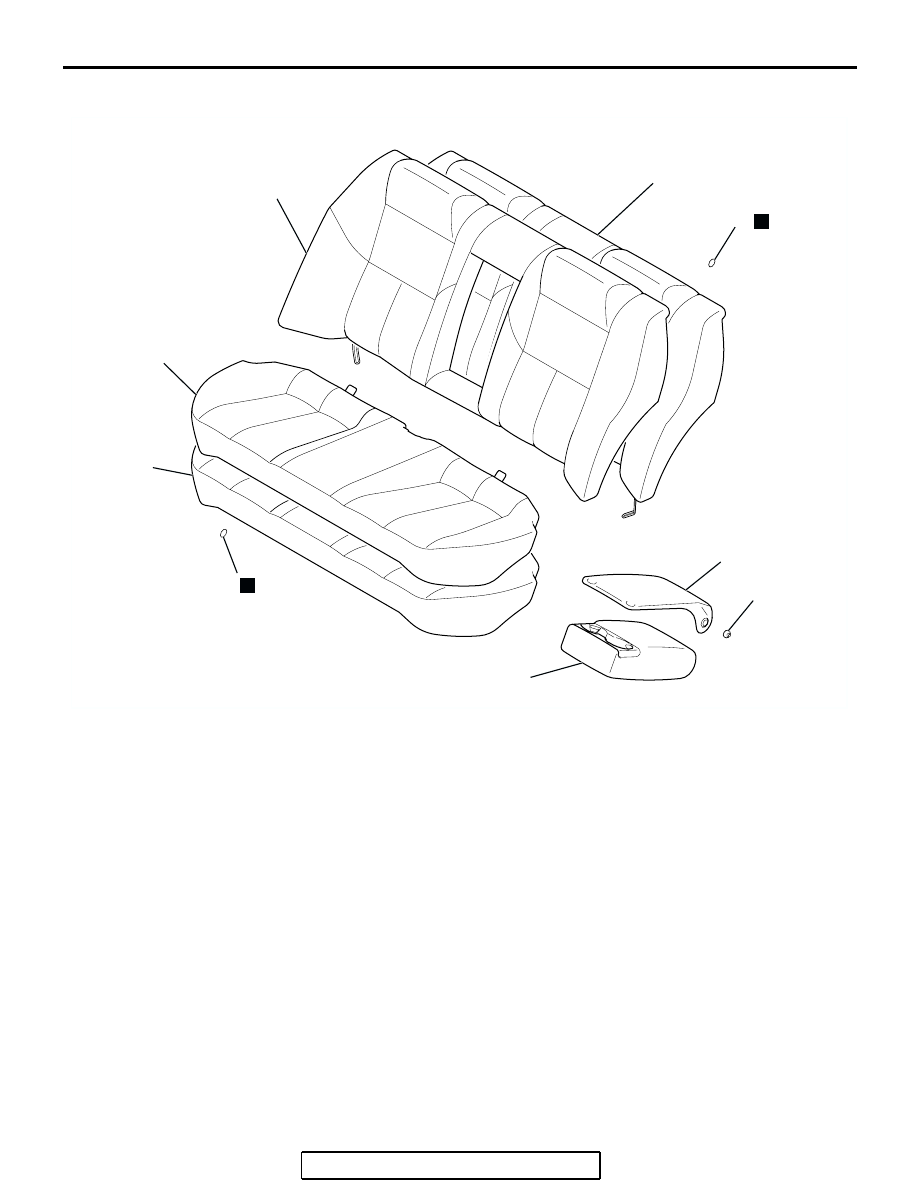

DISASSEMBLY AND REASSEMBLY

M1522002000357

AC306949

8

9

7

6

5

4

2

3

1

N

AB

N

DISASSEMBLY STEPS

1.

HOG RING

2.

SEAT CUSHION  COVER

3.

SEAT CUSHION PAD

4.

ARMREST

5.

BUSH

6.

ARMREST PAD

7.

HOG RING

8.

SEATBACK COVER

9.

SEATBACK PAD

DISASSEMBLY STEPS

FRONT SEAT BELT

TSB Revision

INTERIOR

52A-32

FRONT SEAT BELT

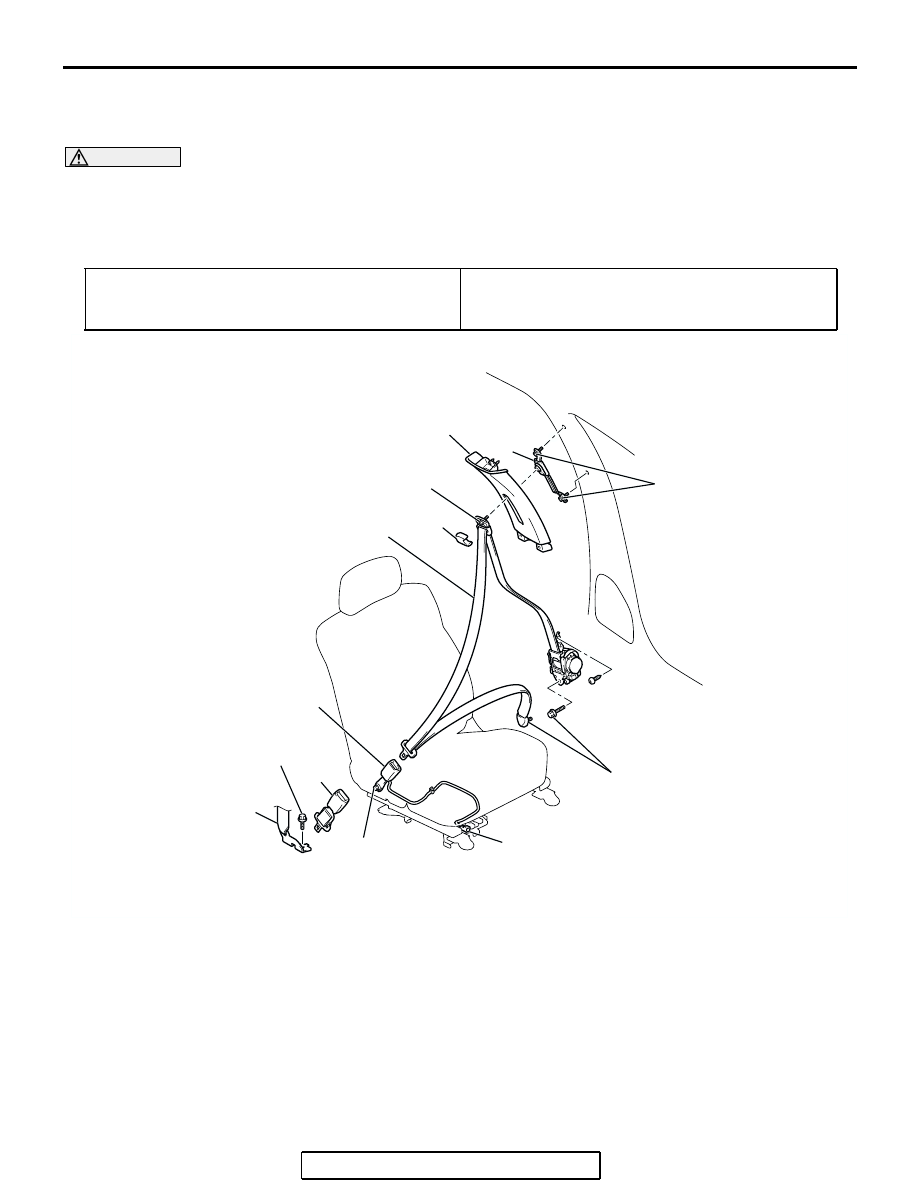

REMOVAL AND INSTALLATION

M1523001300370

CAUTION

• When removing and installing the inner seat belt, be sure to carry out accuracy check occupant

classification sensor after the seat has been installed in the vehicle. (Refer to GROUP 52B,

On-Vehicle Service

P.52B-355

.)

• SRS: Before removing and installing the seat belts with pre-tensioner, refer to GROUP 52B, Seat

Belt with Pre-tensioner

P.52B-380

.

NOTE:

*

If so equipped

Pre-removal and Post-installation Operation
• Turn the ignition key to the LOCK (OFF) position.

• Disconnect the negative battery terminal.

Post-installation Operation
Adjustment Procedures of Special Function (refer to GROUP
52B, On-Vehicle Service

P.52B-380

.)

AC306996

44 ± 10 N·m
33 ± 7 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

1

2

3

4

5

6

7

AB

(PASSENGER'S SIDE)

44 ± 10 N·m
33 ± 7 ft-lb

3

(DRIVER'S SIDE)

1.

EXTENDER SEAT  BELT
ASSEMBLY

*

OUTER SEAT BELT REMOVAL
STEPS

2.

SASH GUIDE COVER

•

CENTER PILLAR TRIM LOWER

(REFER TO

P.52A-10

.)

3.

OUTER SEAT BELT (REFER TO

GROUP 52B, SEAT BELTS WITH

PRE-TENSIONER

P.52B-380

.)

4.

CENTER PILLAR TRIM UPPER

(REFER TO

P.52A-10

.)

5.

ADJUSTABLE SEAT BELT ANCOR
INNER SEAT BELT

6.

SEAT BELT SWITCH

CONNECTOR

•

SHIELD COVER (REFER TO

P.52A-25

.)

7.

INNER SEAT BELT

OUTER SEAT BELT REMOVAL
STEPS (Continued)

REAR SEAT BELT

TSB Revision

INTERIOR

52A-33

INSPECTION

M1523004400116

.

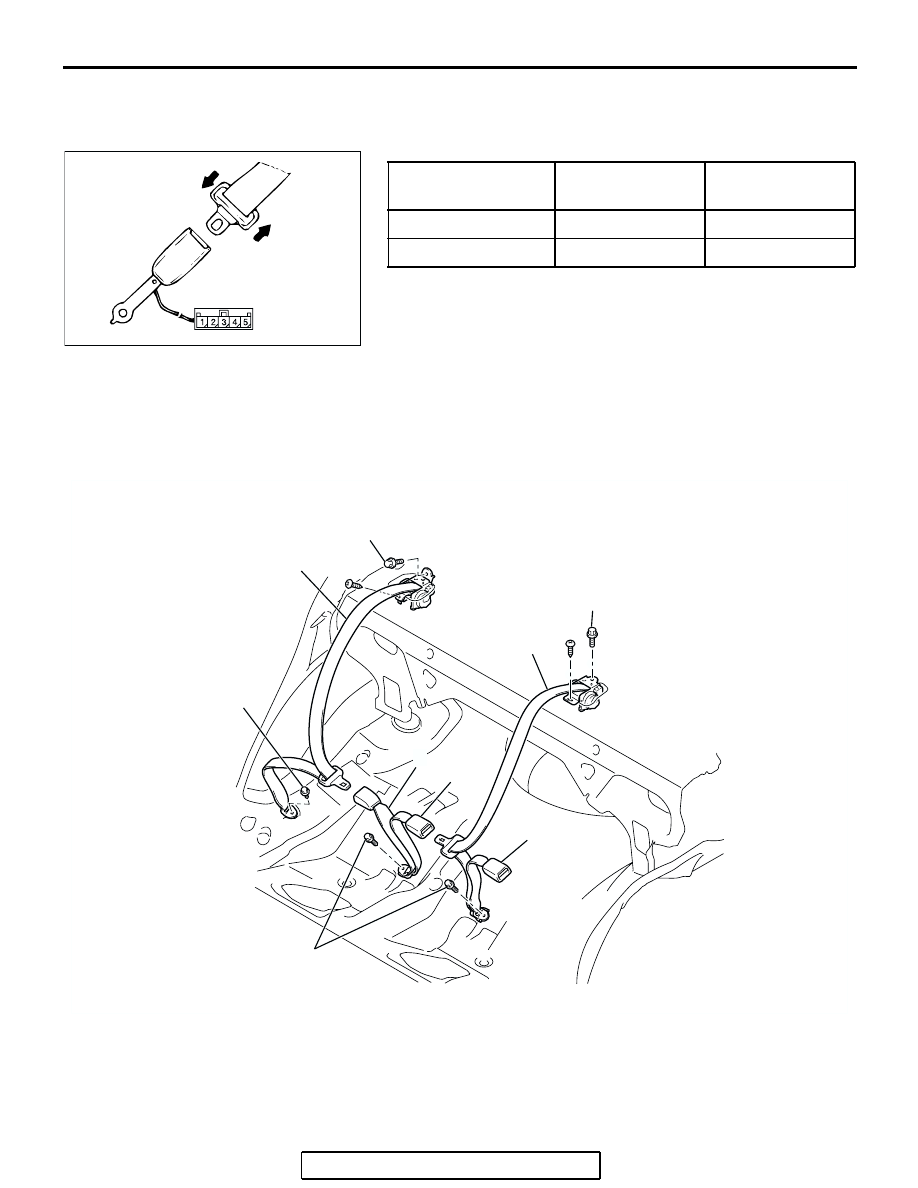

SEAT BELT SWITCH CONTINUITY CHECK

REAR SEAT BELT

REMOVAL AND INSTALLATION

M1523001600371

ITEM

TESTER
CONNECTION

SPECIFIED
CONDITION

Fastened seat belt

1

− 2

Open circuit

Unfastened seat belt 1

− 2

Less than 2 ohms

AC308221

AC307024

44 ± 10 N·m
33 ± 7 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

3

2

1

1

4

AB

REMOVAL STEPS

•

REAR SEAT CUSHION
ASSEMBLY (REFER TO

P.52A-29

.)

1.

INNER SEAT BELT

2.

CENTER SEAT BELT INNER

•

REAR SHELF TRIM  (REFER  TO

P.52A-10

.)

3.

OUTER SEAT BELT

4.

CENTER SEAT BELT OUTER

REMOVAL STEPS (Continued)
