SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-198

STEP 2. Recheck for diagnostic trouble code.
Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to "ON" position.
(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC set?

YES : Go to Step 3.
NO :  There is an intermittent malfunction such as poor

engaged connector(s) or open circuit (Refer to
GROUP 00, How to Use Troubleshooting/Inspection
Service Points

− How to Cope with Intermittent

Malfunctions ).

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-199

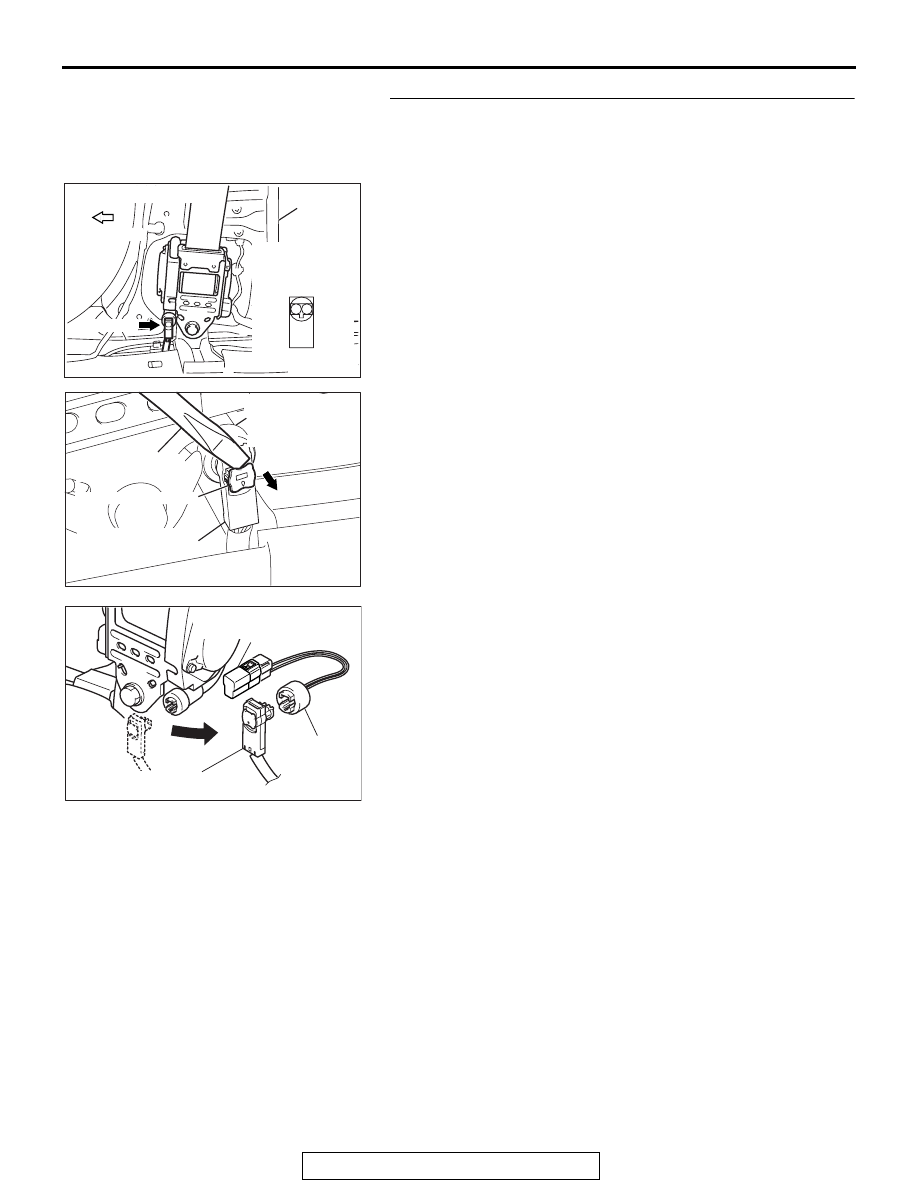

STEP 3. Check the passenger's seat belt pre-tensioner.
(Using scan tool MB991958, read the diagnostic trouble
code.)
(1) Disconnect the negative battery terminal.
(2) Disconnect passenger's seat belt pre-tensioner connector

D-33. Use a flat-tipped screwdriver to unlock the locking
button at the harness side connector by withdrawing it
toward you in two stages, and then disconnect the
connector.

(3) Connect special tool MB991865 to special tool MB991884.
(4) Connect special tool MB991884 to the D-33 harness side

connector.

(5) Connect the negative battery terminal.
(6) Erase diagnostic trouble code memory, and then check the

diagnostic trouble code.

Q: Is DTC B1462 set?

YES : Go to Step 4.
NO :  Replace the passenger's seat belt pre-tensioner

(Refer to

P.52B-380

). Then go to Step 6.

AC307915 AC

CONNECTOR: D-33

D-33 (B)

FORWARD

CENTER
PILLAR

HARNESS SIDE
CONNECTOR
(FRONT VIEW)

2 1

AC103556AU

LOCKING BUTTON

FLAT-TIP SCREW
DRIVER

D-33 HARNESS
SIDE CONNECTOR

D-33 PASSENGER'S
SEAT BELT
PRE-TENSIONER
CONNECTOR

MB991884
MB991885

AC103283AP

MB991865
(DUMMY RESISTOR : 3

Ω

)

MB991884
(RESISTOR
HARNESS)

D-33  HARNESS SIDE
CONNECTOR

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-200

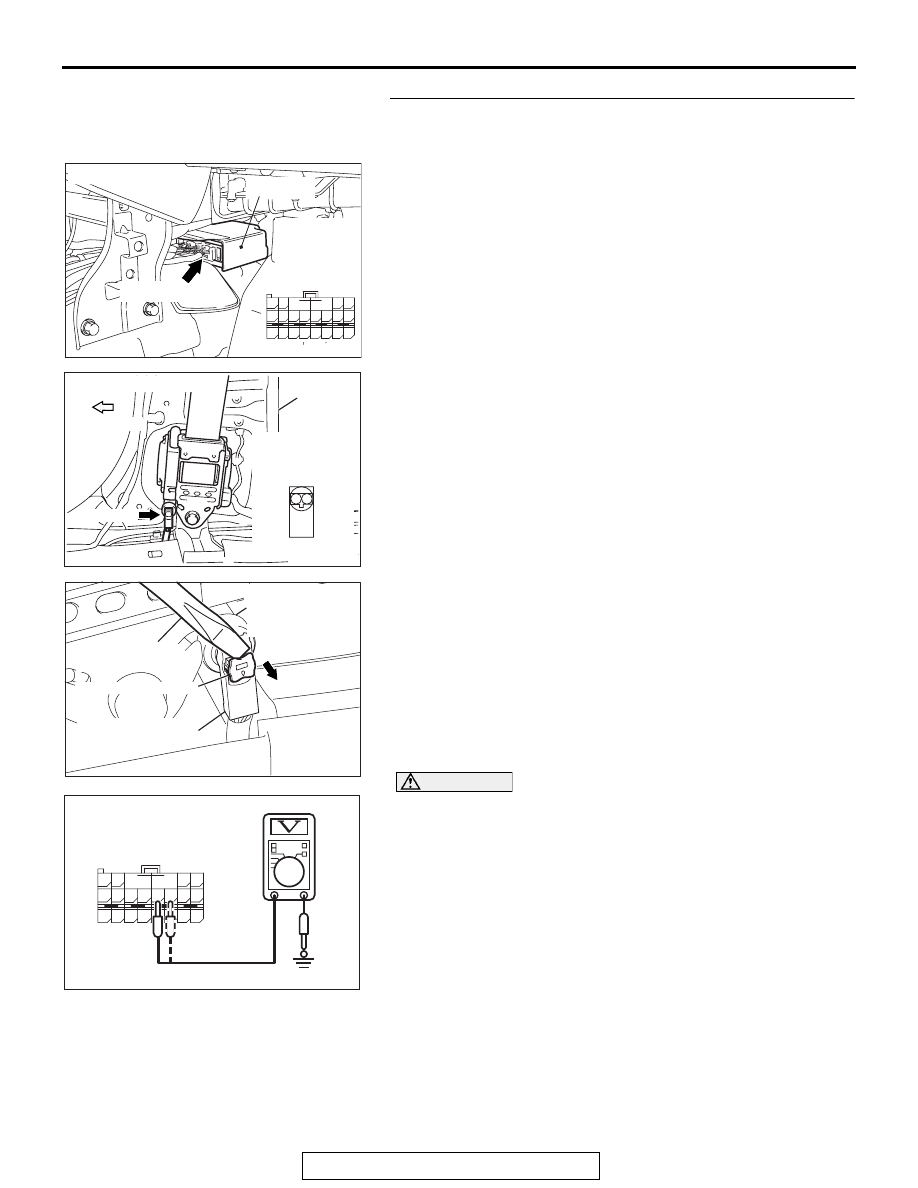

STEP 4. Check the passenger's seat belt pre-tensioner
circuit. Measure the voltage at the SRS-ECU connector
C-120.
(1) Disconnect SRS-ECU connector C-120.

(2) Disconnect passenger's seat belt pre-tensioner connector

D-33. Use a flat-tipped screwdriver to unlock the locking
button at the harness side connector by withdrawing it
toward you in two stages, and then disconnect the
connector.

(3) Turn the ignition switch to the "ON" position,

CAUTION

Do not insert a test probe into the terminal from its front
side directly, as the connector contact pressure may be
weakened.
(4) Measure the voltage between C-120 harness side

connector terminals 59, 60 and body ground.
Voltage should measure 0 volt.

Q: Is the measured voltage within the specified range?

YES : Erase the diagnostic trouble code memory, and check

the diagnostic trouble code. If DTC B1462 sets,
replace the SRS-ECU (Refer to

P.52B-365

). Then go

to Step 6.

NO :  Go to Step 5.

AC305362

CONNECTOR: C-120

C-120 (Y)

AG

SRS-ECU

63

55

51

69

61

66

58

65

64

56 57

68

60

67

59

70

62

53

52 B

A

54

C-120
Harness side
connector
(rear view)

AC307915 AC

CONNECTOR: D-33

D-33 (B)

FORWARD

CENTER
PILLAR

HARNESS SIDE
CONNECTOR
(FRONT VIEW)

2 1

AC103556AU

LOCKING BUTTON

FLAT-TIP SCREW
DRIVER

D-33 HARNESS
SIDE CONNECTOR

D-33 PASSENGER'S
SEAT BELT
PRE-TENSIONER
CONNECTOR

AC301577

63

55

51

69

61

66

58

65

64

56 57

68

60

67

59

70

62

53

52 B

A

54

AD

C-120 HARNESS SIDE
CONNECTOR
(REAR VIEW)

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-201

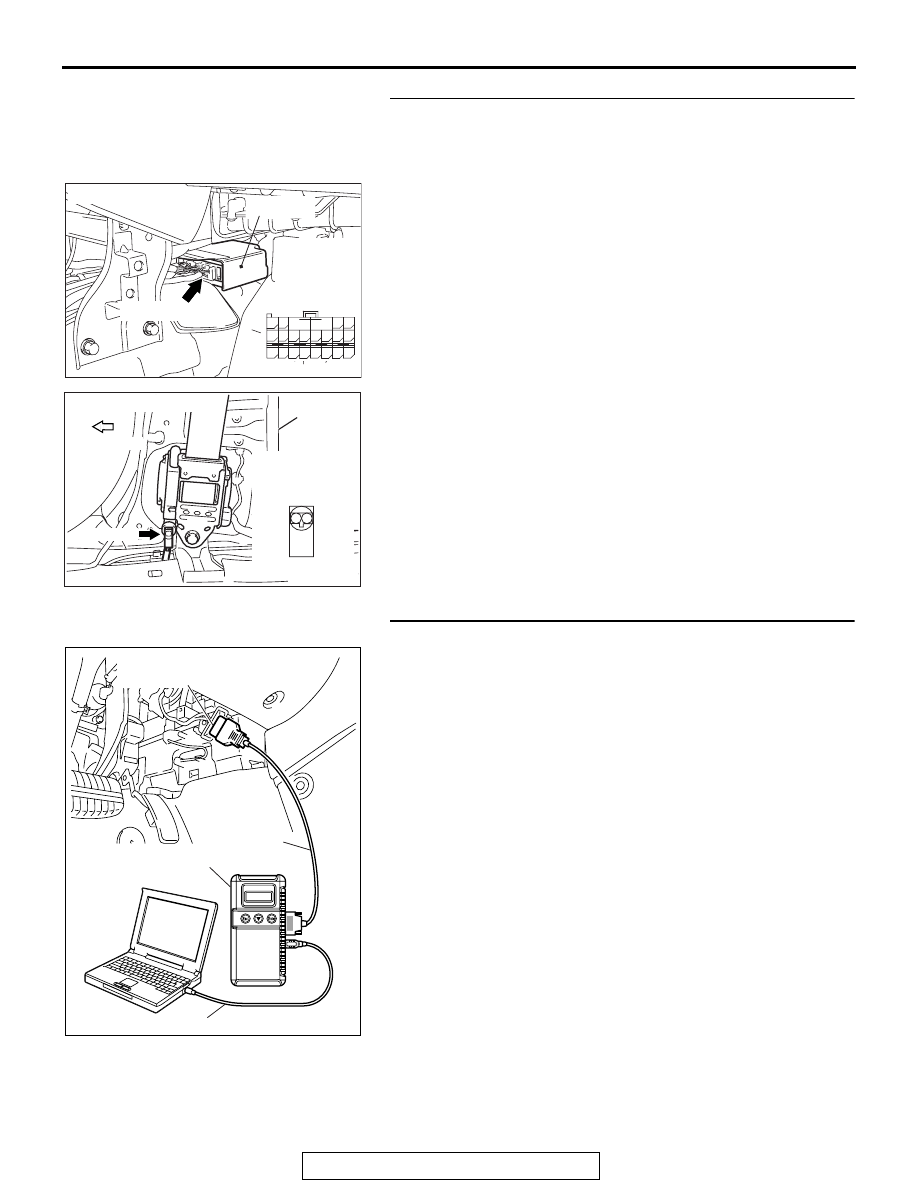

STEP 5. Check the harness wires for short circuit to power
supply between SRS-ECU connector C-120 (terminal No.59
and 60) and passenger's seat belt pre-tensioner connector
D-33 (terminal No.1 and 2).
Q: Are the harness wires between SRS-ECU connector

C-120 (terminal No.59 and 60) and passenger's seat belt
pre-tensioner connector D-33 (terminal No.1 and 2) in
good condition?
YES : Go to Step 6.
NO :  Replace the harness wires between SRS-ECU

connector C-120 and passenger's seat belt
pre-tensioner connector D-33. Then go to Step 6.

STEP 6. Recheck for diagnostic trouble code.
Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to the "ON" position.
(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is DTC B1462 set?

YES : Return to Step 1.
NO :  The procedure is complete.

AC305362

CONNECTOR: C-120

C-120 (Y)

AG

SRS-ECU

63

55

51

69

61

66

58

65

64

56 57

68

60

67

59

70

62

53

52 B

A

54

C-120
Harness side
connector
(rear view)

AC307915 AC

CONNECTOR: D-33

D-33 (B)

FORWARD

CENTER
PILLAR

HARNESS SIDE
CONNECTOR
(FRONT VIEW)

2 1

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827
