SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-90

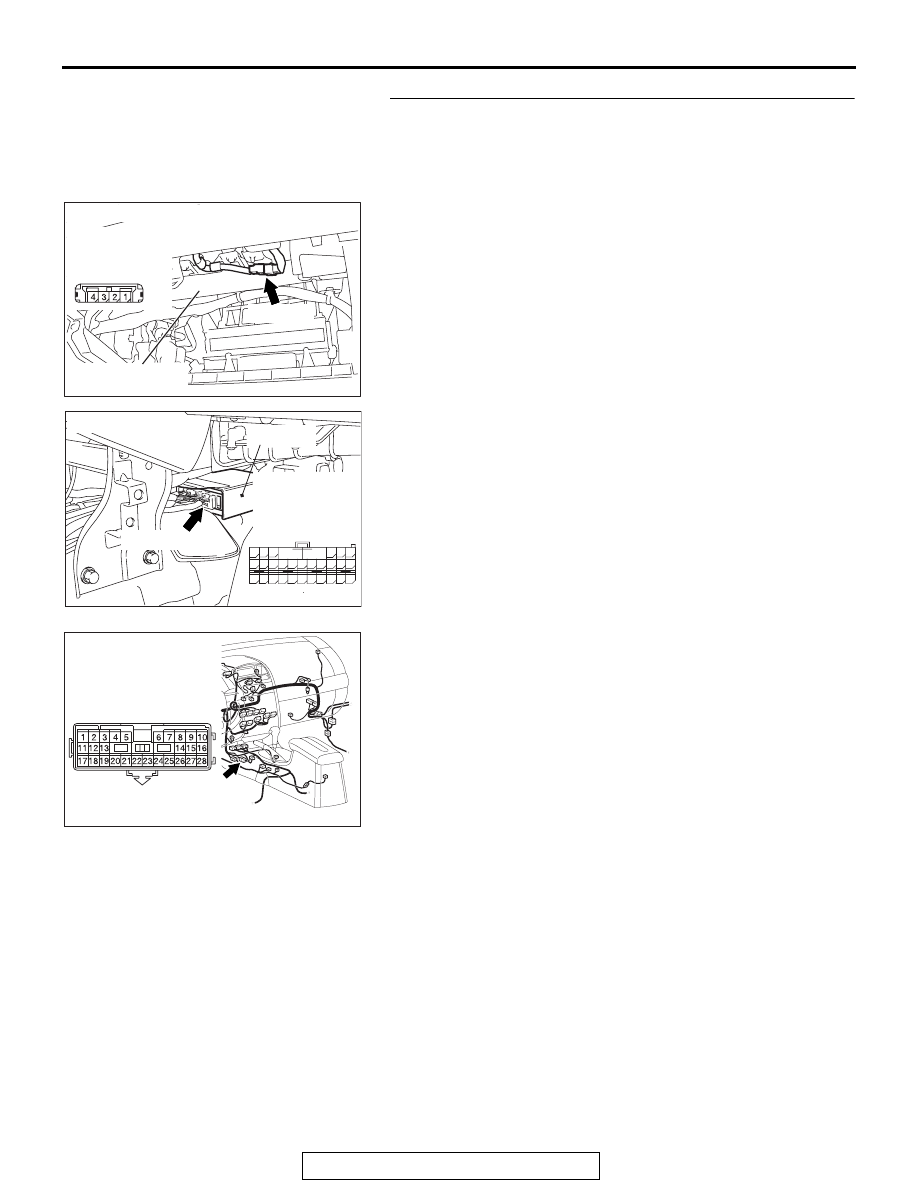

STEP 8. Check the harness for short circuit between
SRS-ECU connector C-121 (terminal No.27 and 28 <1st
squib> or terminal No.30 and 31 <2nd squib>) and
passenger's air bag module connector C-110 (terminal
No.1 and 2 <1st squib> terminal No.4 and 3 <2nd squib>).

NOTE: After inspecting intermediate connector C-22 inspect
the wiring harness. If the intermediate connector C-22 is dam-
aged, repair or replace it.

Q: Are harness wires between SRS-ECU connector C-121

(terminal No.27 and 28 <1st squib> or terminal No.30
and 31 <2nd squib>) and passenger's air bag module
connector C-110 (terminal No.1 and 2 <1st squib>
terminal No.4 and 3 <2nd squib>) in good condition?
YES : Go to Step 9.
NO :  Replace the harness wires between SRS-ECU

connector C-121 and passenger’s air bag module
connector C-110. Then go to Step 9.

AC307137AC

C-110 (Y)

FRONT DECK
CROSSMEMBER

CONNECTOR: C-110

HARNESS SIDE
CONNECTOR
(REAR VIEW)

AC305362

CONNECTOR: C-121

C-121 (Y)

AH

SRS-ECU

C-121
HARNESS SIDE
CONNECTOR
(REAR VIEW)

42

31

38

27

21

41

28

39

22

30

25

47

36

33

44

34

45

37

48

26

29

23

40

32

43

35

46

24

B

A

AC305233

C-22 (Y)

CO

CONNECTOR: C-22

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-91

STEP 9. Check for diagnostic trouble code.
Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to the "ON" position.
(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is DTC B1410 <1st squib> or B1490 <2nd squib> set?

YES : Return to Step 1.
NO :  The procedure is complete.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-92

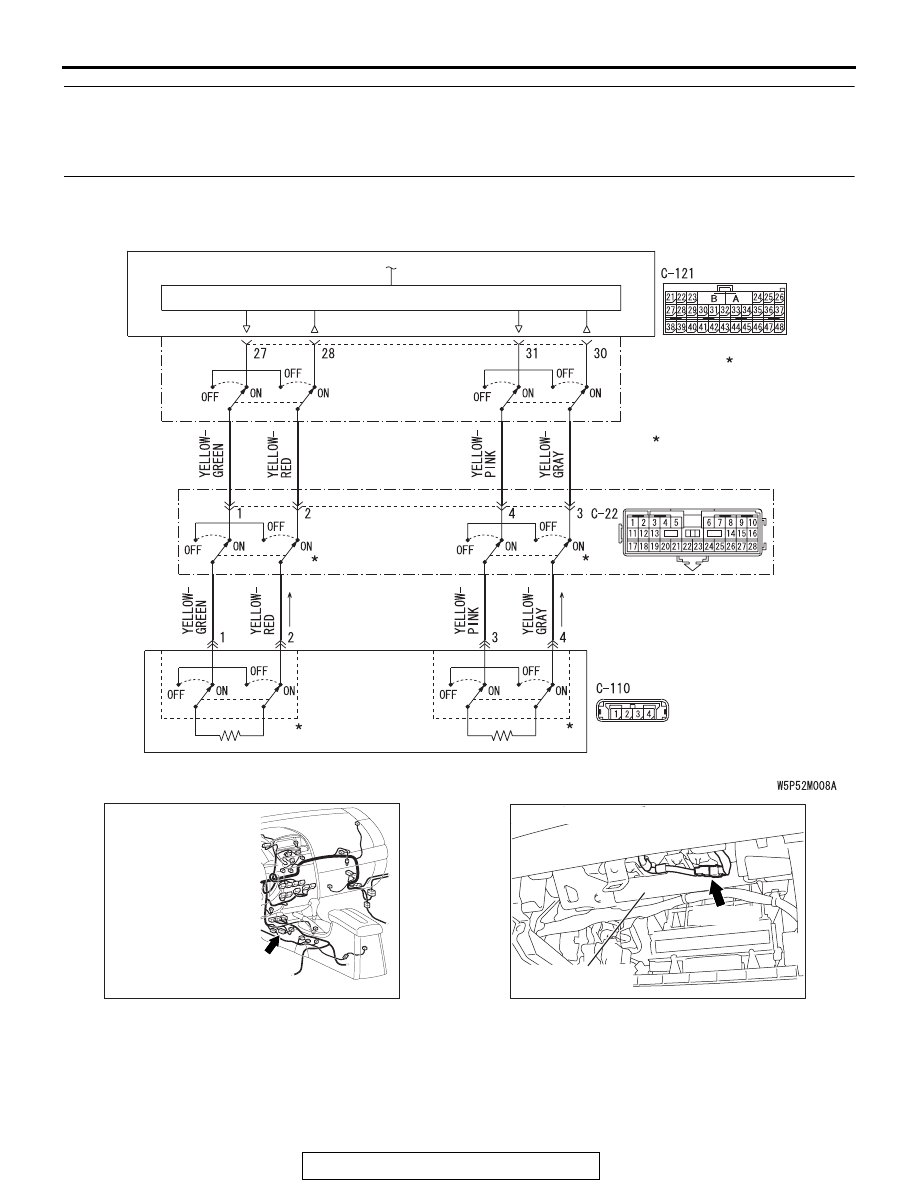

DTC B1411: Passenger’s (Front) Air Bag Module (1st Squib) System Fault 2 (Open in the Squib
Circuit)
DTC B1491: Passenger’s (Front) Air Bag Module (2nd Squib) System Fault 2 (Open in the Squib
Circuit)

Passenger's (Front) Air Bag Module (1st Squid and 2nd Squib) Circuit

AIR BAG MODULE
(SQUIB) (PASSENGER'S SIDE)

AIR BAG DRIVE CIRCUIT

: CONNECTOR CONNECTED
 : ON
  CONNECTOR DICONNECTED
 : OFF

SRS-ECU

CONNECTOR
LOCK SWITCH

NOTE

AC305233 AO

CONNECTOR: C-22

C-22 (Y)

AC307137AD

C-110 (Y)

FRONT DECK
CROSSMEMBER

CONNECTOR: C-110

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-93

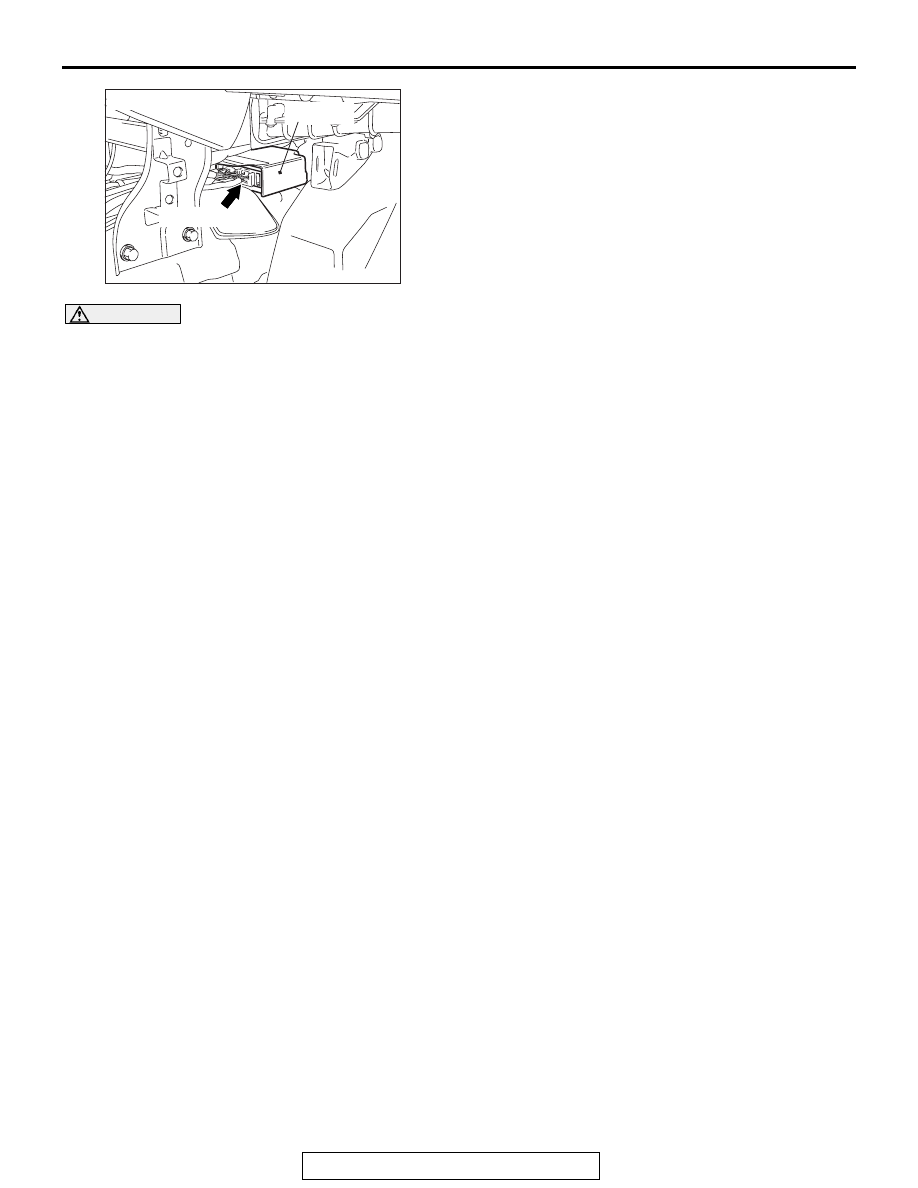

CAUTION

If DTC B1411 <1st squib> or B1491 <2nd squib>
is set in the SRS-ECU, always diagnose the CAN
main bus line.

.

CIRCUIT OPERATION

• The SRS-ECU judges how severe a collision is

by detecting signals from the front impact sensors
and the front air bag analog G-sensor. If the
impact is over a predetermined level, the
SRS-ECU sends an ignition signal. At this time, if
the front air bag safing G-sensor is on, the SRS
air bag will inflate.

• The ignition signal is input to the air bag module

via the clock spring to inflate the air bag.

.

DTC SET CONDITIONS

This DTC is set if there is abnormal resistance
between the input terminals of the passenger’s air
bag module (squib). However, if no DTC reset, the
SRS warning light will be switched off (DTC will be
retained).

.

TROUBLESHOOTING HINTS

• Open circuit in the passenger's air bag module

(squib) circuit

• Improper connector contact

• Malfunction of the SRS-ECU

.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A (Vehicles with CAN

Communication System)

• MB991865: Dummy resister

• MB991866: Resister harness

AC305362

CONNECTOR: C-121

C-121 (Y)

AD

SRS-ECU
