GENERAL DESCRIPTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-10

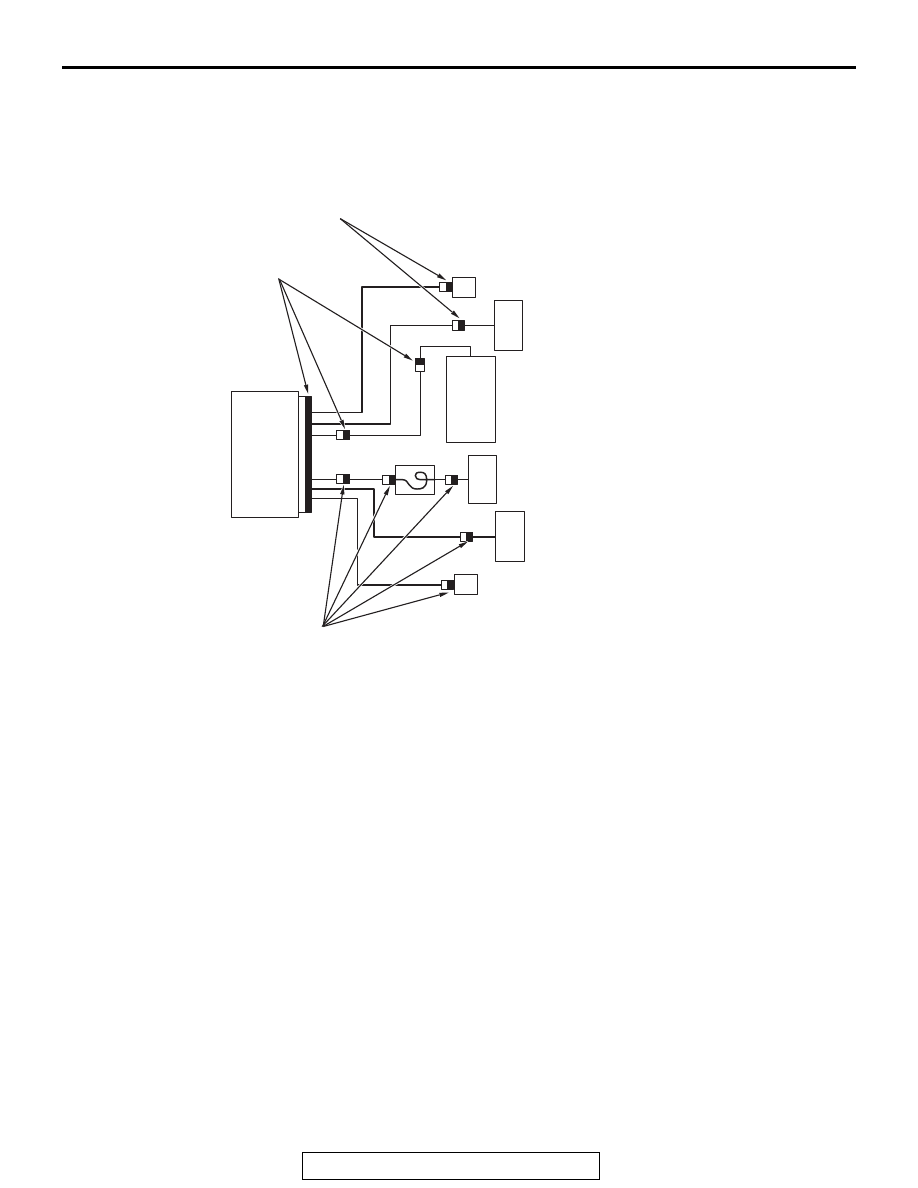

SRS AIR BAG SPECIAL CONNECTOR

To enhance the system reliability, a connector lock
switch is integrated in the SRS-ECU connector, the
air bag module connectors, the clock spring connec-
tor, the seat belt pretensioner connectors (black con-
nector "A" shown in the illustration below).

.

AC401872

SRS-ECU

A

A

A

AB

SIDE-AIRBAG MODULE
(LH)

SEAT BELT WITH
PRE-TENSIONER
(DRIVER'S SIDE)

CLOCK
SPRING

DRIVER'S AIR BAG MODULE

PASSENGER'S (FRONT)
AIR BAG MODULE

SEAT BELT WITH
PRE-TENSIONER
(FRONT PASSENGER'S
SIDE)

SIDE-AIRBAG MODULE
(RH)

GENERAL DESCRIPTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-11

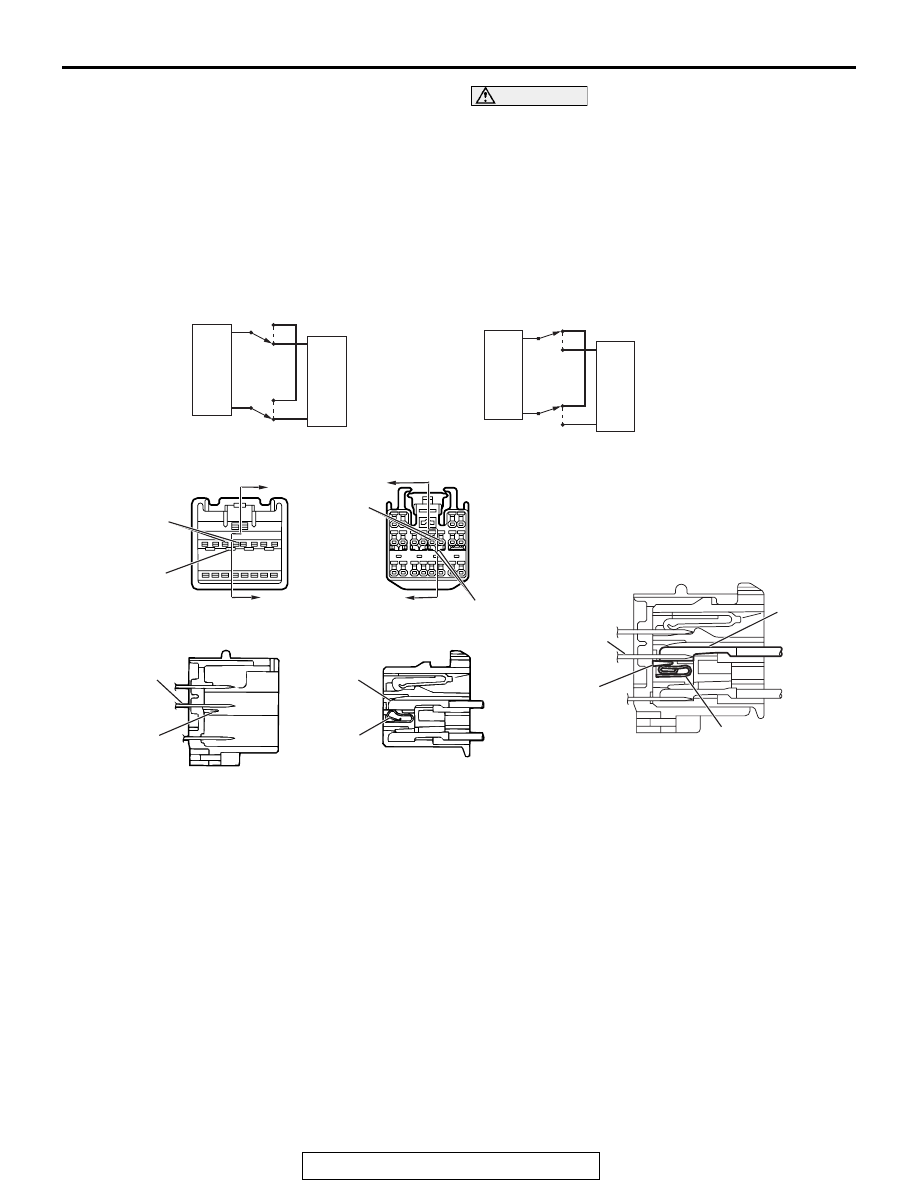

SQUIB CIRCUIT CONNECTOR LOCK
SWITCH

The switch is a mechanism that shorts the power
supply terminal to the ground terminal automatically
in the air bag squib circuit when the connector is dis-
connected. A "short" spring is integrated inside the
connector. This spring prevents static electricity from
flowing to the squib by shorting the power supply ter-
minal to the ground terminal (i.e. there is no potential
difference between the two terminals).

CAUTION

When the connector is disconnected, there will
be short circuit between the terminals. This is not
a fault.

AC006197

OFF

ON

OFF

ON

SQUIB

SRS-ECU

SQUIB

SRS-ECU

OFF

OFF

ON

ON

A

A

CONNECTOR DISCONNECTED

<CONNECTOR SHORTING MECHANISM (E.G. SRS-ECU CONNECTOR)>

ECU-SIDE CONNECTOR

WIRING HARNESS-SIDE CONNECTOR

TERMINAL
(MALE)

PARTITION
PANEL

B

B

SHORT SPRING

SHORT SPRING

AG

SECTION B - B

SHORT
SPRING

SECTION A - A

CONNECTOR CONNECTED

TERMINAL
(MALE)

TERMINAL
(MALE)

PARTITION
PANEL

PARTITION PANEL

TERMINAL
(FEMALE)

TERMINAL
(FEMALE)

TERMINAL
(FEMALE)

CONNECTOR CONNECTED

GENERAL DESCRIPTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-12

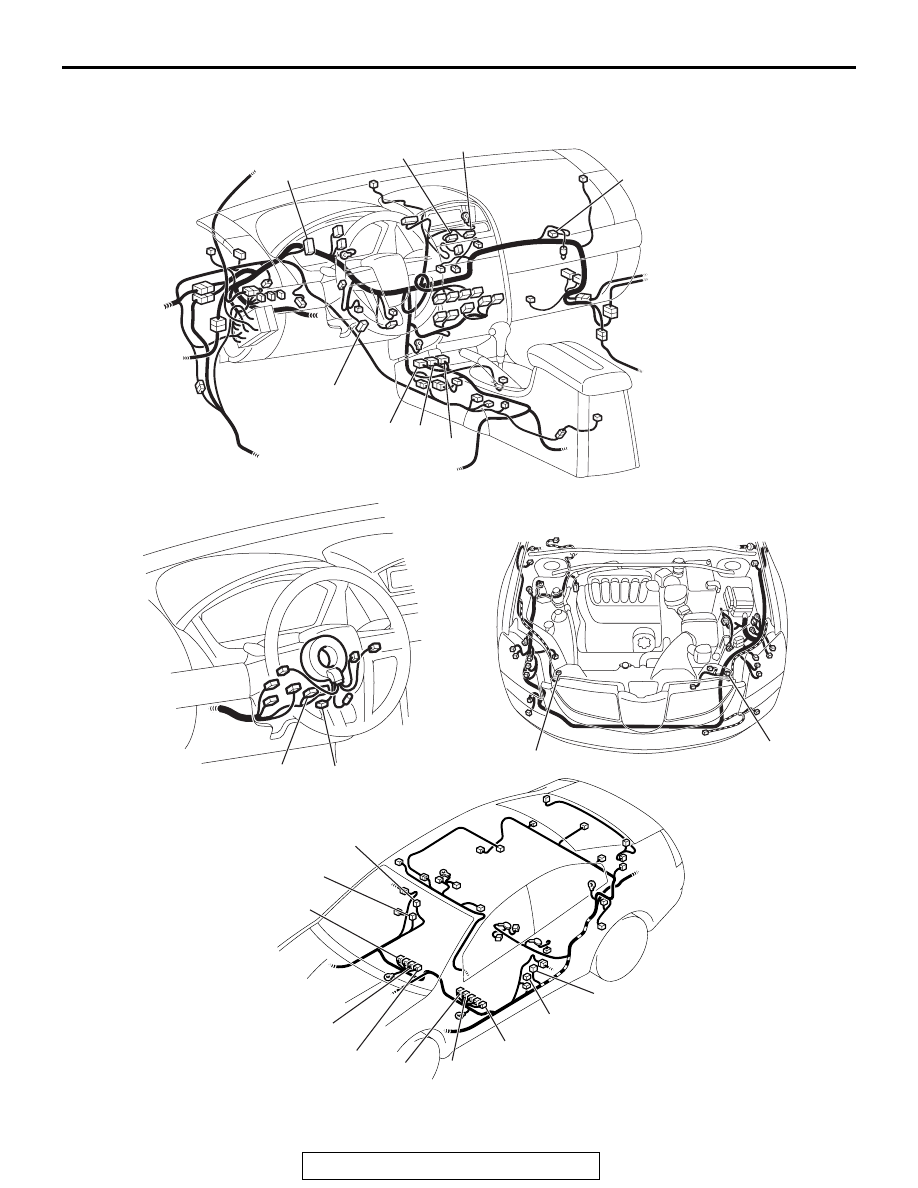

CONFIGURATION DIAGRAMS

AC307197

AC304366

AC304353

AC304363

AC304362

C-101

AB

DASH PANEL

STEERING COLUMN

FLOOR AND ROOF

ENGINE ROOM

C-307

A-23

C-305

A-27

C-121

C-122

C-125

C-110

D-27

D-33

D-32

D-35

D-20

D-21

D-24

D-29

D-30

D-28

C-120

C-06

C-07

GENERAL DESCRIPTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-13

A-23 (Y)

FRONT IMPACT SENSOR (LH)

A-27 (Y)

FRONT IMPACT SENSOR (RH)

C-06

AIR BAG OFF INDICATOR LIGHT
(PASSENGER’S SIDE)

C-07

SEAT BELT WARNINNG LIGHT
(PASSENGER’S SIDED)

C-101

COMBINATION METER (FOR SRS
WARNING LIGHT)

C-110 (Y)

AIR BAG MODULE (FRONT
PASSENGER’S SIDE)

C-120 (Y)

SRS-ECU

C-121 (Y)

SRS-ECU

C-122 (Y)

SRS-ECU

C-125 (B)

DATA LINK CONNECTOR

C-305 (Y)

AIR BAG MODULE (SQUIB)
(DRIVER’S SIDE)

C-307 (Y)

CLOCK SPRING

D-20

SIDE IMPACT SENSOR (LH)

D-21 (B)

SEAT BELT PRE-TENSIONER
(LH)

D-24 (R)

SIDE-AIRBAG MODULE (SQUIB)
(LH)

D-27 (GR)

SEAT SLIDE SENSOR

D-28 (B)

SEAT BELT SWITCH (DRIVER’S
SIDE)

D-29

SEAT BELT SWITCH
(PASSENGER’S SIDE)

D-30 (GR)

OCCUPANT
CLASSIFICATION-ECU

D-32 (R)

SIDE-AIRBAG MODULE (SQUIB)
(RH)

D-33 (B)

SEAT BELT PRE-TENSIONER
(RH)

D-35

SIDE IMPACT SENSOR (RH)
