ON-VEHICLE SERVICE

TSB Revision

ENGINE LUBRICATION

12-4

4. Install a new drain plug gasket so that it faces in the

direction shown in the illustration, and then tighten the drain
plug to the specified torque.

Tightening torque: 39

± 5 N⋅m (29 ± 3 ft-lb)

5. Refill the specified quantity of oil.

Specified Engine Oil: Engine oils displaying ILSAC

certification symbol ("Starburst" symbol) or con-
forming the API classification SL, SL/CF

Total quantity:

<2.4L Engine> 4.3 dm

3

 (4.5 quarts)

<3.8L Engine> 4.6 dm

3

 (4.9 quarts)

NOTE: SAE 5W-20 and SAE 10W-30 engine oil can be used
in outdoor temperatures ranging from

−

18 to 38

°

C (0 to

100

°

F). However, for optimum fuel economy and cold start-

ing, select the low SAE viscosity grade oil for the expected
temperature range. SAE 5W-20 engine oil is recommended.

6. Install the engine oil filler cap.
7. Check oil level.

ENGINE OIL FILTER REPLACEMENT

M1121001100424

1. Start the engine and allow it to warm up until the

temperature of the coolant reaches 80

− 90°C (176 −

194

°F).

WARNING

Use care as oil could be hot.

2. Remove the engine oil filler cap.
3. Remove the drain plug to drain oil.

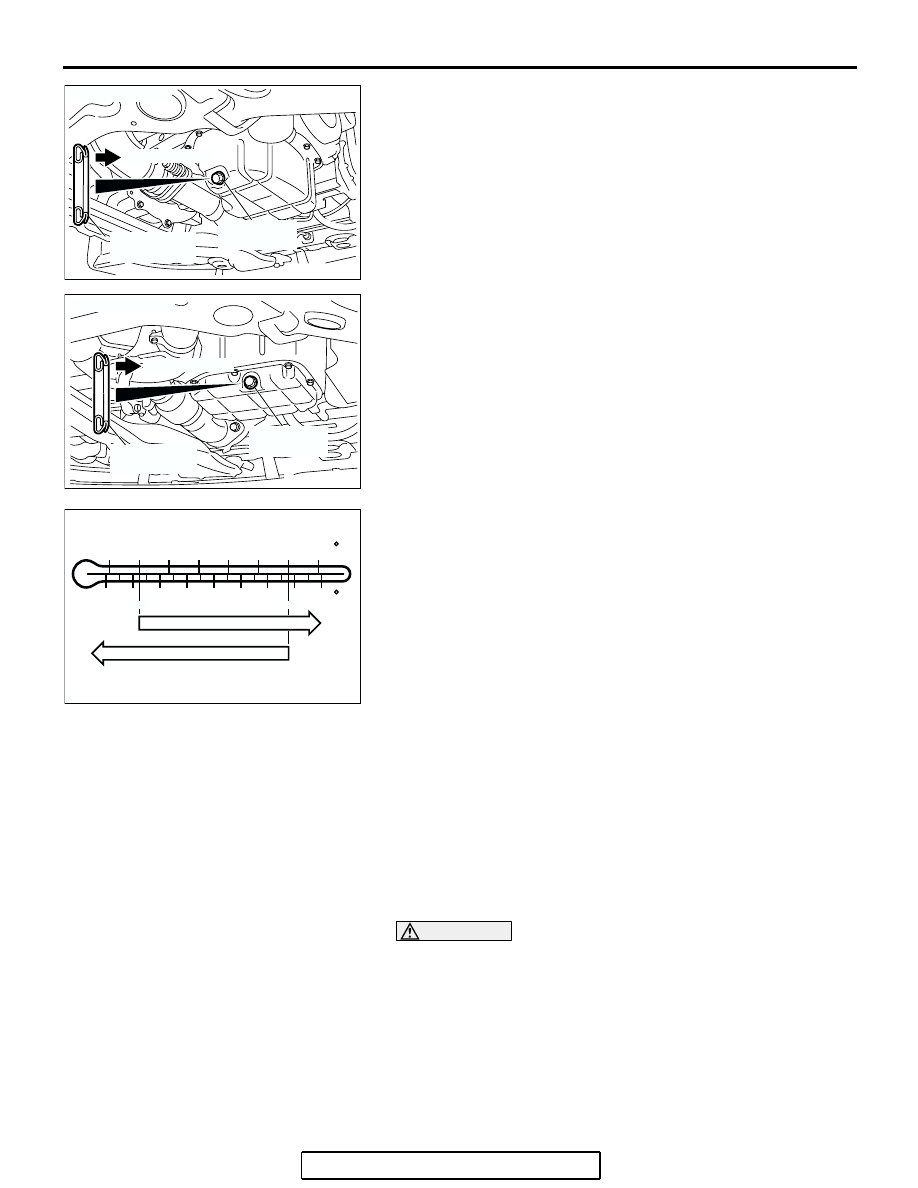

AC305936

DRAIN PLUG
GASKET

OIL PAN SIDE

39 ± 5 N·m
29 ± 3 ft-lb

AB

<2.4L ENGINE>

AC305937

DRAIN PLUG
GASKET

OIL PAN SIDE

39 ± 5 N·m
29 ± 3 ft-lb

AB

<3.8L ENGINE>

-20

0

0

20

20

40

40

60

80

100

120

30

10

50

-10

-20

-30

38

-18

F

C

SAE   10W-30

SAE   5W-20 PREFERRED

AC401875 AB

ON-VEHICLE SERVICE

TSB Revision

ENGINE LUBRICATION

12-5

4. Use an oil filter wrench to remove the engine oil filter.
5. Clean the filter bracket side mounting surface and ensure

the old O-ring has been removed.

6. Apply a small amount of engine oil to the O-ring of the new

oil filter.

7. Screw on the oil filter by hand until it touches the surface of

the flange and then tighten it with an oil filter wrench.

8. Install the drain plug and refill engine oil (Refer to Engine Oil

Replacement

P.12-3

).

9. Rev the engine a few times, and check to be sure that no

engine oil leaks at the oil filter.

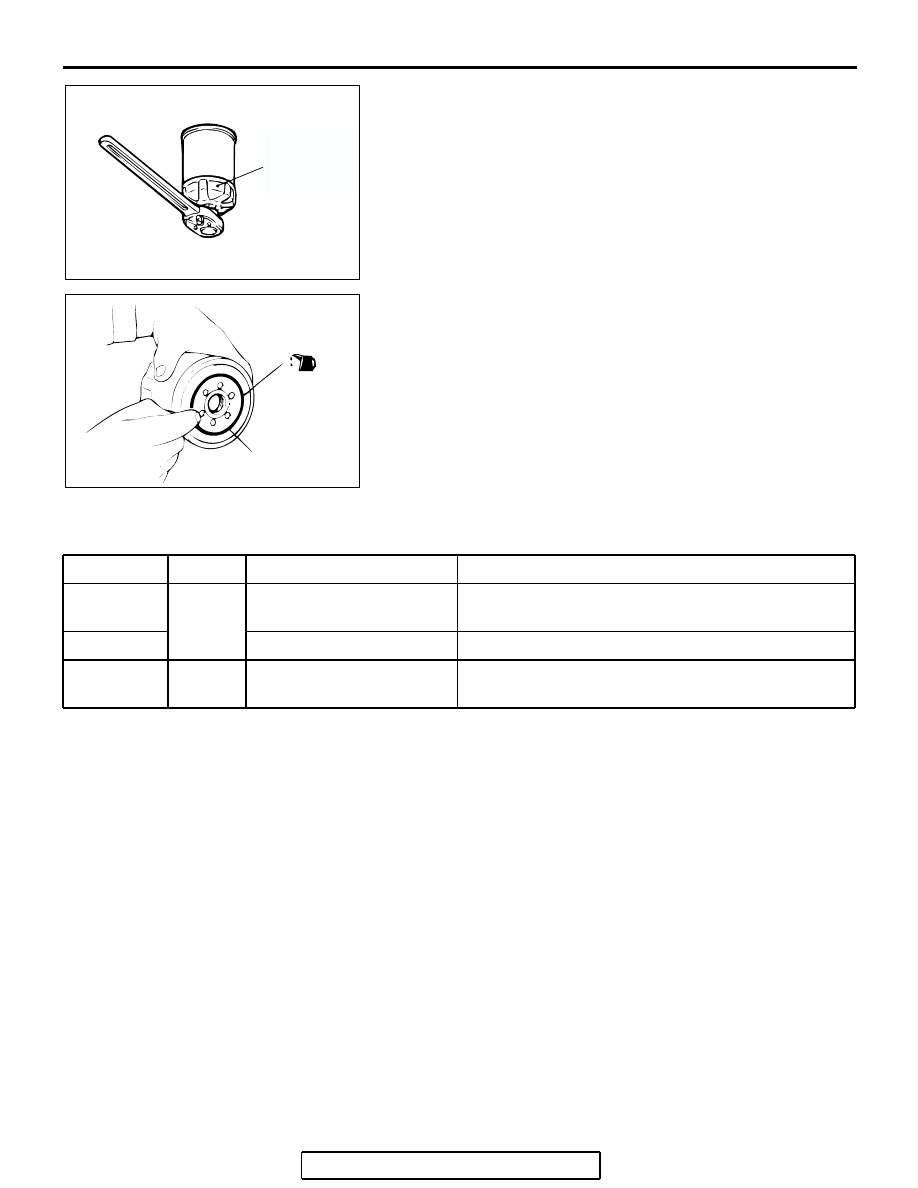

AC000093

MB991610 OR
GENERAL
SERVICE
TOOL

AG

ACX00396

O-RING

AB

NUMBER

ENGINE SPECIAL TOOL

TIGHTENING TORQUE

MD136466,
MD322508

2.4L

General service tool

Approximately 3/4 turn [17

± 3 N⋅m (13 ± 2 ft-lb)]

MD356000

MB991610 or equivalent

Approximately 3/4 turn [14

± 2 N⋅m (124 ± 18 in-lb)]

MD352627,
MD321589

3.8L

General service tool

Approximately one turn [14

± 2 N⋅m (124 ± 18 in-lb)]

ON-VEHICLE SERVICE

TSB Revision

ENGINE LUBRICATION

12-6

ENGINE OIL PRESSURE CHECK

M1121002300614

Required Special Tool:
MD998054: Engine Oil Pressure Switch Wrench
1. Check engine oil quantity.

CAUTION

Since sealant is applied to the thread of the engine oil
pressure switch, take care not to damage the engine oil
pressure switch when removing it.
2. Use special tool MD998054 to remove the engine oil

pressure switch.
NOTE: Remove the terminal of oil pressure switch where
special tool MD998054 is not fitted.

3. Install the engine oil pressure gauge.

NOTE: Use a 1/8 pipe thread adapter.

4. Run the engine to warm it.
5. After the engine has been warmed up, check that engine oil

pressure is within the standard value.

Standard value:

At idle: 29 kPa (4.2 psi) or more
At 3,500 r/min: 294

− 686 kPa (43 − 100 psi)

6. Remove the engine oil pressure gauge.

7. Apply the specified sealant 3M

 AAD Part number 8672 or

equivalent to the threads of the engine oil pressure switch.

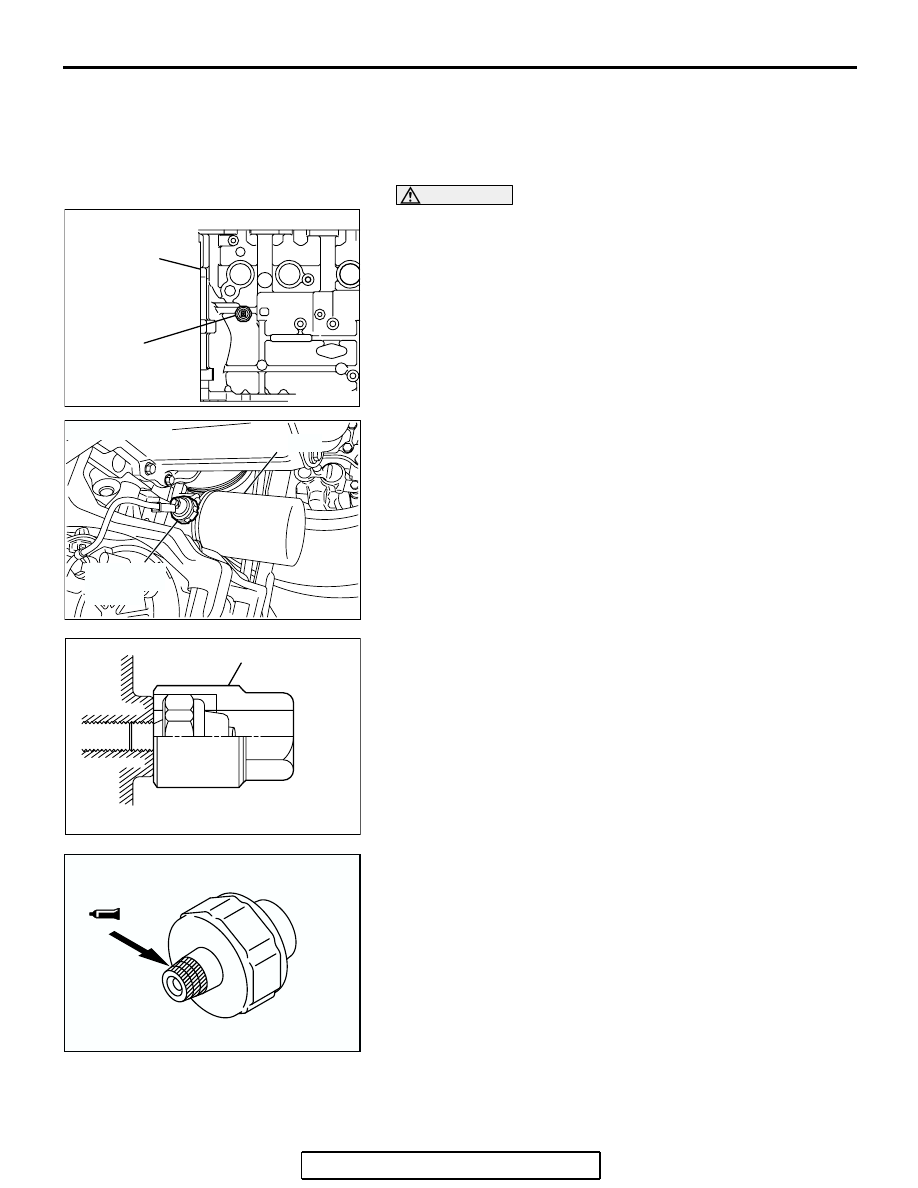

AK000197AI

CYLINDER BLOCK

ENGINE OIL
PRESSURE
SWITCH

<2.4L ENGINE>

AK203685

ENGINE OIL
PRESSURE
SWITCH

OIL FILTER

AC

<3.8L ENGINE>

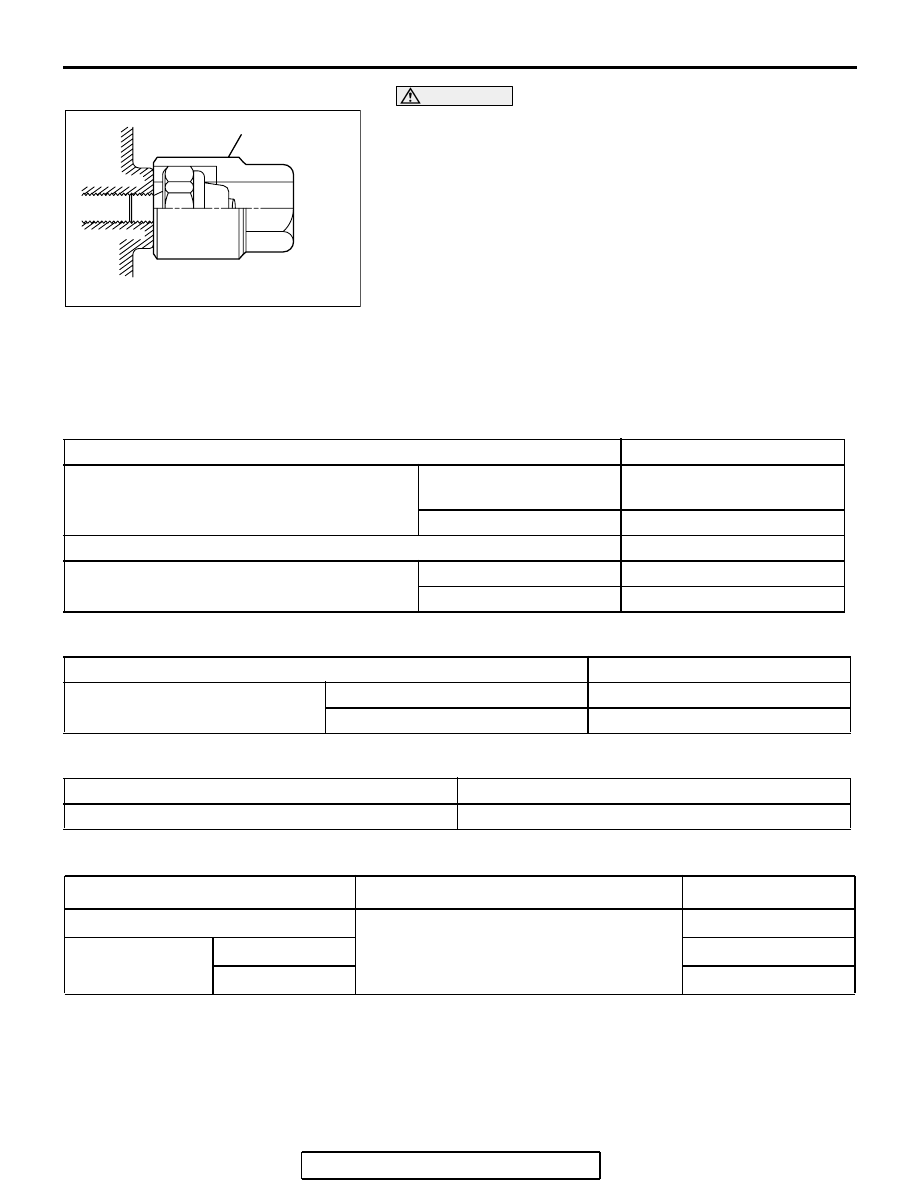

AKX00294

MD998054

AB

AKX00295 AB

SPECIFICATIONS

TSB Revision

ENGINE LUBRICATION

12-7

CAUTION

Do not start the engine within one hour after the engine
engine oil pressure switch has been installed.
8. Use special tool MD998054 to tighten the engine oil

pressure switch to the specified torque.

Tightening torque:

<2.4L ENGINE> 19

± 3 N⋅m (14 ± 2 ft-lb)

<3.8L ENGINE> 10

± 2 N⋅m (87 ± 17 in-lb)

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

M1121002200305

SERVICE SPECIFICATIONS

M1121000300221

SEALANT

M1121000500225

LUBRICANT

M1121000400701

.

AKX00294

MD998054

AB

ITEM

SPECIFICATION

Engine oil filter

MD352627, MD321589,
MD356000

14

± 2 N⋅m (124 ± 18 in-lb)

MD136466, MD322508

17

± 3 N⋅m (13 ± 2 ft-lb)

Engine oil pan drain plug

39

± 5 N⋅m (29 ± 3 ft-lb)

Engine oil pressure switch

2.4L Engine

19

± 3 N⋅m (14 ± 2 ft-lb)

3.8L Engine

10

± 2 N⋅m (87 ± 17 in-lb)

ITEM

STANDARD VALUE

Engine oil pressure kPa (psi)

at idle

29 (4.2) or more

at 3,500 r/min

294

− 686 (43 − 100)

ITEM

SPECIFIED SEALANT

Engine oil pressure switch

3M

 AAD Part No. 8672 or equivalent

ITEM

ENGINE OIL

QUANTITY dm

3

 (qt)

Oil filter

Engine oils displaying ILSAC certification
symbol ("Starburst" symbol) or conforming
to the API classification SL, SL/CF

0.3 (0.32)

Total quantity

2.4 L Engine

4.3 (4.5)

3.8 L Engine

4.6 (4.9)
