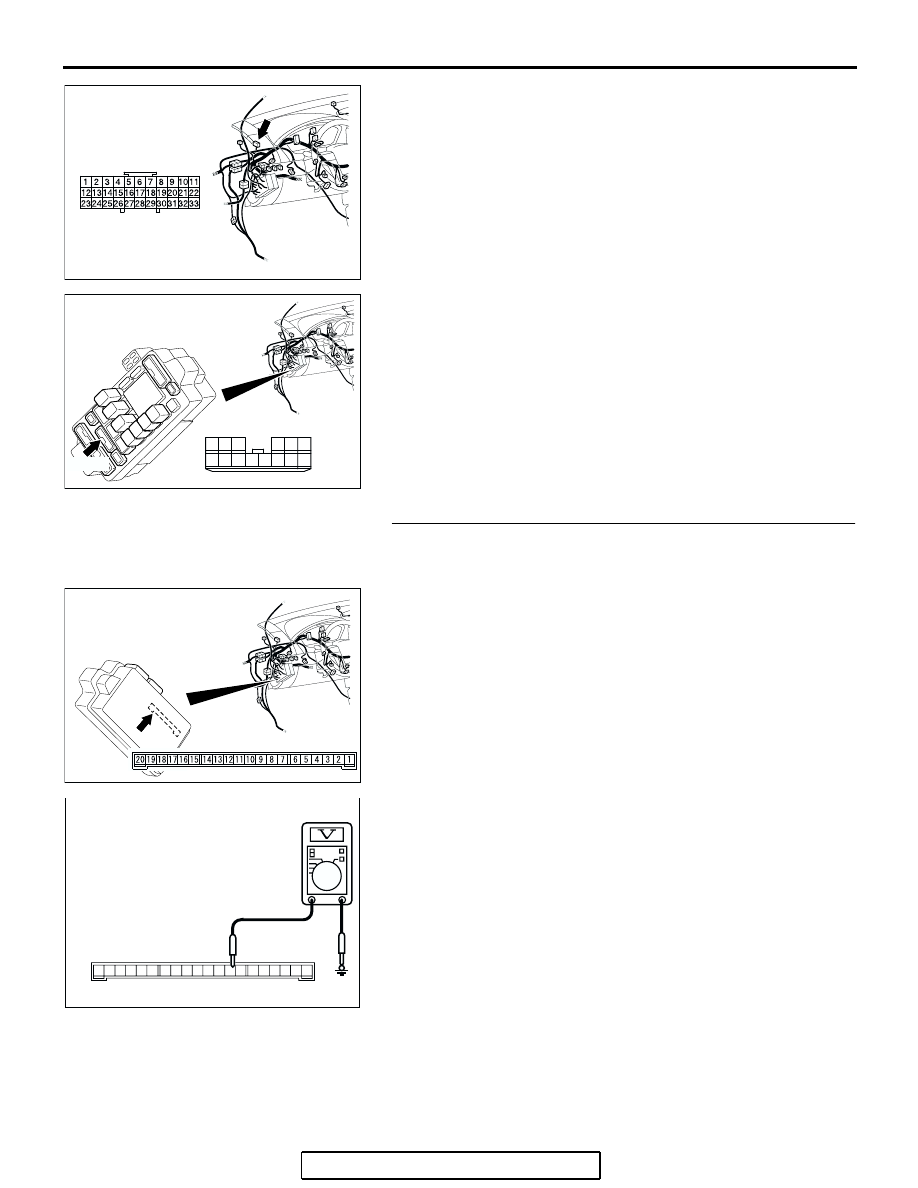

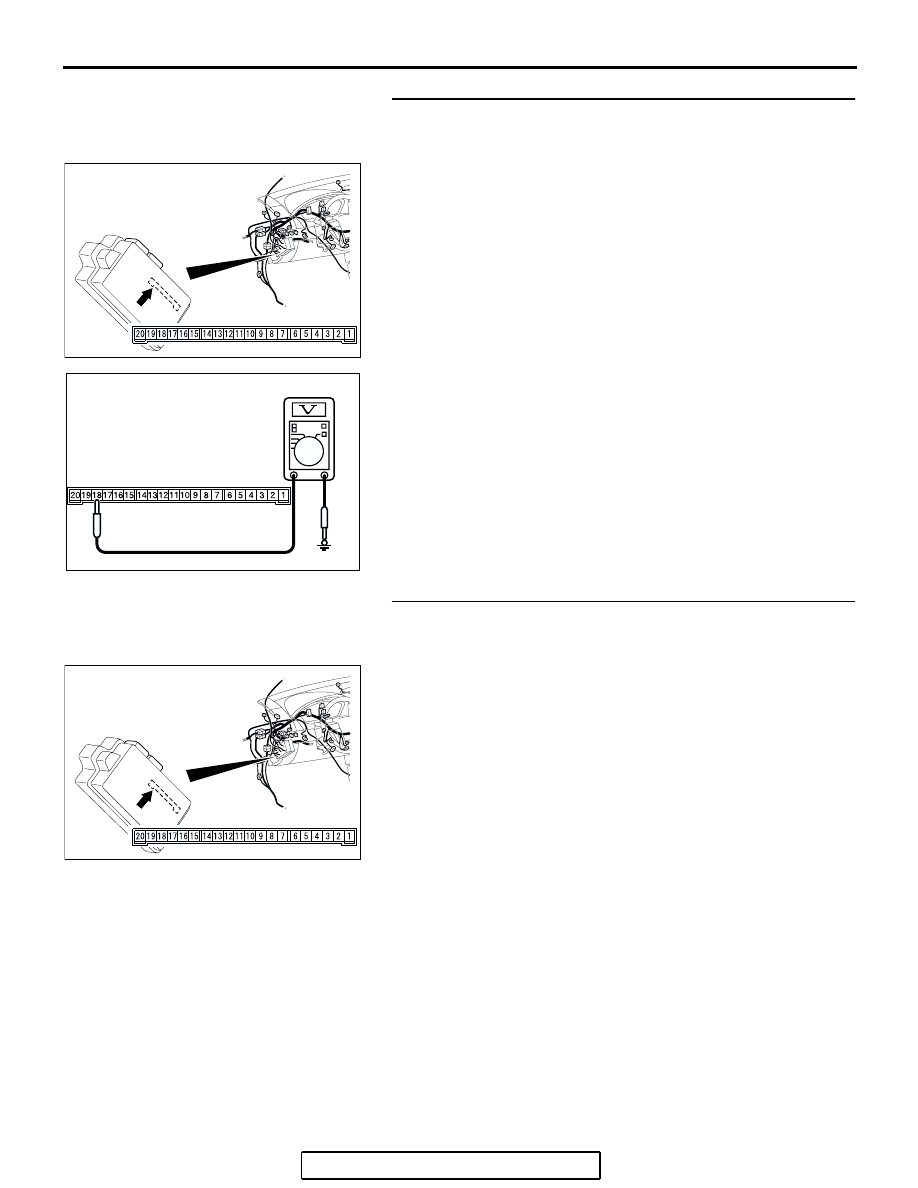

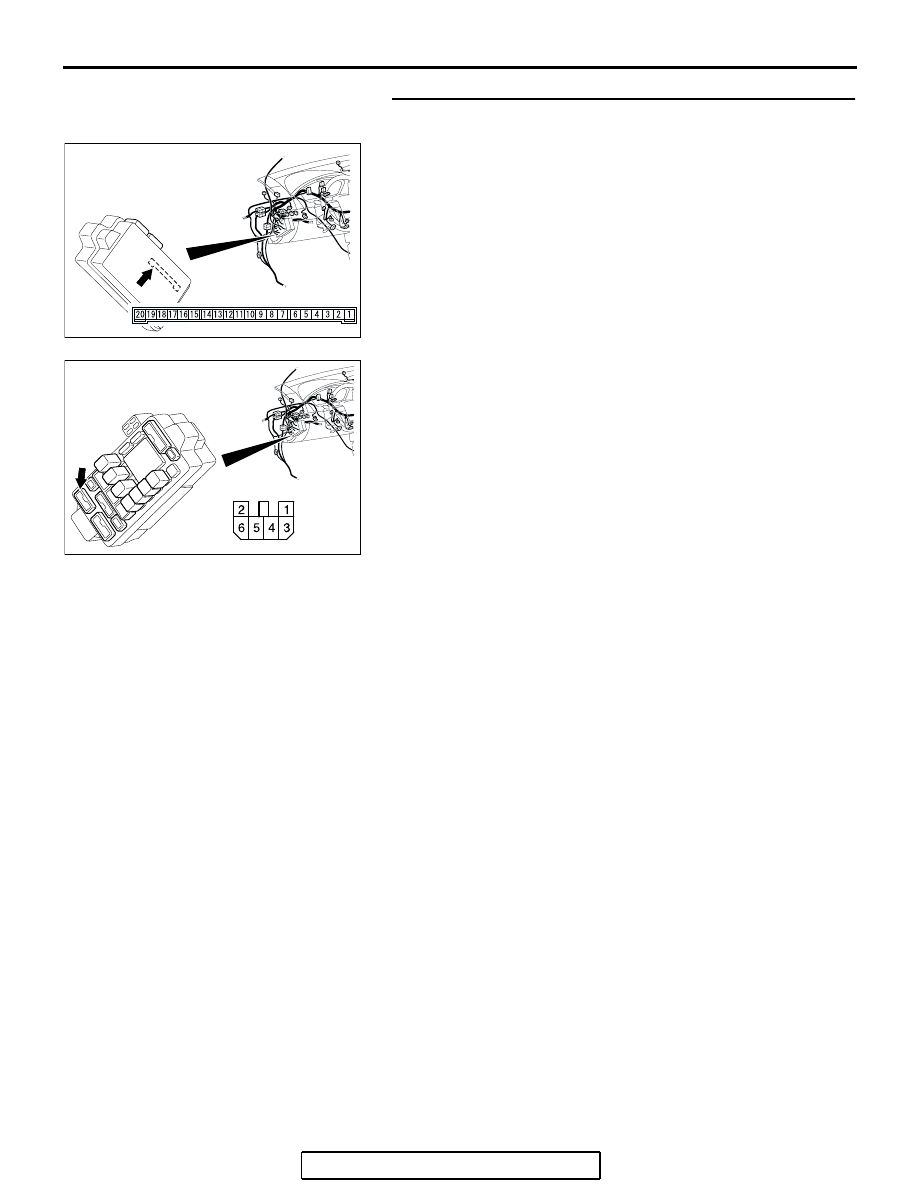

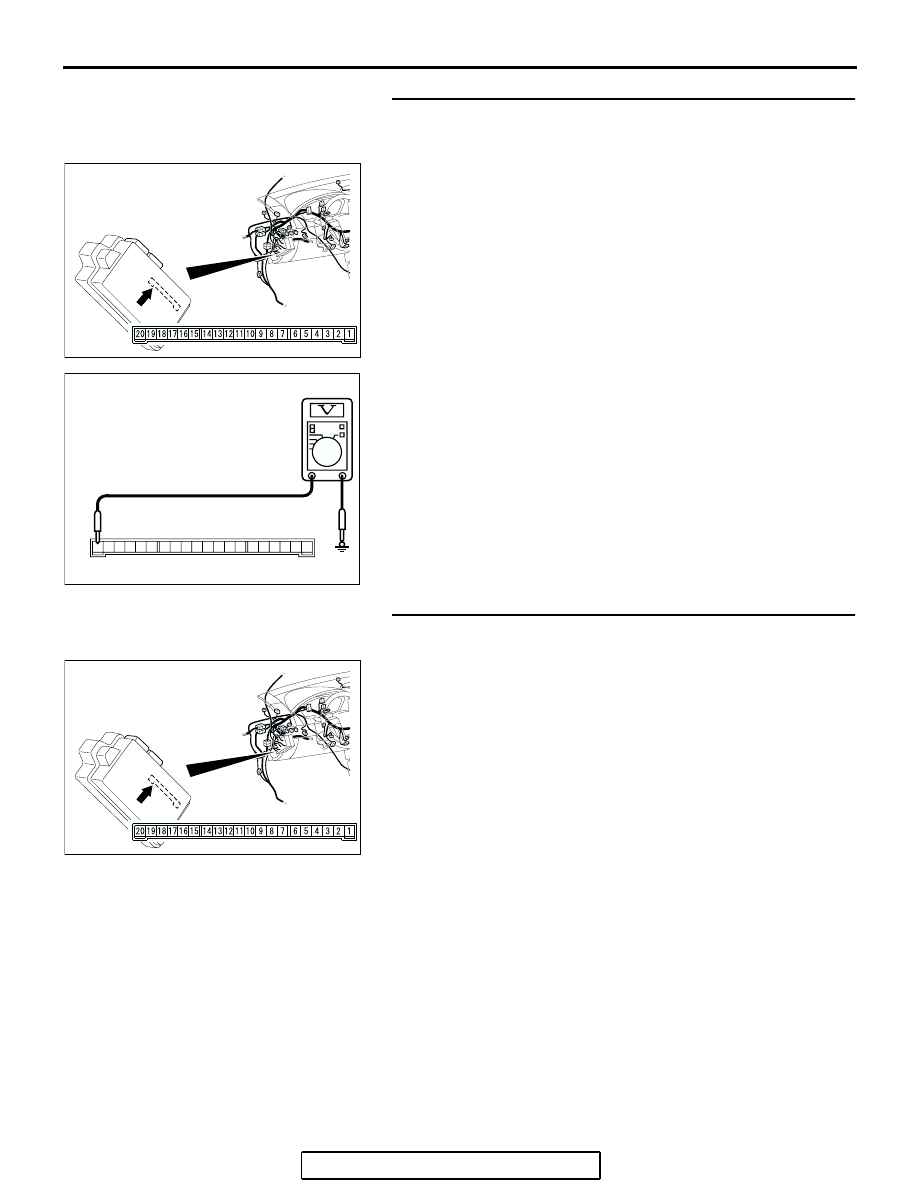

INPUT SIGNAL PROCEDURES TSB Revision SIMPLIFIED WIRING SYSTEM (SWS) 54B-544 STEP 2. Check the battery line of power supply circuit to voltage available at the junction block side of the connector. (2) Measure the voltage between terminal 20 and ground. • The voltage should measure approximately 12 volts (battery positive voltage). Q: Is the measured voltage approximately 12 volts (battery positive voltage)? STEP 3. Check the wiring harness between ETACS-ECU AC305413 AG CONNECTOR: C-219 JUNCTION BLOCK SIDE JUNCTION BLOCK (REAR VIEW) AC209836 2019 18 1716 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 AE CONNECTOR C-219 AC305413 AG CONNECTOR: C-219 JUNCTION BLOCK SIDE JUNCTION BLOCK (REAR VIEW) |
