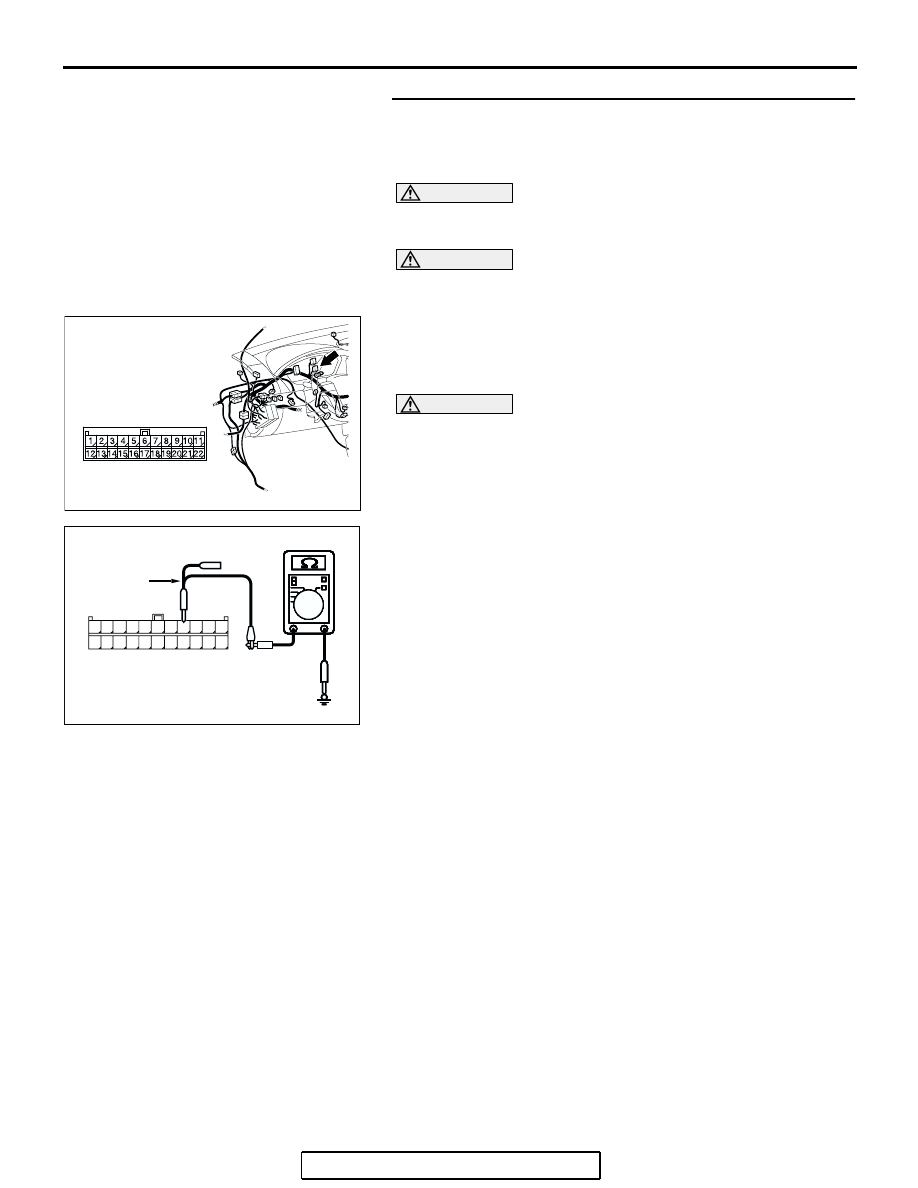

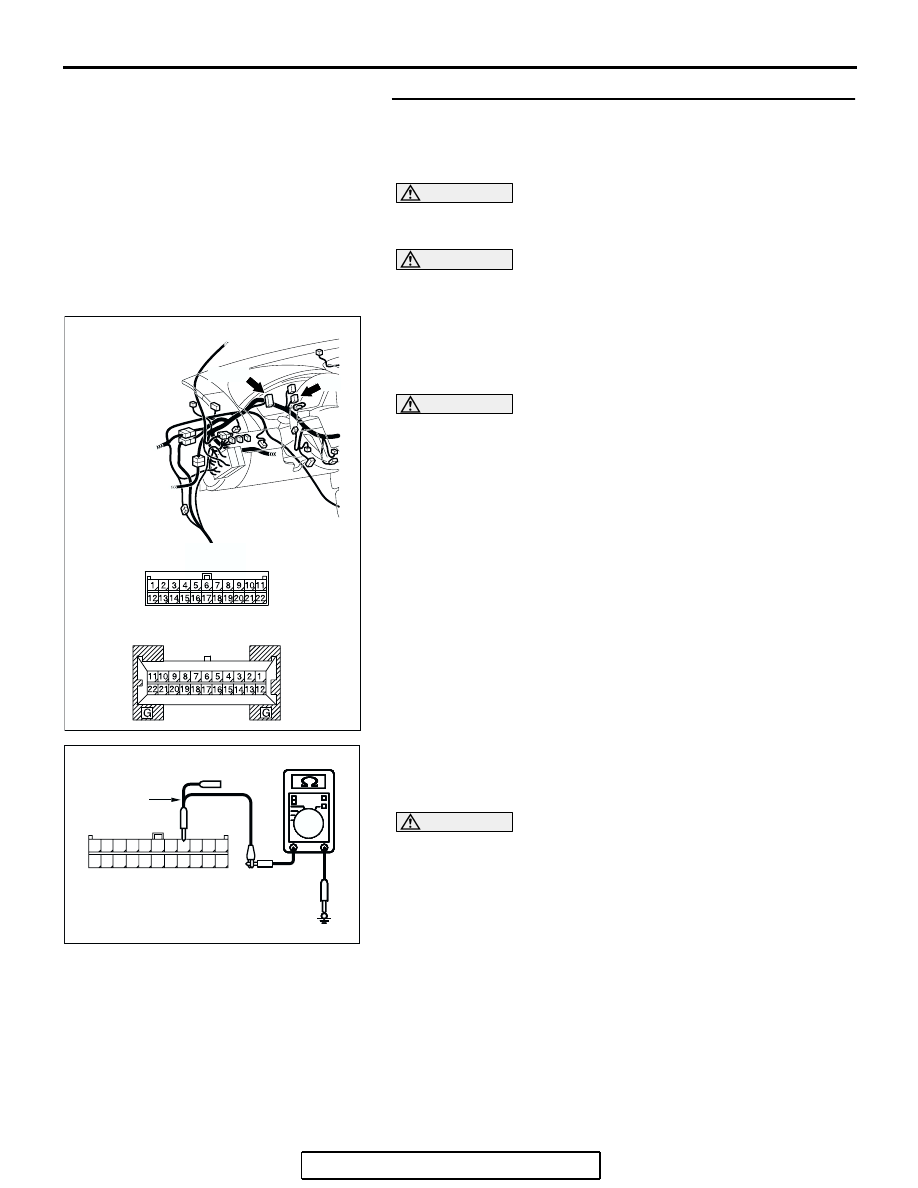

DIAGNOSIS TSB Revision CONTROLLER AREA NETWORK (CAN) 54C-176 STEP 7. Check the CAN_H line (communication line CAUTION A digital multimeter should be used. For details refer to . CAUTION The test wiring harness should be used. For details refer to . (1) Disconnect joint connector (3) C-02, and measure the resistance at the wiring harness side of joint connector (3) (2) Turn the ignition switch to the "LOCK" (OFF) position. CAUTION Disconnect the negative battery terminal. For details refer (3) Disconnect the negative battery terminal. (4) Measure the resistance between joint connector (3) terminal 4 and body ground. OK: 1 k Ω or more Q: Does the resistance measure 1 k Ω or more? YES : If the resistance measures 1 k Ω or more, go to Step 9 . NO : If the resistance measures less than 1 k Ω, go to Step AC305231AP CONNECTOR: C-02 AC209364 11 22 10 21 9 20 8 19 7 18 6 17 5 16 4 15 3 14 2 13 1 12 AC209364 AC209364 AC209364 AC209364 AC209364 AC209364HW HARNESS SIDE: C-02 TEST |
