Mitsubishi Galant 9G. Manual - part 1173





MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-992

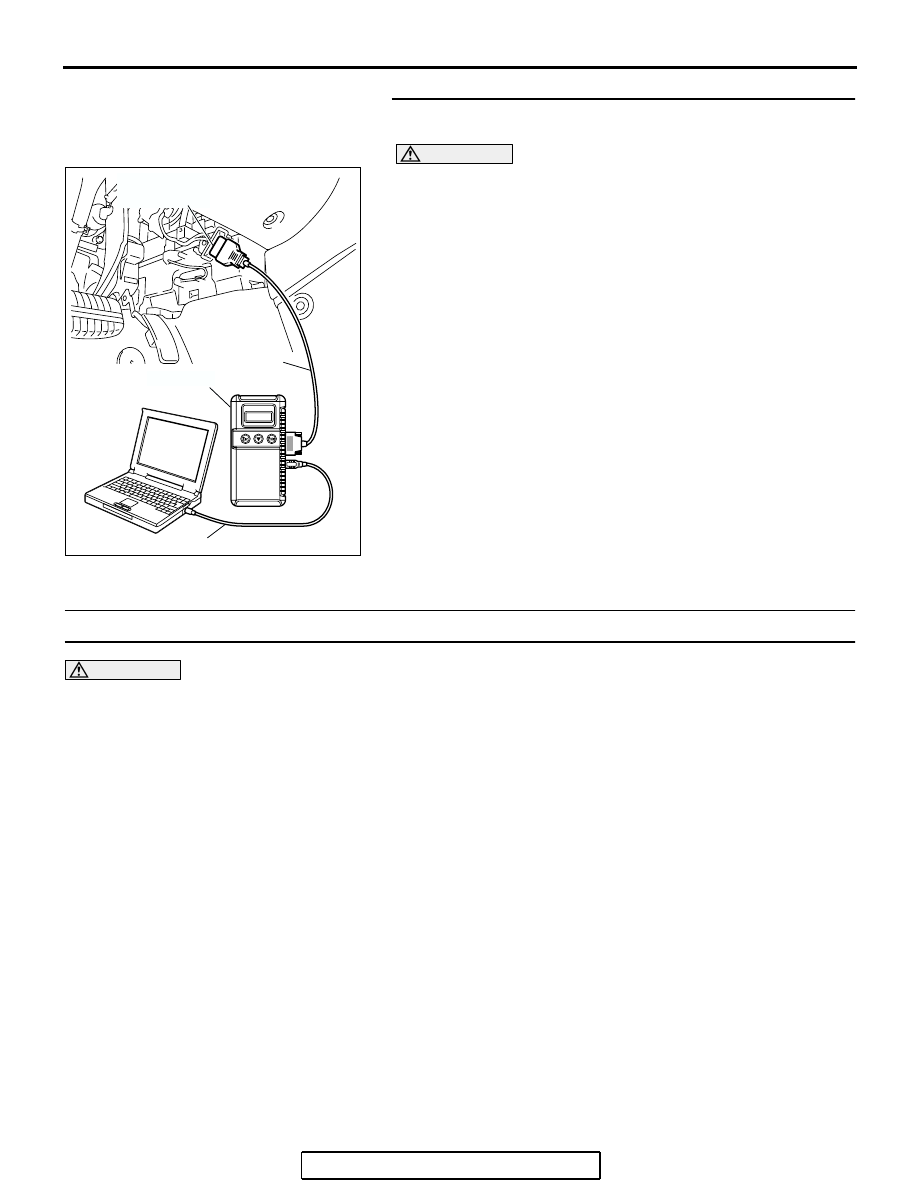

STEP 16. Using scan tool MB991958, read the diagnostic
trouble code (DTC).

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK"(OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) After the DTC has been deleted, read the DTC again.
(4) Turn the ignition switch to the "LOCK"(OFF) position.
Q: Is DTC P2138 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

DTC P2228: Barometric Pressure Circuit Low Input

CAUTION

If DTC P2228 has been set, TCL related DTC
U1120 is also set. After P2228 has been diag-
nosed, don't forget to erase DTC U1120.

.

TECHNICAL DESCRIPTION

• The barometric pressure sensor outputs a volt-

age which corresponds to the barometric pres-
sure.

• The PCM checks whether this voltage is within a

specified range.

.

DESCRIPTIONS OF MONITOR METHODS

Barometric pressure sensor output voltage is out of

reasonable barometric pressure range.

.

MONITOR EXECUTION

Continuous

.

MONITOR EXECUTION CONDITIONS
(Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Not applicable

.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-993

DTC SET CONDITIONS

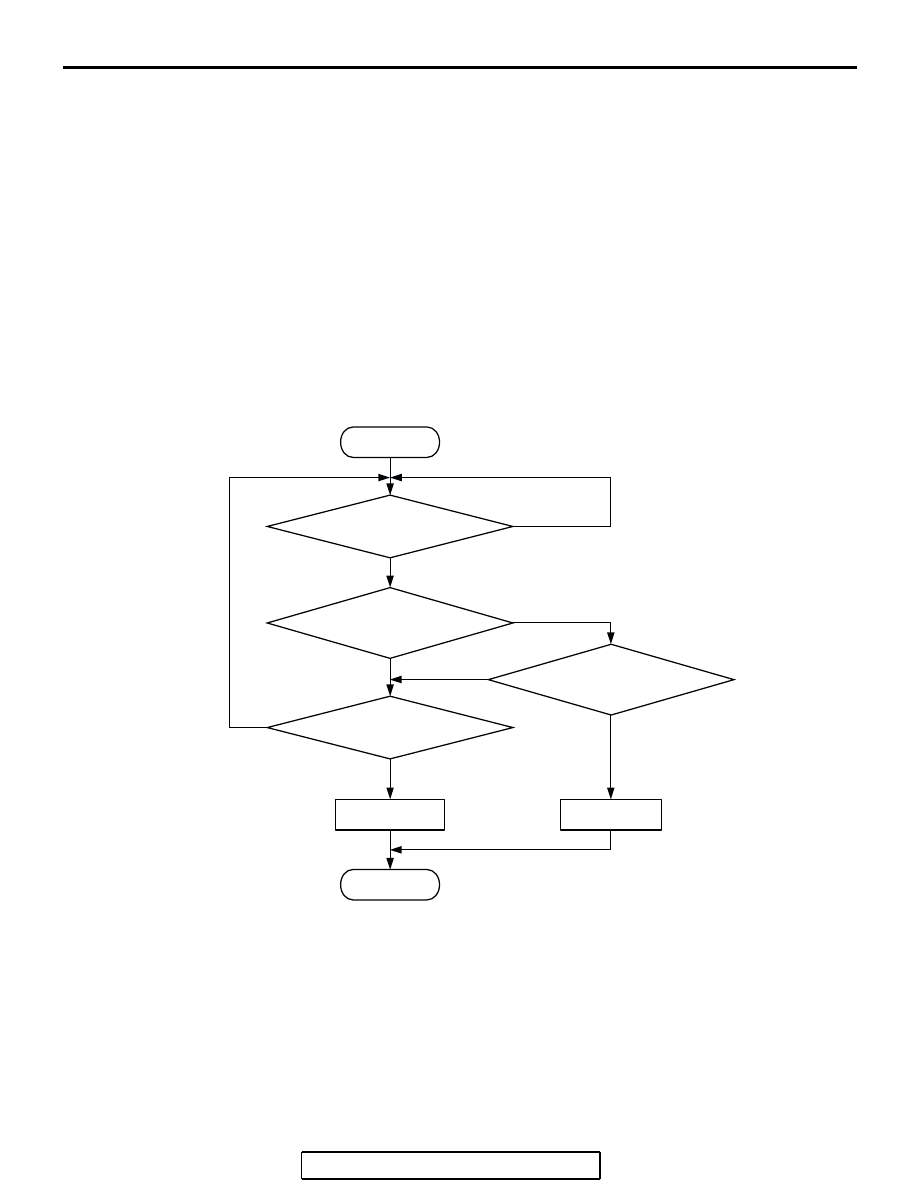

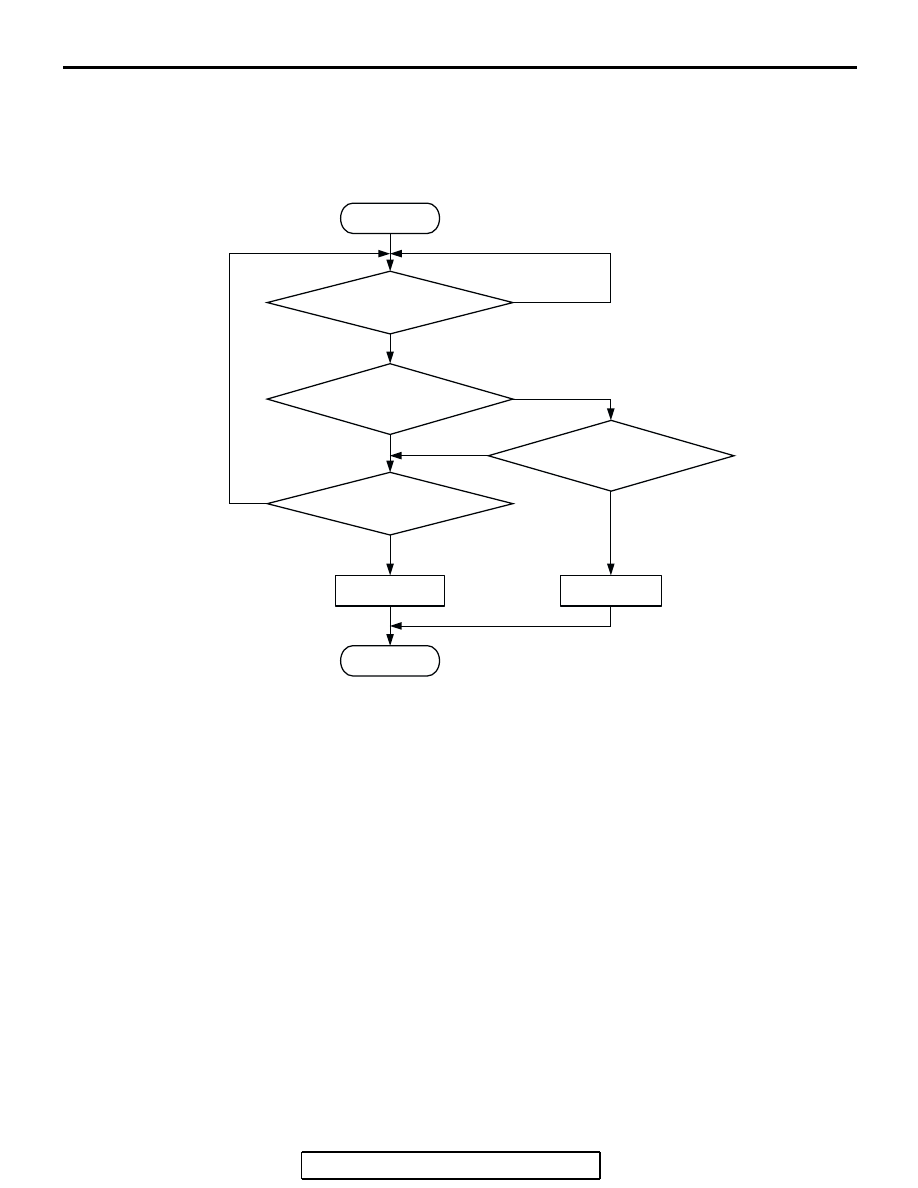

Logic Flow Chart

.

Check Conditions

• 2 seconds or more have passed since the engine

starting sequence was completed.

• Battery positive voltage is higher than 8 volts.

Judgement Criteria

• Barometric pressure sensor output signal has

continued to be approximately 49 kPa (14.5
in.Hg) or lower (approximately 15,000 feet above
sea level) for 10 seconds.

.

OBD-II DRIVE CYCLE PATTERN

Refer to Diagnostic Function

− OBD-II Drive Cycle −

Procedure 6

− Other Monitor

P.13B-6

.

.

TROUBLESHOOTING HINTS (The most
likely causes for this code to be set are:)

• PCM failed.

START

END

NO

NO

NO

YES

YES

YES

MALFUNCTION

GOOD

NO

YES

AK401684

MONITORING

CONDITIONS

BAROMETRIC PRESSURE

< 49kPa (14.5in.Hg)

CONTINUOUS

FAILURE FOR

10secs

BAROMETRIC PRESSURE

> 113kPa (33.4in.Hg)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-994

DIAGNOSIS

Required Special Tools:

• MB991958: Scan tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

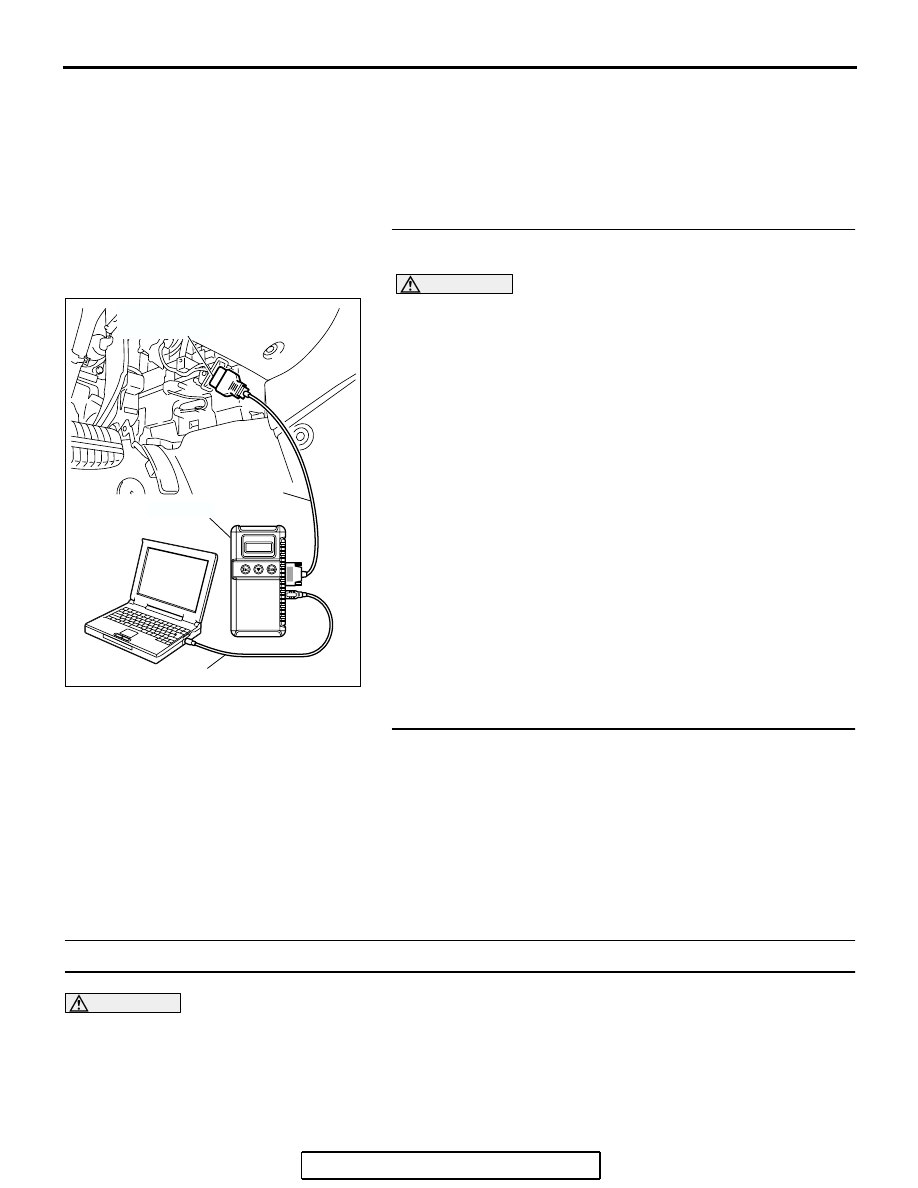

STEP 1. Using scan tool MB991958, check data list item 25:
Barometric Pressure Sensor.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to the data reading mode for item

25, Barometric Pressure Sensor.

• When altitude is 0 m (0 foot), 101 kPa (29.8 In.Hg).

• When altitude is 600 m (1,969 feet), 95 kPa (28.1

In.Hg).

• When altitude is 1,200 m (3,937 feet), 88 kPa (26.0

In.Hg).

• When altitude is 1,800 m (5,906 feet), 81 kPa (23.9

In.Hg).

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-14

.

NO :  Replace the PCM, then go to Step 2.

STEP 2. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13B-6

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P2228 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

DTC P2229: Barometric Pressure Circuit High Input

CAUTION

If DTC P2229 has been set, TCL related DTC
U1120 is also set. After P2229 has been diag-
nosed, don't forget to erase DTC U1120.

.

TECHNICAL DESCRIPTION

• The barometric pressure sensor outputs a volt-

age which corresponds to the barometric pres-
sure.

• The PCM checks whether this voltage is within a

specified range.

.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-995

DESCRIPTIONS OF MONITOR METHODS

Barometric pressure sensor output voltage is out of

reasonable barometric pressure range.

.

MONITOR EXECUTION

Continuous

.

MONITOR EXECUTION CONDITIONS
(Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Not applicable

.

DTC SET CONDITIONS
Logic Flow Chart

.

Check Conditions

• 2 seconds or more have passed since the engine

starting sequence was completed.

• Battery positive voltage is higher than 8 volts.

Judgement Criteria

• Barometric pressure sensor output signal has

continued to be approximately 113 kPa (33.4
in.Hg) or higher (approximately 4,000 ft below
sea level) for 10 seconds.

.

START

END

NO

NO

NO

YES

YES

YES

MALFUNCTION

GOOD

NO

YES

AK401684

MONITORING

CONDITIONS

BAROMETRIC PRESSURE

< 49kPa (14.5in.Hg)

CONTINUOUS

FAILURE FOR

10secs

BAROMETRIC PRESSURE

> 113kPa (33.4in.Hg)
