Mitsubishi Galant 9G. Manual - part 1131





MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-824

STEP 13. Check the evaporative emission canister for
vacuum leaks.
(1) Remove the evaporative emission canister (Refer to

GROUP 17, Evaporative Emission Canister and Fuel Tank
Pressure Relief Valv

P.17-95

).

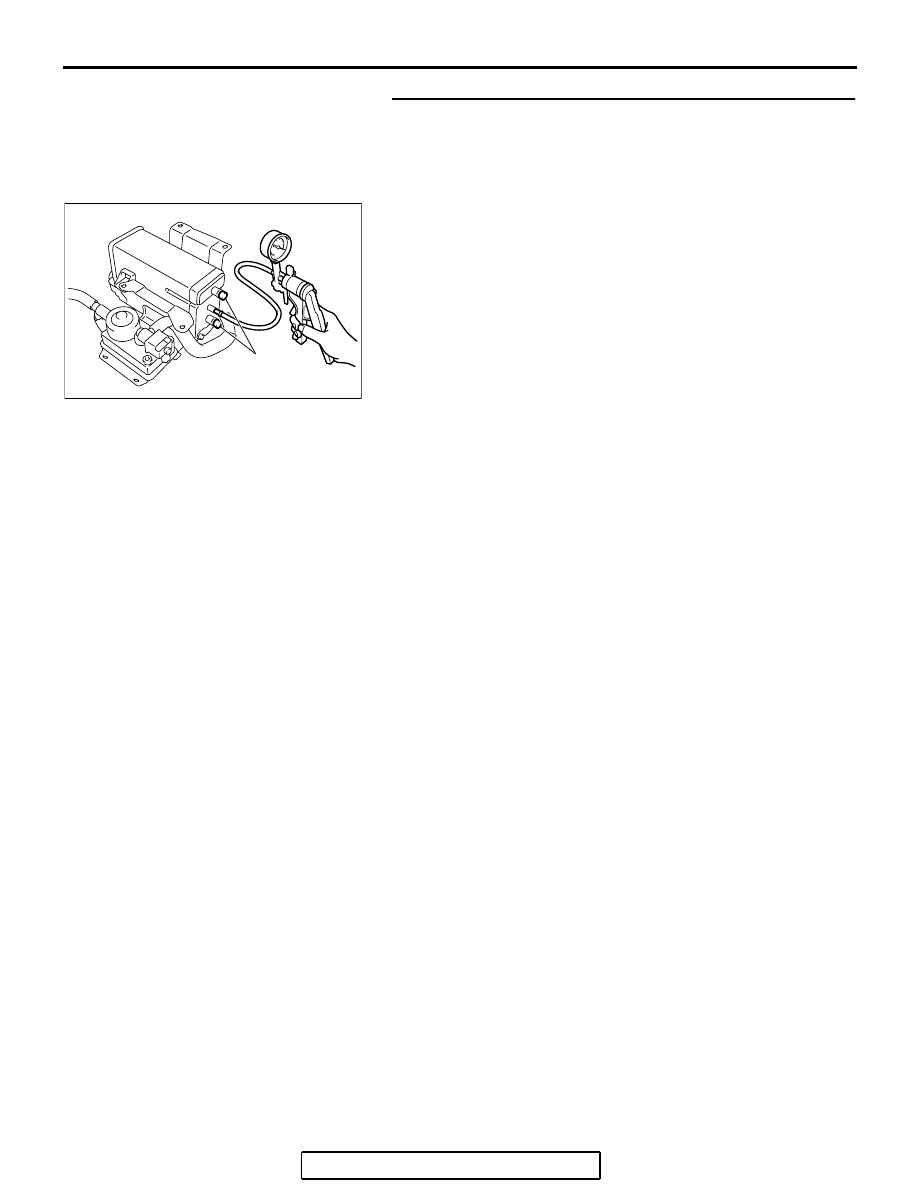

(2) Connect a hand vacuum pump to the evaporative emission

canister and plug the other nipples.

(3) Apply a pressure on the hand vacuum pump, and confirm

that air is maintained.

(4) Disconnect the hand vacuum pump and remove the plugs,

and then install the evaporative emission canister (Refer to
GROUP 17, Evaporative Emission Canister and Fuel Tank
Pressure Relief Valv

P.17-95

).

Q: Is the evaporative emission canister in good condition?

YES : Go to Step 14.
NO :  Replace the evaporative emission canister (Refer to

GROUP 17, Evaporative Emission Canister and Fuel
Tank Pressure Relief Valve

P.17-95

). Then go to Step

15   .

AC305682

AB

PLUGS

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-825

STEP 14. Using scan tool MB991958, check the
evaporative emission system monitor test.

CAUTION

• To prevent damage to scan tool MB991958, always turn

the ignition switch to the "LOCK" (OFF) position before
connecting or disconnecting scan tool MB991958.

• During this test, the PCM automatically increases the

engine speed to 1,600 r/min or greater. Check that the
transaxle is set to the "P" position.

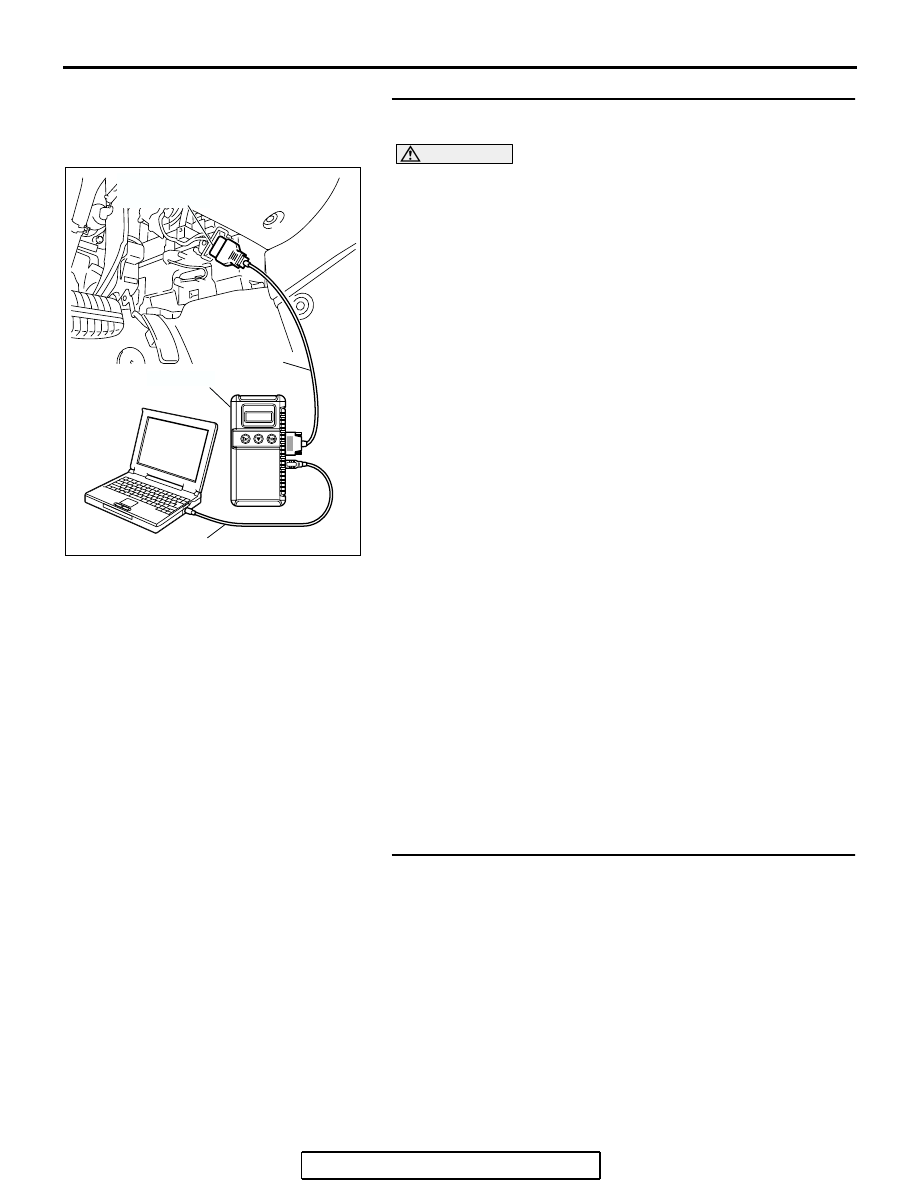

(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Erase the DTCs using scan tool MB991958.
(4) Check that the fuel cap is securely closed (Tighten until

three clicks are heard).

(5) Start the engine.
(6) Select "System Test."
(7) Select "Evap Leak Mon."
(8) During the test, keep the accelerator pedal at the idle

position.

(9) Keep the engine speed and engine load within the specified

range. When the monitor test starts, the "In Progress" item
on scan tool MB991958 will change from "NO" to "YES."

(10)Turn the ignition switch to the "LOCK" (OFF) position.

Disconnect scan tool MB991958.

Q: Is "Evap Leak Mon. Completed. Test Failed and DTCs

Set" displayed on scan tool MB991958?
YES :
Replace the PCM (Refer to

P.13B-1192

). Then go to

Step 15  .

NO <"Evap Leak Mon. Completed. Test Passed" is
displayed on scan tool MB991958.> :
The evaporative

emission system is working properly at this time. Go
to Step 15                .

NO <"Evap Leak Mon. Discontinued. Retest again from
the first" is displayed on scan tool  MB991958.> :
The

EVAP monitor has been interrupted during the test.
Turn the ignition switch to the "LOCK" (OFF) position
once, and repeat the monitoring from Step 14.

STEP 15. Perform the OBD-II drive cycle.
(1) Confirm the repair by performing the appropriate drive cycle

(Refer to Diagnostic Function

− OBD-ll Drive Cycle −

Procedure 1

− Evaporative Emission System Leak Monitor

P.13B-6

).

(2) Read the DTC.
Q: Is DTC P0456 set?

YES : Repeat the troubleshooting from Step 1.
NO :  The procedure is complete.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-826

DTC P0461: Fuel Level Sensor (main) Circuit Range/Performance

1

2 3

4

5

22

21

23 24 25

26 27 28 29

30 31 32 33 34

35 36 37 38

39 40 41 42 43

1

2

AK400894

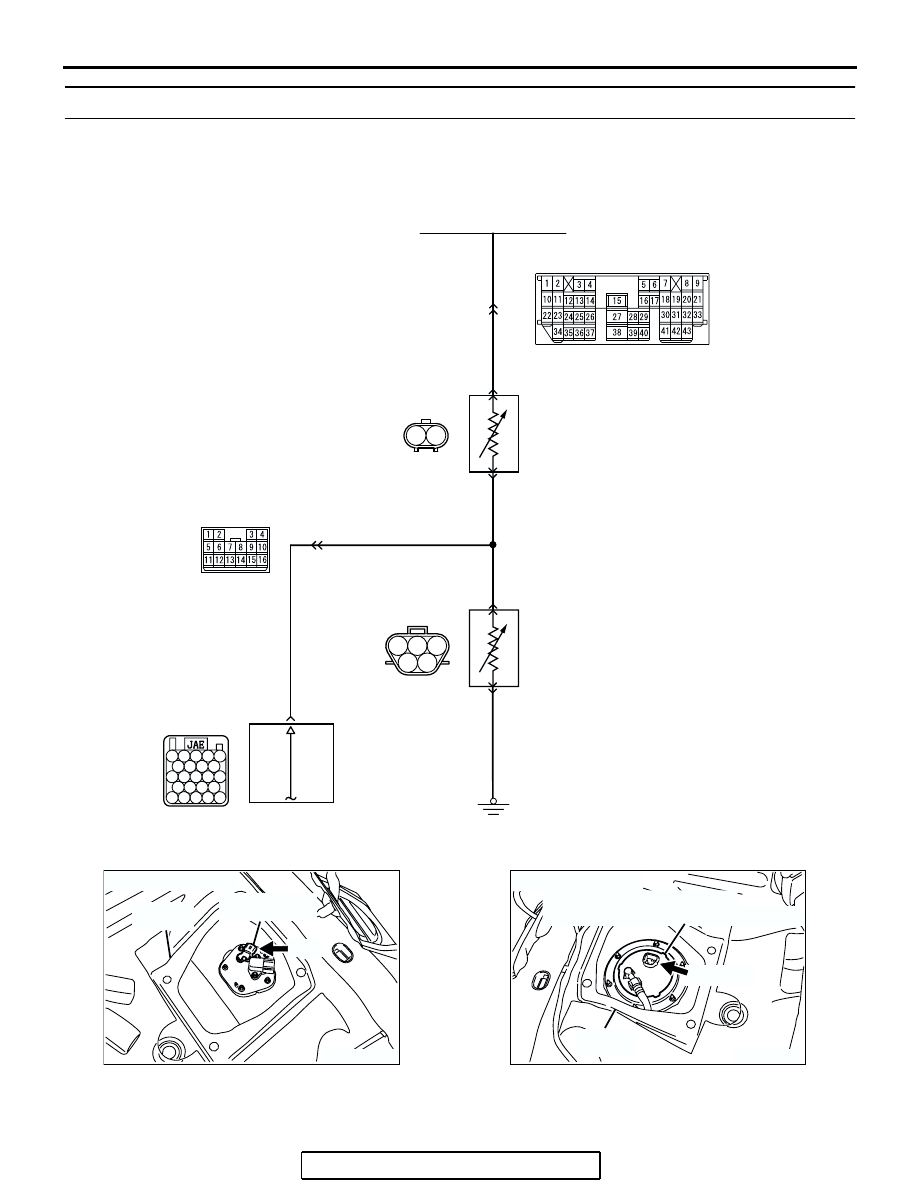

Fuel Level Sensor Circuit

FUEL LEVEL
SENSOR (SUB)

FUEL LEVEL SENSOR (MAIN)
(INTEGRATED IN FUEL PUMP MODULE)

13

2

1

2

1

11

PINK-

BLA

CK

BLA

CK

PINK-
BLACK

PINK-

BLA

CK

PINK-BLA

CK

24

GRA

Y

GRA

Y

POWERTRAIN
CONTROL
MODULE (PCM)

C-28

C-25

D-18

(MU802058)

D-17

CONBINATION METER

B-20

AK303875AB

CONNECTOR: D-17

FUEL LEVEL
SENSOR (SUB)

D-17

SERVICE
HOLE

AK303876AB

CONNECTOR: D-18

SERVICE
HOLE

 FUEL LEVEL SENSOR (MAIN)
(INTEGRATED IN FUEL  PUMP MODULE)

D-18 (GR)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-827

.

CIRCUIT OPERATION

• The fuel level sensor (main) output voltage is

input in PCM (terminal No. 24).

.

TECHNICAL DESCRIPTION

• Branch the output voltage from the fuel level sen-

sor circuit, and input it into PCM.

• The PCM detects the amount of fuel left in the

fuel tank with this signal, and also controls the
fuel level warning light.

.

DESCRIPTIONS OF MONITOR METHODS

Detect malfunction if change of fuel level sensor out-

put voltage is small when sum of fuel injection is
large.

.

MONITOR EXECUTION

Continuous

.

MONITOR EXECUTION CONDITIONS
(Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Not applicable

.

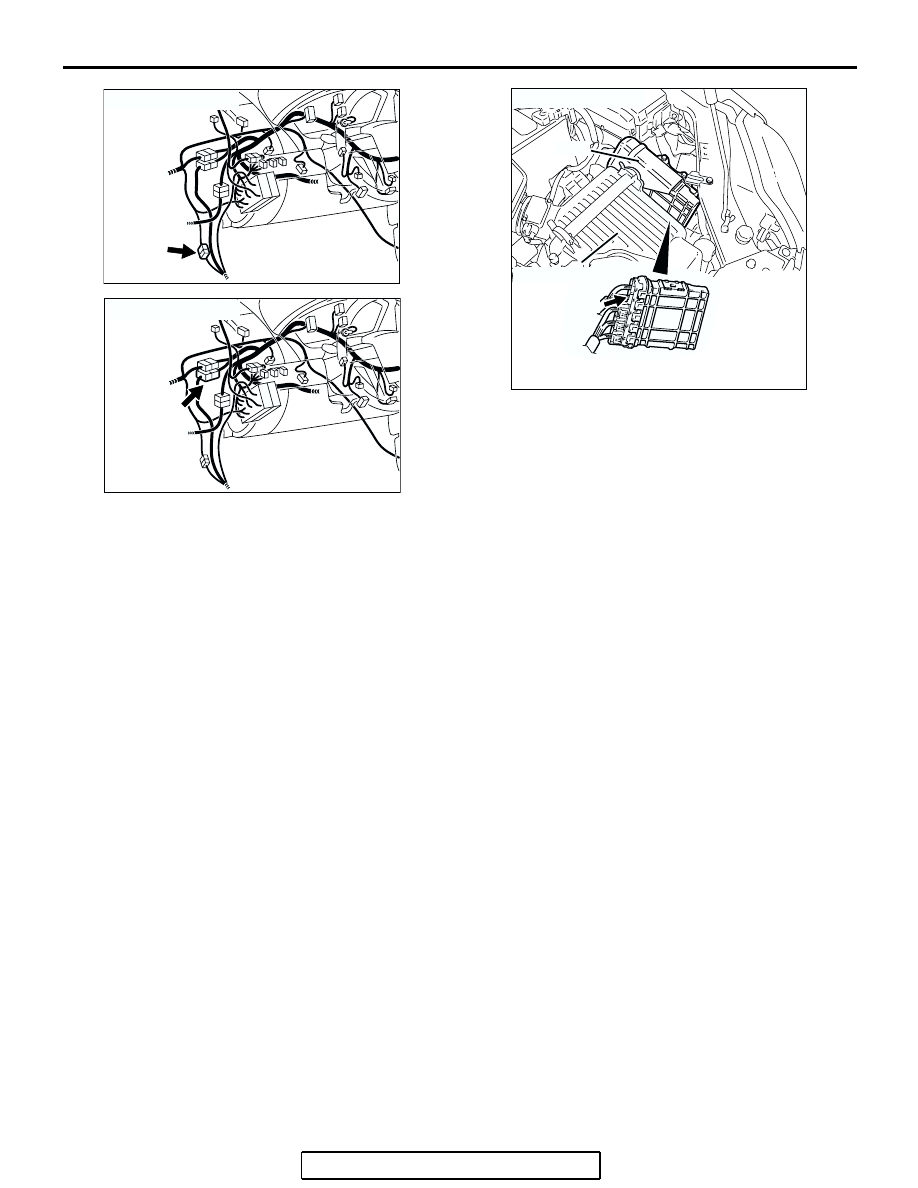

AK303838AB

C-25

CONNECTOR: C-25

AK303877AB

C-28

CONNECTOR: C-28

AK303085

CONNECTOR: B-20

PCM

AB

AIR CLEANER

B-20
