SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-420

INSPECTION PROCEDURE K-1: Interior Light: The dome  light do not illuminate and go out normally.

NOTE: This troubleshooting procedure requires the
use of scan tool MB991958 and SWS monitor kit
MB991813. For details on how to use the SWS mon-
itor, refer to "How to use SWS monitor

P.54B-15

."

22

RELAY BOX
(FUSE     )

NOTE

WITHOUT SUNROOF
WITH SUNROOF

JOINT
CONNECTOR
(1)

ETACS-
ECU

KEEP RELAY

·

ALL DOOR

  SWITCH
·

FRONT

DOOR

  SWITCH
· IGNITION
  SWITCH (ACC)
· IGNITION
  SWITCH (IG1)
·

INTERIOR LIGHT

  LOADED SIGNAL

·

MAP LIGHT ASSEMBLY

· OVERHEAD CONSOLE

 ASSEMBLY

·

REAR DOME LIGHT

·

TRUNK LIGHT

INTERIOR
LAMP CUT

BACK-UP
CIRCUIT

LOAD

DETERMINATION
CIRCUIT

INPUT SIGNAL

JUNCTION BLOCK SIDE

JUNCTION BLOCK

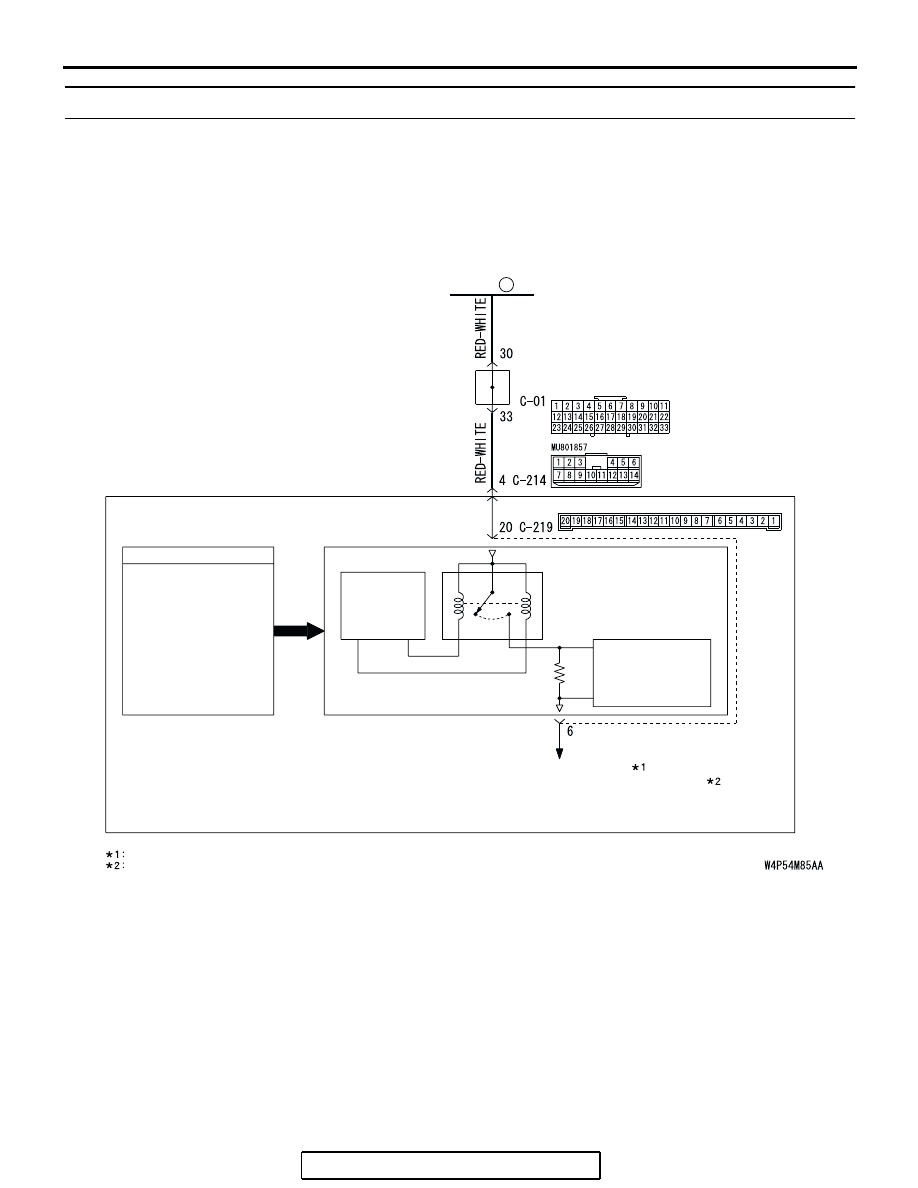

Interior Light Circuit

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-421

JUNCTION BLOCK

ETACS-
ECU

TRUNK
LIGHT

MAP LIGHT
ASSEMBLY

OVERHEAD
CONSOLE
ASSEMBLY

REAR DOME
LIGHT

JUNCTION
BLOCK SIDE

NOTE

WITHOUT SUNROOF
WITH SUNROOF

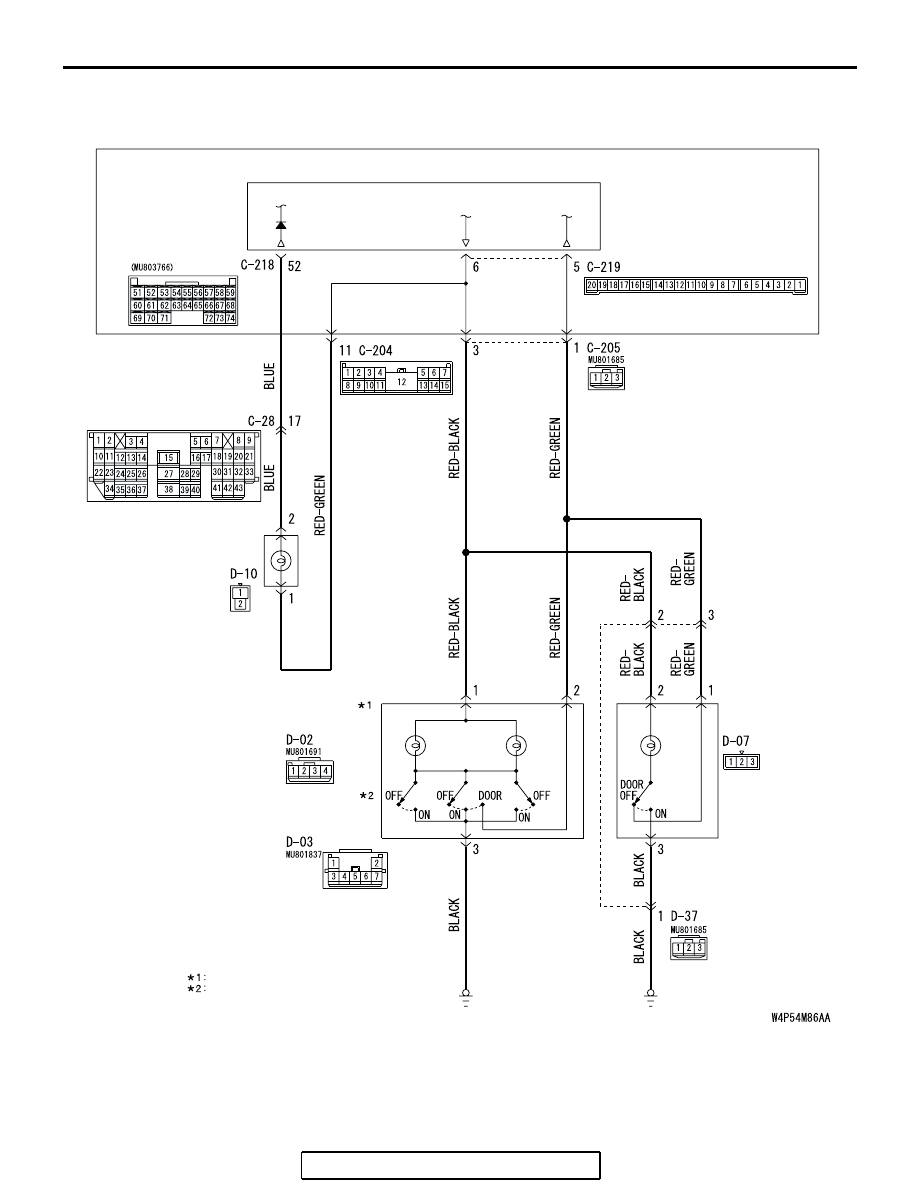

Interior Light Circuit

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-422

.

CIRCUIT OPERATION

The ETACS-ECU operates the dome light according
to the following signals:

• Ignition switch (IG1): ON or OFF

• Key reminder switch: ON or OFF

• Door switches: ON or OFF

• Driver’s door lock actuator switch: ON or OFF

• Interior light loaded signal: ON

.

TECHNICAL DESCRIPTION (COMMENT)

If the dome light does not illuminate normally, a
burned-out dome light bulb, the input circuits from
the switches described in "CIRCUIT OPERATION",
the power supply line to the switches or the
ETACS-ECU may be defective.

.

TROUBLESHOOTING HINTS

• Trouble in input signal system

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

• The ETACS-ECU may be defective

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A

• MB991813: SWS Monitor Kit

• MB991806: SWS Monitor Cartridge

• MB991812: SWS Monitor Harness (For Column-ECU)

• MB991822: Probe Harness

AC305415

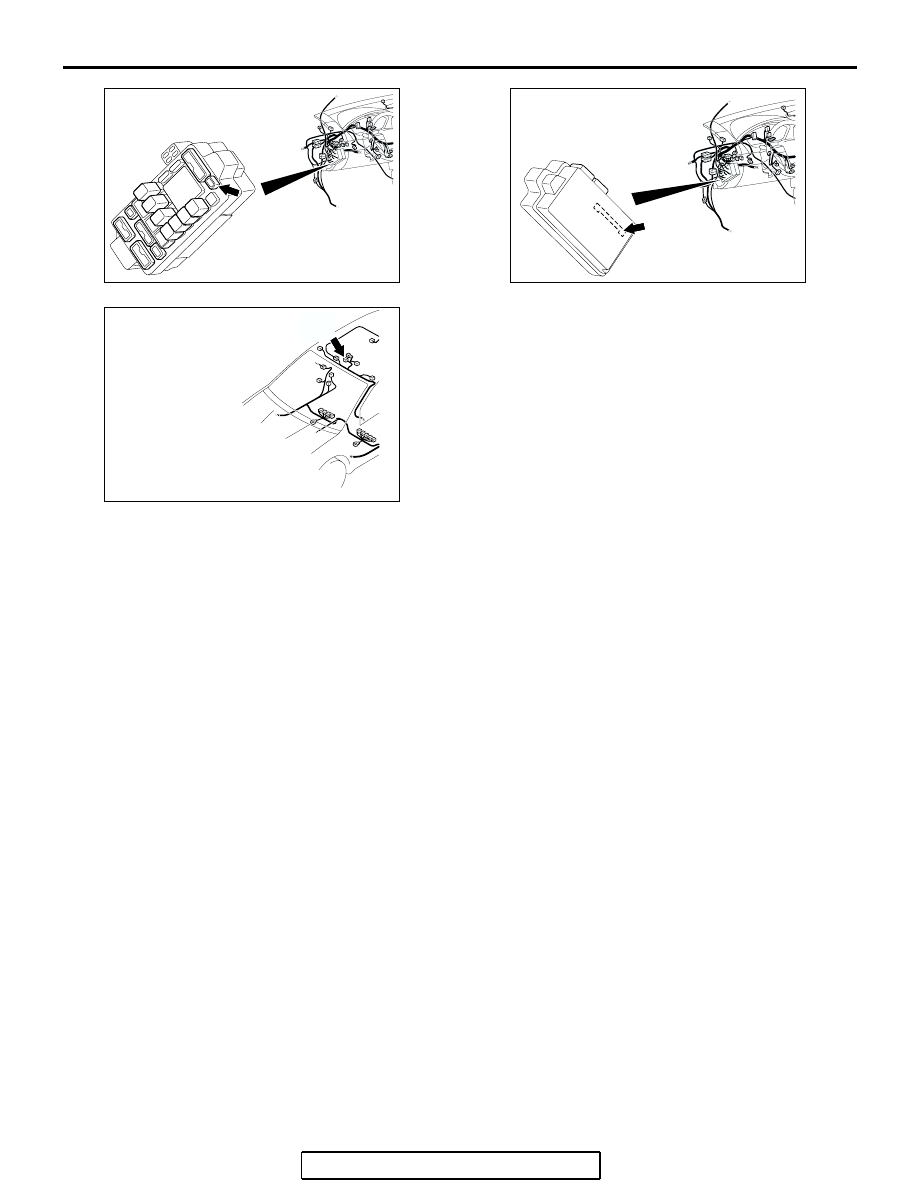

CONNECTOR: C-205

AM

AC305413AB

CONNECTOR: C-219

JUNCTION BLOCK

(REAR VIEW)

AC400530

CONNECTORS: D-02, D-03

D-02
D-03

AD

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-423

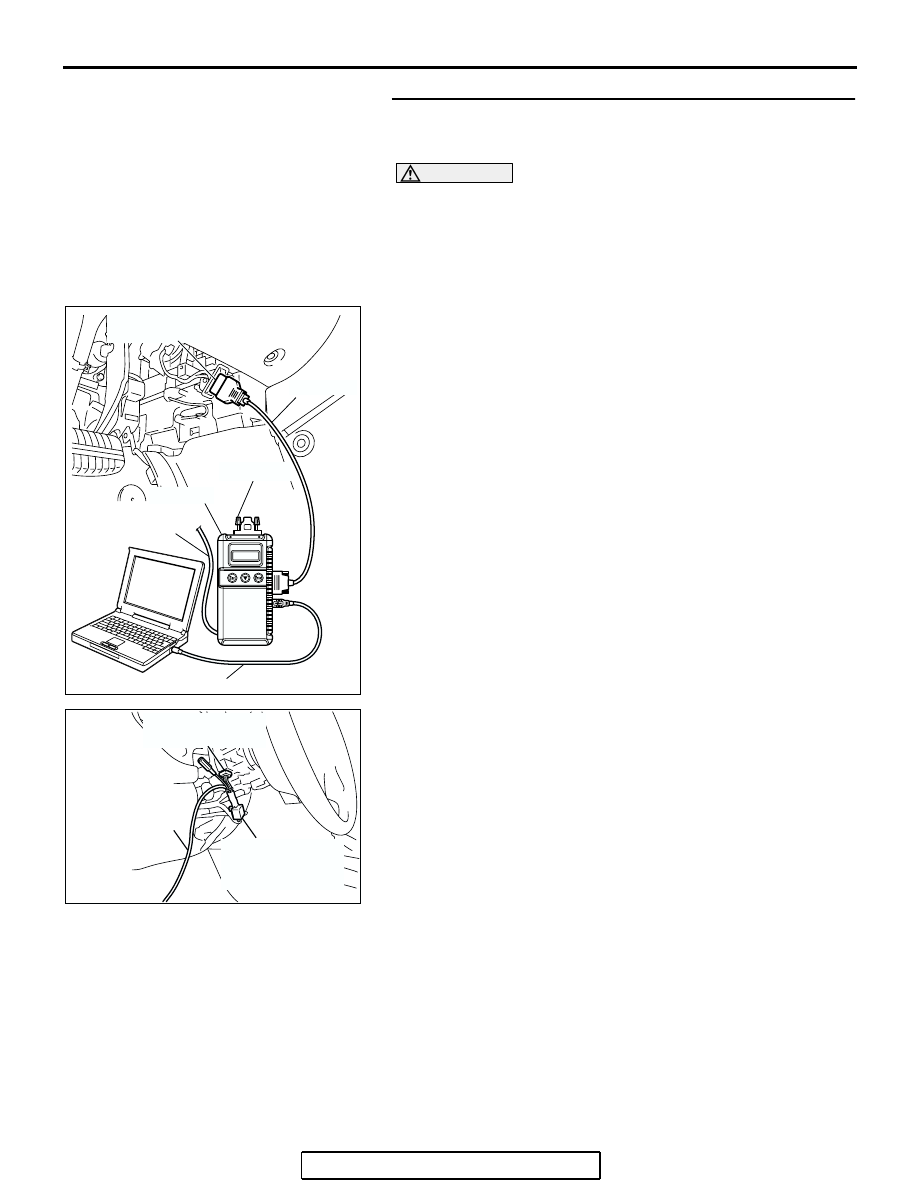

STEP 1. Use scan tool MB991958 to select "ECU COMM
Check" on the SWS monitor display.
Check the ETACS-ECU.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958. Connect
special tool MB991910 before connecting special tool
MB991812. Be sure to connect special tool MB991806 after
turning on special tool MB991824.
(1) Connect the special tool. Refer to "How to connect SWS

monitor

P.54B-13

."

(2) Turn the ignition switch to the "LOCK" (OFF) position.
(3) Operate scan tool MB991958 according to the procedure

below to display "ECU COMM Check."
a. Select "Interactive Diagnosis."
b. Select "System select."
c. Select "SWS."
d. Select "SWS MONITOR."
e. Select "ECU COMM Check."

(4) Scan tool MB991958 should show "OK" on the "ECU

COMM Check" menu for the "ETACS ECU" menu.

Q: Is "OK" displayed for the "ETACS ECU" menu?

YES : Go to Step 2.
NO :  Refer to Inspection Procedure A-3 "Communication

with the ETACS-ECU is not possibl

P.54B-78

."

AC305411AB

MB991910

DATA LINK

CONNECTOR

MB991827

MB991824

MB991806

MB991812

AC302210

COLUMN SWITCH
CONNECTOR

COLUMN SWITCH
CONNECTOR AT
HARNESS SIDE

MB991812

AB
