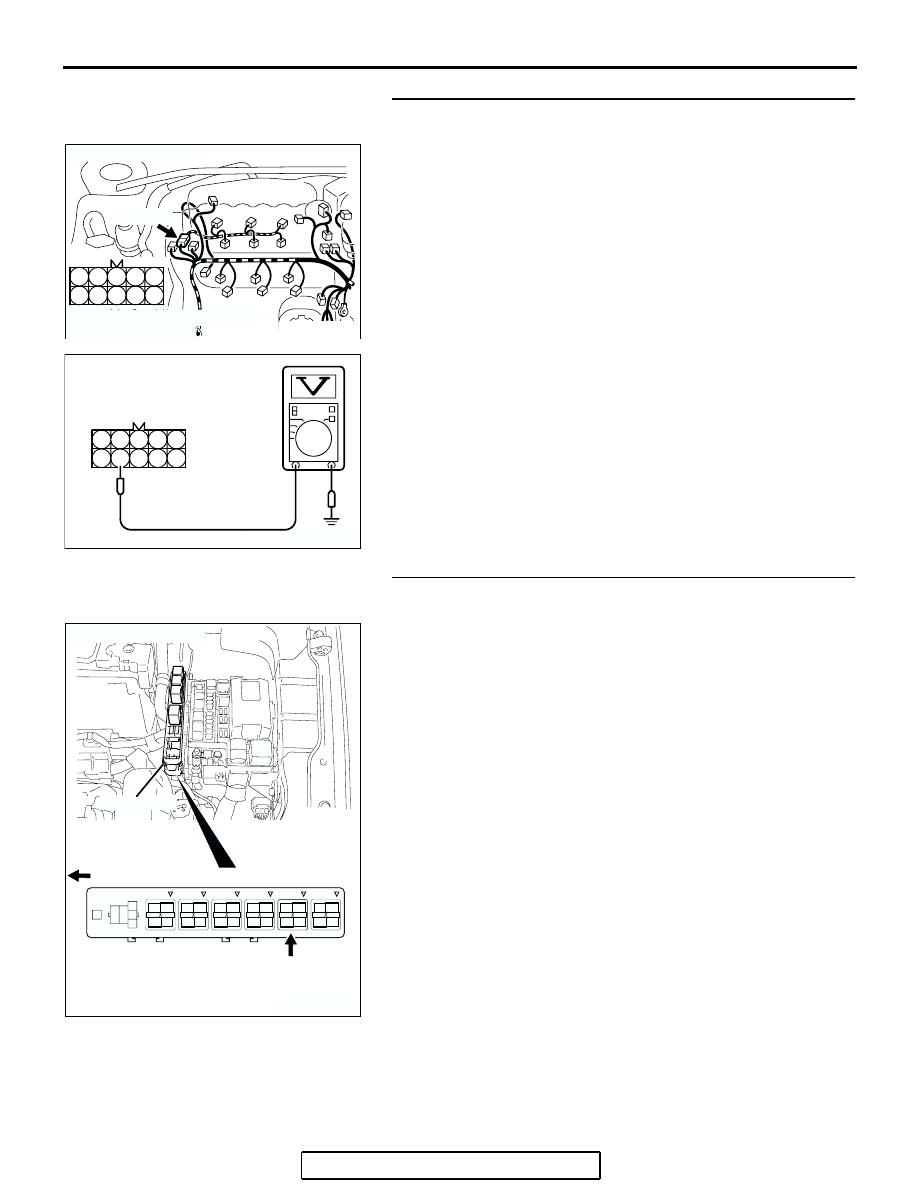

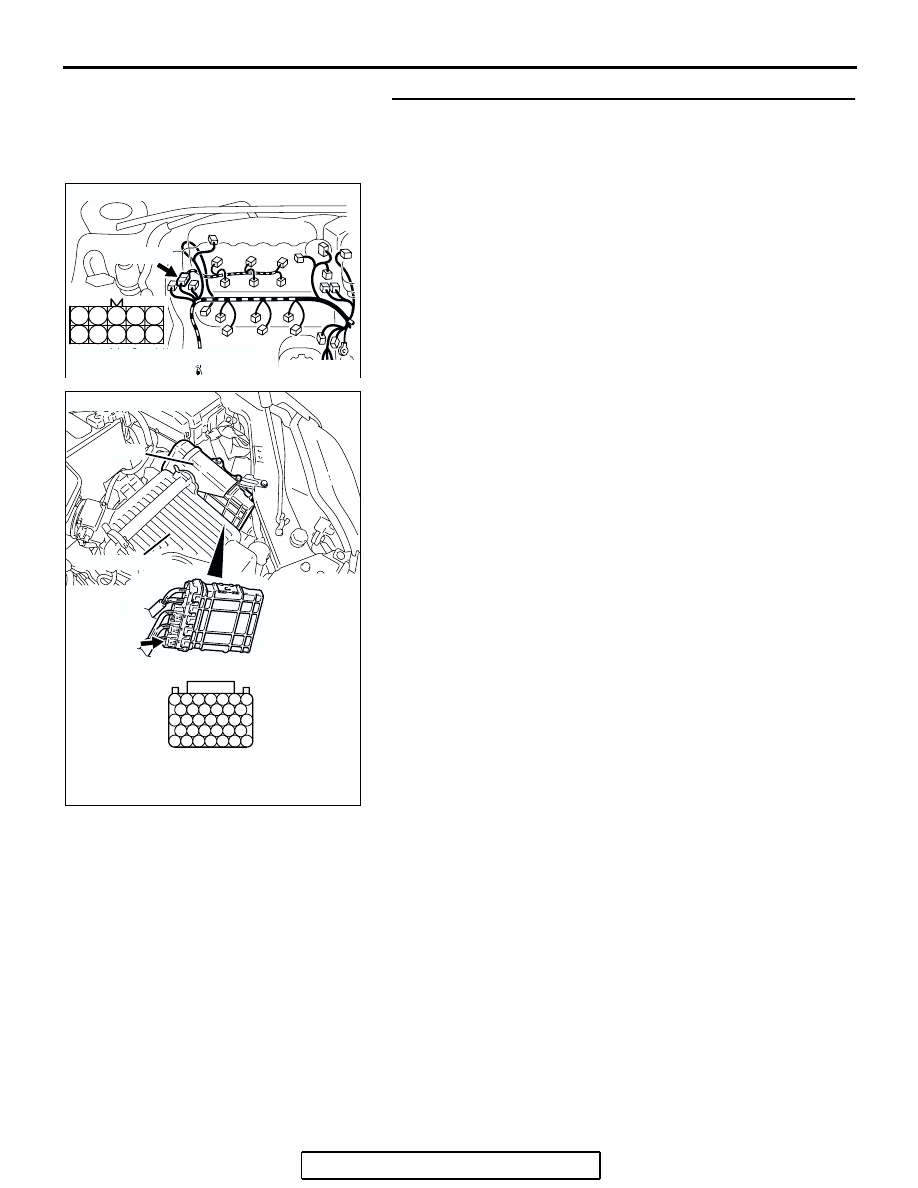

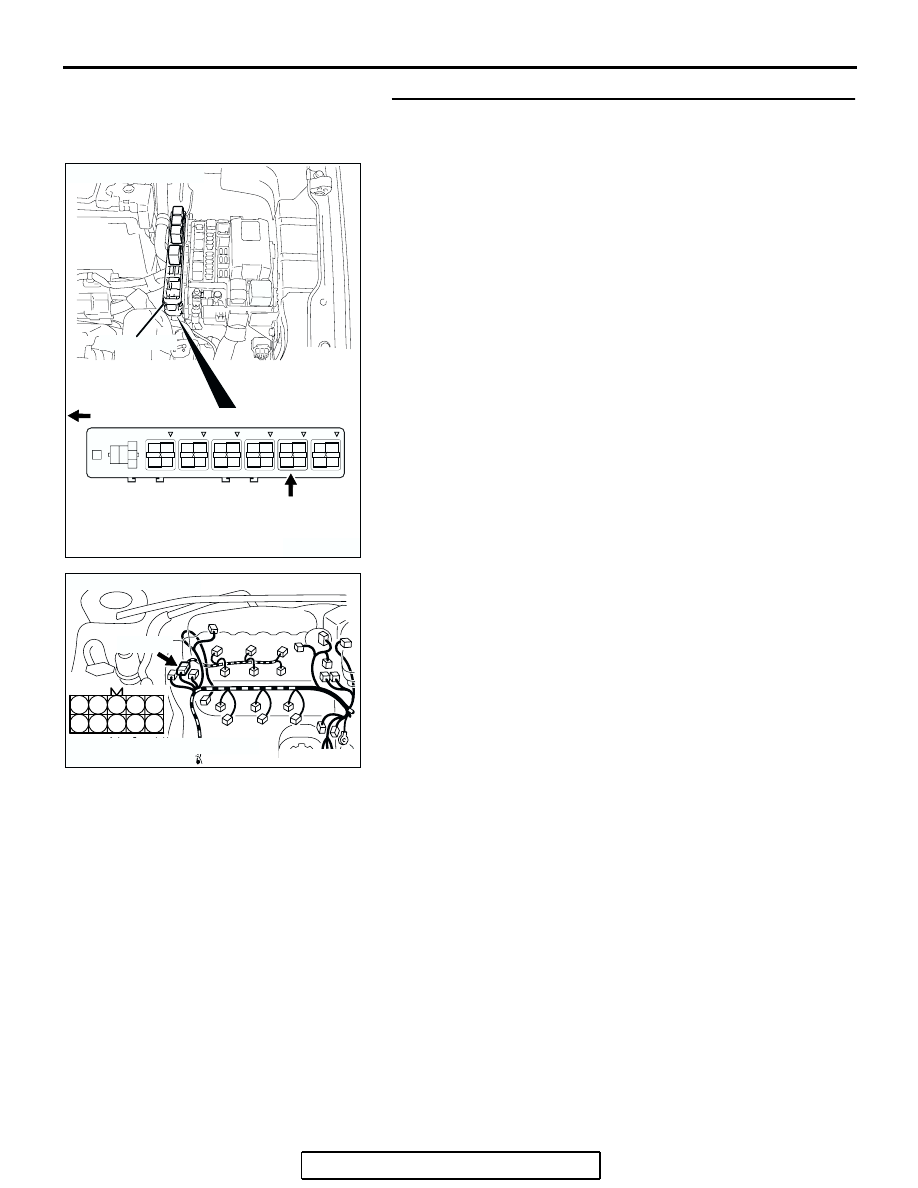

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS TSB Revision MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE> 13B-488 STEP 6. Measure the power supply voltage at intermediate connector side. (2) Turn the ignition switch to the "ON" position. (3) Measure the voltage between terminal No. 9 and ground. • Voltage should be battery positive voltage. (4) Turn the ignition switch to the "LOCK" (OFF) position. present? STEP 7. Check harness connector B-17X at MFI relay for YES : Repair harness wire between MFI relay connector B-17X (terminal No. 4) and intermediate connector NO : Repair or replace it. Refer to GROUP 00E, Harness . Then go to Step 12. AK303053 3 4 5 8 9 1 2 6 7 10 CONNECTOR: B-32 HARNESS CONNECTOR: AB B-32 (B) 3 4 5 8 9 1 2 6 7 10 AK203172 B-32 HARNESS AB 1 2 3 4 AK303017 CONNECTOR: B-17X FRONT OF VEHICLE B-17X AB HARNESS RELAY BOX |
