MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-324

.

CIRCUIT OPERATION

• A voltage corresponding to the oxygen concen-

tration in the exhaust gas is sent to the PCM (ter-
minal No. 91) from the output terminal (terminal
No. 4) of the left bank heated oxygen sensor
(front).

• Terminal No. 2 of the left bank heated oxygen

sensor (front) is grounded with PCM (terminal
No. 69).

.

TECHNICAL DESCRIPTION

• The left bank heated oxygen sensor (front)

detects the concentration of oxygen in the
exhaust gas; it converts those data to voltage,
and input the resulting signal to the PCM.

• When the left bank heated oxygen sensor (front)

begins to deteriorate, the heated oxygen sensor
signal response becomes poor.

• The PCM forcibly varies the air/fuel mixture to

make it leaner and richer, and checks the
response speed of the left bank heated oxygen
sensor (front). In addition, the PCM also checks
for an open circuit in the left bank heated oxygen
sensor (front) output line.

.

DESCRIPTIONS OF MONITOR METHODS

Left bank heated oxygen sensor (front) output volt-

age stays low when air/fuel ratio is forced to be
rich. The above procedure is repeated when oxy-
gen sensor is inactive.

.

MONITOR EXECUTION

Continuous

.

MONITOR EXECUTION CONDITIONS
(Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Heated oxygen sensor heater (front) monitor

• Misfire monitor

• Fuel system monitor

Sensor (The sensor below is determined to be

normal)

• Mass airflow sensor

• Engine coolant temperature sensor

• Intake air temperature sensor

• Barometric pressure sensor

• Throttle position sensor

• Accelerator pedal position sensor

.

AK303070

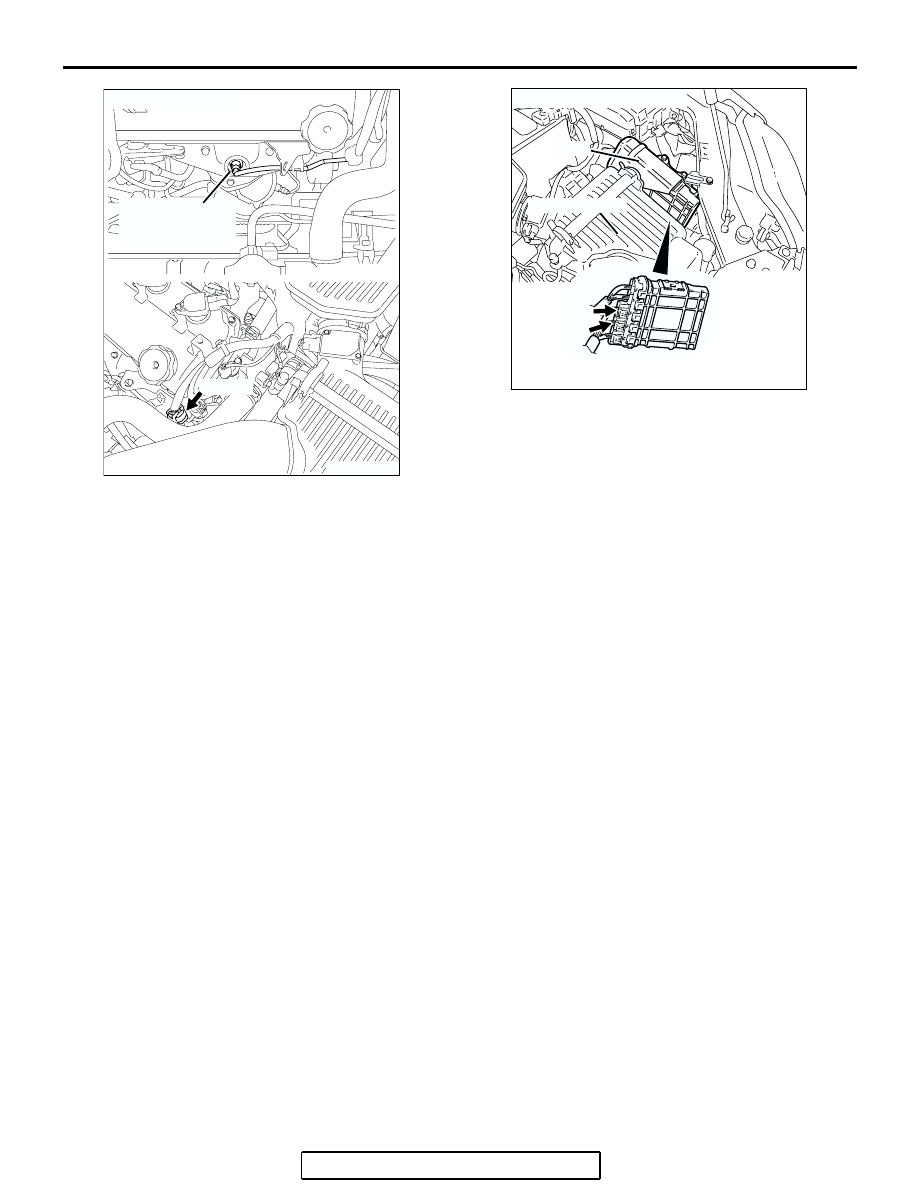

LEFT BANK
HEATED OXYGEN
SENSOR (FRONT)

CONNECTOR: B-25

B-25 (B)

AB

AK303013

CONNECTORS: B-21, B-22

PCM

AB

AIR CLEANER

B-22 (B)

B-21 (B)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-325

DTC SET CONDITIONS

Logic Flow Chart

.

START

V

F

 > =4.5V

2secs HAS PASSED

YES

YES

YES

NO

NO

NO

MALFUNCTION

MONITORING

CONDITIONS

YES

NO

MONITORING

CONDITIONS

+5V ON

AK401409

V

F

 < 0.2V

8secs HAS PASSED

YES

YES

NO

NO

END

MALFUNCTION

GOOD

MODULATE A/F CONDITION TO RICH

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-326

Check Conditions

• After 2 seconds or more pass from the time when

the monitor determines normally for detecting an
open circuit.

• Left bank heated oxygen sensor (front) signal

voltage has continued to be 0.2 volt or lower.

• Engine coolant temperature is higher than 76°C

(169

°F).

• Mass airflow sensor output is 8 g/sec or more.

• At least 20 seconds have passed since fuel shut

off control was canceled.

• Monitoring time: 8 seconds.

Judgement Criteria

• Making the air/fuel ratio 15 percent richer for 8

seconds does not result in raising the heated oxy-
gen sensor (front) output voltage beyond 0.2 volt.

.

OBD-II DRIVE CYCLE PATTERN

Refer to Diagnostic Function

− OBD-II Drive Cycle −

Procedure 6

− Other Monitor

P.13B-6

.

.

TROUBLESHOOTING HINTS (The most
likely causes for this code to be set are: )

• Left bank heated oxygen sensor (front) failed.

• Short circuit in left bank heated oxygen sensor

(front) output line.

• Connector damage.

• PCM failed.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

• MD998464: Test Harness

STEP 1. Using scan tool MB991958, check data list item 11:
Heated Oxygen Sensor Bank 2, Sensor 1 (left front).

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

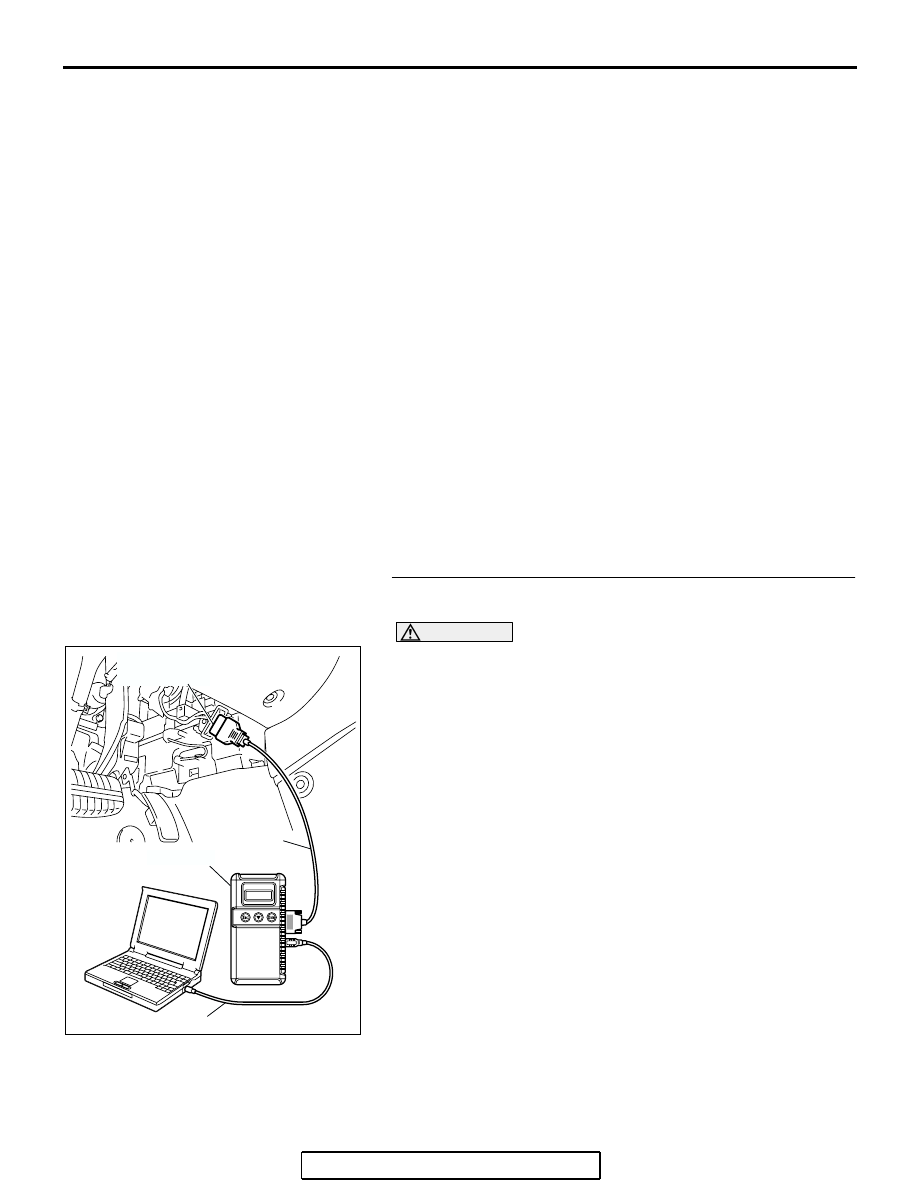

(1) Connect scan tool MB991958 to the data link connector.
(2) Start the engine and run at idle.

(3) Set scan tool MB991958 to the data reading mode for item

11, Heated Oxygen Sensor Bank 2, Sensor 1 (left front).

• Warm up the engine. When the engine is revved, the

output voltage should measure 0.6 to 1.0 volt.

• Warm up the engine. When the engine is idling, the out-

put voltage should repeat 0.4 volt and 0.6 to 1.0 volt
alternately.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-14

.

NO :  Go to Step 2.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-327

STEP 2. Check the left bank heated oxygen sensor (front).

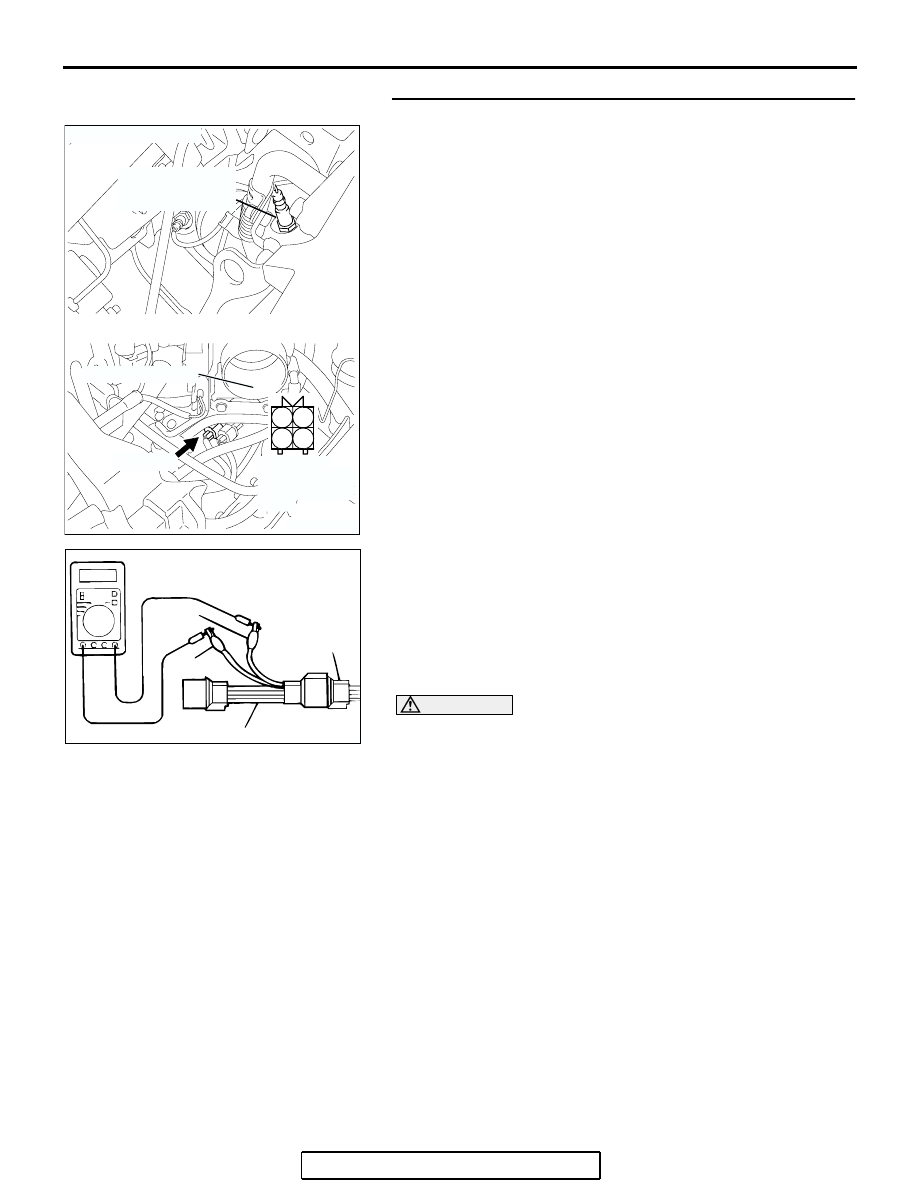

(1) Disconnect the left bank heated oxygen sensor (front)

connector B-25 and connect test harness special tool,
MD998464, to the connector on the left bank heated oxygen
sensor (front) side.

(2) Warm up the engine until engine coolant temperature

reaches 80

°C (176°F) or higher.

(3) Perform a racing for 5 minutes or more with the engine

speed of 4,500 r/min.

(4) Connect a digital voltage meter between terminal No. 2

(black clip) and terminal No. 4 (white clip).

(5) While repeatedly revving the engine, measure the left bank

heated oxygen sensor (front) output voltage.

Standard value: 0.6

− 1.0 volt

CAUTION

• Be very careful when connecting the jumper wires;

incorrect connection can damage the heated oxygen
sensor.

• Be careful the heater is broken when voltage of beyond

8 volts is applied to the heated oxygen sensor heater.
NOTE: If the sufficiently high temperature [of approximate
400

°

C (752

°

F) or more] is not reached although the heated

oxygen sensor is normal, the output voltage would be possi-
bly low although the rich air/fuel ratio. Therefore, if the out-
put voltage is low, use a jumper wire to connect the terminal
No.1 (red clip) and the terminal No. 3 (blue clip) of the
heated oxygen sensor with the positive terminal and the
negative terminal of 8 volts power supply respectively, then
check again.

Q: Is the voltage between 0.6 and 1.0 volt?

YES : Go to Step 3.
NO :  Replace the left bank heated oxygen sensor (front).

Then go to Step 5.

AK303025

1

2

3

4

B-26(GR)

AB

HARNESS
CONNECTOR:
COMPONENT
SIDE

RIGHT BANK
HEATED OXYGEN
SENSOR (FRONT)

CONNECTOR: B-26

THROTTLE BODY

AKX01624

HEATED
OXYGEN
SENSOR
COMPONENT
SIDE
CONNECTOR

MD998464

WHITE

BLACK
