Mitsubishi Galant 9G. Manual - part 97





SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-384

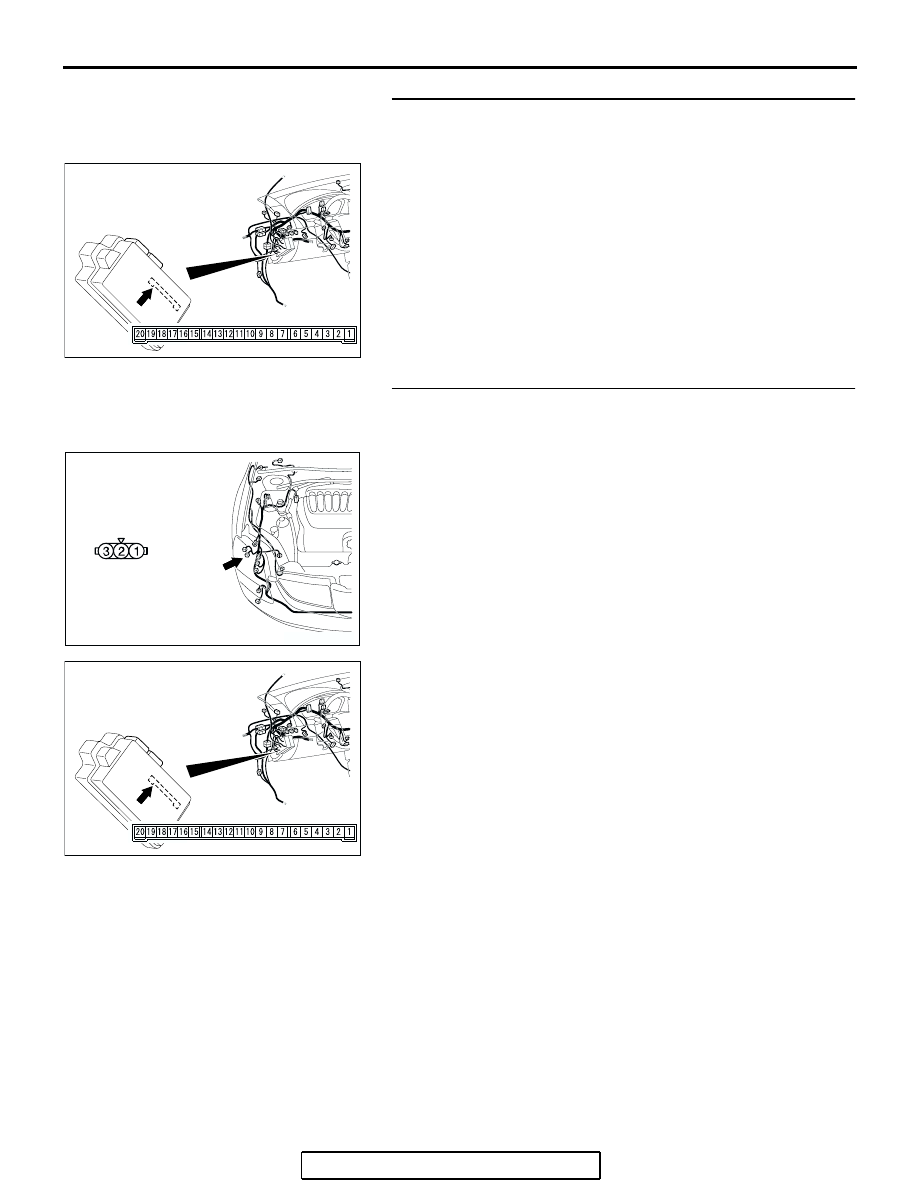

STEP 12. Check ETACS-ECU connector C-219 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is ETACS-ECU connector C-219 in good condition?

YES : Go to Step 13.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Verify that the turn-signal lights illuminate

normally.

STEP 13. Check the wiring harness between front
combination light (RH) connector A-34 (terminal 1) and
ETACS-ECU connector C-219 (terminal 9).

AC305413 AG

CONNECTOR: C-219

JUNCTION BLOCK SIDE

JUNCTION BLOCK

(REAR VIEW)

AC305206

HARNESS SIDE

A-34 (GR)

CONNECTOR: A-34

AW

AC305413 AG

CONNECTOR: C-219

JUNCTION BLOCK SIDE

JUNCTION BLOCK

(REAR VIEW)

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-385

NOTE: Also check junction block connector C-214 for loose,
corroded, or damaged terminals, or terminals pushed back in
the connector. If junction block connector C-214 is damaged,
repair or replace the damaged component(s) as described in
GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between front combination light

(RH) connector A-34 (terminal 1) and ETACS-ECU
connector C-219 (terminal 9) in good condition?
YES :
Replace the front combination light socket (RH).

Verify that the turn-signal lights illuminate normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the turn-signal lights illuminate normally.

STEP 14. Check rear combination light (LH) connector F-09
for loose, corroded  or damaged terminals, or terminals
pushed back in the connector.
Q: Is rear combination light (LH) connector F-09 in good

condition?
YES :
Go to Step 15.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Verify that the turn-signal lights illuminate

normally.

STEP 15. Check the rear turn-signal light bulb (LH).
(1) Remove the rear turn-signal (LH) light bulb.
(2) Verify that the rear turn-signal light bulb (LH) is not

damaged or burned out.

Q: Is the rear turn-signal (LH) light bulb in good condition?

YES : Go to Step 16.
NO :  Replace the rear turn-signal (LH) light bulb. Verify that

the turn-signal lights illuminate normally.

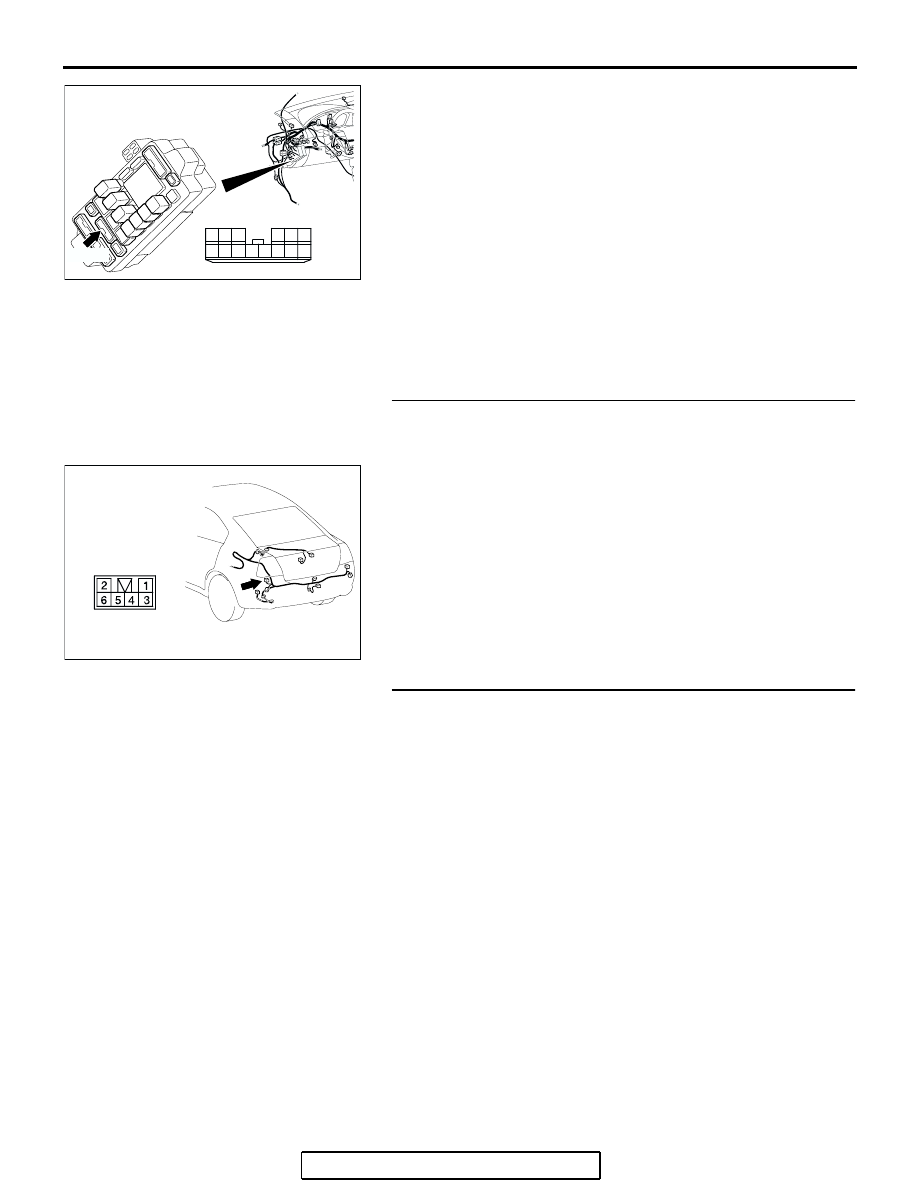

AC305415

C-214

CONNECTOR: C-214

AU

JUNCTION BLOCK
(FRONT VIEW)

HARNESS SIDE

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AC305260

HARNESS SIDE

CONNECTOR: F-09

AK

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-386

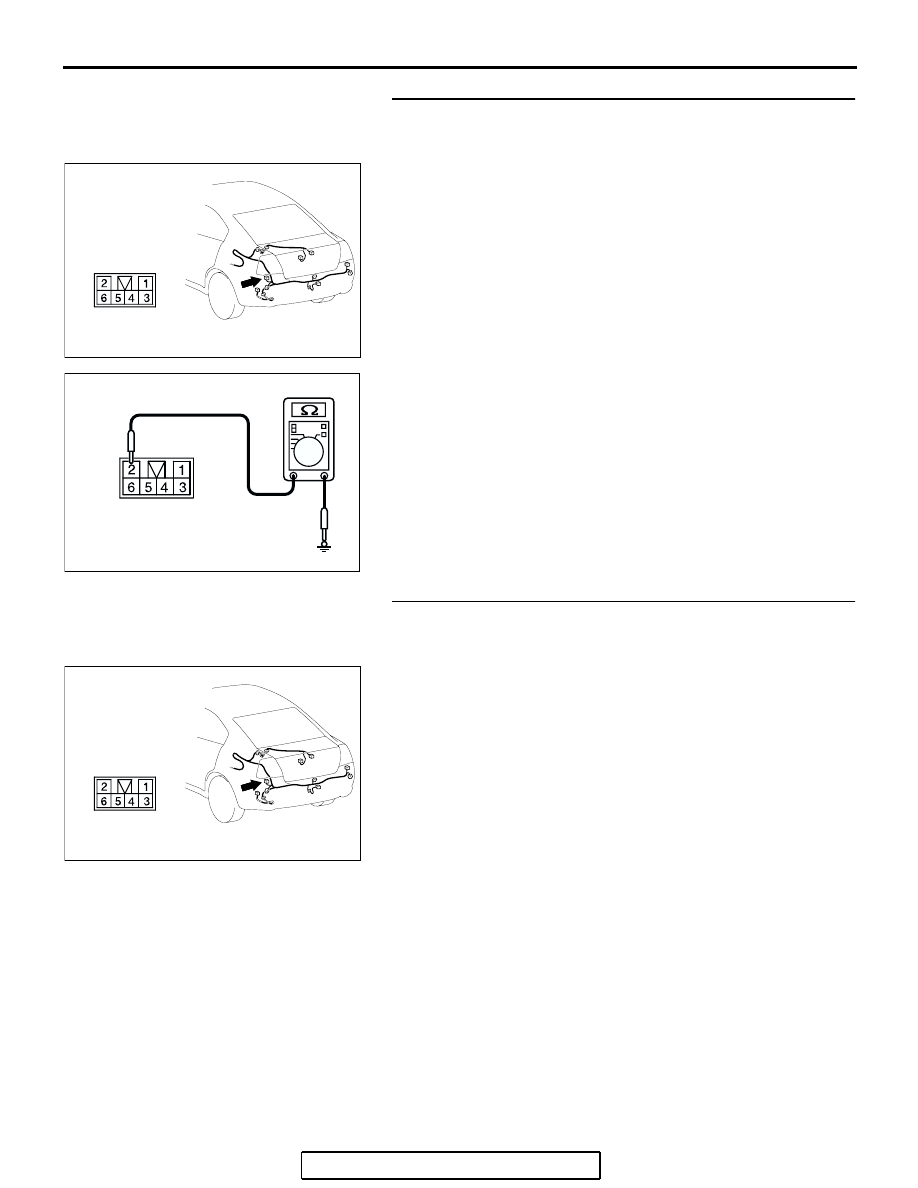

STEP 16. Check the ground circuit to the rear combination
light (LH). Measure the resistance at rear combination light
(LH) connector F-09.
(1) Disconnect rear combination light (LH) connector F-09 and

measure the resistance available at the wiring harness side
of the connector.

(2) Measure the resistance value between terminal 2 and

ground.

• The resistance should be 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 18.
NO :  Go to Step 17.

STEP 17. Check the wiring harness between rear
combination light (LH) connector F-09 (terminal 2) and
ground.
Q: Is the wiring harness between rear combination light

(LH) connector F-09 (terminal 2) and ground in good
condition?
YES :
Replace the rear combination light socket assembly

(LH). Verify that the turn-signal lights illuminate
normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the turn-signal lights illuminate normally.

AC305260

HARNESS SIDE

CONNECTOR: F-09

AK

AC209364HF

CONNECTOR F-09
(HARNESS SIDE)

AC305260

HARNESS SIDE

CONNECTOR: F-09

AK

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-387

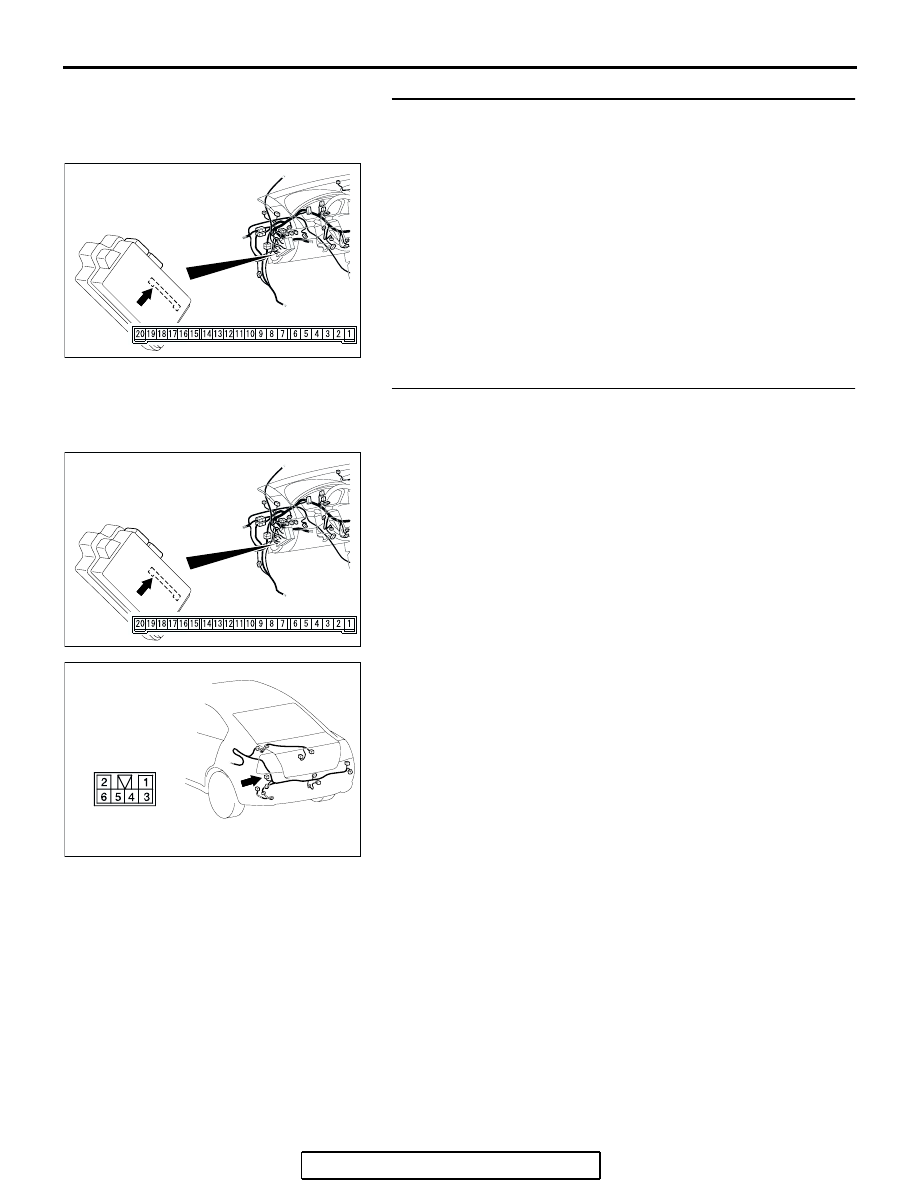

STEP 18. Check ETACS-ECU connector C-219 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is ETACS-ECU connector C-219 in good condition?

YES : Go to Step 19.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Verify that the turn-signal lights illuminate

normally.

STEP 19. Check the wiring harness between rear
combination light (LH) connector F-09 (terminal 5) and
ETACS-ECU connector C-219 (terminal 14).

AC305413 AG

CONNECTOR: C-219

JUNCTION BLOCK SIDE

JUNCTION BLOCK

(REAR VIEW)

AC305413 AG

CONNECTOR: C-219

JUNCTION BLOCK SIDE

JUNCTION BLOCK

(REAR VIEW)

AC305260

HARNESS SIDE

CONNECTOR: F-09

AK
