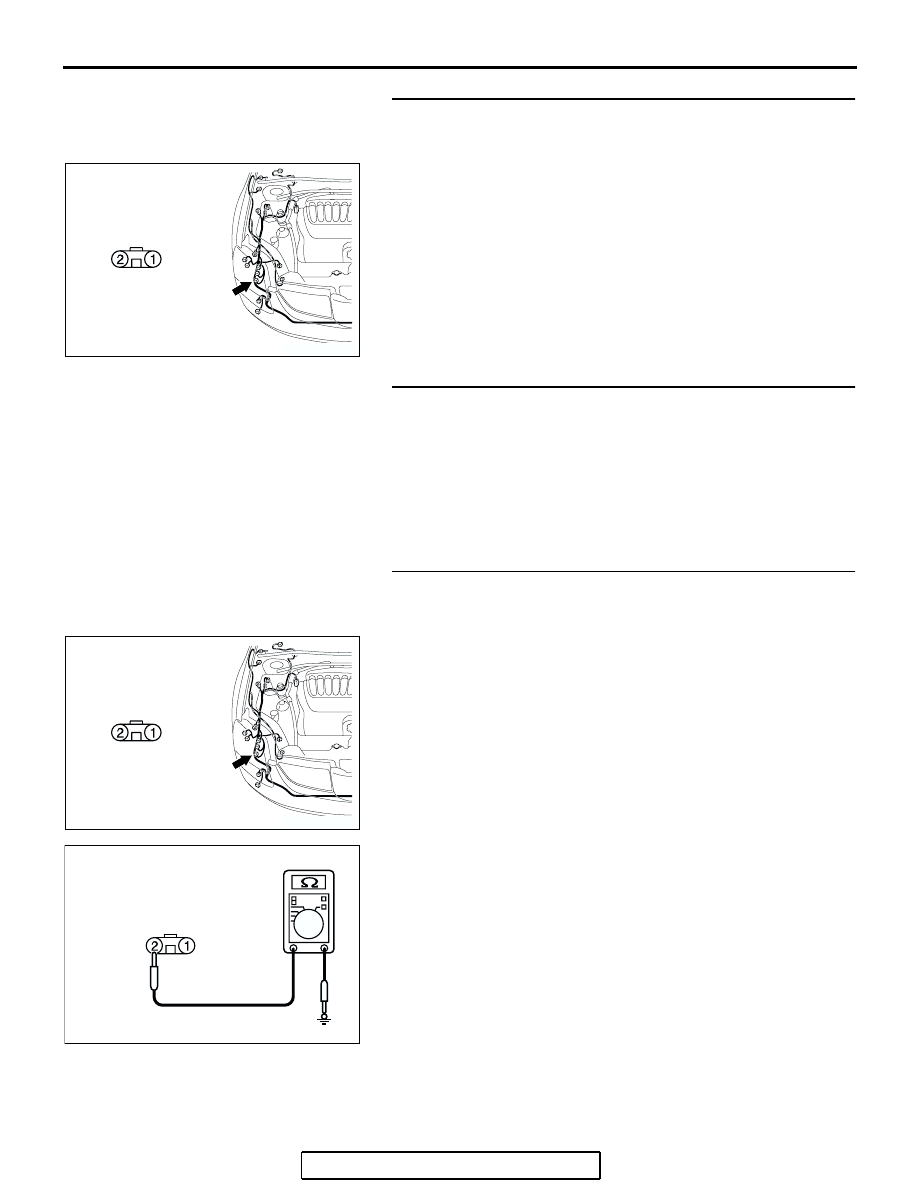

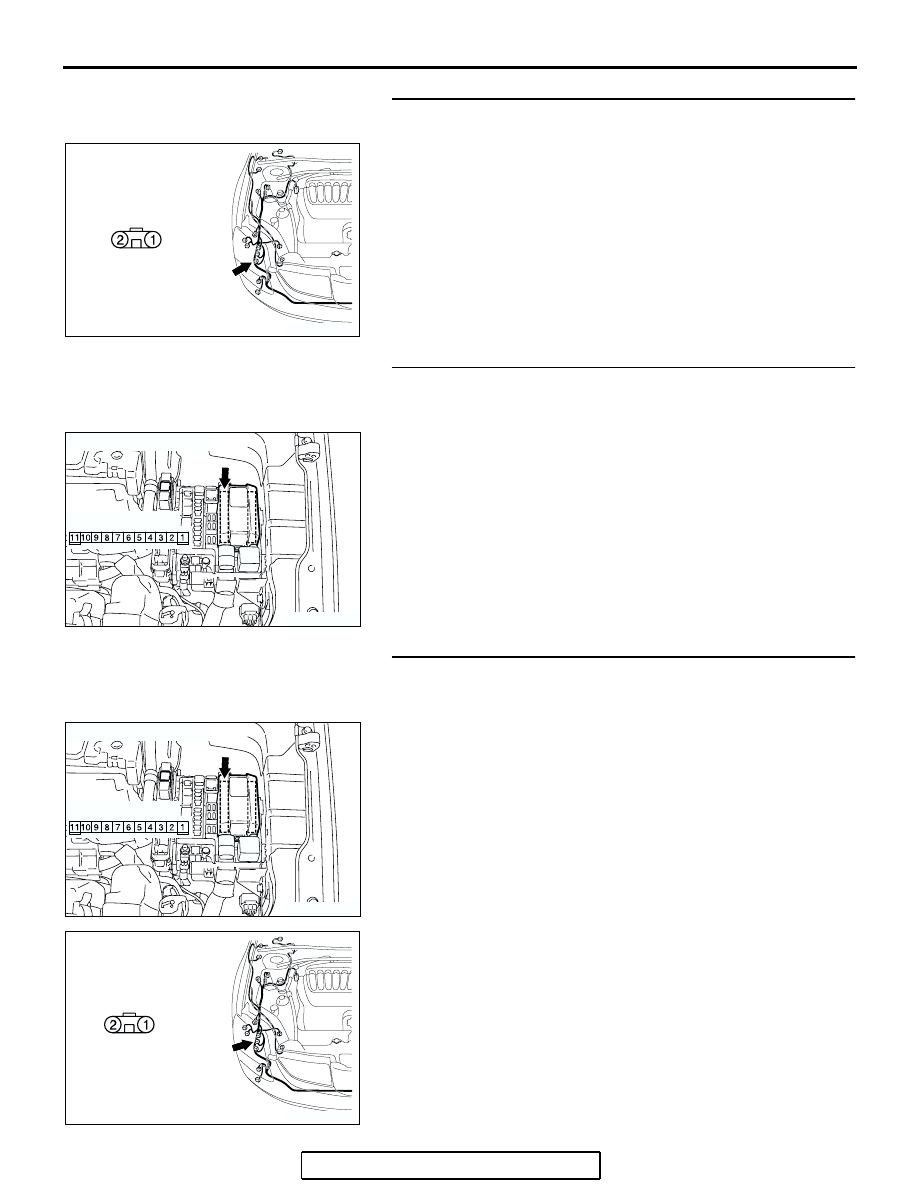

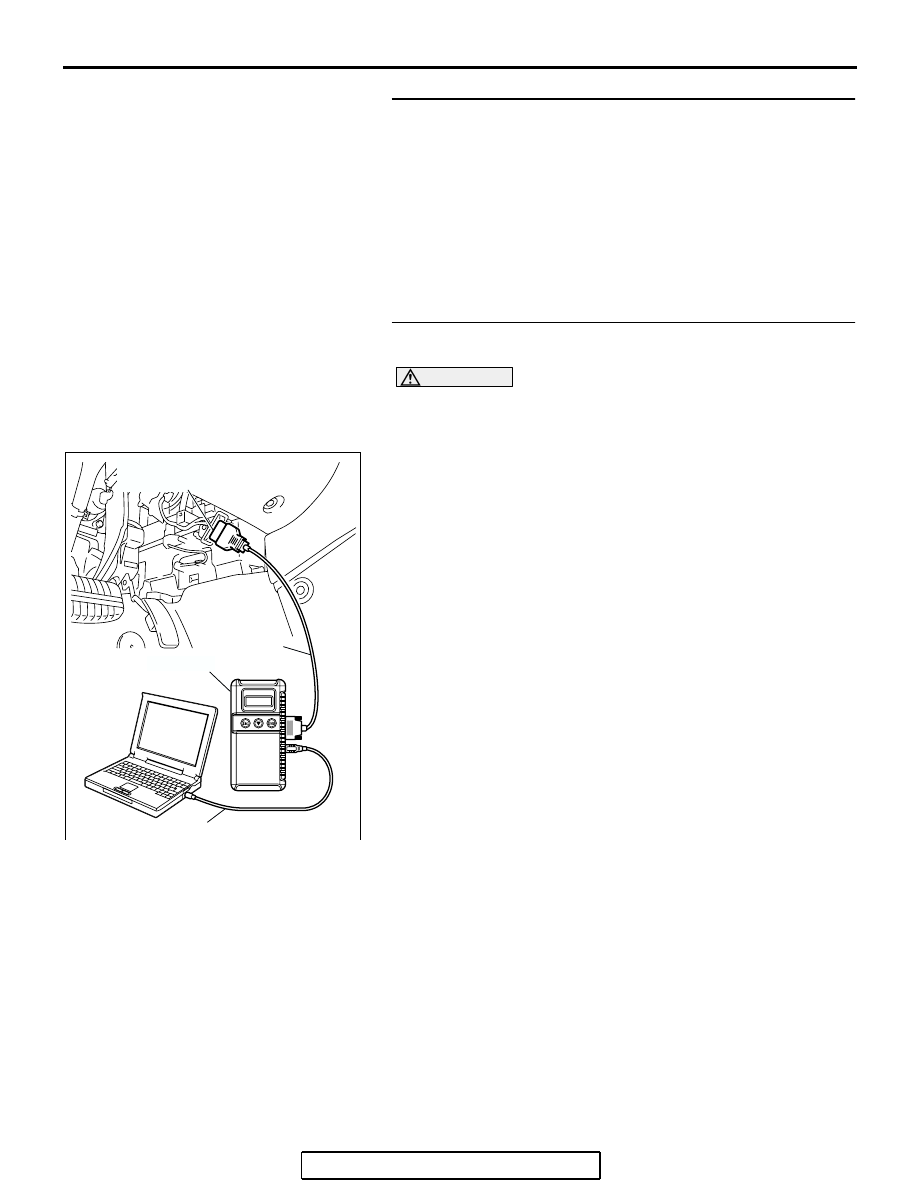

SYMPTOM PROCEDURES TSB Revision SIMPLIFIED WIRING SYSTEM (SWS) 54B-356 STEP 20. Check headlight (HIGH: RH) connector A-31 for condition? to GROUP 00E, Harness Connector Inspection . Check that the headlight (HIGH: RH) illuminates normally. STEP 21. Check the headlight bulb (HIGH: RH). burned out. Q: Is the headlight bulb (HIGH: RH) in good condition? YES : Go to Step 22. headlight (HIGH: RH) illuminates normally. STEP 22. Check the ground circuit to the headlight (HIGH: measure the resistance available at the wiring harness side (2) Measure the resistance value between terminal 2 and ground. • The resistance should be 2 ohms or less. Q: Is the measured resistance 2 ohms or less? YES : Go to Step 24. AC305206AU CONNECTOR: A-31 A-31 (B) HARNESS SIDE AC305206AU CONNECTOR: A-31 A-31 (B) HARNESS SIDE AC209364GS CONNECTOR A-31 |
