SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-140

STEP 2. Check ETACS-ECU connector C-219 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is ETACS-ECU connector C-219 in good condition?

YES : Go to Step 3.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Verify that the central door locking system

works normally.

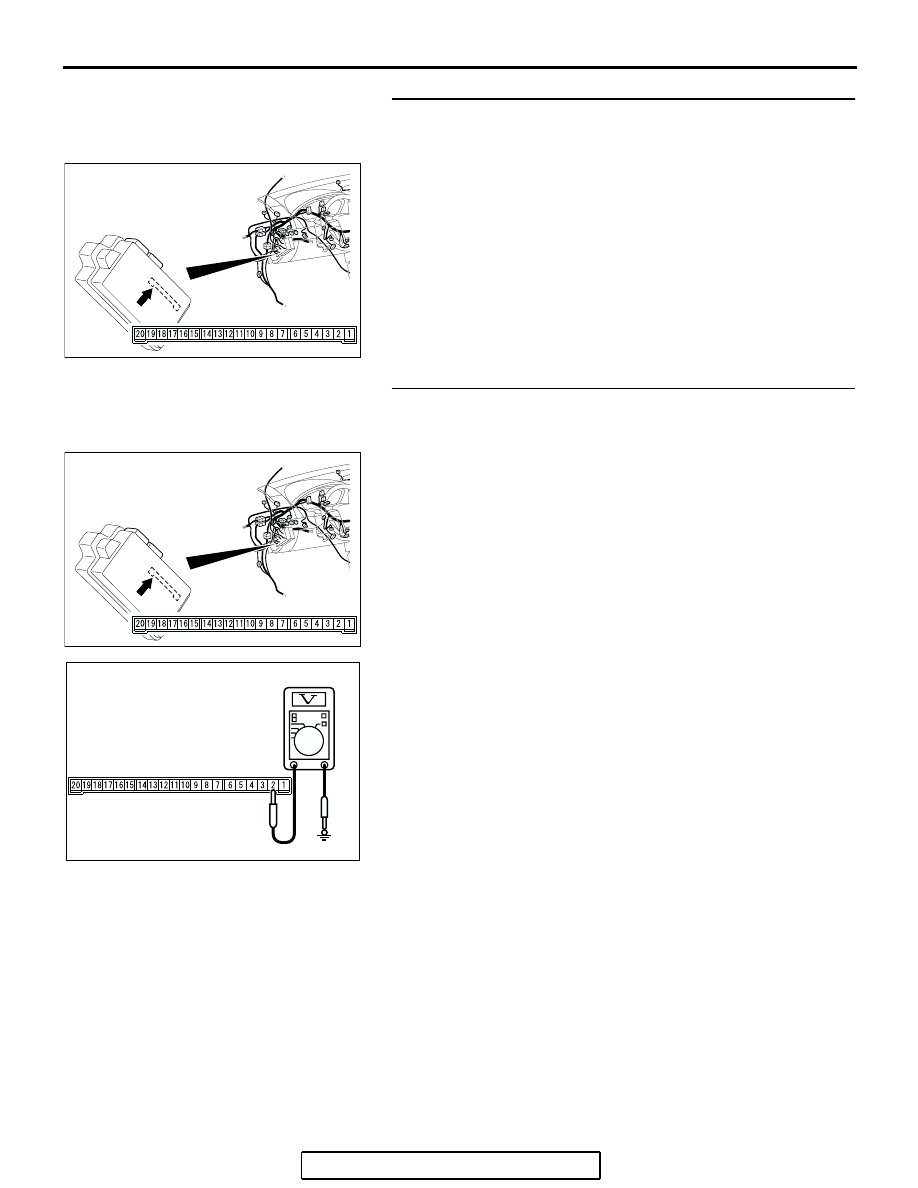

STEP 3. Check the battery power supply circuit to the
ETACS-ECU. Measure the voltage at ETACS-ECU
connector C-219.
(1) Disconnect ETACS-ECU connector C-219 and measure the

voltage available at the junction block side of the connector.

(2) Measure the voltage between terminal 2 and ground.

• The voltage should measure approximately 12 volts

(battery positive voltage)

Q: Is the measured voltage approximately 12 volts (battery

positive voltage)?
YES : Go to Step 5.
NO :  Go to Step 4.

AC305413 AG

CONNECTOR: C-219

JUNCTION BLOCK SIDE

JUNCTION BLOCK

(REAR VIEW)

AC305413 AG

CONNECTOR: C-219

JUNCTION BLOCK SIDE

JUNCTION BLOCK

(REAR VIEW)

AC209365EO

(JUNCTION BLOCK SIDE)

CONNECTOR C-219

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-141

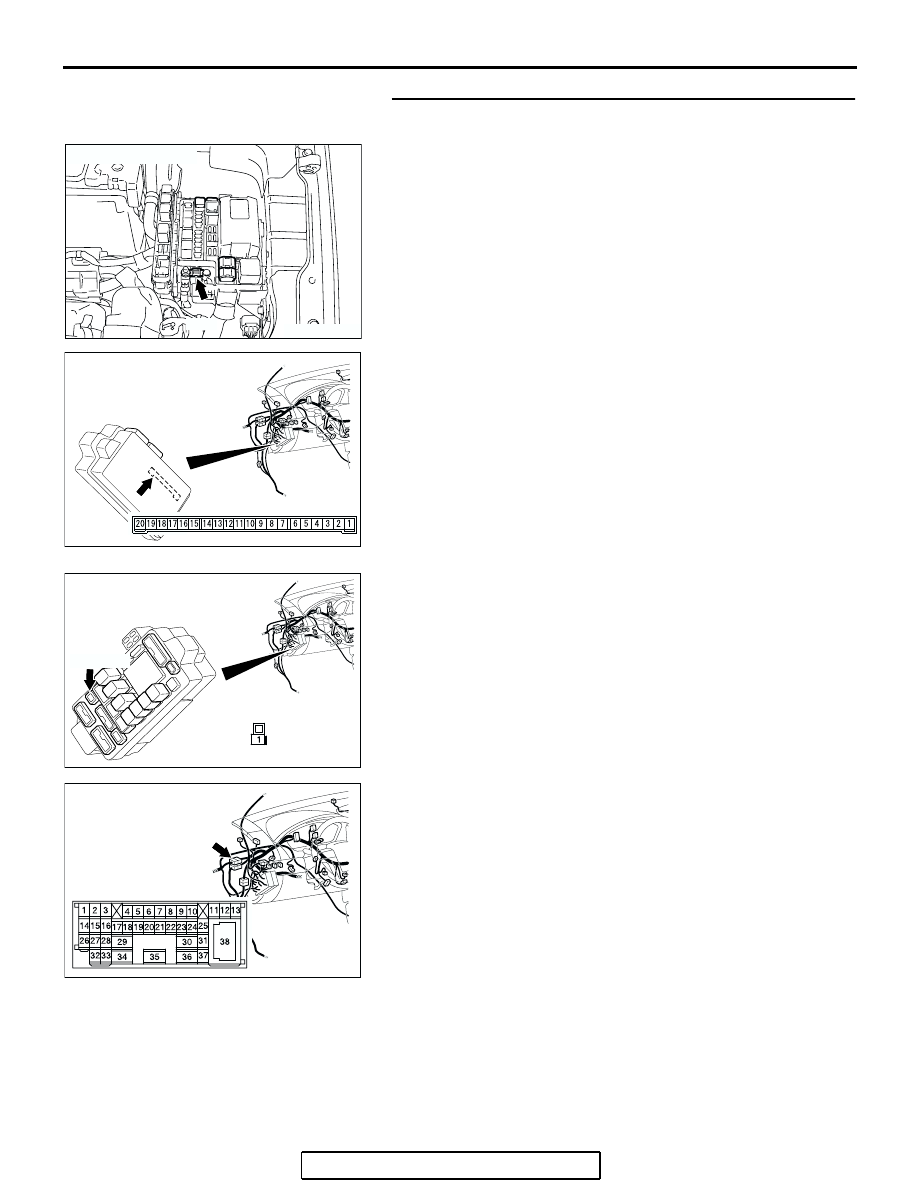

STEP 4. Check the wiring harness between ETACS-ECU
connector C-219 (terminal 2) and fusible link (1).

NOTE: Also check junction block connector C-216 and inter-
mediate connector C-29 for loose, corroded, or damaged termi-
nals, or terminals pushed back in the connector. If junction
block connector C-216 or intermediate connector C-29 is dam-
aged, repair or replace the damaged component(s) as
described in GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between ETACS-ECU connector

C-219 (terminal 2) and fusible link (1) in good condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the connector

may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the
wiring harness as necessary. Verify that the central
door locking system works normally.

AC305015AD

FUSIBLE LINK (1)

AC305413 AG

CONNECTOR: C-219

JUNCTION BLOCK SIDE

JUNCTION BLOCK

(REAR VIEW)

AC305415

C-216 (B)

HARNESS SIDE

CONNECTOR: C-216

AG

JUNCTION BLOCK

(FRONT VIEW)

AC305231AI

CONNECTOR: C-29

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-142

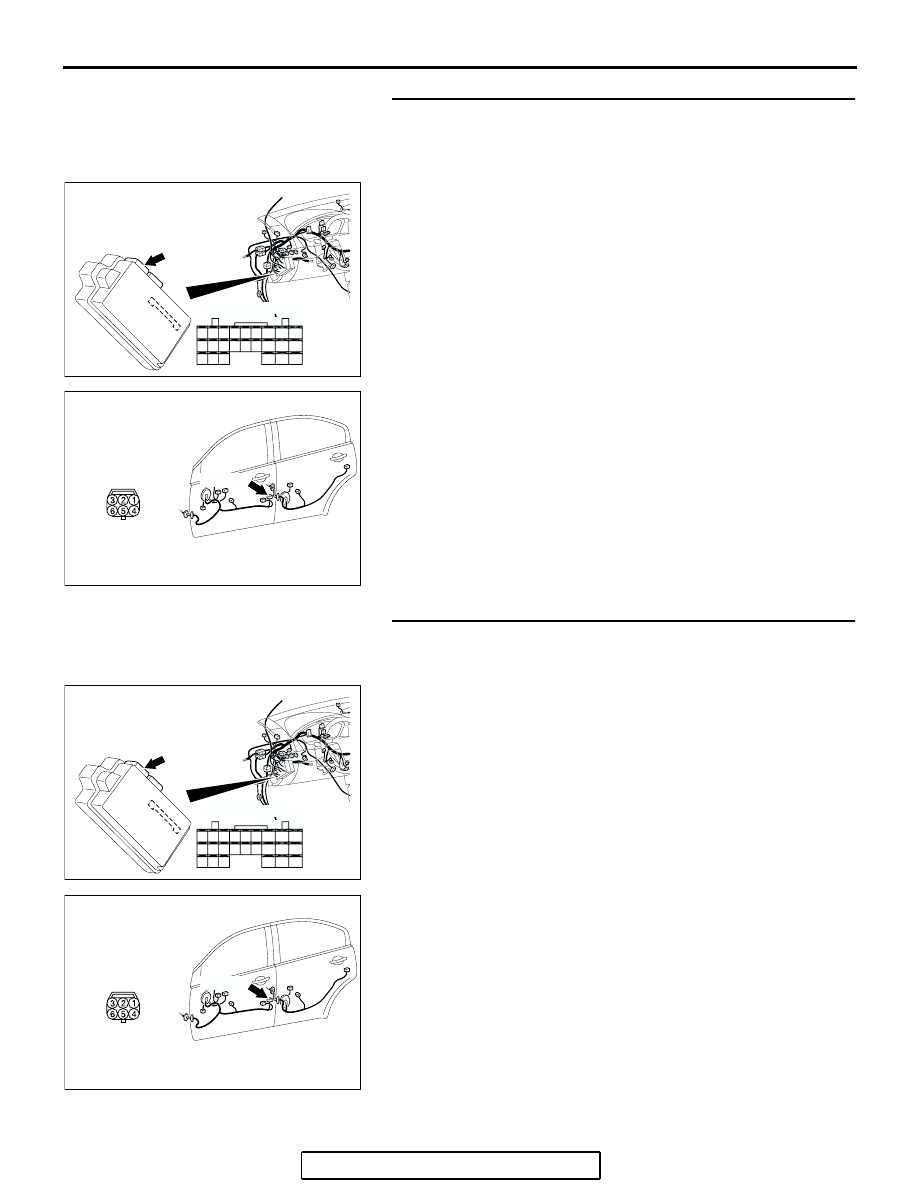

STEP 5. Check ETACS-ECU connectors C-217 and front
door lock actuator (LH) connector E-15 for loose, corroded
or damaged terminals, or terminals pushed back in the
connector.
Q: Are ETACS-ECU connectors C-217 and front door lock

actuator (LH) connector E-15 in good condition?
YES : Go to Step 6.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair or replace the damaged component(s). Refer
to GROUP 00E, Harness Connector Inspection

P.00E-2

. Verify that the central door locking system

works normally.

STEP 6. Check the wiring harness between ETACS-ECU
connector C-217 (terminal 22) and front door lock actuator
(LH) connector E-15 (terminal 4).

AC305413AH

CONNECTOR: C-217

HARNESS SIDE

25

26

27

28

29

21

22

23

24

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

JUNCTION BLOCK

(REAR VIEW)

AC305262

E-15 (B)

HARNESS SIDE

CONNECTOR: E-15

AH

AC305413AH

CONNECTOR: C-217

HARNESS SIDE

25

26

27

28

29

21

22

23

24

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

JUNCTION BLOCK

(REAR VIEW)

AC305262

E-15 (B)

HARNESS SIDE

CONNECTOR: E-15

AH

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-143

NOTE: Also check intermediate connector C-26 for loose, cor-
roded, or damaged terminals, or terminals pushed back in the
connector. If intermediate connector C-26 is damaged, repair or
replace the damaged component(s) as described in GROUP
00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between ETACS-ECU connector

C-217 (terminal 22) and front door lock actuator (LH)
connector E-15 (terminal 4) in good condition?
YES : Go to Step 7.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary.

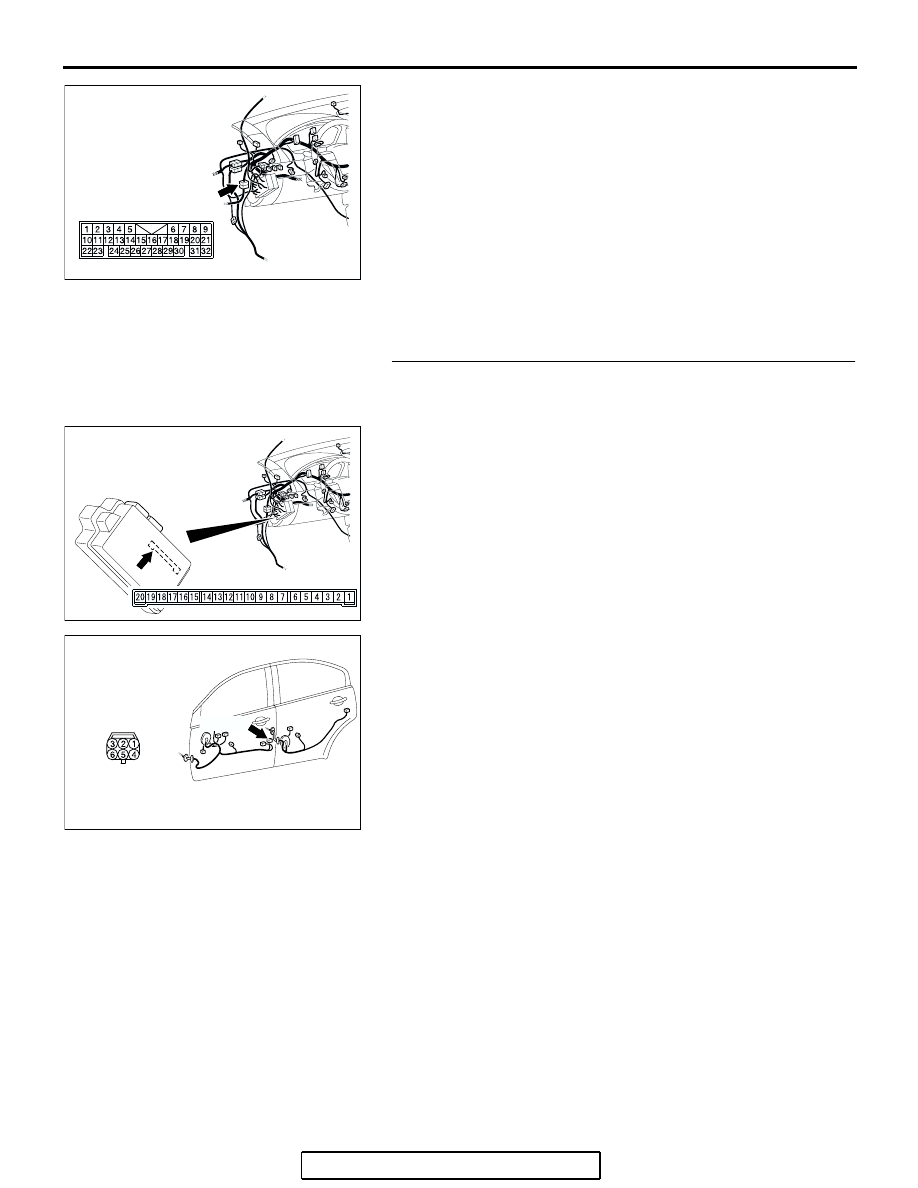

STEP 7. Check the wiring harness between ETACS-ECU
connector C-219 (terminal 12) and front door lock actuator
(LH) connector E-15 (terminal 6).

AC305231

CONNECTOR: C-26

AK

AC305413 AG

CONNECTOR: C-219

JUNCTION BLOCK SIDE

JUNCTION BLOCK

(REAR VIEW)

AC305262

E-15 (B)

HARNESS SIDE

CONNECTOR: E-15

AH
