Mitsubishi Galant 9G. Manual - part 15





DIAGNOSTIC TROUBLE CODE PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-56

Past trouble

• If DTC 021 is stored as a past trouble, carry out

diagnosis with particular emphasis on wiring and
connector(s) in the CAN bus line between the
combination meter and the ETACS-ECU, and the
power supply system to the combination meter.
For diagnosis procedures, refer to "How to cope
with past trouble" (Refer to GROUP 00, How to
treat past trouble

P.00-16

).

NOTE: You cannot find a past trouble, by the
MUT-III CAN bus diagnostics even if there is a
failure in CAN bus lines. In this case, refer to
GROUP 00, How to Cope with Intermittent Mal-
function

P.00-14

 and check the CAN bus lines.

You can narrow down the possible cause of the
trouble by referring to the DTC, which is set
regarding the CAN communication-linked ECUs
(Refer to GROUP 54C, CAN Bus Line Diagnostic
Flow

P.54C-6

).

.

TROUBLESHOOTING HINTS

• The ETACS-ECU may be defective

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A

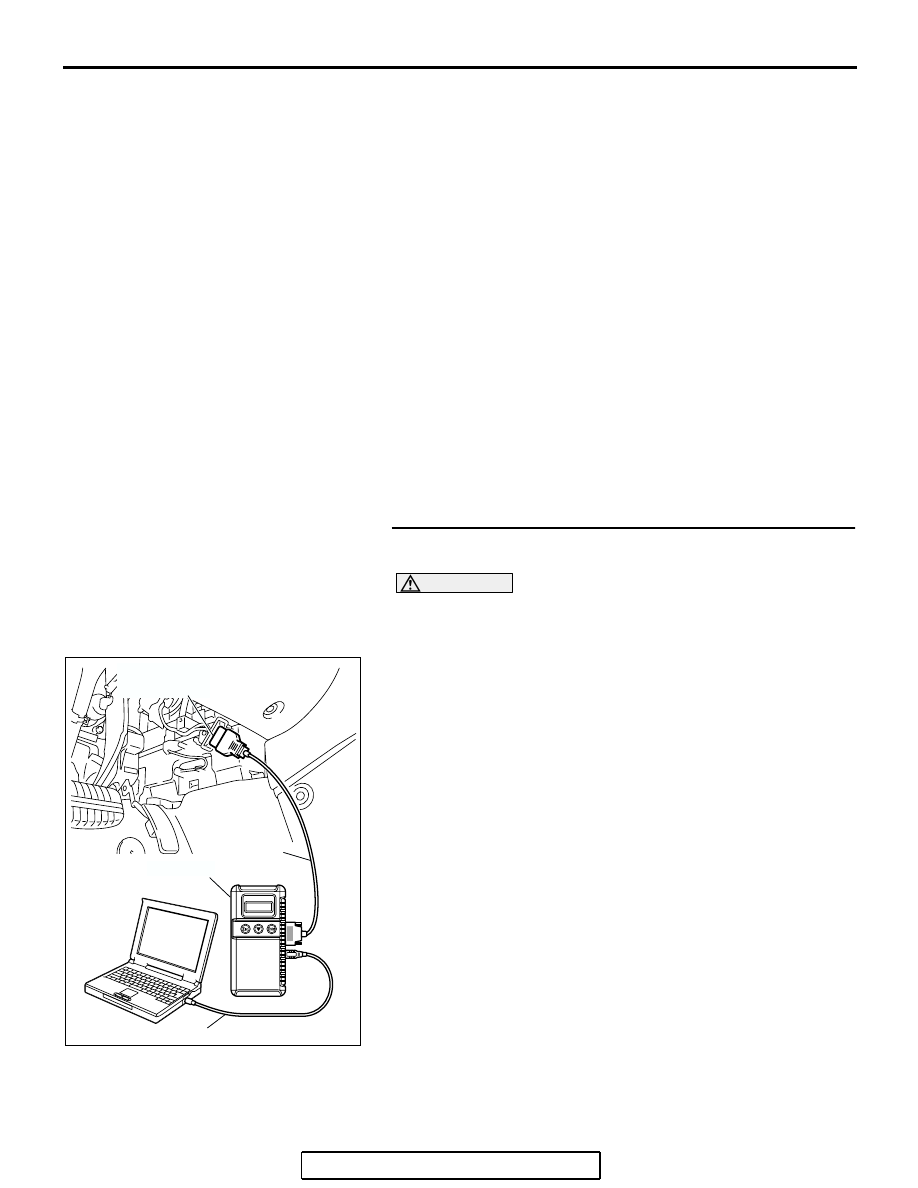

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect

SWS monitor

P.54B-13

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line (Refer to GROUP 54C,

Diagnosis

P.54C-14

).

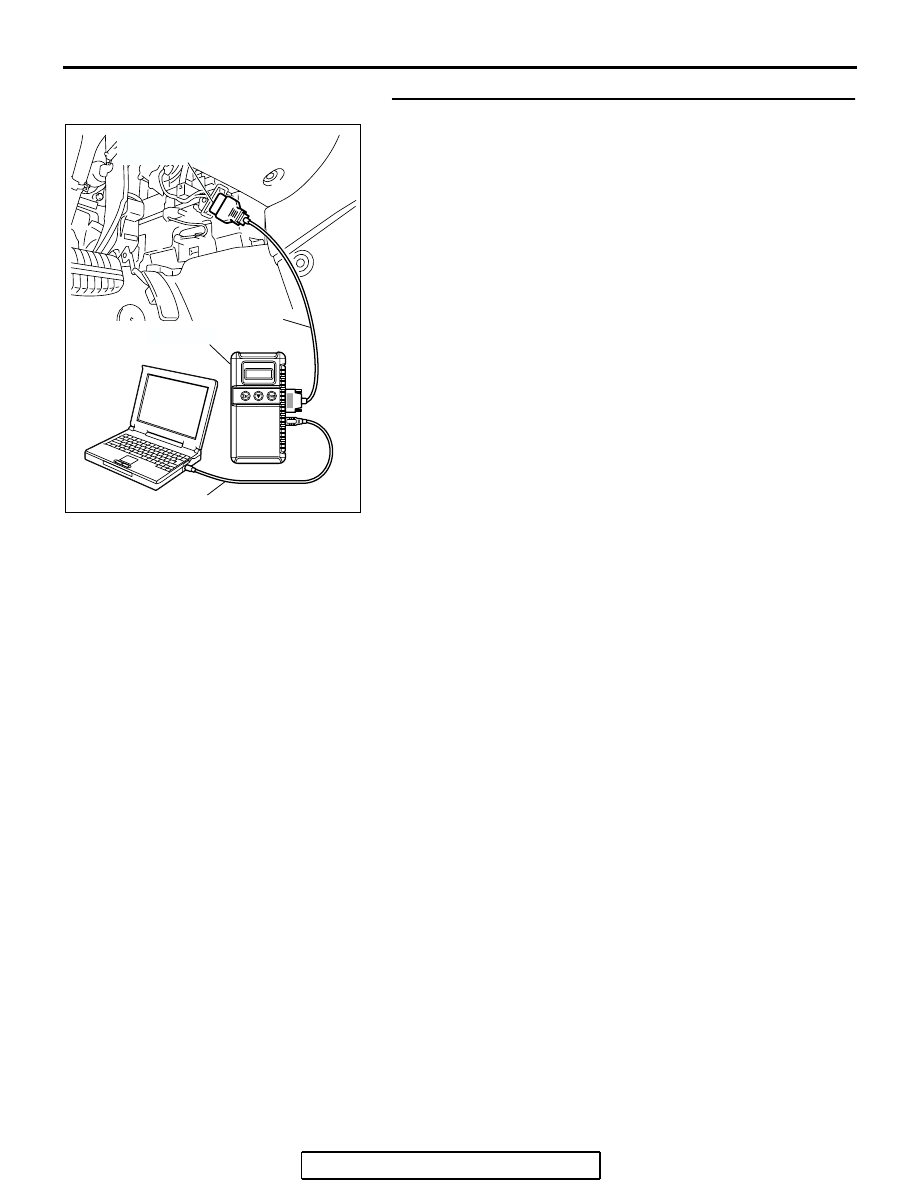

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

DIAGNOSTIC TROUBLE CODE PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-57

STEP 2. Using scan tool MB991958, read the powertrain
control module diagnostic trouble code.
Check whether engine and automatic transaxle DTCs are set
or not.
(1) Turn the ignition switch to the "ON" position.
(2) Check for engine and automatic transaxle DTCs.
(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Diagnose the powertrain control module (Refer to

GROUP 13A, Diagnosis

P.13A-33

 <2.4 L> or

P.13B-34

 <3.8 L>).

NO :  Go to Step 3.

STEP 3. Using scan tool MB991958, read the combination
meter diagnostic trouble code.
Check whether the combination meter-related DTC is set.
(1) Turn the ignition switch to the "ON" position.
(2) Check whether the combination meter-related DTC is set.
(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Diagnose the combination meter (Refer to GROUP

54A, Diagnosis

P.54A-52

).

NO :  Go to Step 4.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

DIAGNOSTIC TROUBLE CODE PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-58

STEP 4. Recheck for diagnostic trouble code.
Check again if the DTC is set.
(1) Turn the ignition switch to the "ON" position.
(2) Check if the DTC is set.
(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Replace the ETACS-ECU. On completion, verify that

the DTC is not reset.

NO :  There is an intermittent malfunction such as poor

engaged connector(s) or open circuit (Refer to
GROUP 00, How to Cope with Intermittent
Malfunction

P.00-14

).

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

SYMPTOM CHART

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-59

SYMPTOM CHART

M1549000801159

ECU COMMUNICATION SYSTEM

FUNCTION SYSTEM

SYMPTOM

INSPECTION
PROCEDURE

REFERENCE
PAGE

Communication with the SWS monitor kit is not possible.

A-1

P.54B-64

Communication with the column switch (column-ECU) is not possible.

A-2

P.54B-71

Communication with the ETACS-ECU is not possible.

A-3

P.54B-78

Communication with the front-ECU is not possible.

A-4

P.54B-86

Communication with the sunroof-ECU is not possible.

A-5

P.54B-93

SYSTEM

SYMPTOM

INSPECTION
PROCEDURE

REFERENCE
PAGE

Tone alarm

General description concerning the tone alarm

P.54B-101

Ignition key reminder tone alarm function does not
work normally.

B-1

P.54B-108

Light reminder tone alarm function does not work
normally.

B-2

P.54B-112

Seat belt tone alarm function does not work
normally.

B-3

P.54B-115

Door ajar warning buzzer function does not work
normally.

B-4

P.54B-120

The multi center display does not sound normally
when it is operated. <multi center display
(middle-grade type)>

B-5

P.54B-126

Turn-signal light buzzer function does not work
normally.

B-6

P.54B-130

Central door locking
system

General description concerning central door
locking system

P.54B-132

The central door locking system does not work at
all.

C-1

P.54B-137

Some doors do not lock or unlock.

C-2

P.54B-145

All the doors do not lock or unlock with just the
door lock switch operation.

C-3

P.54B-158

All the doors do not lock or unlock with just the
door lock key cylinder key operation.

C-4

P.54B-160

All the doors do not lock or unlock with just the
driver's or front passenger’s inside lock knob
operation.

C-5

P.54B-162

Forgotten key prevention function does not work
normally.

C-6

P.54B-164
