CHASSIS ELECTRICAL –

Multi-Center Display <High Grade>

54A-88

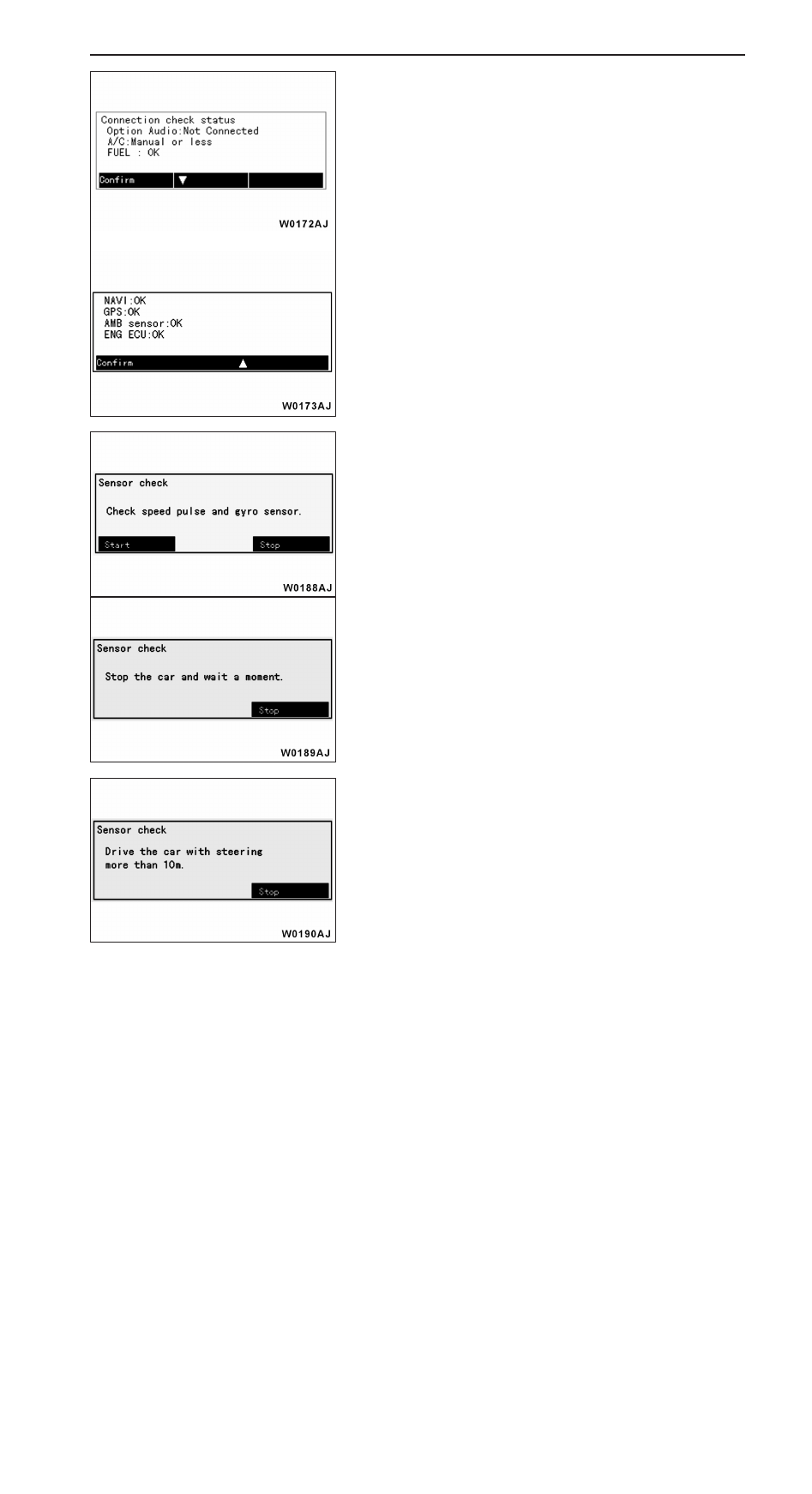

(4) Once the transmission checking is completed, the results

of checking will appear on the screen.
After checking the results, press the F1 switch to return to
the self-diagnosis menu screen.

(5) If the F6 switch is pressed at the self-diagnosis menu

screen, sensor checking will start.
Press the F1 switch to start sensor checking.
If you would like to return to the self-diagnosis menu screen
without carrying out sensor checking, press the F5 switch.

(6) When sensor checking starts, the gyro output will be

checked first while the vehicle is stopped, so make sure
that the vehicle is stopped for this check.
If the vehicle is moving when the sensor checking starts,
the vehicle speed sensor will be shown as defective.
Follow the guidance message on the multi-center display.

(7) Next, drive the vehicle for approximately 10 meters while

changing the running direction in order to check the vehicle
speed pulse and the gyro sensor output. The sensor
checking will then be completed. If there is an open circuit
in the vehicle speed sensor, sensor checking will not
complete even after the vehicle has travelled more than
10 meters. In this case, press the F5 switch to stop
checking.
If the vehicle does not move or there is an open circuit
in vehicle speed sensor, the vehicle speed sensor will
be shown as defective.

CHASSIS ELECTRICAL –

Multi-Center Display <High Grade>

54A-89

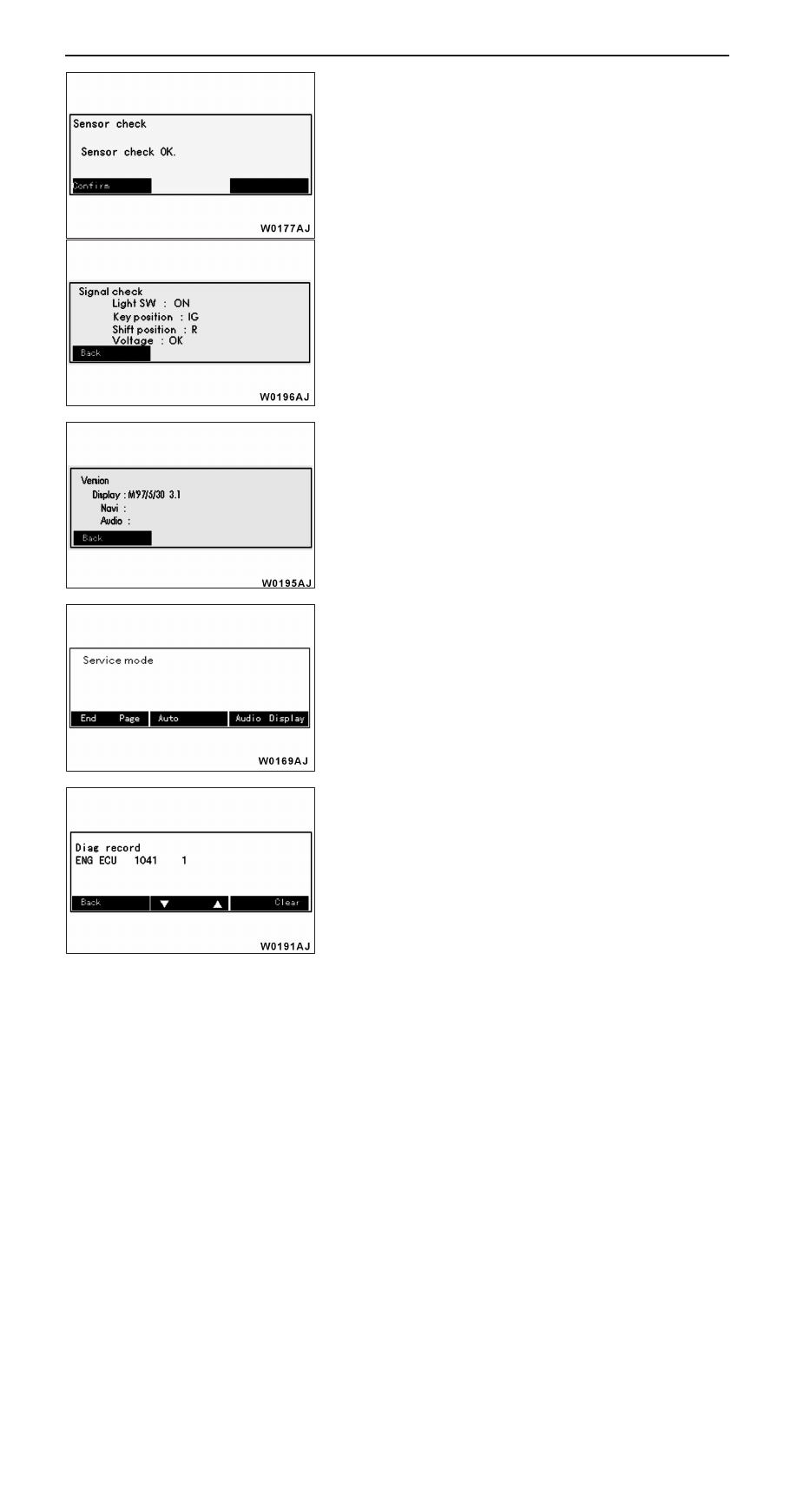

(8) When sensor checking is completed, the check results

will appear on the screen. After checking the results, press
the F1 switch to return to the self-diagnosis menu screen.

(9) If the F6 switch is pressed at the self-diagnosis menu

screen, vehicle signal checking will start.
The lighting switch condition, ignition key position, shift
lever selection (R or a position other than R) and the
power supply voltage drop will be appear on the screen.
Press the F1 switch to return to the self-diagnosis menu
screen.

If the F2 switch is pressed at the self-diagnosis menu
screen, version data self-diagnosis will be carried out,
and the check results will appear on the screen.
Press the F1 switch to return to the self-diagnosis menu
screen.

6.

DIAGNOSIS RECORDING

(1) If the F6 switch is pressed at the service mode initial

screen, the diagnosis recording screen will appear.

(2) Press the F1 switch to return to the service mode initial

screen.

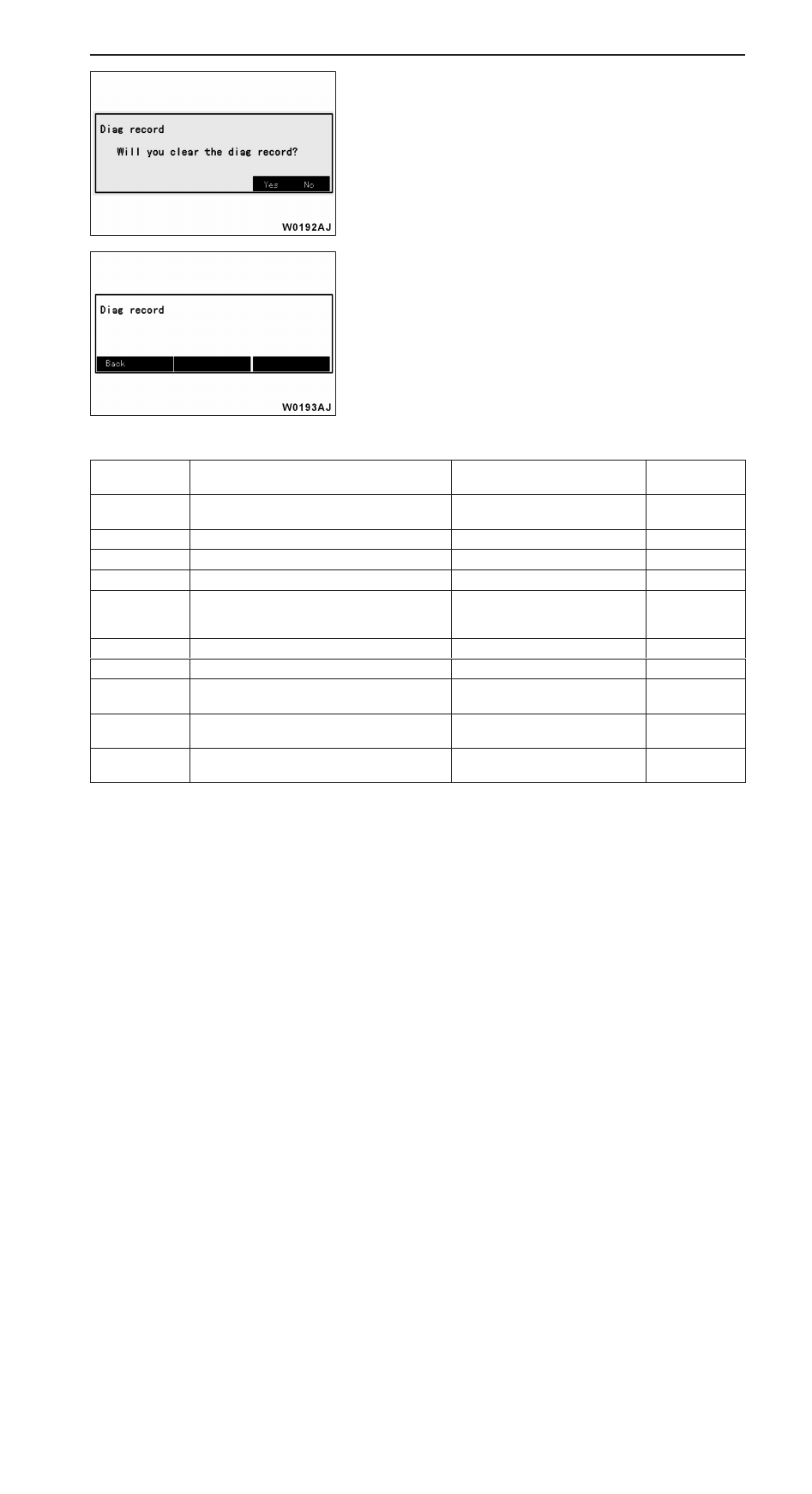

(3) Press the F6 switch to clear any error codes which may

still be remaining from diagnosis recording.
When this is done, the clearing confirmation screen will
appear. If it is okay to continue with the clear, press the
F5 switch. To cancel clearing, press the F6 switch.
If the F6 switch is pressed, the screen will return to the
diagnosis recording screen.

CHASSIS ELECTRICAL –

Multi-Center Display <High Grade>

54A-90

(4) If the F5 switch is pressed, all past error codes will be

cleared, and the screen will return to the diagnosis
recording screen. The Clear button will not be displayed
at this time.

(5) Press the F1 switch to return to the service mode initial

screen.

7. ERROR CODE TABLE

Error Code No.

Error Details

Detection Method (Reference)

Reference
Page

1011

Ambient temperature sensor not connected
during diagnosis

Connection checking

54A-105

1021

Fuel gauge not connected during diagnosis

Connection checking

54A-106

1031

GPS abnormality during diagnosis

Connection checking

54A-106

1041

Engine-ECU not connected during diagnosis

Connection checking

54A-106

1051

SWS not connected during diagnosis
(This error does not occur when correct car
type is set)

Connection checking

54A-106

1091

CD drive too hot during diagnosis

Connection checking

54A-106

1092 – 1096

CD drive abnormality during diagnosis

Connection checking

54A-107

10A1, 10B1

Memory of navigation unit abnormality during
diagnosis

Connection checking

54A-107

20D1, 30D1

Vehicle speed pulse abnormality during
diagnosis

Sensor checking

54A-107

20E1, 20E2,
30E1, 30E2

Gyro level abnormality during diagnosis

Sensor checking

54A-107

CHASSIS ELECTRICAL –

Multi-Center Display <High Grade>

54A-91

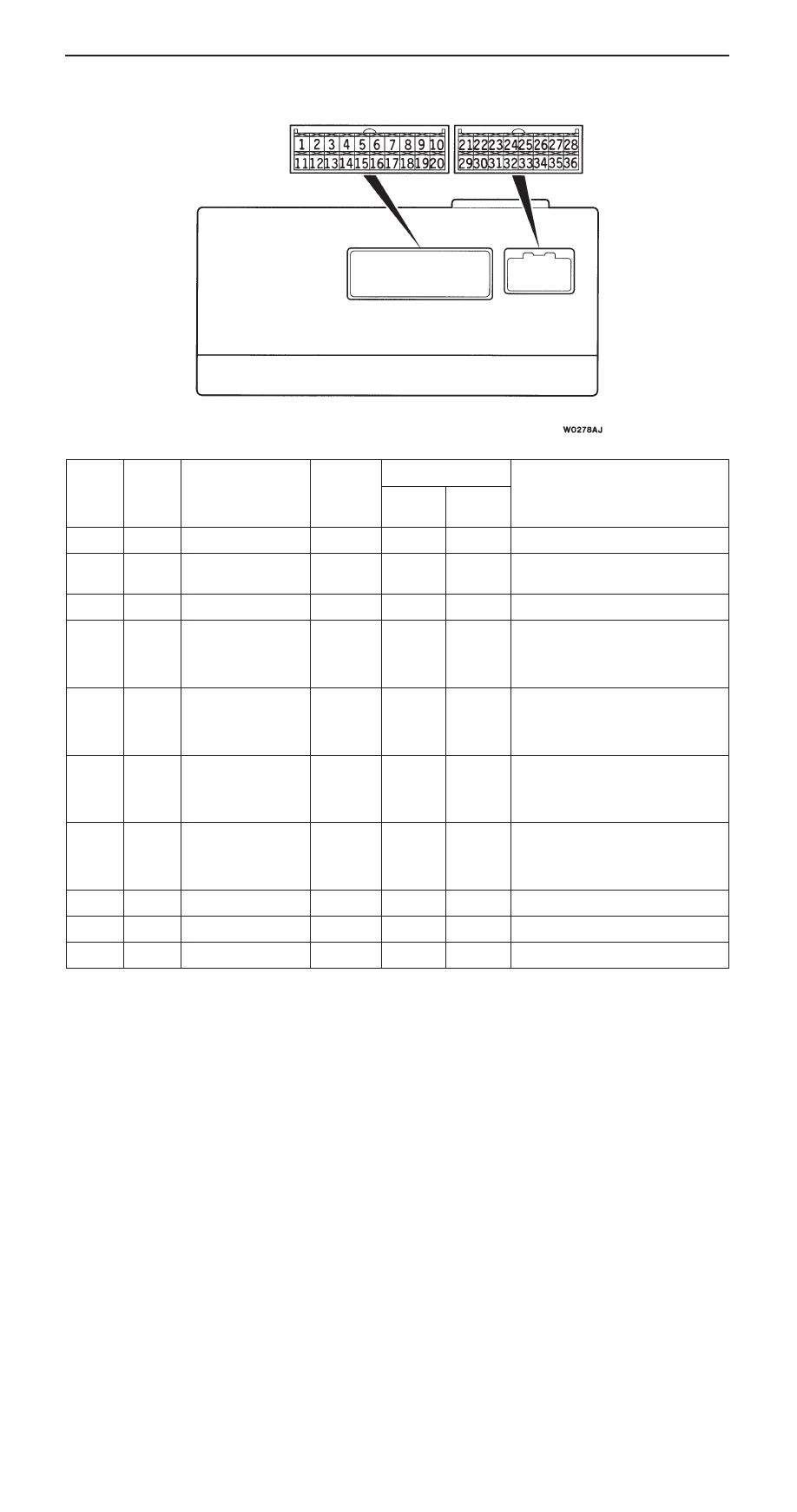

MAIN UNIT TERMINAL VOLTAGES

1.

MULTI-CENTER DISPLAY UNIT

Termi-
nal No

Input/
Output

Signal Symbol

Terminal
Voltage

Harness Problem

Trouble Symptom Resulting from
Harness Problem

nal

No.

Output

Voltage
(V)

Open
Circuit

Short-
circuit

Harness

Problem

1

Input

G+SYTNC (AUDIO)

f

f

Noise display (random dot pattern)

2

Input

B+SYNC (AUDIO)

f

f

Blue, white, cyan and magenta do not
appear in RGB screen.

3, 4

5

Input

ISOK

Hi:
System
voltage
Lo: 0 – 1

f

f

MUT-

II

 cannot be used to check

engine-ECU.

6

Input/
Output

DATA

Hi:
System
voltage
Lo: 0 –1

f

f

Switch operation sound buzzer does
not peep.

7

Input/
Output

M–DATA (AUDIO)

Hi: 4 – 5
Lo: 0 – 1

f

f

Buzzer sounds 30 seconds after the
power turned to on. Nighttime
illumination does not appear for any
navigation system.

8

Input/
Output

M–CLOCK (AUDIO)

Hi: 4 – 5
Lo: 0 – 1

f

f

Buzzer sounds 30 seconds after the
power turned to on. Nighttime
illumination does not appear for any
navigation system.

9, 10

11

SHIELD–GND
