Mitsubishi Pajero Pinin. Manual - part 321
SRS –
Side Impact Sensor
52B-3
SIDE IMPACT SENSOR
Caution
1.
Disconnect the negative (–) battery terminal
and wait for 60 seconds or more before
starting work. Also, the disconnected battery
terminal should be insulated with tape.
(Refer to ’00 PAJERO PININ Workshop
Manual <Pub. No. CKRE00E1>
P.52B-4.)
2.
Never attempt to disassemble or repair the
side impact sensors. If faulty, just replace
with new ones.
3.
Do not drop or subject the side impact
sensors to impact or vibration.
If denting, cracking, deformation, or rust are
found in the side impact sensors, replace
it with new ones. Discard the old ones.
4.
After deployment of the air bags, replace
the side impact sensors with new ones.
5.
Never use an ohmmeter on or near the side
impact sensors, and use only the special
test equipment described on ’00 PAJERO
PININ Workshop Manual
<Pub. No. CKRE00E1>
P.52B-7.

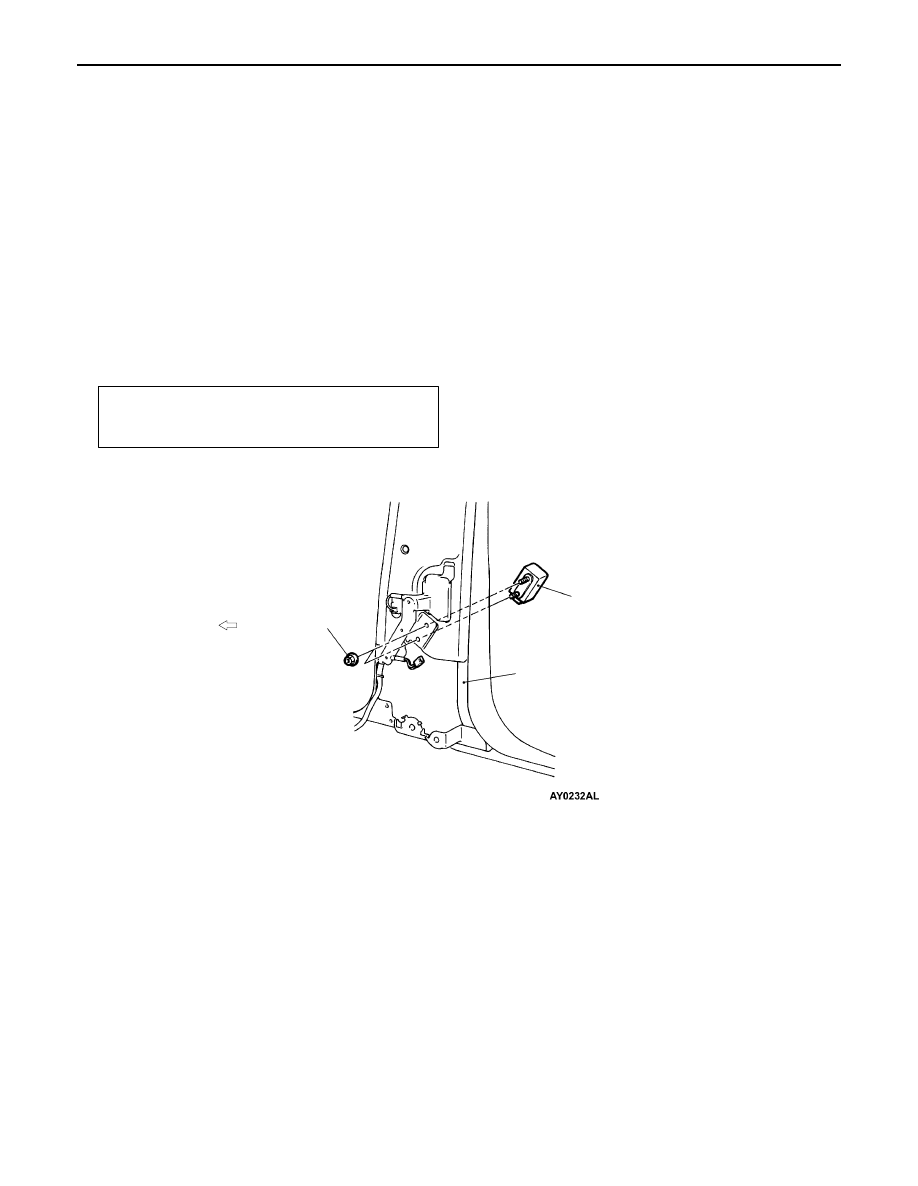

REMOVAL AND INSTALLATION
Pre-removal Operation
Turn Ignition Switch to LOCK (OFF) Position.
Disconnect the Negative (–) Battery Terminal.
1
5 Nm
Center pillar
Front of Vehicle
Removal steps
Front seat belt (Refer to GROUP 52A.)
1. Side impact sensor
Installation steps
A
Pre-installation inspection
B
1. Side impact sensor
Front seat belt (Refer to GROUP 52A.)
Negative (–) battery cable connection
C
Post-installation inspection
NOTE
The figure shows the side impact sensor (R.H.).
For service points, refer to Basic Manual.
