REAR AXLE –

Axle Assembly

27-10

REMOVAL SERVICE POINTS

A

A

"

REAR PROPELLER SHAFT DISCONNECTION

Make mating marks on the companion flange and the flange
yoke, and then disconnect the propeller shaft from the
companion flange.

Caution
Use a wire, etc. to suspend the propeller shaft from the
body to prevent it from falling.

A

B

"

SHOCK ABSORBER DISCONNECTION

Support the axle housing with a jack before removing the
shock absorber lower mounting nut.

A

C

"

LATERAL ROD DISCONNECTION

Disconnect the lateral rod from the axle assembly, and then
use a wire, etc. to suspend the lateral rod to prevent it from
falling.

A

D

"

AXLE ASSEMBLY REMOVAL

Take out the axle assembly toward the rear of vehicle.

Caution
Take out the axle assembly carefully and slowly. The axle
assembly is heavy and unstable and may fall.

REAR AXLE –

Axle Shaft

27-11

AXLE  SHAFT

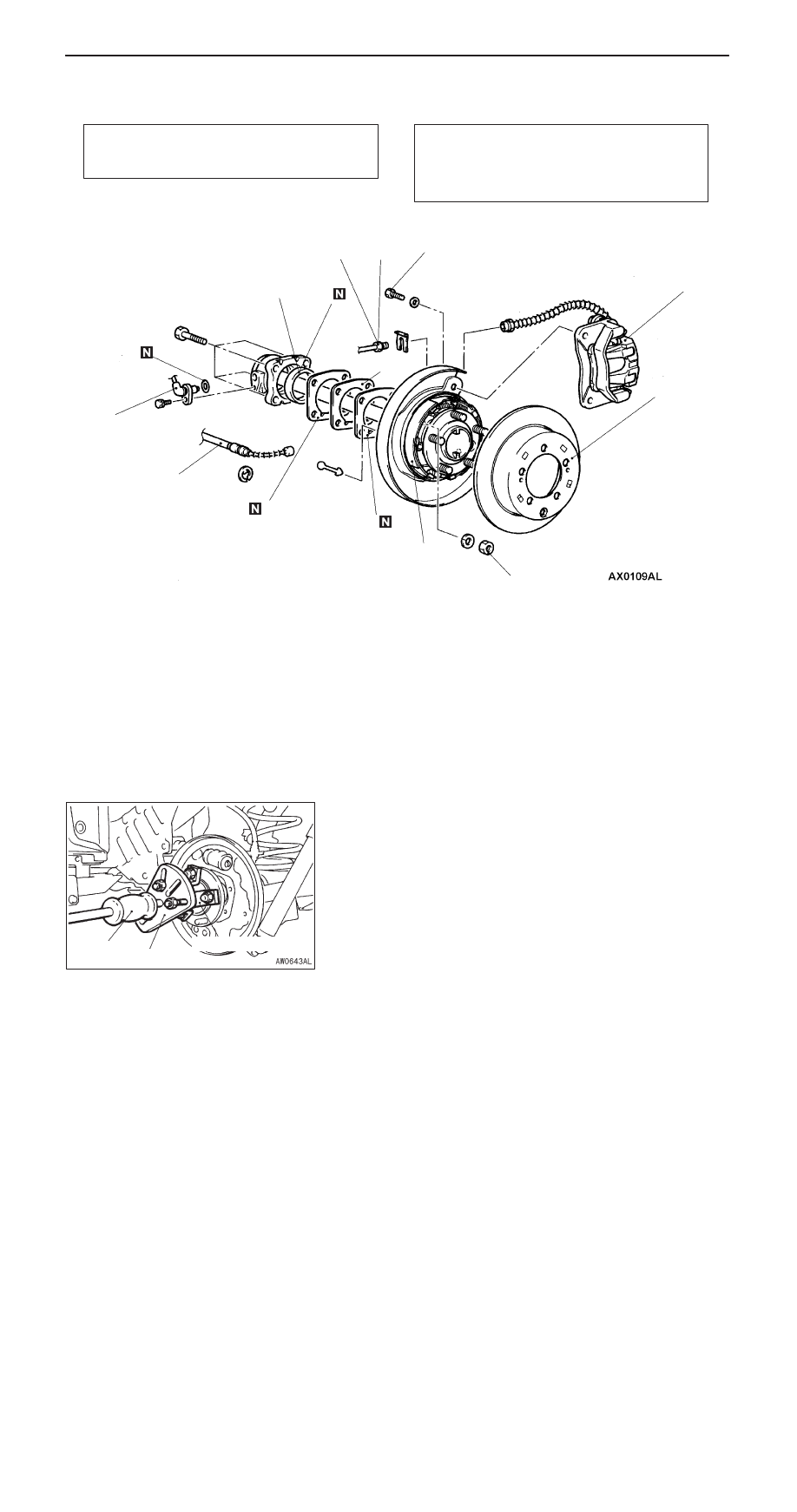

REMOVAL AND INSTALLATION

Pre-removal Operation
Brake Fluid Draining (Refer to GROUP 35A – On-vehicle
Service.)

Post-installation Operation

D

Brake Fluid Filling and Air Bleeding (Refer to
GROUP 35A – On-vehicle Service.)

D

Parking Brake Lever Stroke Adjustment (Refer to
GROUP 36 – On-vehicle Service.)

7

9

10

8

3

11

12

1

88 Nm

(Oil lip part)

6

5

4

15 Nm

2

Removal steps

1. Brake tube
2. Caliper assembly
3. Brake disc
4. Parking brake shoe (Refer to

Group 36 – Parking brake drum.)

5. Parking brake cable connection
6. Wheel speed sensor <Vehicles with

ABS>

7. O-ring <Vehicles with ABS>

A

A

"

8. Axle shaft assembly

"

B

A

9. Packing(s)

"

B

A

10. Shim(s)

"

B

A

11. Packing(s)

A

B

" "

A

A

12. Oil seal

REMOVAL SERVICE POINTS

A

A

"

AXLE SHAFT ASSEMBLY REMOVAL

Use the special tools to remove the axle shaft assembly.

Caution
Be careful not to damage the oil seal when pulling the axle
shaft.

MB990211

MB990244 (Three)

MB991354

REAR AXLE –

Axle Shaft

27-12

A

B

"

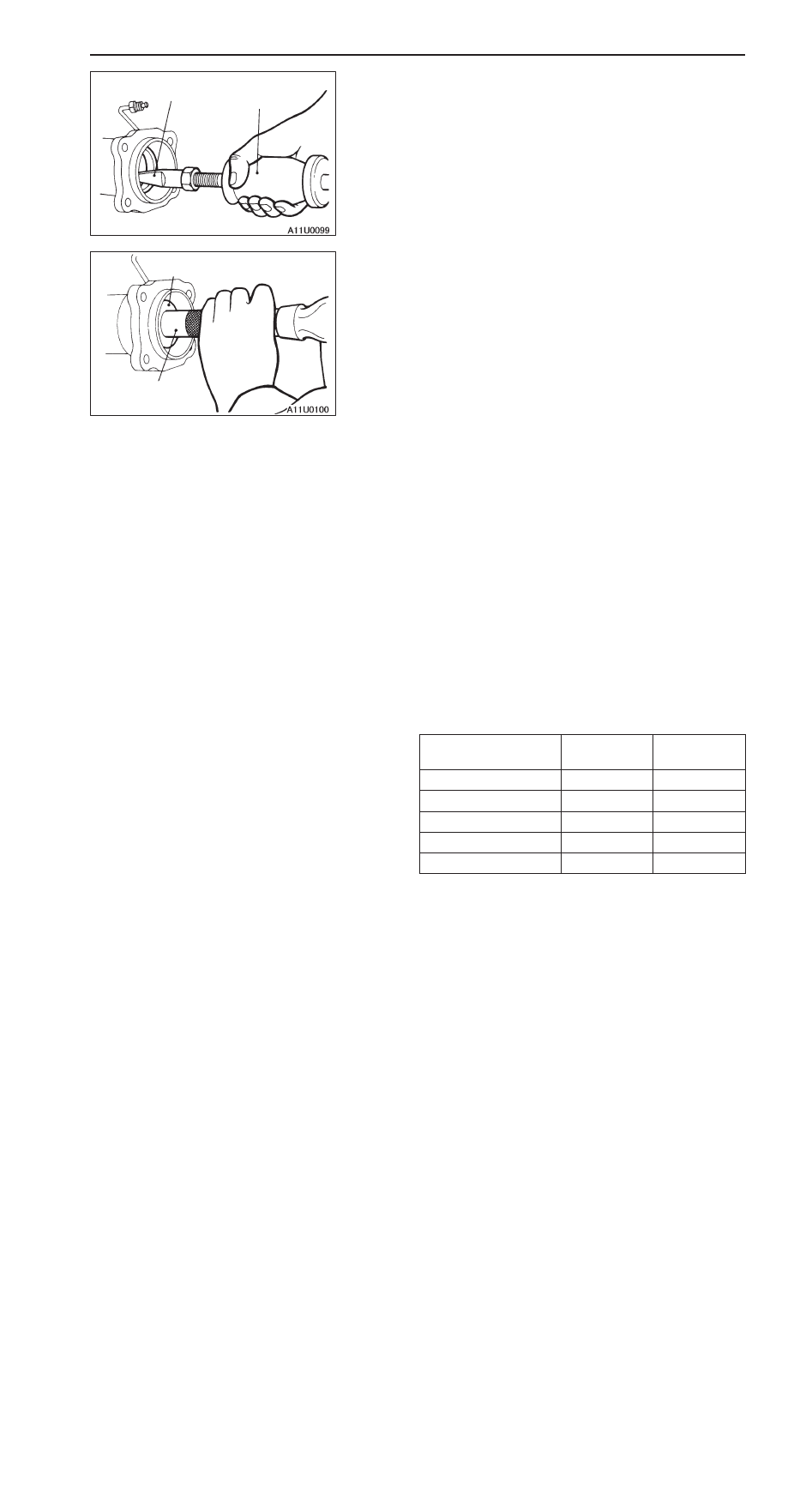

OIL SEAL REMOVAL

Use the special tools to remove the oil seal.

INSTALLATION SERVICE POINTS

"

A

A

OIL SEAL INSTALLATION

Use the special tools to tap in the oil seal.

"

B

A

PACKING/SHIM INSTALLATION

1.

When only removing and reinstalling the axle shaft, the
same thickness and number of shims as before should
be used.

2.

When replacing the axle shaft or the wheel bearing, select
the packing(s) and shim(s) to adjust the bearing outer
retainer tightening condition by the following procedure.
(1) Insert the axle shaft assembly into the axle housing

without packing(s) and shim(s). Temporarily tighten
the installation nuts to half of specified torque (until
the bearing outer race contacts the axle housing)
evenly in diagonal order in two steps.

(2) Use a thickness gauge to measure the clearance

between the axle housing and the backing plate, and
then select the packing(s) and shim(s) according to
the following table.

NOTE
New packing is 0.27 mm to 0.33 mm in thickness,
and new shim is 0.3 mm in thickness.

Clearance mm

Number of
packing

Number of
shim

0.2

0

0

0.2 – 0.5

1

0

0.5 – 0.75

2

0

0.75 – 1.0

2

1

1.0 – 1.25

2

2

MB990212

MB990211

MB990930

MB990938

REAR AXLE –

Axle Shaft

27-13

(3) If using the shim(s), sandwich the shim(s) between the

packings as shown in the illustration.

3.

Install the axle shaft assembly. Tighten the nuts in a
diagonal order to the specified torque.

Tightening torque: 29 Nm

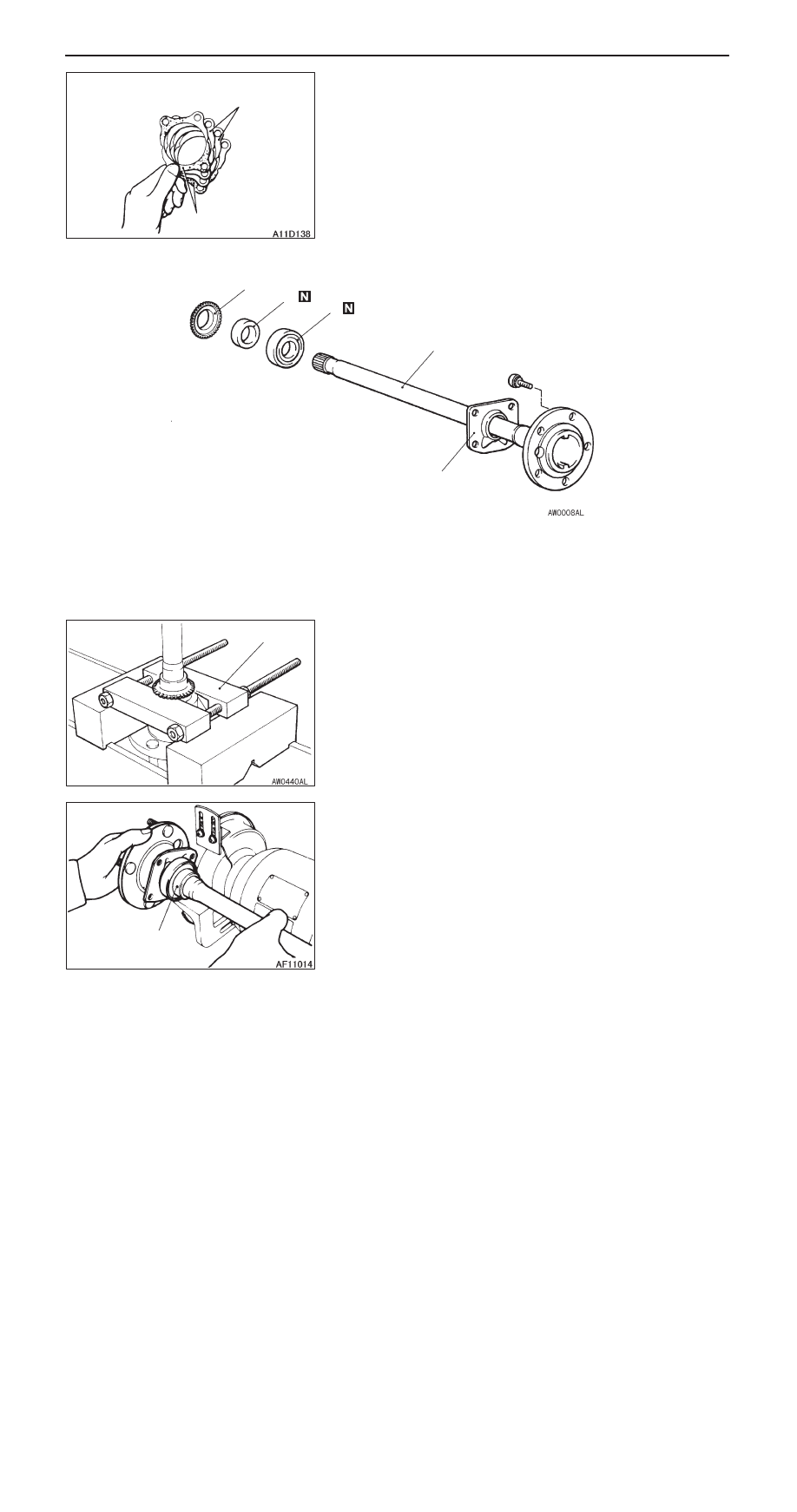

DISASSEMBLY AND REASSEMBLY

2

3

1

5

4

Disassembly steps

A

A

"

1. ABS rotor <Vehicles with ABS>

A

B

" "

A

A

2. Bearing inner retainer

A

C

" "

A

A

3. Wheel bearing

"

A

A

4. Bearing outer retainer
5. Axle shaft

DISASSEMBLY SERVICE POINTS

A

A

"

ABS ROTOR REMOVAL

Use the special tool to press out the ABS rotor.

A

B

"

BEARING INNER RETAINER REMOVAL

1.

Use a grinder to shave off a part of the bearing inner
retainer until its thickness becomes 1 to 1.5 mm.

Shims

Packings

MB990560

Bearing inner
retainer
