ENGINE ELECTRICAL –

Ignition System

16-22

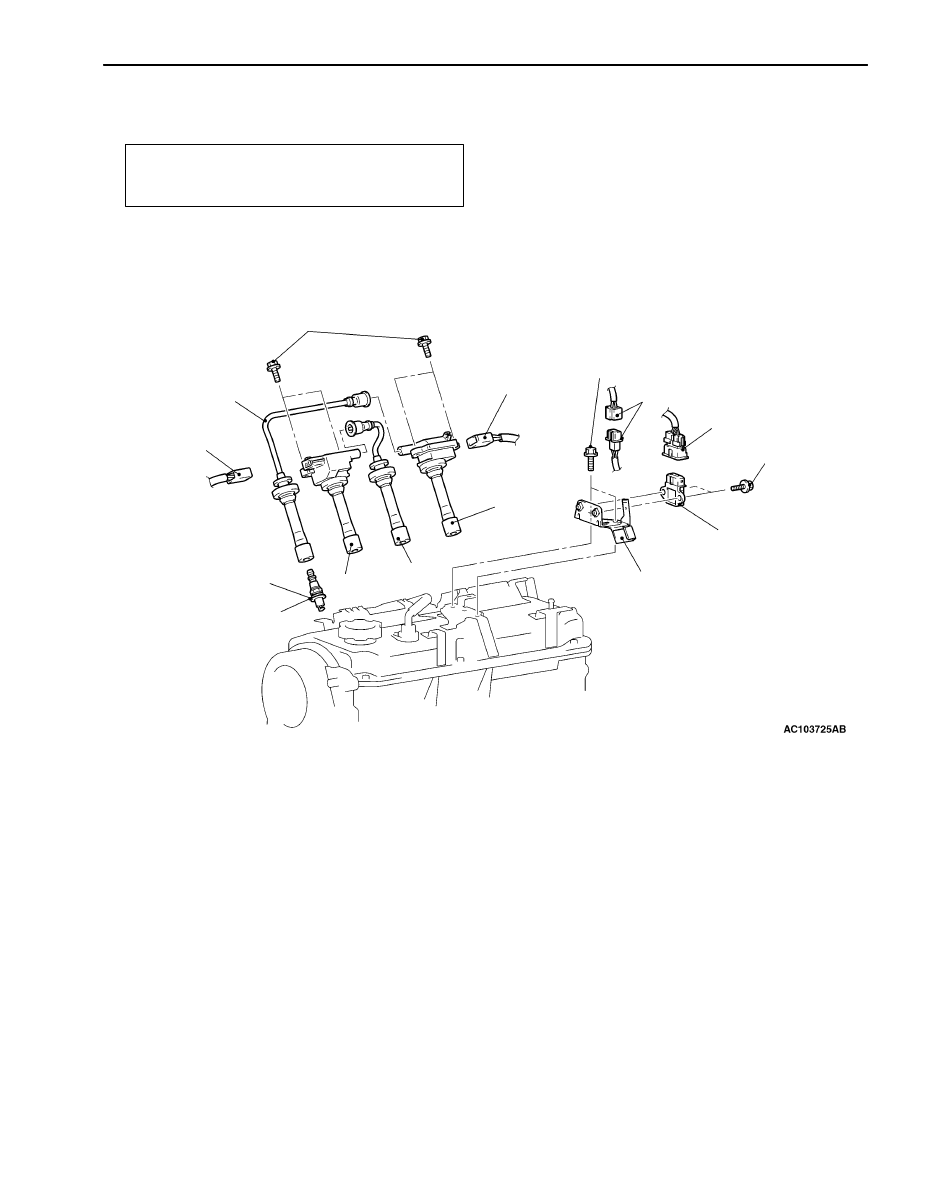

IGNITION COIL AND IGNITION FAILURE SENSOR

REMOVAL AND INSTALLATION

Pre-removal and Post-installation Operation

D

Air Cleaner Assembly and Air Intake Hose Removal
and Installation

<4G9-MPI>

2

3

6

3

5

7

8

1

4

1

2

2 5

±

 5 N · m

1 0

±

 2 N · m

1 0

±

 2 N · m

5 . 0

±

 1 . 0 N · m

Disassembly steps

1. Ignition coil connector
2. Spark plug cable
3. Ignition coil
4. Spark plug

5. Oxygen sensor connector
6. Ignition failure sensor connector
7. Ignition failure sensor
8. Ignition failure sensor bracket

ENGINE ELECTRICAL –

Ignition System

ENGINE ELECTRICAL –

Ignition System

16-23

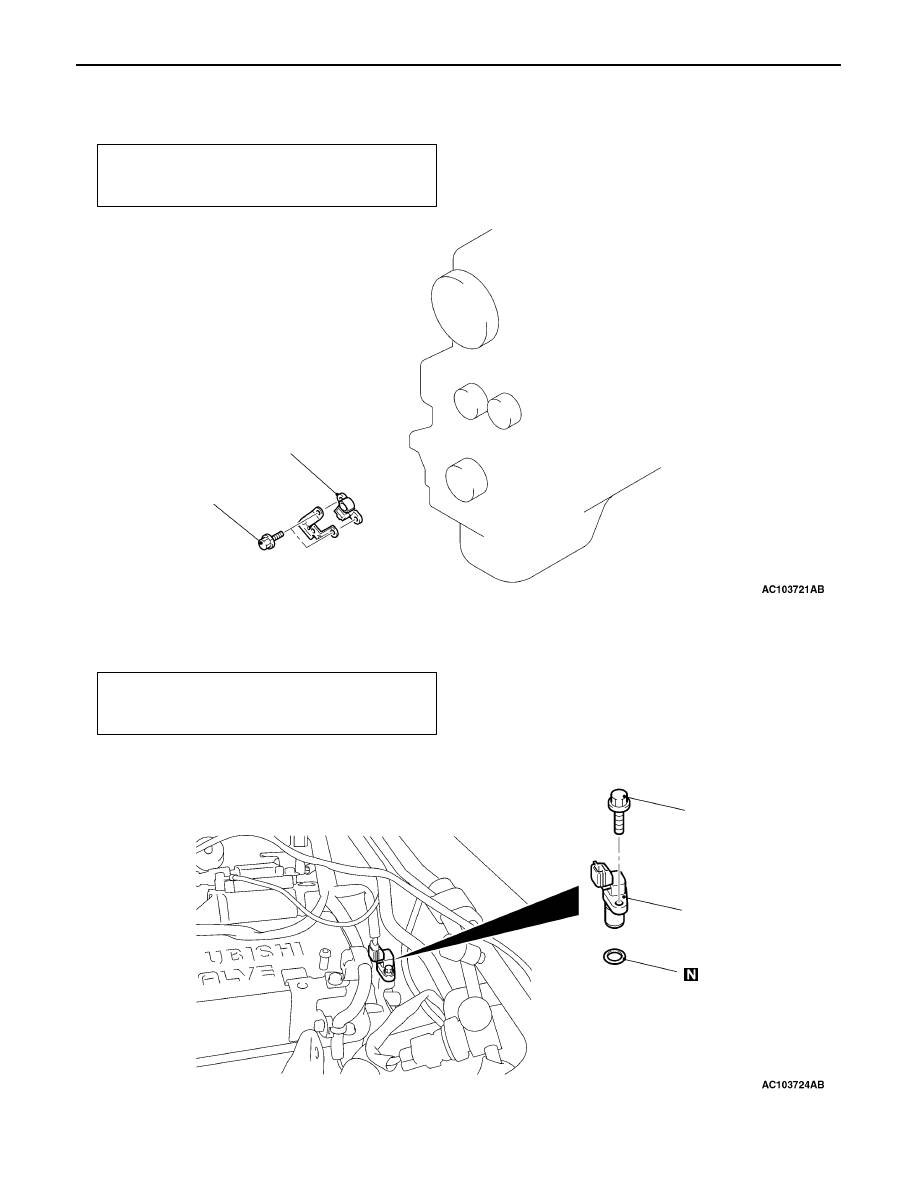

CRANK ANGLE SENSOR

REMOVAL AND INSTALLATION

Pre-removal and Post-installation Operation
Timing Belt Front Lower Cover Removal and Installation
(Refer to GROUP 11.)

<4G9-MPI>

Crank angle sensor

9 . 8

±

 2 . 0 N · m

CAMSHAFT POSITION SENSOR

REMOVAL AND INSTALLATION

Pre-removal and Post-installation Operation
Air Cleaner Assembly and Air Intake Hose Removal
and Installation

<4G9-MPI>

Camshaft
position
sensor

9 . 8

±

 2 . 0 N · m

ENGINE ELECTRICAL –

Ignition System

16-24

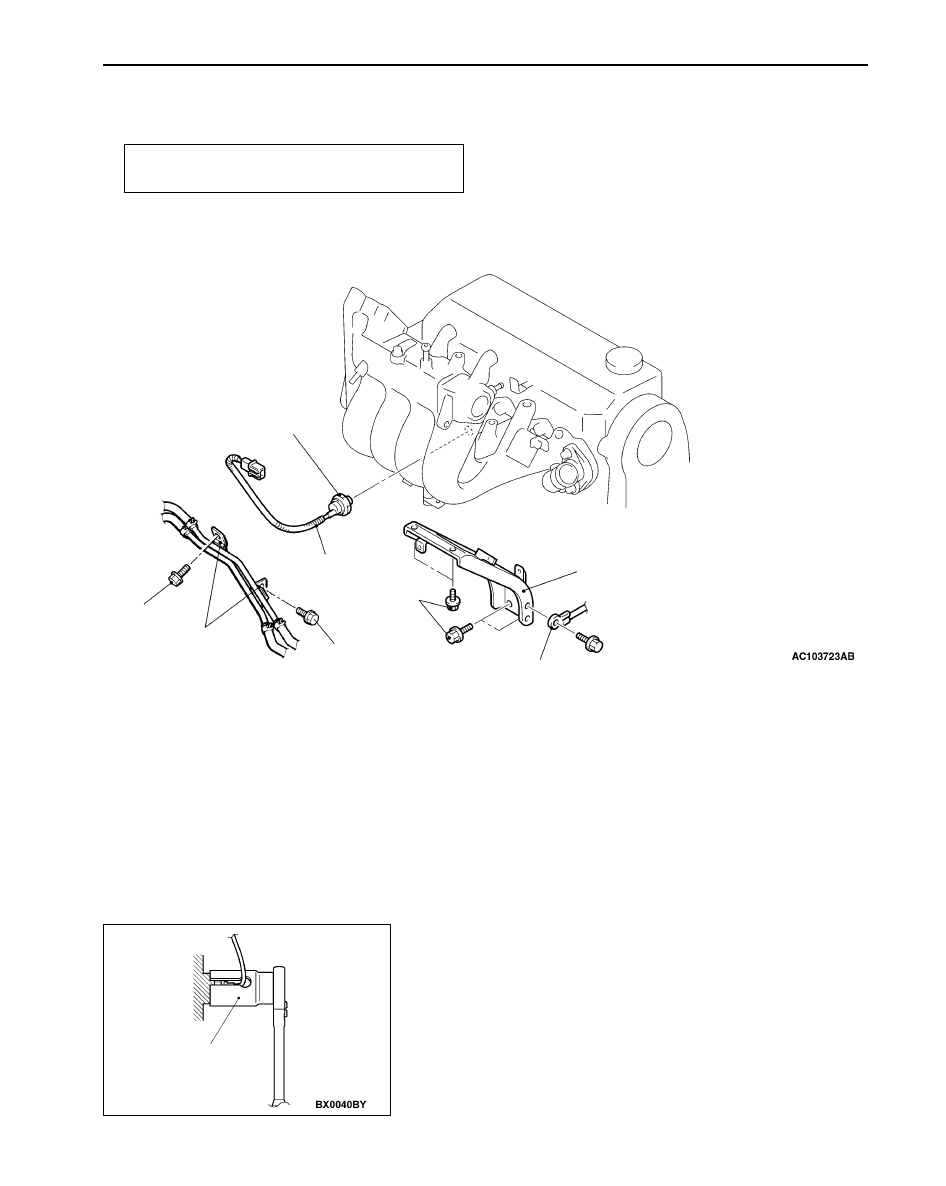

DETONATION SENSOR

REMOVAL AND INSTALLATION

Pre-removal and Post-installation Operation

D

Under Cover Removal and Installation

2

3

1

<4G9-MPI>

5 . 0

±

 1 . 0 N · m

4

3 1

±

 3 N · m

5 . 0

±

 1 . 0 N · m

2 3

±

 2 N · m

Disassembly steps

1. Earth cable connection
2. A/T oil cooler pipe clamp <A/T>

3. Intake manifold stay

A

A

" "

A

A

4. Detonation sensor

REMOVAL SERVICE POINT

A

A

"

DETONATION SENSOR REMOVAL

INSTALLATION SERVICE POINT

"

A

A

DETONATION SENSOR INSTALLATION

MD998773

ENGINE AND

EMISSION

CONTROL
