PROCEDURE 1
CATALYTIC CONVERTER MONITOR (P0420)
monitor item
CATALYTIC TEMPERATURE SENSOR <M/T> MONITOR (P0425)
One trip monitor [from start to ignition switch to “LOCK” (OFF) position] will be completed while
traveling with the following drive cycle pattern. It will take 12 minutes or more.

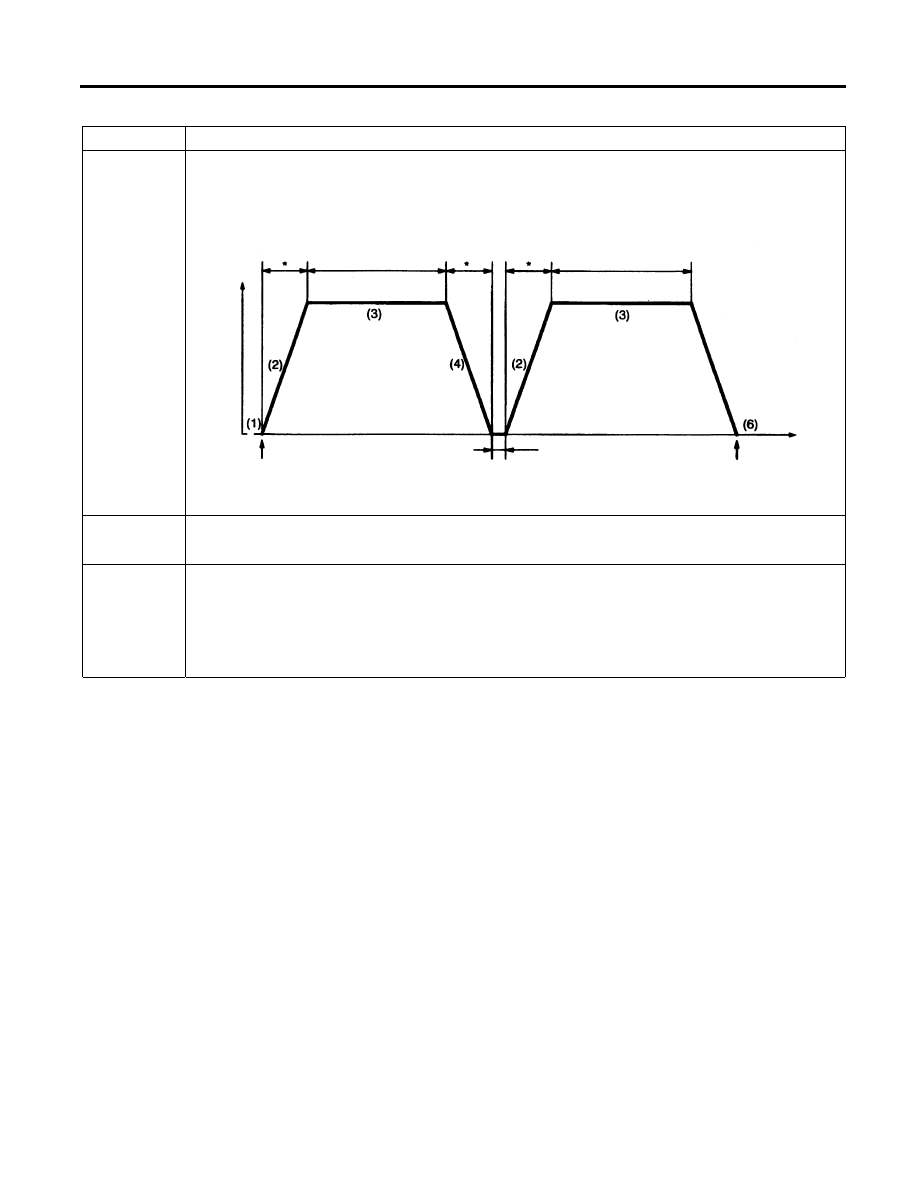

Drive cycle
pattern
Inspection
conditions
•
Engine coolant temperature : 85
°C or more
•
Atmospheric temperature : -10
°C or more
•
Condition of A/T :Selector lever D range, overdrive switch “ON” position
Test
procedure
1. Engine
:
start
2. Accelerate until the vehicle speed is 100 km/h.
3. Travel for 5 minutes or more while keeping the vehicle speed is 100 km/h or more.
4. Decelerate until the vehicle speed is 0 km/h within 1 minute and stop for 25 – 30 seconds.
5. Accelerate until the vehicle speed at 100 – 120 km/h within 1 minute.
6. While keeping the accelerator pedal opening degree constant, keep the vehicle speed at
100 - 120 km/h and travel for 3 minutes or more.
7. Repeat the above procedure 4 – 6.
8. Return the vehicle to the shop, then turn the ignition switch ”LOCK” (OFF) position.
2001 CARISMA Workshop Manual Supplement 4G93
2001 SPACE STAR Workshop Manual Supplement 4G93
GDI - Troubleshooting
Y6004BY

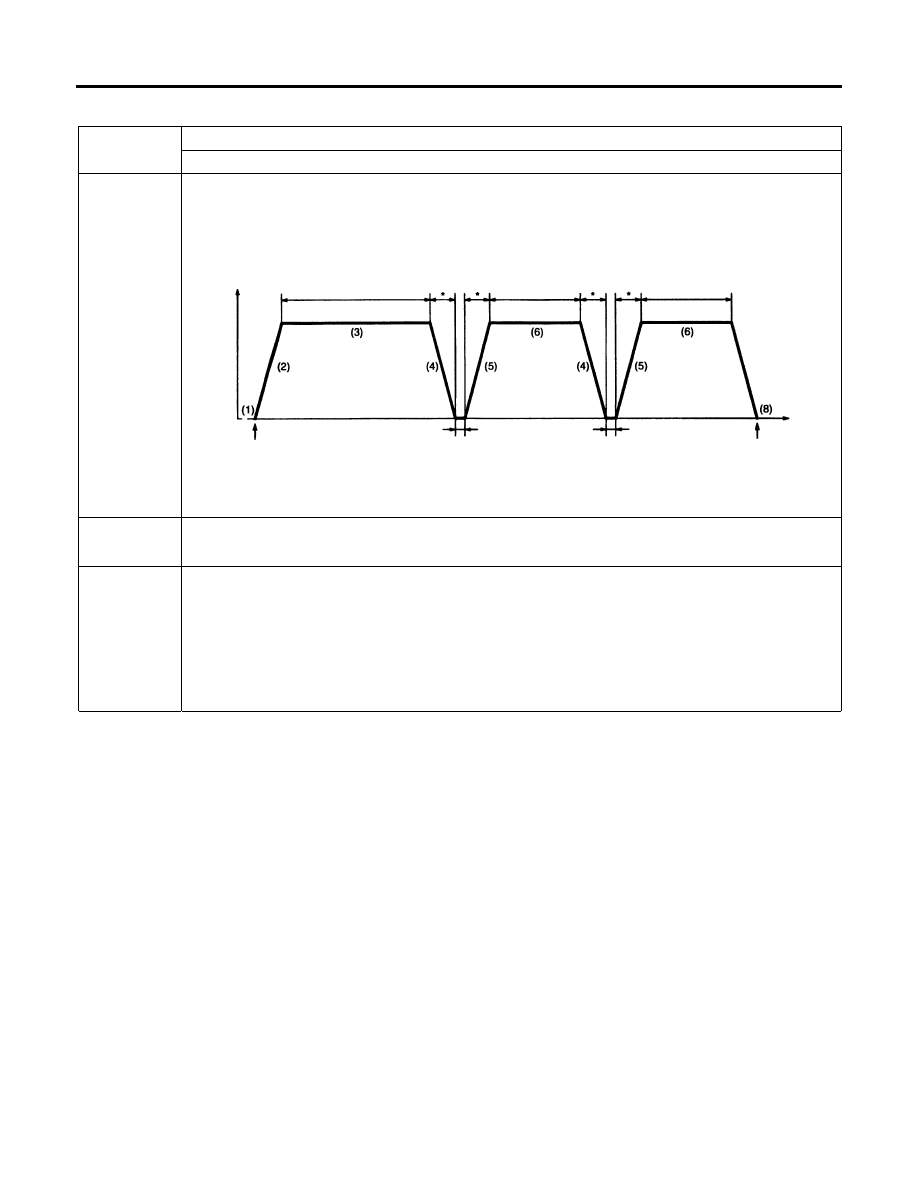

Vehicle
speed
5 minutes or more
100 km/h or more
Engine start
Ignition switch
”LOCK” (OFF)
position
Time
*: 1 minute or less
3 minutes or more
3 minutes or more
100 – 120 km/h
100 – 120 km/h
Stop: 25 – 30 seconds
Stop: 25 – 30 seconds
