13A-105

CHECK CHART FOR RESISTANCE AND CONTINUITY
BETWEEN TERMINALS

1.

Turn the ignition switch to OFF.

2.

Disconnect the engine-ECU connector.

3.

Measure the resistance and check for continuity between
the terminals of the engine-ECU harness-side connector
while referring to the check chart.

NOTE
(1) When measuring resistance and checking continuity,

a harness for checking contact pin pressure should
be used instead of inserting a test probe.

(2) Checking need not be carried out in the order given

in the chart.

Caution
If the terminals that should be checked are mistaken,
or if connector terminals are not correctly shorted
to earth, damage may be caused to the vehicle wiring,
sensors, engine-ECU and/or ohmmeter.
Be careful to prevent this!

4.

If the ohmmeter shows any deviation from the standard
value, check the corresponding sensor, actuator and
related electrical wiring, and then repair or replace.

5.

After repair or replacement, recheck with the ohmmeter
to confirm that the repair or replacement has corrected
the problem.

GDI  –

Troubleshooting

13A-106

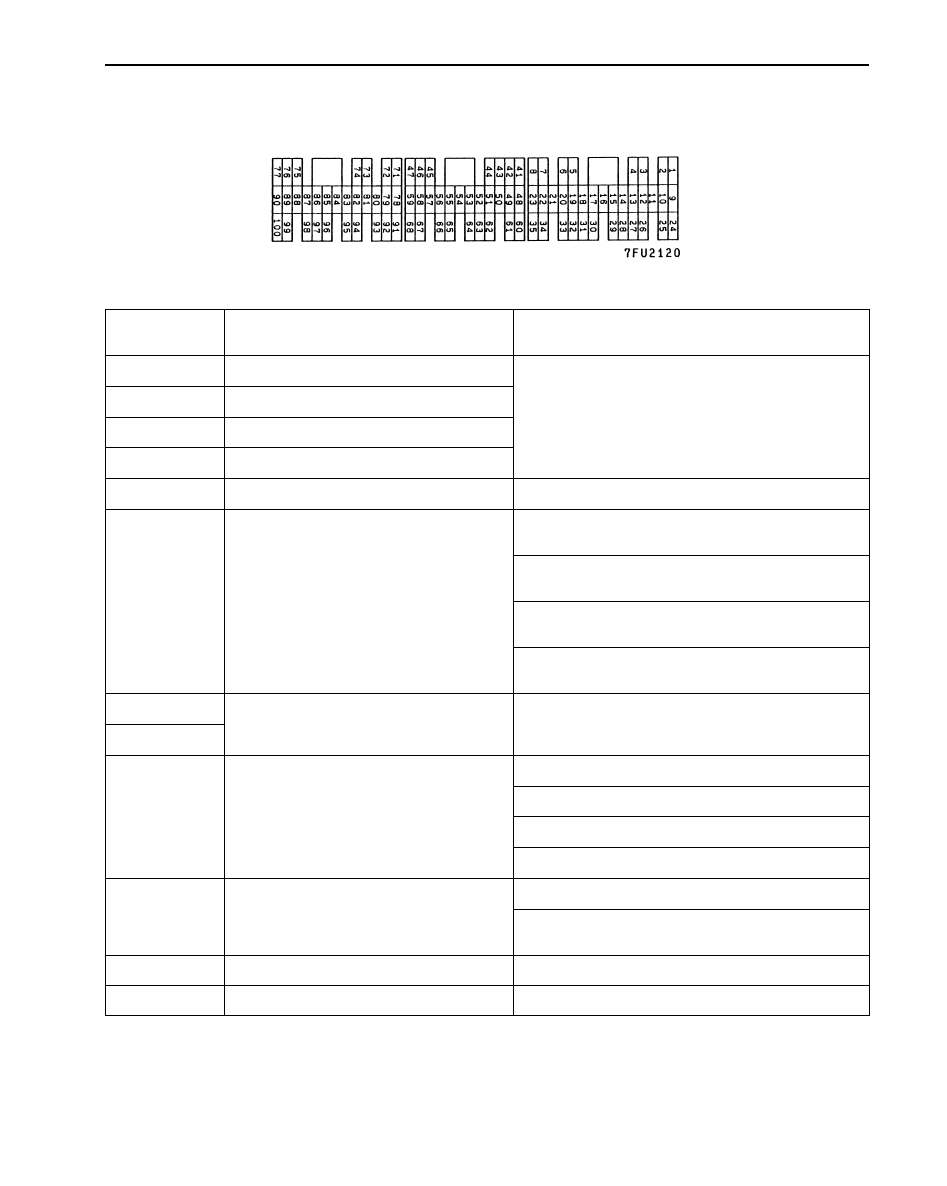

Engine-ECU Harness Side Connector Terminal Arrangement

Terminal No.

Check item

Standard value, normal condition (check require-
ments)

5 – 47

EGR valve (D)

15 – 20

 (at 20



C)

6 –

 47

EGR valve (C)

32 – 47

EGR valve (B)

34 – 47

EGR valve (A)

16 – 47

Purge control solenoid valve

30 – 34

 (at 20



C)

44 – 72

Engine coolant temperature sensor

5.1  – 6.5 k

 (when engine coolant temperature is

0



C)

2.1  – 2.7 k

 (when engine coolant temperature is

20



C)

0.9  – 1.3 k

 (when engine coolant temperature is

40



C)

0.26 – 0.36 k

 (when engine coolant temperature is

80



C)

46 – Body earth

Earth

Continuity (0

)

58 – Body earth

62 – 72

Intake air temperature sensor

5.3 – 6.7 k

 (when intake air temperature is 0



C)

2.3 – 3.0 k

 (when intake air temperature is 20



C)

1.0 – 1.5 k

 (when intake air temperature is 40



C)

0.30 – 0.42 k

 (when intake air temperature is 80



C)

79 – 49

Accelerator pedal position switch

Continuity (when the accelerator pedal is released)

No continuity (when the accelerator pedal is slightly
depressed)

89 – 47

Oxygen sensor heater control (front)

4.5 – 8.0

 (at 20



C)

90 – 47

Oxygen sensor heater (rear)

11 – 18

 (at 20



C)

GDI  –

Troubleshooting

13A-107

CHECK AT THE THROTTLE VALVE CONTROLLER TERMINALS

TERMINAL VOLTAGE CHECK CHART

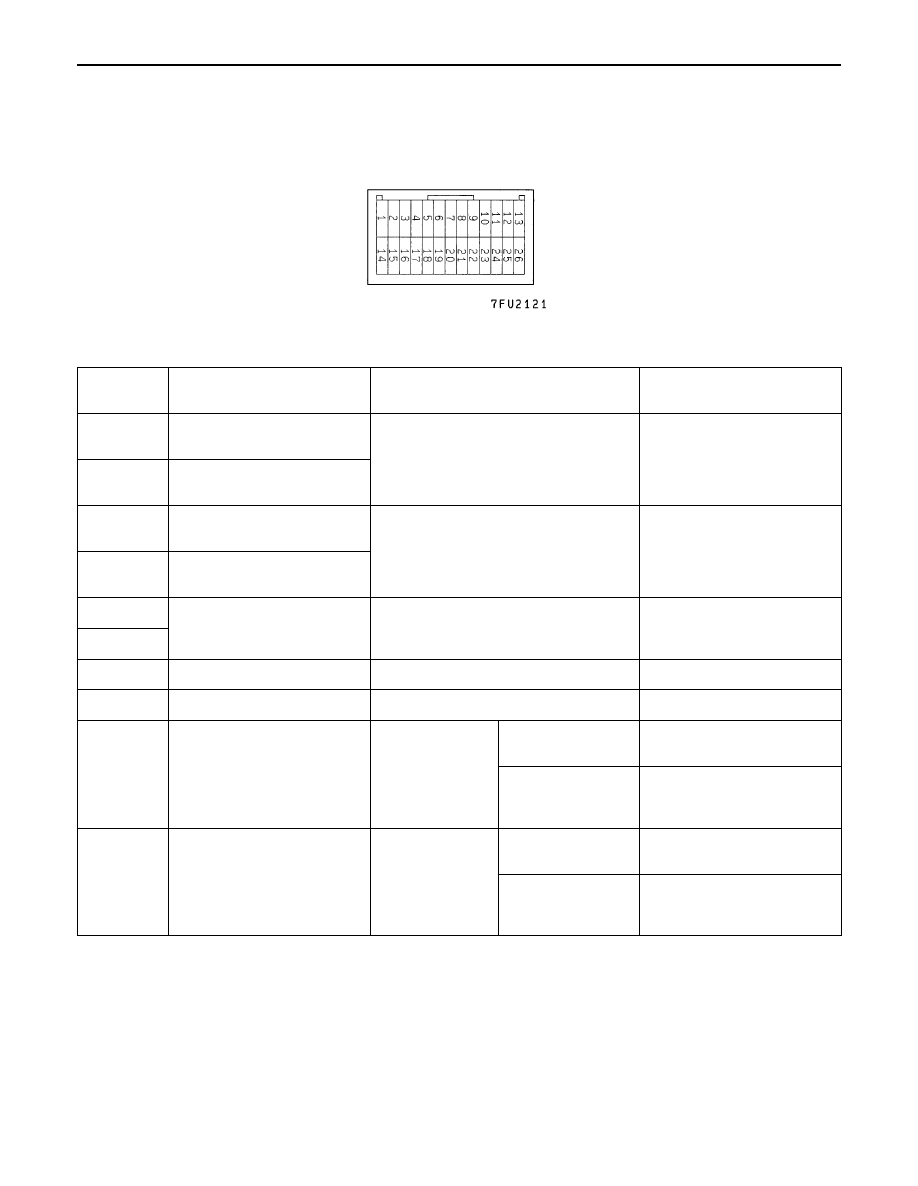

Throttle Valve Controller Terminal Arrangement

Terminal
No.

Check items

Requirements

Normal value

1

Throttle valve control servo
(A+)



Ignition switch: ON



Accelerator pedal: Fully opened

fully closed

Decreases slightly from
system voltage.

9

Throttle valve control servo
(B+)

fully closed

14

Throttle valve control servo
(A–)



Ignition switch: ON



Accelerator pedal: Fully closed

fully opened

Decreases slightly (approx.
2 V) from system voltage.

15

Throttle valve control servo
(B–)

fully opened

2

Power supply to throttle
valve control servo

Ignition switch: ON

System voltage

19

valve control servo

5

Power supply

Ignition switch: ON

System voltage

6

Sensor voltage

Ignition switch: ON

4.5 – 5.5 V

7

Throttle position sensor (1st
channel)

Ignition switch:
ON

Release the
accelerator pedal.

0.45 – 0.8 V

Depress the
accelerator pedal
fully.

3.9 – 4.9 V

20

Accelerator pedal position
sensor (2nd channel)

Ignition switch:
ON

Release the
accelerator pedal.

0.7 – 1.4 V*

1

Depress the
accelerator pedal
fully.

4.1 V or more*

1

NOTE:
Check that the voltage difference between *

1

 and *

2

 is 4 V or more.

GDI  –

On-vehicle Service

GDI  –

On-vehicle Service

GDI  –

On-vehicle Service

13A-108

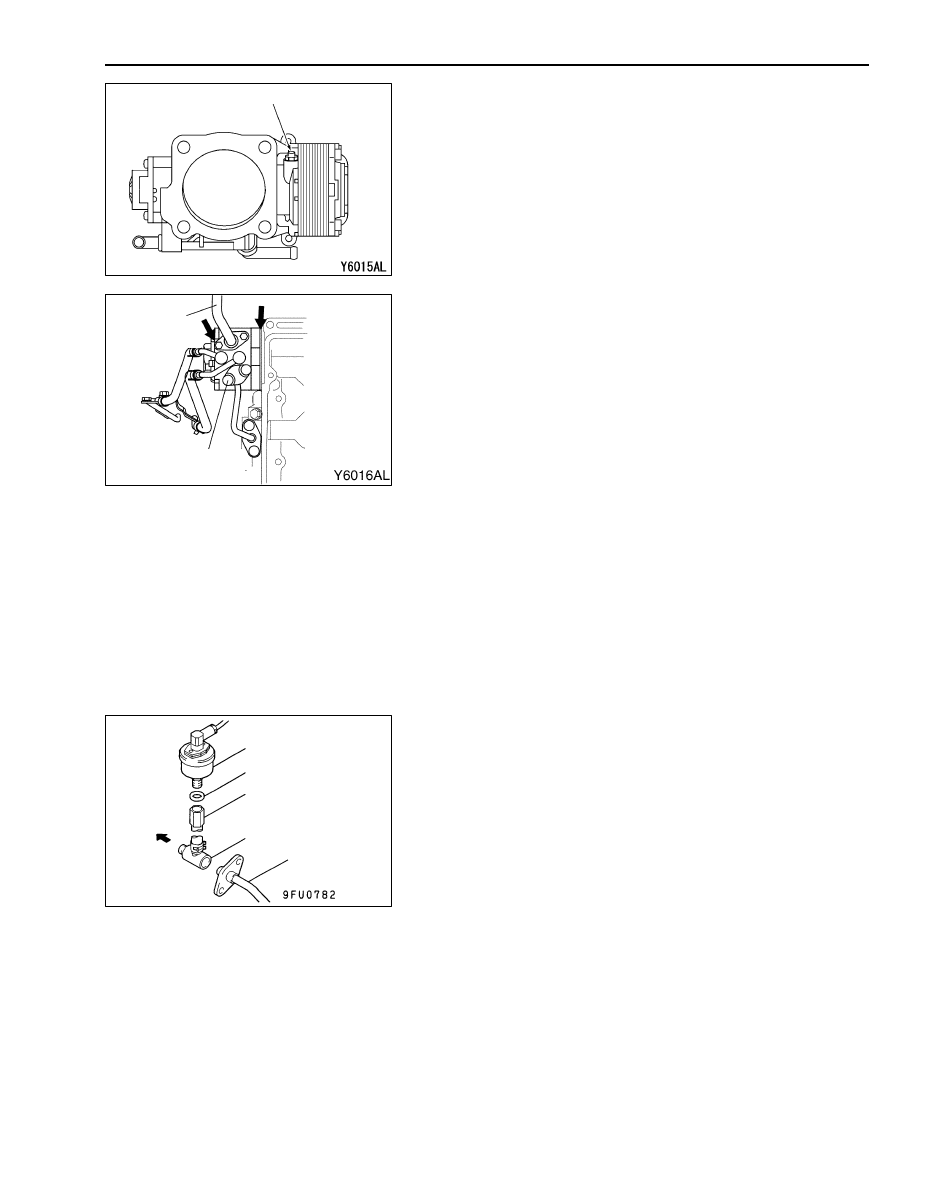

ON-VEHICLE SERVICE

Caution
(1) Never attempt to tamper the fixed SAS. The fixed SAS

is precisely adjusted at factory.

(2) Should it be tampered, the full closed position of the

throttle valve will be changed. This causes the
engine-ECU to learn a wrong position of the throttle
valve.

FUEL PRESSURE TEST

MEASUREMENT OF FUEL LOW PRESSURE BETWEEN
FUEL PUMP (LOW PRESSURE) AND FUEL PUMP
(HIGH PRESSURE)

1.

Release residual pressure from the fuel pipe line to prevent
fuel gush out.

NOTE
Refer to the ’00 PAJERO PININ Workshop Manual (Pub.
No. CKRE00E1) GROUP 13A – On-vehicle Service.

2.

Disconnect the high-pressure fuel hose at the fuel pump
(high pressure) side.

Caution
Cover the hose connection with rags to prevent splash
of fuel that could be caused by some residual pressure
in the fuel pipe line.

3.

Remove the union joint and bolt from the special tool
(adapter hose) and instead attach the special tool (hose
adapter) to the adapter hose.

4.

Install the special tool (for measuring the fuel pressure)
that was set up in step 3.

<When using the fuel pressure gauge set (special tool)>
(1) Install the special tool (for measuring the fuel pressure)

between the high-pressure fuel hose and the fuel pump
(high pressure).

(2) Install the fuel pressure gauge set (special tool) on

the special tool (for measuring the fuel pressure)
putting the gasket between them.

(3) Connect the lead wire of the fuel pressure gauge set

(special tool) to the power supply (cigarette lighter
socket) and to the MUT-

II

.

Fixed SAS

High-pressure
fuel hose

Fuel pump
(high-pressure)

MD998709

MD998742

Fuel
pump
(high
pressure)

Gasket

High-pressure
fuel hose

MB991637
