Mitsubishi Space Star. Manual - part 99

ENGINE ELECTRICAL –

Ignition System

16-15

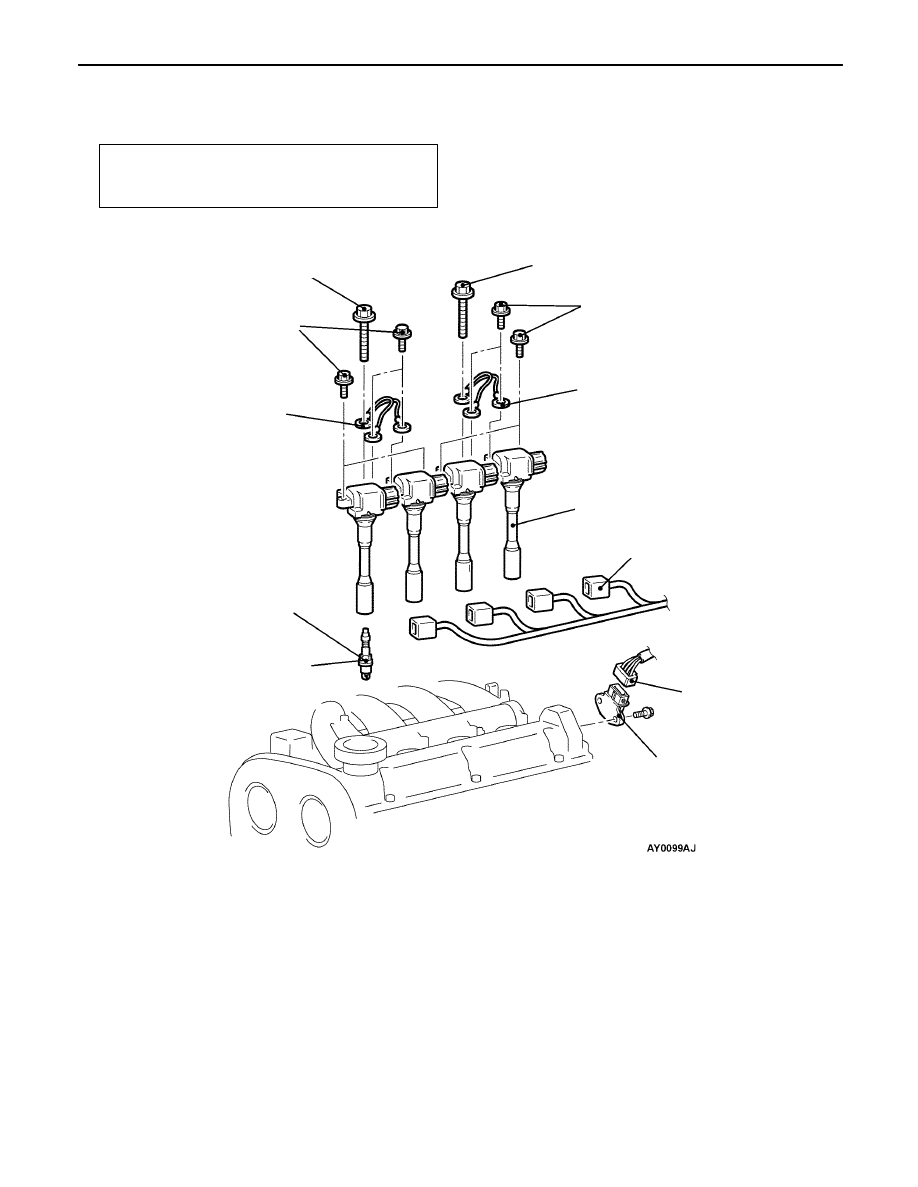

IGNITION COIL <4G93-GDI>

REMOVAL AND INSTALLATION

Pre-removal and Post-installation Operation
Engine Cover Removal and Installation
(Refer to GROUP 11A – Camshaft, Camshaft Oil Seal.)

1 0  N m

1

2

2 5  N m

3

3

1 0  N m

1 9 . 5  N m

1 9 . 5  N m

4

5

6

Ignition coil removal steps

1. Ignition coil connector
2. Ignition coil
3. Earth strap
4. Spark plug

Ignition failure sensor removal
steps

5. Ignition failure sensor connector
6. Ignition failure sensor

ENGINE ELECTRICAL –

Ignition System

16-16

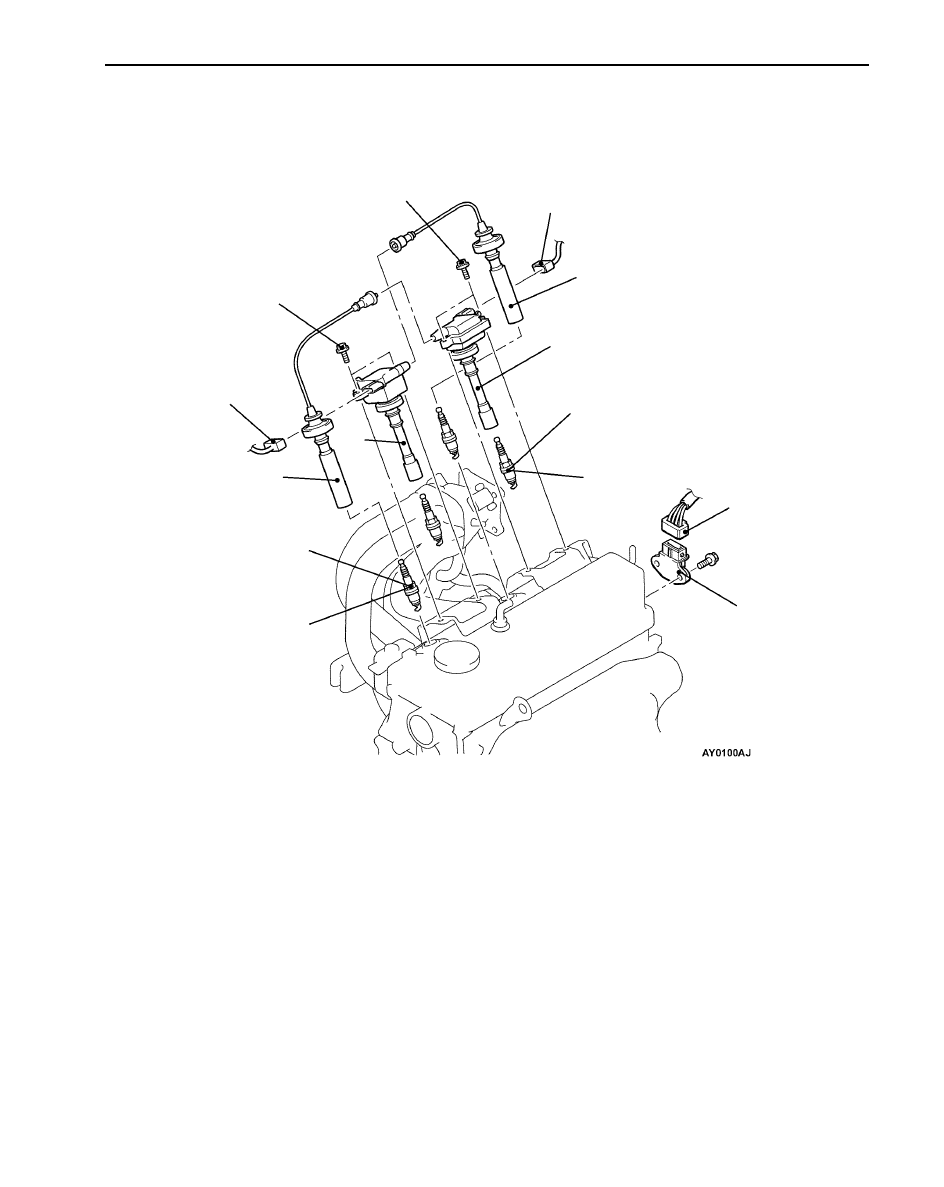

IGNITION COIL <4G13-MPI>

REMOVAL AND INSTALLATION

1 0  N m

1

2

1 0  N m

2 5  N m

1

2

3

3

2 5  N m

4

5

6

4

Ignition coil removal steps

1. Ignition coil connector
2. Spark plug cable assembly
3. Ignition coil
4. Spark plug

Ignition failure sensor removal
steps

5. Ignition failure sensor connector
6. Ignition failure sensor

ENGINE ELECTRICAL –

Ignition System

16-17

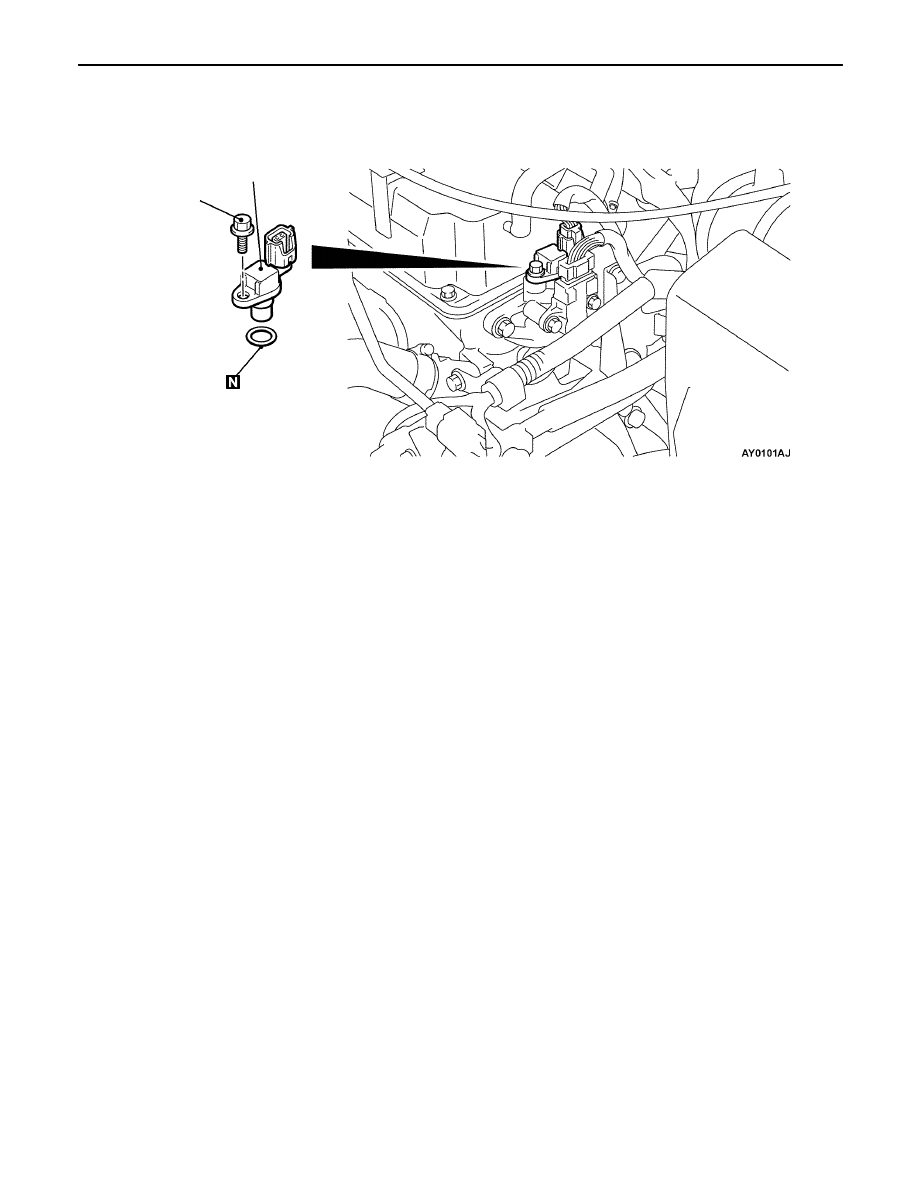

CAMSHAFT POSITION SENSOR <4G13-MPI>

9 . 8  N m

Camshaft position sensor

ENGINE ELECTRICAL –

Ignition System

16-18

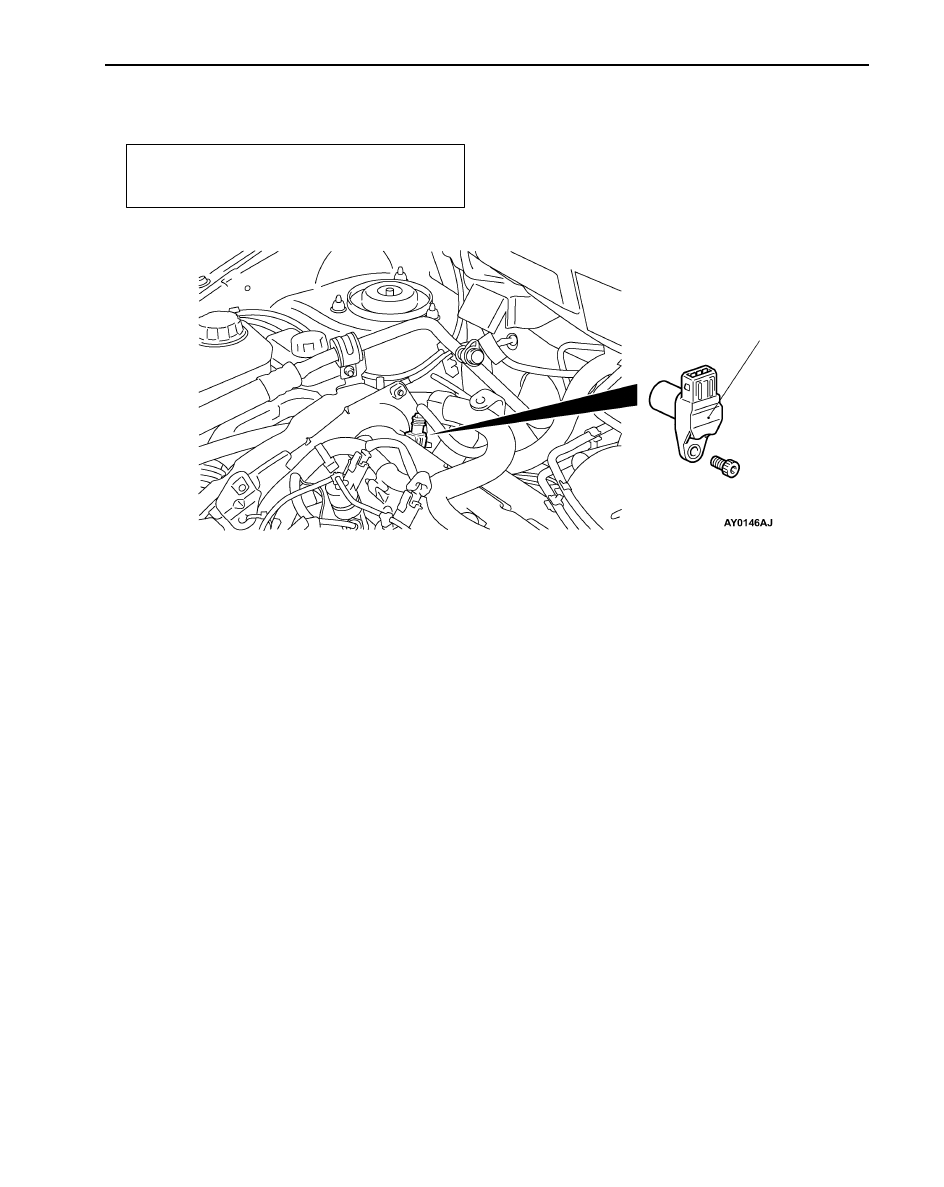

CAMSHAFT POSITION SENSOR <F9Q1>

REMOVAL AND INSTALLATION

Pre-removal and Post-installation Operation
Engine hanger (Refer to GROUP 15 – Intake Manifold
and Exhaust Manifold.)

Camshaft position sensor
