Mitsubishi Space Star. Manual - part 89





DIESEL FUEL –

Fuel High Pressure Pump and Fuel Injector

13D-55

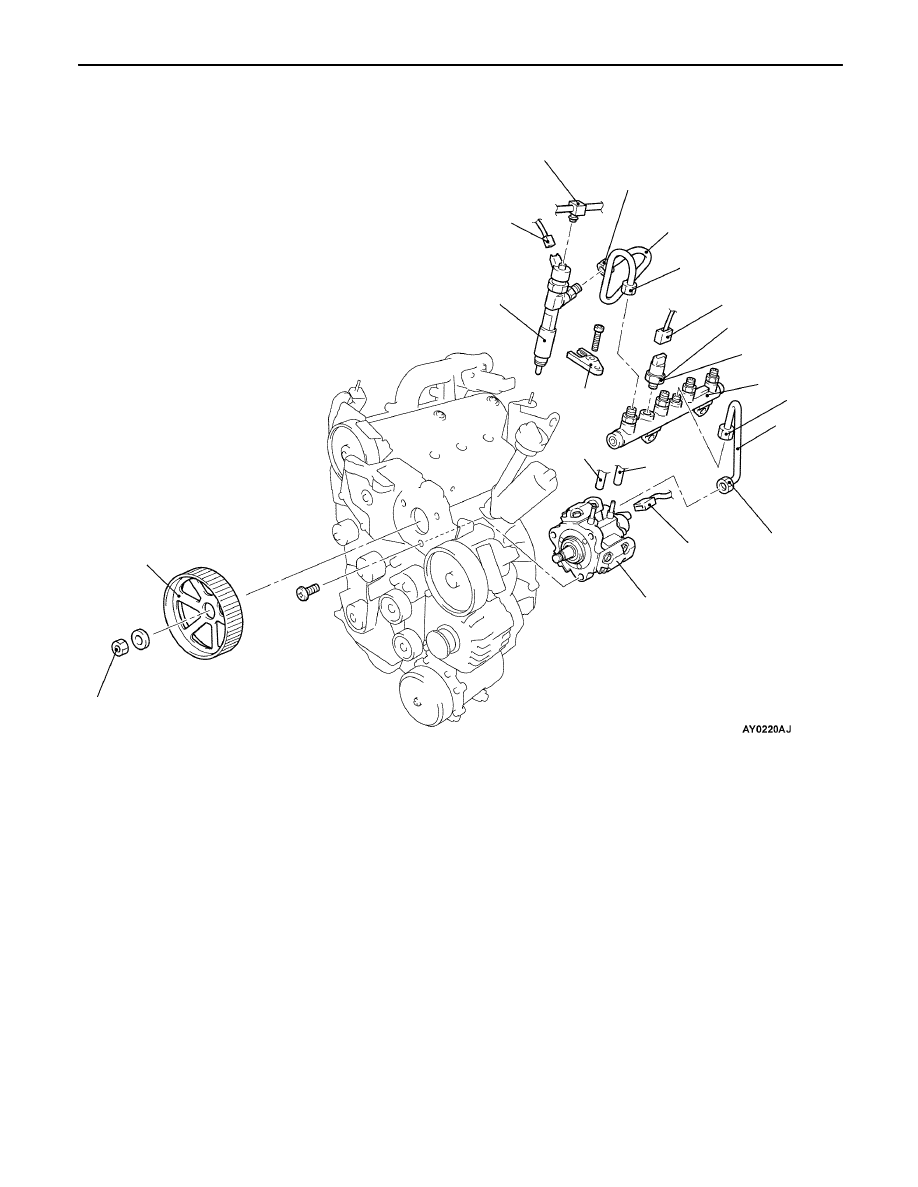

FUEL HIGH PRESSURE PUMP AND FUEL INJECTOR

REMOVAL AND INSTALLATION

1

2

3

4

5

6

7

8

9

10

11

12

13

14

25 Nm

25 Nm

25 Nm

25 Nm

35 Nm

50 Nm

Fuel high pressure pump removal
steps



Timing belt (Refer to GROUP 11C.)

1. Fuel high pressure pump connector



A



2. Fuel supply hose connection



A



3. Fuel return hose connection



A



6. Fuel pump pipe



B



7. Fuel high pressure pump sprocket
8. Fuel high pressure pump

Fuel injector removal steps



A



4. Fuel return tube
5. Fuel pressure sensor connector



A



6. Fuel pump pipe



A



9. Fuel injector pipe



A



10. Fuen pressure sensor

11. Common rail

12. Fuel injector connector
13. Fuel injector holder
14. Fuel injector

DIESEL FUEL –

Fuel High Pressure Pump and Fuel Injector

13D-56

REMOVAL SERVICE POINTS



B



FUEL HOSE CONNECTION/FUEL PIPE/FUEL
RETURN TUBE/FUEL PRESSURE SENSOR
REMOVAL

Disconnect the fuel hose, fuel pipe, fuel return tube and the
fuel pressure sensor. Then, plug them to prevent dust from
entering the fuel line, common rail and the fuel high pressure
pump.



B

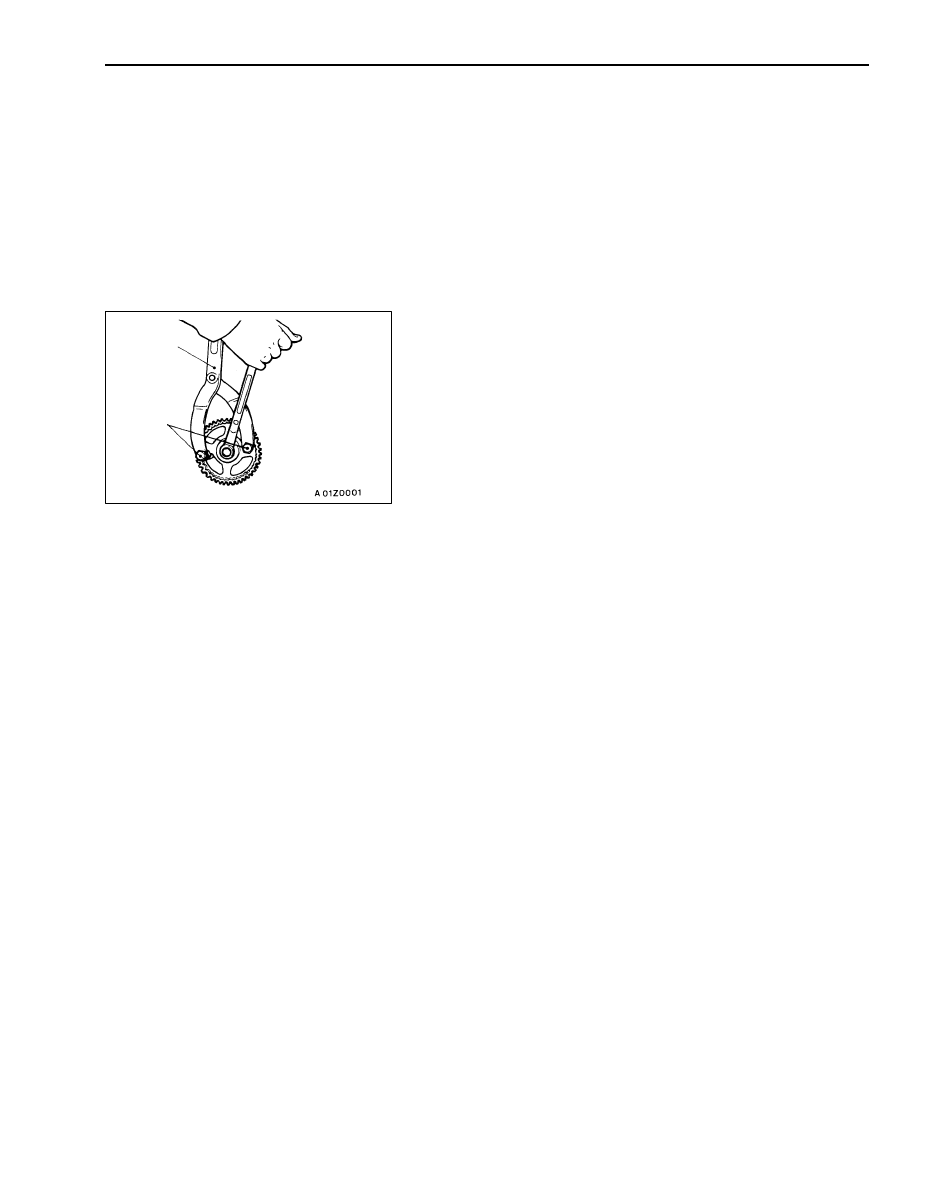

FUEL HIGH PRESSURE PUMP SPROCKET
REMOVAL

INSTALLATION SERVICE POINT



A



FUEL HIGH PRESSURE PUMP SPROCKET
INSTALLATION

Use the special tool to secure the fuel high pressure pump
sprocket in the same way as during removal, and then tighten
the bolt to the specified torque.

MB990767

MD998719

ENGINE COOLING – General/Service Specifications/Sealant

14-2

GENERAL

OUTLINE OF CHANGES



Since the thermostat of 4G93-GDI engine is changed, the service procedures are made.



Since the water hose is changed because of adopting the resin intake manifold, the service procedures
are made.



Since F9Q1 diesel engine is added, the service procedures are made.

Other service procedures are the same as before.

SERVICE SPECIFICATIONS

Items

Standard value

Thermostat
<4G93-GDI>

Valve opening temperature of thermostat



C

82

±

 1.5

<4G93-GDI>

Full-opening temperature of thermostat



C

95

Valve lift (at 95



C) mm

8.5 or more

SEALANT

Items

Specified sealant

Remarks

Thermostat case assembly <4G93-GDI>
Water pump <F9Q1>

Mitsubishi Genuine Parts No. MD970389 or
equivalent

Semi-drying sealant
