Mitsubishi Lancer. Manual - part 255





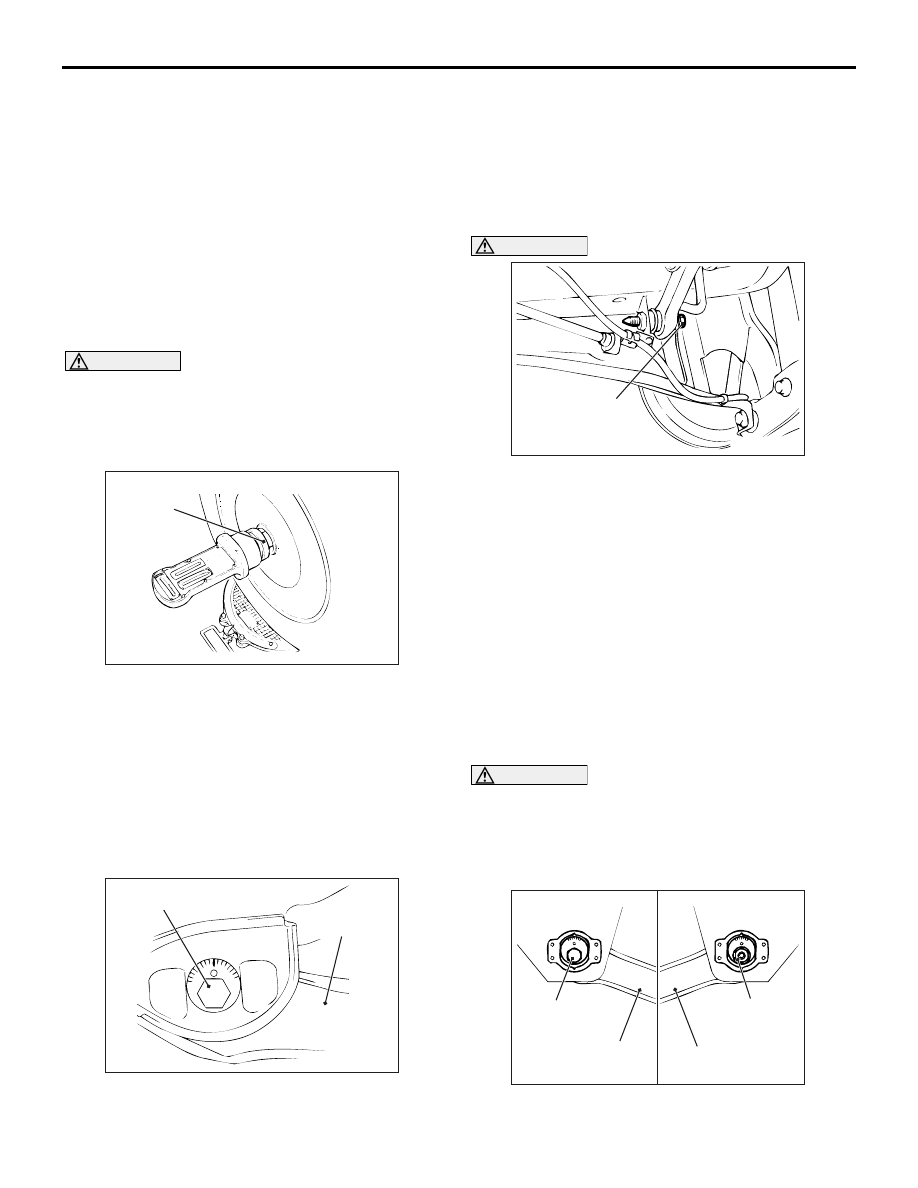

ON-VEHICLE SERVICE

REAR SUSPENSION

34-6

ON-VEHICLE SERVICE

REAR WHEEL ALIGNMENT CHECK AND
ADJUSTMENT

M1341011000372

Measure wheel alignment with an alignment equip-
ment on level earth.
The rear suspension, wheels, and tyres should be
serviced to the normal condition prior to wheel align-
ment measurement.

CAMBER

Standard value:

0° 40' ± 0° 30' (Left/right devi-

ation within 30')

CAUTION

Never subject the wheel bearings to the vehicle
load when the rear wheel hub nuts (self-locking
nuts) or special tool wheel alignment gauge
attachment (MB991014) are loosened.
NOTE:

AC001079

MB991014

AG

<Vehicles with aluminium wheels>

For vehicles with aluminium wheels, attach the cam-
ber/caster/kingpin gauge to the trailing arm spindle
by using special tool wheel alignment gauge attach-
ment (MB991014). Tighten the special tool to the
same torque 175

±

 25 N

m as the rear wheel hub

nut (self-locking nut).
If camber is not within the standard value, adjust by
following procedures.
1. Disconnect the conjunction of the control link and

the trailing arm.

AC006159 AC

Camber adjusting bolt

Lower arm
assembly

2. Carry out adjustment by turning the camber

adjusting bolt (lower arm assembly mounting bolt
which is located on the inner side of the body).

NOTE:

.

LH: Clockwise viewed from the front

 (+)

camber

RH: Clockwise viewed from the front

 (

) cam-

ber

AC006160 AC

Connecting bolt

The scale has gradations of approximately 14'.

CAUTION

To prevent bushings from breakage, the connect-
ing bolt should be temporarily tightened, and
then fully tightened to 90

± 10 N⋅ m with the vehi-

cle on the earth in the unladen condition.
3. Tighten the control link to the trailing arm.
4. After adjusting the camber, the toe should be

adjusted.

TOE-IN

Standard value:

At the centre of tyre tread: 3

± 2 mm

Toe angle (per wheel): 0

° 08' ± 0° 05'

If toe-in is not within the standard value, adjust by fol-
lowing procedures.

CAUTION

To prevent bushings from breakage, the control
link mounting nut should be temporarily tight-
ened, and then fully tightened to 120

± 10 N⋅

with the vehicle on the earth in the unladen con-
dition.

AC006145 AD

Control link

Toe adjusting bolt

Control link

<Control link front view> <Control link rear view>

Control link
mounting nut

ON-VEHICLE SERVICE

REAR SUSPENSION

34-7

Carry out adjustment by turning the toe adjusting bolt
(control link mounting bolt which is located on the
inner side of the body).
NOTE:

.

LH: Clockwise viewed from the front

 Toe-in

RH: Clockwise viewed from the front

 Toe-out

Turning the toe adjusting bolt by one groove of
the scale, toe can be changed approximately 2.6
mm (single side toe angle equivalent to 16').

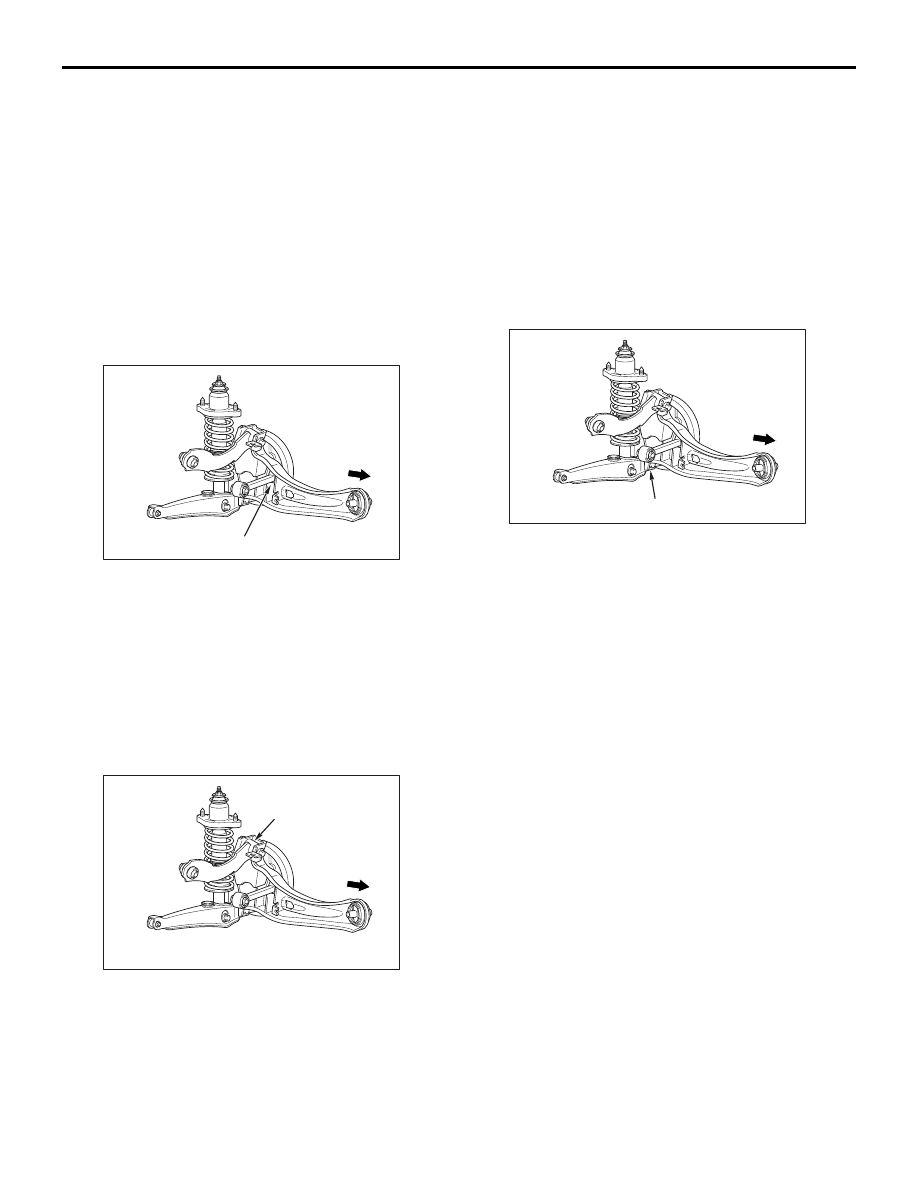

CONTROL LINK PILLOW BALL BUSHING
AXIAL PLAY CHECK <Intense>

M1341018500066

1. Raise the vehicle.

AC304398 AB

Control link pillow ball bushing

Front of
vehicle

2. Move the control link up and down with your

hands to check for an excessive play in the axial
direction of the pillow ball bushing. If there is an
excessive play, replace the control link (Refer to

P.34-8

).

UPPER ARM PILLOW BALL BUSHING
AXIAL PLAY CHECK <Intense>

M1341018400069

1. Raise the vehicle.

AC304398 AC

Upper arm pillow
ball bushing

Front of
vehicle

2. Move the upper arm up and down with your hands

to check for an excessive play in the axial
direction of the pillow ball bushing. If there is an
excessive play, replace the upper arm (Refer to

P.34-8

).

LOWER ARM PILLOW BALL BUSHING
AXIAL PLAY CHECK

M1341016900057

1. Raise the vehicle.
2. Remove the stabilizer link and shock absorber

from the lower arm assembly.

AC304398 AD

Lower arm pillow ball bushing

Front of
vehicle

3. Move the lower arm up and down with your hands

to check for an excessive play in the axial
direction of the pillow ball bushing. If there is an
excessive play, replace the lower arm pillow ball
bushing (Refer to

P.34-10

).

4. After inspection, install the stabilizer link and

shock absorber to the lower arm assembly (Refer
to

P.34-8

).

STABILIZER LINK BALL JOINT DUST
COVER INSPECTION

M1341012800274

1. Check stabilizer link ball joint dust covers for

cracks or damage by pushing it with your finger.

2. If a dust cover is cracked or damaged, replace the

stabilizer link assembly.
NOTE: Cracks or damage to the dust cover may
cause damage to the ball joint.

CONTROL LINK, UPPER ARM AND LOWER ARM

REAR SUSPENSION

34-8

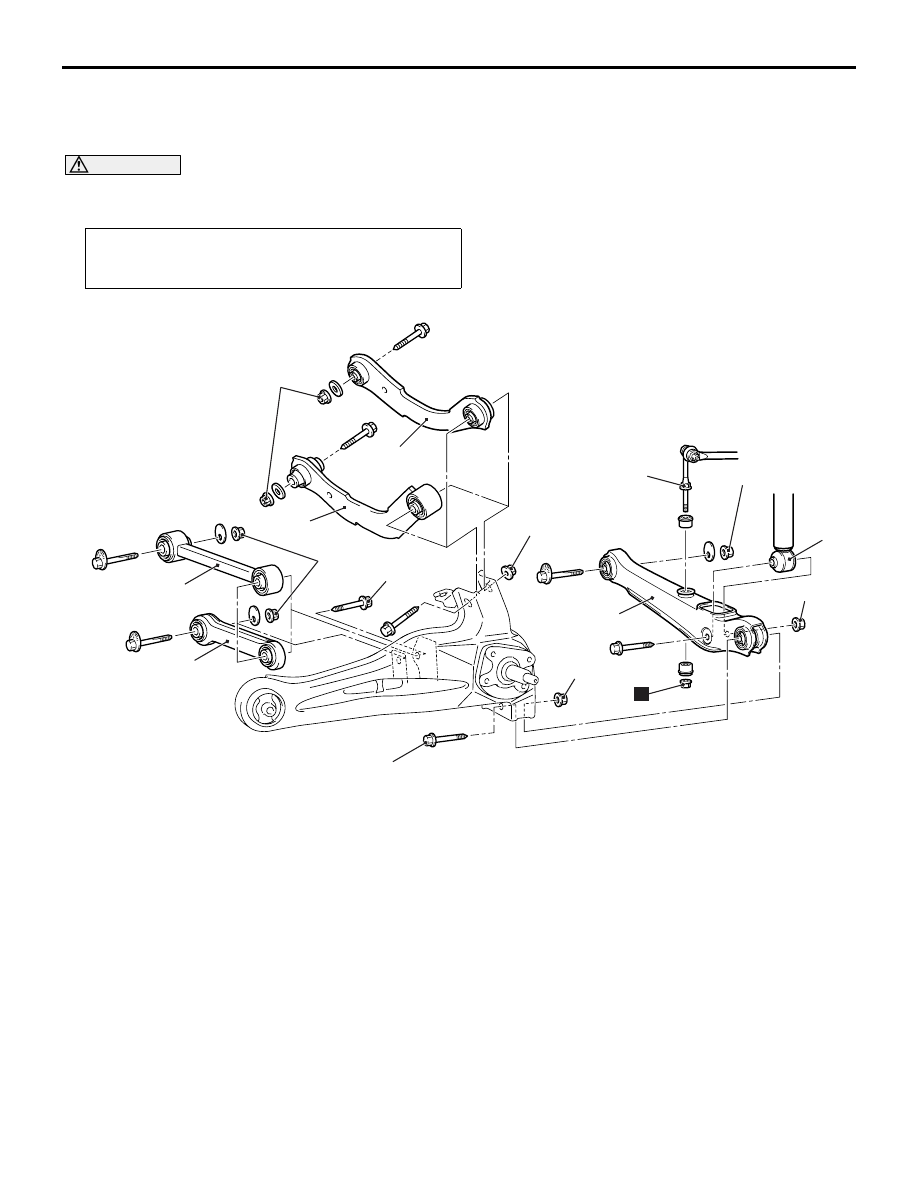

CONTROL LINK, UPPER ARM AND LOWER ARM

REMOVAL AND INSTALLATION

M1341004800321

CAUTION

*

: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on

the earth in an unladen condition.

Post-installation Operation
• Rear Wheel Alignment Check and Adjustment (Refer to

P.34-6

).

AC304154

1

2

3

4

5

6

AD

120 ± 10 N·m*

95 ± 15 N·m*

120 ± 10 N·m*

120 ± 10 N·m*

95 ± 15 N·m*

<Intense>

<Intense>

<Invite>

<Invite>

1

2

90 ± 10 N·m*

120 ± 10 N·m*

N

Control link and upper arm
assembly removal steps

<<

A

>> >>

B

<< 1.

Control link

<<

B

>> >>

B

<< 2.

Upper arm assembly

Lower arm assembly removal
steps

>>

A

<< 3.

Stabilizer link connection

<<

B

>>

4.

Lower arm assembly and trailing arm
connection

5.

Shock absorber connection

<<

A

>>

6.

Lower arm assembly

CONTROL LINK, UPPER ARM AND LOWER ARM

REAR SUSPENSION

34-9

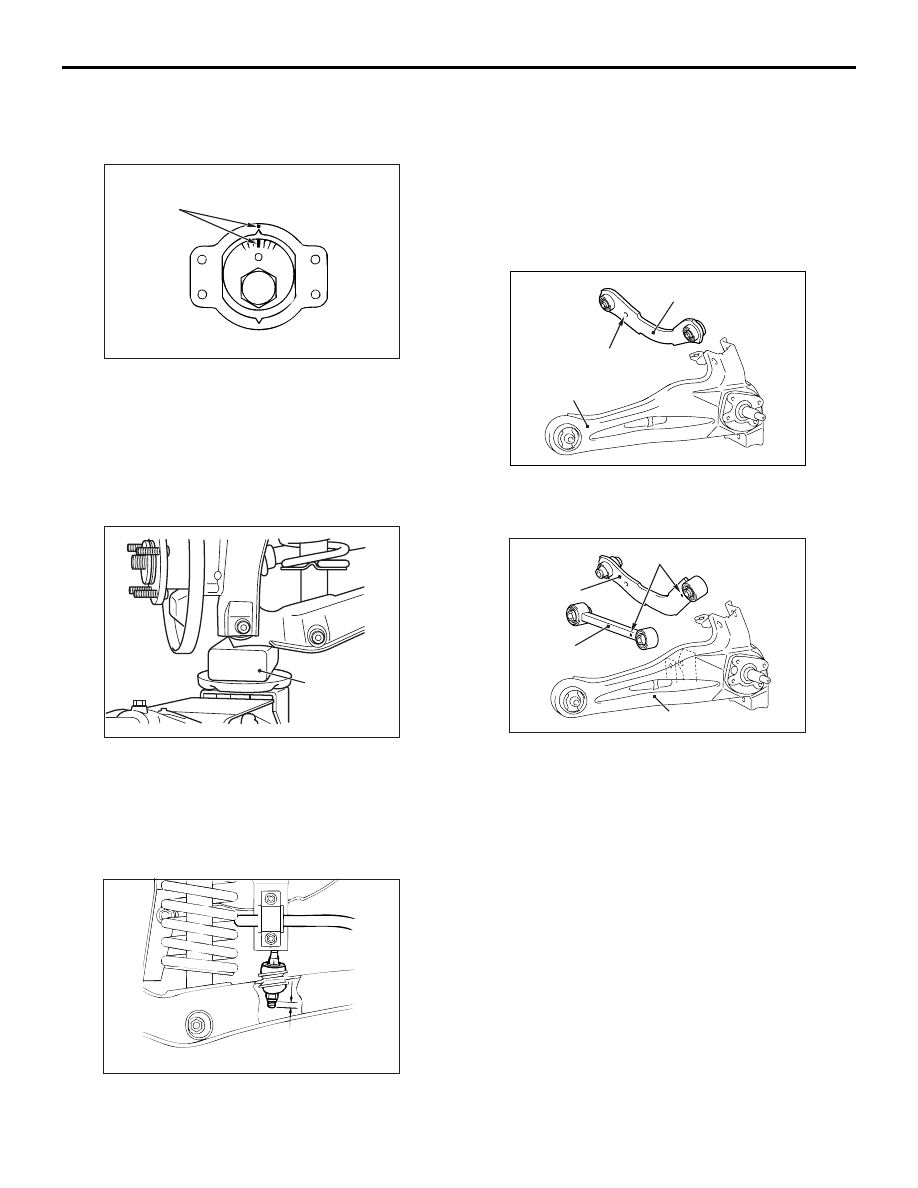

REMOVAL SERVICE POINTS
<<A>> CONTROL LINK/LOWER ARM
ASSEMBLY REMOVAL

AC304404 AB

Mating mark

After making a mating mark on the toe adjusting bolt
or camber adjusting bolt, remove the control link or
lower arm assembly.

<<B>> UPPER ARM ASSEMBLY/LOWER
ARM ASSEMBLY AND TRAILING ARM
DISCONNECTION

AC107126 AB

Piece of wood

After supporting the lower arm with a jack, separate
the upper arm assembly/lower arm assembly and the
trailing arm.

INSTALLATION SERVICE POINTS
>>A<< STABILIZER LINK CONNECTION

AC103744

A

AC

Tighten the self-locking nut until the stabilizer link
thread part protruding length meets the standard
value.

Standard value (A): 6

 8 mm

>>B<< UPPER ARM
ASSEMBLY/CONTROL LINK
INSTALLATION

AC304674

AG

Upper arm assembly

Hole

Trailing arm

<Invite>

Install the upper arm assembly as shown so that its
hole is body side. <Invite>

AC300343AF

Upper arm
assembly

Control link

Identification colour

Trailing arm

<Intense>

Install the upper arm assembly/control link as shown
so that its identification colour faces the trailing arm.
<Intense>

INSPECTION

M1341004900243

• Check the bushings for wear and deterioration.

• Check the control link, upper arm and lower arm

for bending or breakage.

• Check all bolts for condition and straightness.
