GENERAL INFORMATION

FRONT AXLE

26-2

GENERAL INFORMATION

M1261000100648

The front axle consists of front hubs, knuckles, wheel
bearings and driveshafts, and has the following fea-
tures:

• The wheel bearing is a double-row angular con-

tact ball bearing which incorporates the oil seals
and is highly resistant to thrust loads.

• The driveshaft incorporates BJ-TJ type constant

velocity joints with high transmission efficiency for
low vibration and noise.

• The dynamic damper has been mounted on the

driveshaft to reduce differential gear noise.

• ABS rotor for detecting the wheel speed is

press-fitted to the BJ.

NOTE:

•

TJ: Tripod Joint

•

BJ: Birfield Joint

SPECIFICATIONS

Item

1300, 1600

2000

Wheel bearing Type

Double-row angular contact ball bearing

Bearing (OD x ID) mm

80 x 40

Driveshaft

Joint type

Outer

Inner

Length (joint to joint)

diameter mm

375.9

× 24

375.9

× 24

699

× 24 (1600-M/T),

703.2

× 23 (1300-M/T,

1600-A/T)

700

× 24 (M/T)

699

× 24 (A/T)

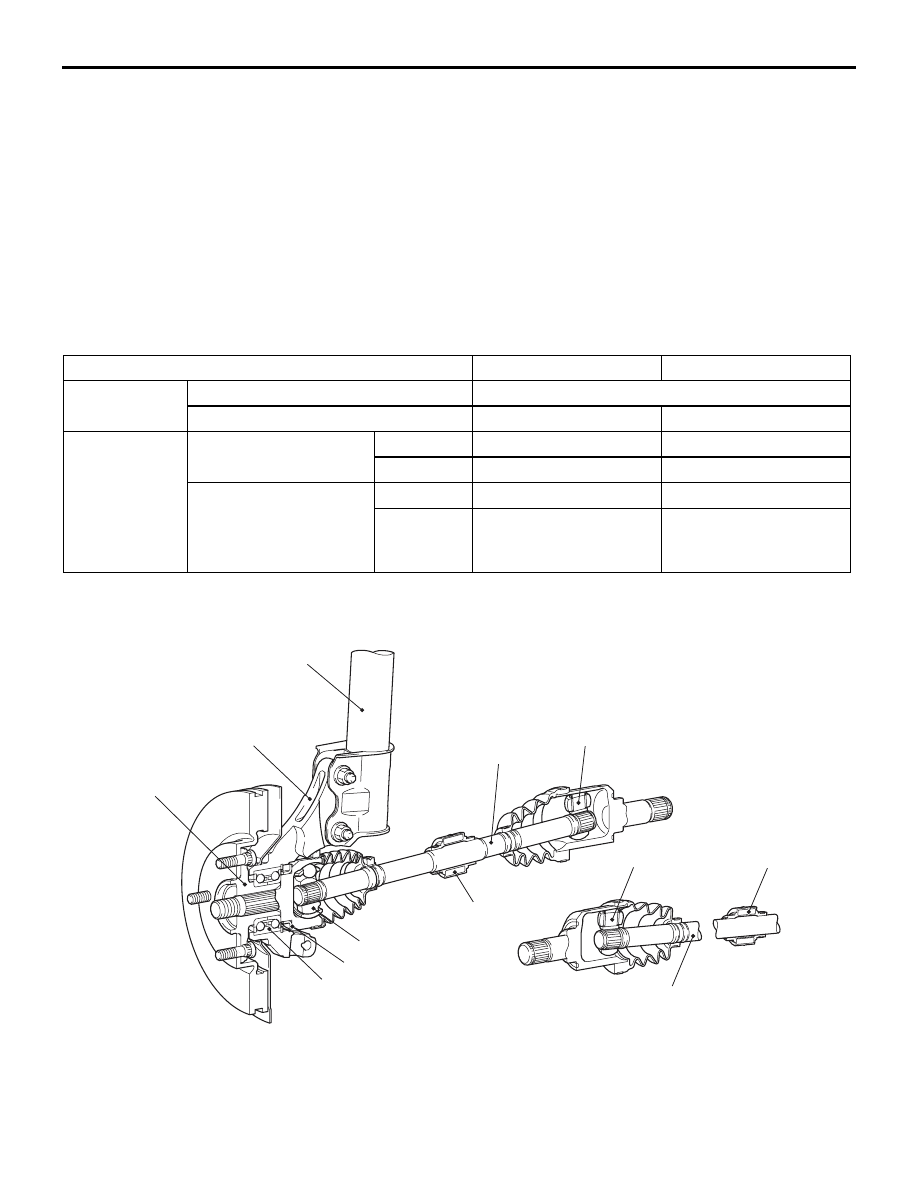

CONSTRUCTION DIAGRAM

AC303569

Front hub

Knuckle

Strut assembly

TJ (LH)

Driveshaft (LH)

Dynamic damper

Wheel bearing

Driveshaft (RH)

TJ (RH)

ABS rotor

Dynamic damper

SERVICE SPECIFICATIONS

FRONT AXLE

26-3

SERVICE SPECIFICATIONS

M1261000300675

Item

Standard value

Limit

Wheel bearing axial play mm

−

0.05

Hub starting torque N

⋅ m

−

1.8

Protruding length of stabilizer bar mounting bolt mm

± 1.5

−

Setting of TJ boot length mm

1300-RH, 1600-A/T-RH 85

± 3

−

1300-LH, 1600-M/T,
1600-A/T-LH, 2000

± 3

−

Opening dimension of the
special tool (MB991561) mm

When the BJ boot band
(small) is crimped

2.9

−

When the BJ boot band
(large) is crimped

2.9

−

Crimped width of the BJ boot band mm

2.4

− 2.8

−

LUBRICANTS

M1261000400735

Item

Specified lubricant

Quantity

TJ boot grease

Repair kit grease

1300-LH, 1600-LH,
2000-LH

120

± 10 g

1300-RH, 1600-A/T-RH

110

± 10 g

1600-M/T-RH, 2000-A/T-RH 120

± 10 g

2000-M/T-RH

105

± 10 g

BJ boot grease

Repair kit grease

± 10 g

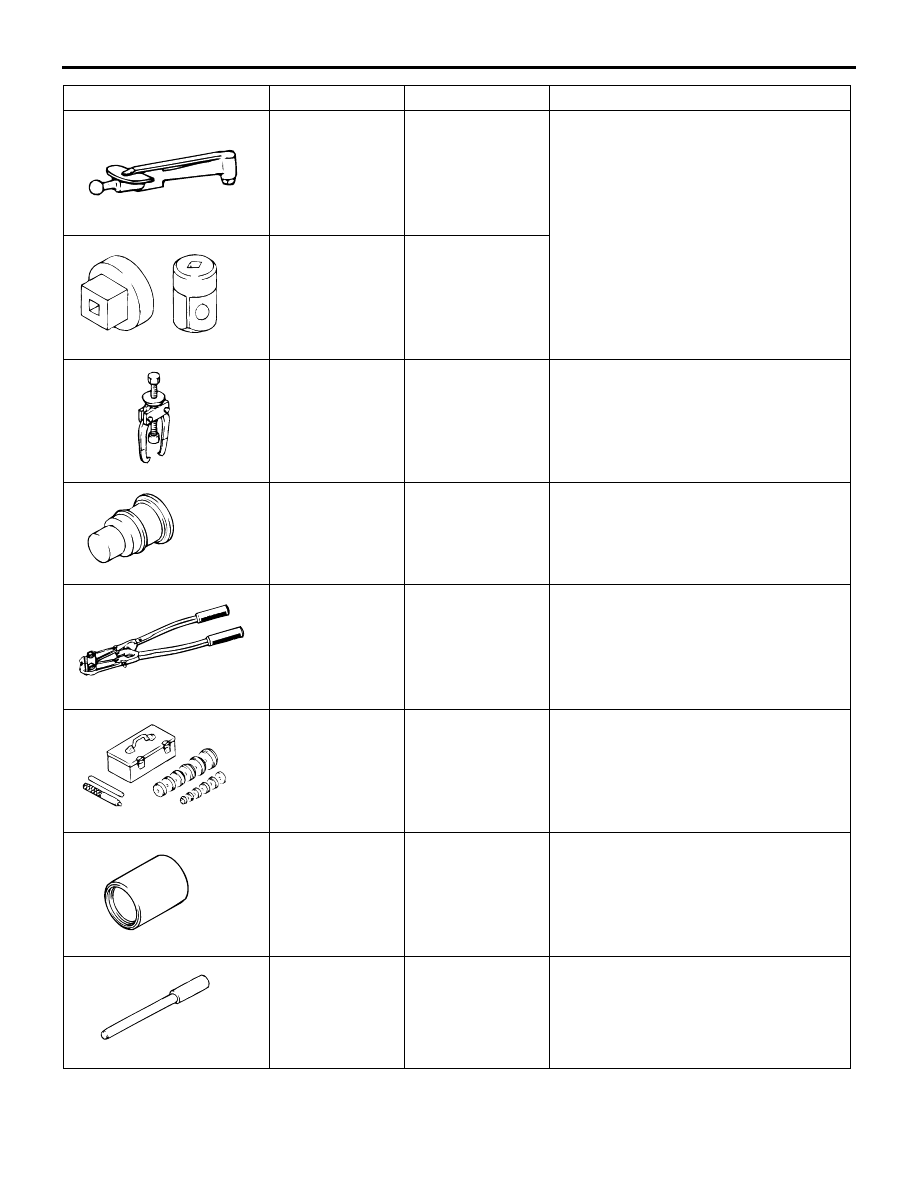

SPECIAL TOOLS

FRONT AXLE

26-4

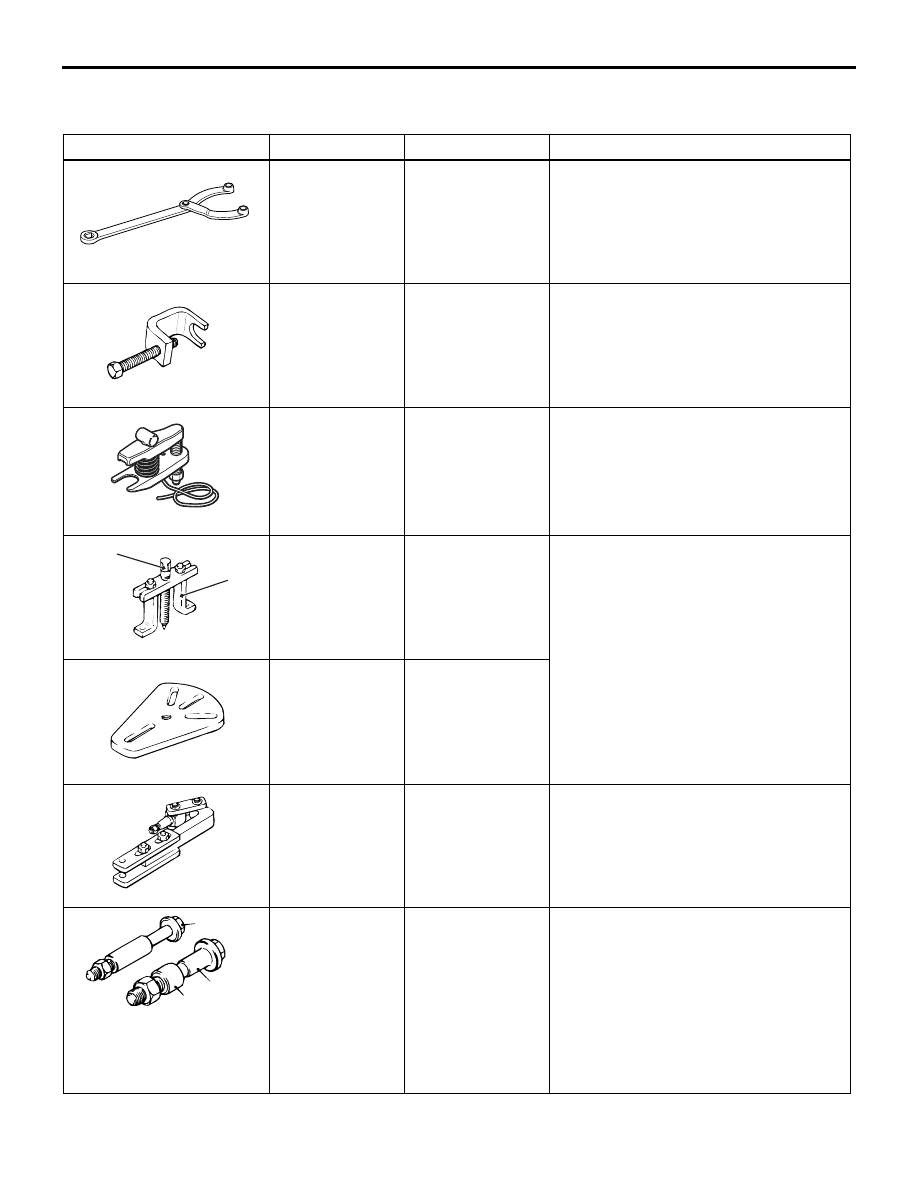

SPECIAL TOOLS

M1261000600773

Tool

Number

Name

Use

B990767

MB990767

Front hub and end
yoke holder

Fixing of the hub

MB991618

MB991618

Hub bolt remover Removal of the hub bolt

AC106827

MB991897 or
MB992011

Ball joint remover Knuckle and tie rod end ball joint

disconnection
NOTE: Steering linkage puller
(MB990635 or MB991113)is also used
to disconnect knuckle and tie rod end
ball joint.

MB990241AB

MB990241

A: MB990242
B: MB990244

Axle shaft puller

A: Puller shaft
B: Puller bar

Removal of the driveshaft

MB991354

MB991354

Puller body

MB991056 or
MB991355

Knuckle arm
bridge

• Removal of the hub

• Removal of the wheel bearing

AC100320AB

A: MB991017
B: MB990998
C: MB991000

A, B: Front hub

remover and
installer

C: Spacer

• Removal of the hub

• Provisional holding of the wheel

bearing

• Measurement of hub starting torque

• Measurement of wheel bearing axial

play
NOTE: MB991000, which belongs to
MB990998, should be used as a
spacer.

SPECIAL TOOLS

FRONT AXLE

26-5

MB990685

Torque wrench

Measurement of hub starting torque

MB990326

MB990326

Preload socket

MB990810

MB990810

Side bearing
puller

• Removal of the centre bearing

bracket

• Removal of the wheel bearing inner

race (outside)

MB991460

Plug

Prevention of transmission fluid drain
and of entry of foreign objects

MB991561

MB991561

Boot band
crimping tool

BJ boot (resin boot) band installation

MB990925

MB990925

Bearing and oil
seal installer set

• Removal of the wheel bearing

• Removal and installation of the

centre bearing

• Press-fitting of the dust seal outer,

inner

MB990890

MB990890

Rear suspension
bushing base

• Installation of the wheel bearing

• Press-fitting of the dust seal outer,

inner

MB990883

MB990883

Rear suspension
bushing arbor

Installation of the wheel bearing

Tool

Number

Name

Use
