PERIODIC INSPECTION AND MAINTENANCE SCHEDULE

PERIODIC INSPECTION AND MAINTENANCE

2-4

A17 Check injection nozzle [If dark smoke is

exhausted or engine power is low] (diesel-
powered vehicles)

Inspection

Every 60,000 km or every 4
years

A18 Replace fuel filter

Petrol-powered
vehicles

Replace

Every 150,000 km or every 10
years

•

Diesel-powered
vehicles

Replace

Every 30,000 km or every 2
years

A19 Removal of water from the fuel filter (vehicle

with F9Q engine)

Removal

Every 15,000 km

A20 Clean brake booster vacuum nipple (PAJERO

PININ with GDI engine)

Clean

Every 45,000 km or every 3
years

OPERATIONS UNDER THE VEHICLE
B1

Check suspension system for damage and
looseness

Inspection

Every 30,000 km or every 2
years

•

Check suspension arm ball joints for play, and
dust covers for damage

Inspection

Every 30,000 km or every 2
years

•

Lubricate suspension arm, steering linkage and
propeller shaft with grease fitting

Lubrication Every 30,000 km or every 2

years

Check driveshaft boots for damage

Inspection

Normal
usage

Every 30,000 km or
every 2 years

•

Severe
usage

Every 7,500 km

•

Check steering linkage for damage and loose
connections (including seals and boots)

Inspection

Every 60,000 km or every 4
years

•

Check gear oil level in manual transmission

Inspection

Every 15,000 km or every 12
months

•

Check gear oil level in transfer case (4WD)

Inspection

Every 15,000 km or every 12
months

Change gear oil in manual transmission

Change

Normal
usage

Every 105,000 km or
every 7 years

•

Severe
usage

Every 45,000 km or
every 3 years

•

Change gear oil in transfer case (4WD)

Change

Normal
usage

Every 105,000 km or
every 7 years

Severe
usage

Every 45,000 km or
every 3 years

Change gear oil in transfer case (4WD)
(OUTLANDER)

Change

Every 75,000 km or every 5
years

B10 Check gear oil level in front and rear differential Inspection

Every 30,000 km or every 2
years

Maintenance item

Maintenance
operation

Maintenance interval

Appli-
cation

PERIODIC INSPECTION AND MAINTENANCE SCHEDULE

PERIODIC INSPECTION AND MAINTENANCE

2-5

B11 Change gear oil in front

and rear differential

Conventional
differential or VCU
type LSD

Change

Normal
usage

Every 90,000 km or
every 6 years

Severe
usage

Every 45,000 km or
every 3 years

Mechanical type LSD
or Hybrid type LSD

Change

Normal
usage

Every 60,000 km or
every 4 years

Severe
usage

Every 30,000 km or
every 2 years

B12 Check exhaust pipe connections for gas

leakage, and check pipe installation

Inspection

Every 30,000 km or every 2
years

•

OPERATIONS INSIDE THE VEHICLE
C1

Check brake pedal and clutch pedal for free
play

Inspection

Every 15,000 km or every 12
months

•

Check parking brake lever stroke and play

Inspection

Every 15,000 km or every 12
months

•

Replace air purifier filter

Replace

Every 15,000 km or every 12
months

•

OPERATIONS OUTSIDE THE VEHICLE
D1

Check uneven tyre wear

Inspection

Every 30,000 km or every 2
years

•

Check front wheel bearings for play

Inspection

Every 60,000 km or every 4
years

•

Check brake hoses and pipes for leakage

Inspection

Every 30,000 km or every 2
years

•

Check brake pads and discs for wear

Inspection

Normal
usage

Every 15,000 km or
every 12 months

•

Severe
usage

Every 7,500 km or
every 6 months

•

Check brake shoe linings and drums for wear

Inspection

Normal
usage

Every 30,000 km or
every 2 years

•

Severe
usage

Every 15,000 km or
every 12 months

•

Check fuel hoses and pipes for leakage or
deterioration

Inspection

Every 30,000 km or every 2
years

•

OPERATIONS AFTER ENGINE IS WARMED UP
E1

Check fluid level in automatic transmission

Inspection

Every 15,000 km or every 12
months

•

Maintenance item

Maintenance
operation

Maintenance interval

Appli-
cation

PERIODIC INSPECTION AND MAINTENANCE SCHEDULE

PERIODIC INSPECTION AND MAINTENANCE

2-6

Change automatic
transmission fluid

2WD

Change

Normal
usage

Every 90,000 km or
every 6 years

•

Severe
usage

Every 45,000 km or
every 3 years

•

4WD

Change

Normal
usage

Every 90,000 km or
every 6 years

Severe
usage

Every 45,000 km or
every 3 years

4WD

Change

Every 45,000 km or every 3
years

Change engine oil
(petrol-powered
vehicles)

ACEA and API
classifications
"ACEA A1, A2, A3" /
"For service SG" or
higher

Change

Normal
usage

Every 15,000 km or
every 12 months

•

Severe
usage

Every 7,500 km

•

Change engine oil
(diesel-powered
vehicles)

ACEA and API
classifications
"ACEA B1, B2, B3,
B4" / "For service
CD" or higher

Change

Normal
usage

Every 7,500 km or
every 6 months

Severe
usage

Every 4,000 km

Replace engine oil filter
(petrol-powered
vehicles)

ACEA and API
classifications
"ACEA A1, A2, A3" /
"For service SG" or
higher

Replace

Normal
usage

Every 15,000 km or
every 12 months

•

Severe
usage

Every 7,500 km

•

Replace engine oil filter
(diesel-powered
vehicles)

ACEA and API
classifications
"ACEA B1, B2, B3,
B4" / "For service
CD" or higher

Replace

Normal
usage

Every 15,000 km or
every 12 months

Severe
usage

Every 8,000 km

Check engine idling speed

Inspection

Every 15,000 km or every 12
months

•

Check CO concentration (petrol-powered
vehicles)

Inspection

Every 15,000 km or every 12
months

•

Check ignition timing (vehicles with distributor)
(except vehicles with crankshaft mounted-
crankshaft angle sensor)

Inspection

Every 60,000 km or every 4
years

Check exhaust gas recirculation (EGR) system Inspection

Every 15,000 km or every 12
months

•

Check valve clearance (except vehicles with
auto-lash adjuster)

Inspection

Every 15,000 km or every 12
months

OTHERS
F1

Check body condition for damage

Inspection

Every year

•

Road test

Inspection

Every 15,000 km or every 12
months

•

Maintenance item

Maintenance
operation

Maintenance interval

Appli-
cation

OPERATIONS INSIDE THE ENGINE COMPARTMENT

PERIODIC INSPECTION AND MAINTENANCE

2-7

NOTE:

•

"Severe usage" specifications apply to only vehicles used under severe operating conditions.

Severe operating conditions include the followings:

1. Driving in a dusty area.
2. Driving on rough roads, on submerged roads, or hilly areas.
3. Driving cold zones.
4. Engine idling for a long time or short-distance travel during cold weather.
5. Frequent, sudden application of brakes.
6. Towing of a trailer.
7. Use as a taxi or as a rent-a-car.
8. When more than 50% of driving is in heavy city traffic and the ambient temperature is 32

C or more.

9. When more than 50% of driving is at 120 km/h or more and the ambient temperature is 30

C or more.

OPERATIONS INSIDE THE ENGINE COMPARTMENT

A1. CHECK V-BELT FOR CRACKS,
FRAYING, WEAR, AND ADJUST ITS
TENSION

M6020200100204

V-BELT CONDITION

Check the whole rounds of the V-belt for cracks, fray-
ing and wear.

DRIVE BELT TENSION CHECK AND
ADJUSTMENT <4G1>

Check the drive belt tension in the following proce-
dure.

Standard value:

<When using the M.U.T.-II>
1. Connect the special tool belt tension meter set

(MB991668) to the M.U.T.-II.

2. Connect the M.U.T.-II to the diagnosis connector.
3. Turn the ignition switch to the "ON" position and

select "Belt Tension Measurement" from the menu
screen.

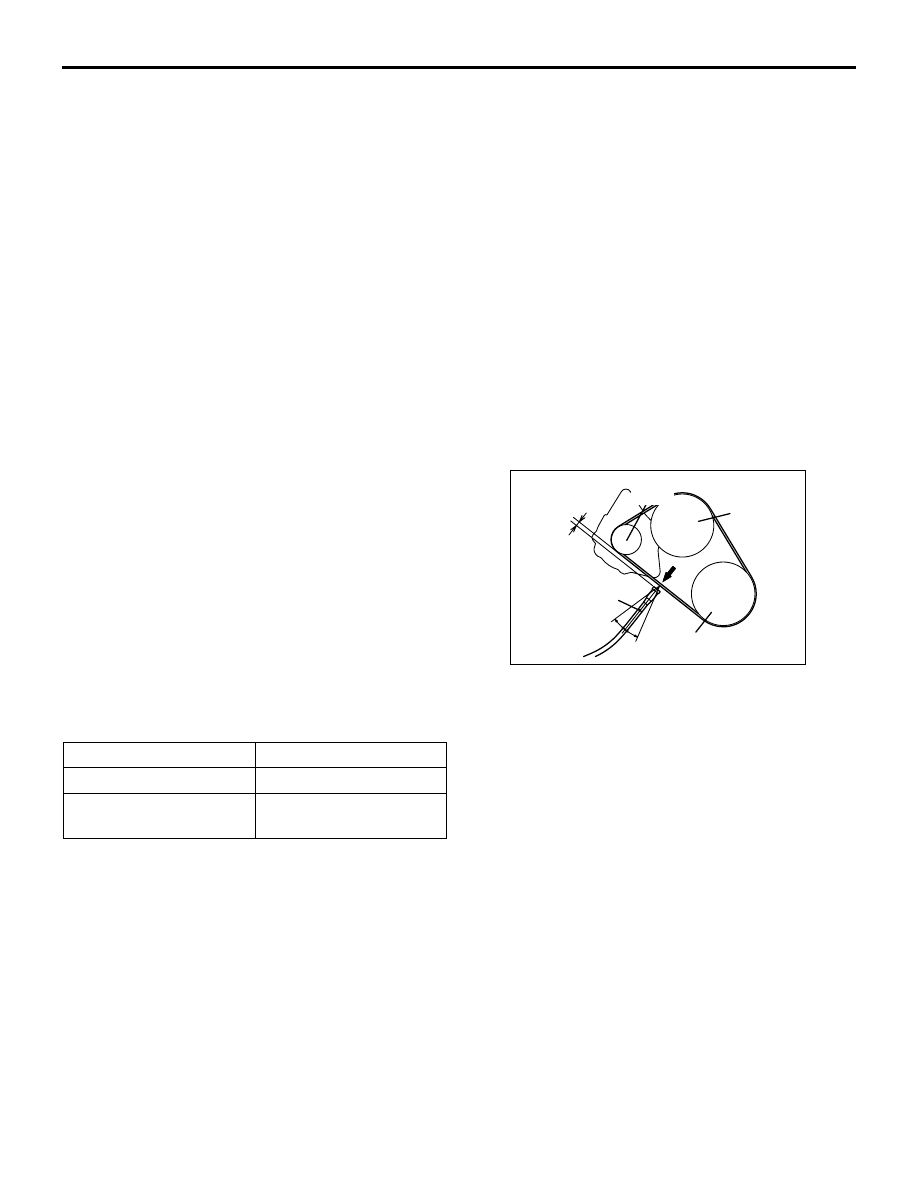

4. Hold the microphone to the middle of the drive

belt between the pulleys (at the place indicated by
the arrow), about 10

− 20 mm away from the rear

surface of the belt and so that it is perpendicular
to the belt (within an angle of

± 15 °).

5. Gently tap the middle of the belt between the

pulleys (the place indicated by the arrow) with
your finger as shown in the illustration, and check
that the vibration frequency of the belt is within the
standard value.

<When using the Vehicle communication
interface (V.C.I.)>
1. Connect the special tool belt tension meter set

(MB991668) to the special tool V.C.I.
(MB991824).

2. Connect the special tool V.C.I. (MB991824) to the

diagnosis connector.

3. Turn the ignition switch to the "ON" position and

select "Belt Tension Measurement" from the menu
screen.

4. Hold the microphone to the middle of the drive

belt between the pulleys (at the place indicated by
the arrow), about 10

− 20 mm away from the rear

surface of the belt and so that it is perpendicular
to the belt (within an angle of

± 15 °).

Vibration frequency Hz

142

− 173

Tension N

392

− 588

Deflection mm
(Reference)

8.1

− 10.2

AK101474

15˚

MB991668
(Microphone)

10 – 20 mm

Crankshaft
pulley

Alternator
pulley

Water pump
pulley
