PRE-DELIVERY INSPECTION --

Operations inside the
Engine Compartment

2-16

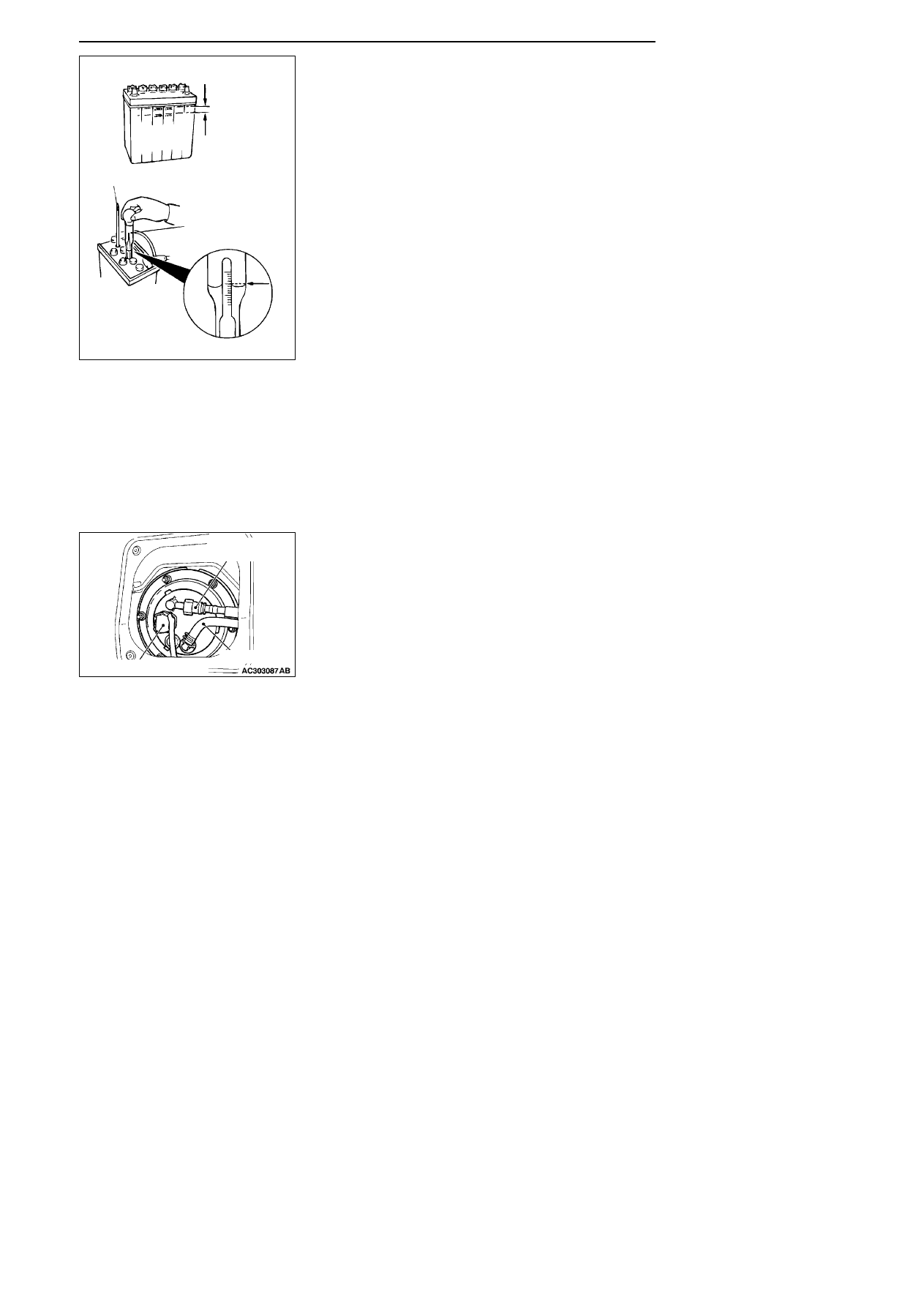

A16. CHECK BATTERY ELECTROLYTE LEVEL

(1) Inspect whether or not the battery fluid is between the

UPPER LEVEL and LOWER LEVEL marks.

Caution
(1) If the battery fluid is below the LOWER LEVEL,

the battery could explode in using.

(2) If the battery fluid is over the UPPER LEVEL,

leakage could result.

(2) Use a hydrometer and thermometer to check the specific

gravity of the battery fluid.

Standard value: 1.220 -- 1.290 [20

_C]

The specific gravity of the battery fluid varies with the
temperature, so use the following formula to calculate
the specific gravity for 20

_C. Use the calculated value to

determine whether or not the specific gravity is satisfac-
tory.

D20 = (t -- 20)

× 0.0007 + Dt

D20: Specific gravity of the battery fluid calculated

for 20

_C.

Dt: Actually measured specific gravity

t: Actually measured temperature

A18. REPLACE FUEL FILTER

(1) Remove the rear seat cushion.
(2) Remove the service hole cover mounting screws and

remove the service hole cover.

(3) Disconnect the fuel tank pump assembly connector, fuel

high-pressure hose and fuel tank hose.

(4) Remove the mounting nuts and fuel pump bracket plate,

and remove the fuel pump assembly from the service
hole.

AC102027AC

Good

Thermometer

Hydrometer

Fuel high-pressure
hose

Fuel tank hose

Fuel tank pump connector

PRE-DELIVERY INSPECTION --

Operations inside the
Engine Compartment

2-17

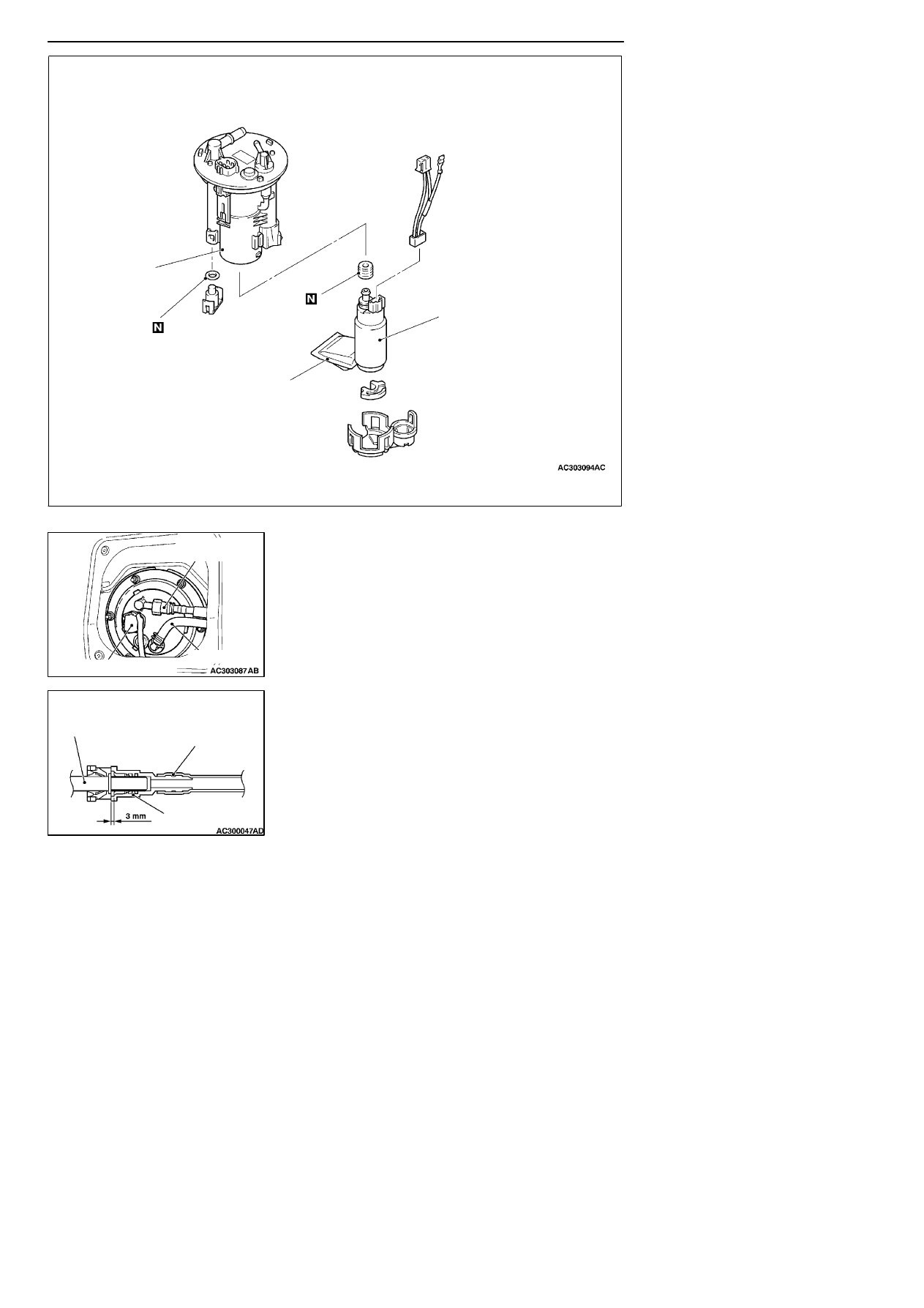

FUEL PUMP MODULE

O--ring

Grommet

Suction filter
(Not replace suction filter)

Fuel pump

Fuel filter assembly
(Replace fuel filter assembly)

(5) Install the fuel pump assembly to the fuel tank through

the service hole.

(6) Install the fuel pump bracket plate to the fuel tank and

tighten the mounting nuts to the specified torque.

Tightening torque: 2.5

± 0.5 N·m

(7) Connect the fuel tank pump assembly connector, fuel

high-pressure hose and fuel tank hose.

Caution
After connecting the fuel high-pressure hose, slightly
pull it to ensure that it is installed securely. Also confirm
that there is a play approximately 3 mm.

(8) Tighten the service hole cover mounting screws and

install the service hole cover.

(9) Install the rear seat cushion.

Fuel high-pressure
hose

Fuel tank hose

Fuel tank pump connector

Corresponding side

Fuel high-pressure hose

Quick connector

PRE-DELIVERY INSPECTION --

Operations under the Vehicle

2-18

OPERATIONS UNDER THE VEHICLE

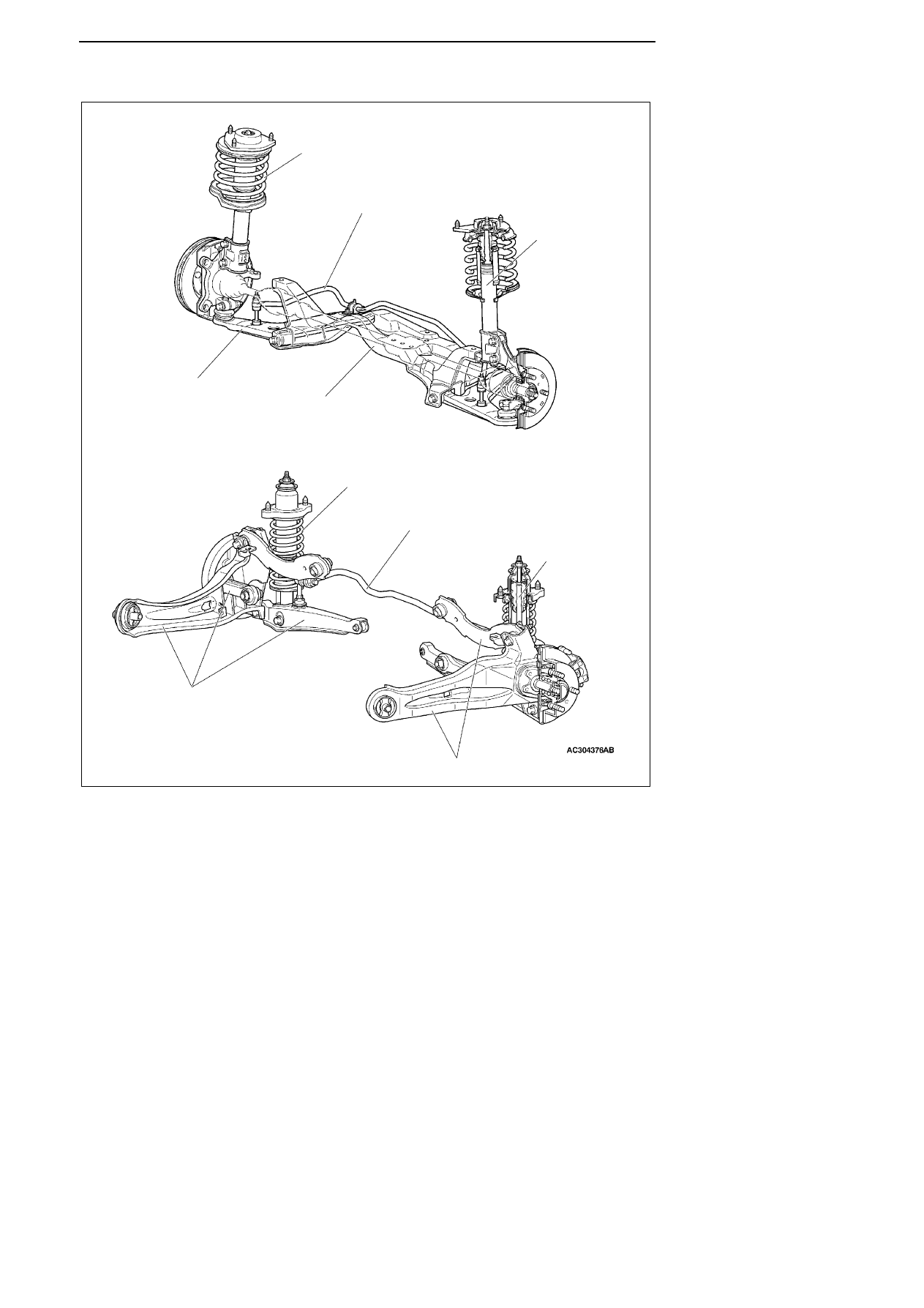

B1. CHECK SUSPENSION SYSTEM FOR DAMAGE AND LOOSENESS

FRONT SUSPENSION

Deterioration
and sagging

REAR SUSPENSION

Deterioration
and sagging

Cracks, bends
and dents

Cracks, bends
and dents

Cracks, bends
and dents

Cracks, bends
and dents

Bends and damage

Noise and oil
leakage

Bends and damage

Noise and oil
leakage

PRE-DELIVERY INSPECTION --

Operations inside the Vehicle

2-19

B2.

CHECK SUSPENSION ARM BALL JOINTS

FOR PLAY, AND DUST COVERS FOR

DAMAGE

LOWER ARM BALL JOINT END PLAY CHECK

(1) Raise the vehicle.
(2) Remove the stabilizer bar from the lower arm assembly.
(3) Move the lower arm up and down with your hands to

check for an excessive play in the axial direction of the
ball joint. If there is an excessive play, replace the lower
arm assembly.

DUST COVERS FOR DAMAGE

Check dust covers for damage.

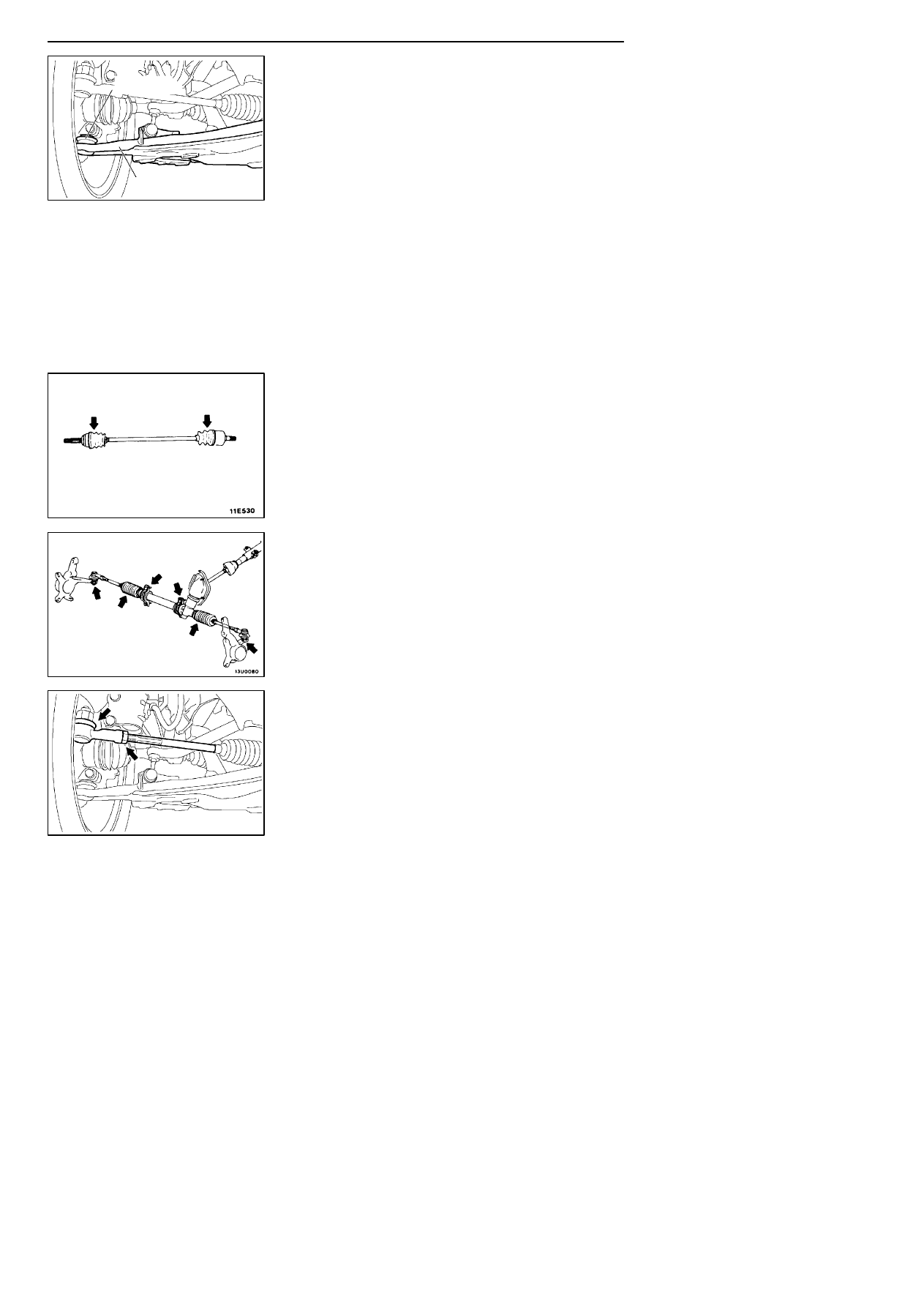

B4.

CHECK DRIVE SHAFT BOOTS FOR

DAMAGE

Check the drive shaft boots for damage.

B5.

CHECK STEERING LINKAGE FOR

DAMAGE AND LOOSE CONNECTIONS

(INCLUDING SEALS AND BOOTS)

(1) Move the steering wheel bit by bit to the left or right, and

check to be sure that there is no play or looseness in the
linkage coupling, that the installation is not loose, and
that the rod or arm is not bent or damaged.

(2) Check to be sure that the seal and boot of the ball joint

are correctly installed (in the correct position), and that
they are not damaged.

(3) Check tie-rod end lock nut for looseness. If lock nut is

loose, adjust toe-in and then tighten lock nut to the
specified torque.

Tightening torque: 40

± 5 N·m

AC210260AB

Dust cover

Lower arm

AC210261AB
