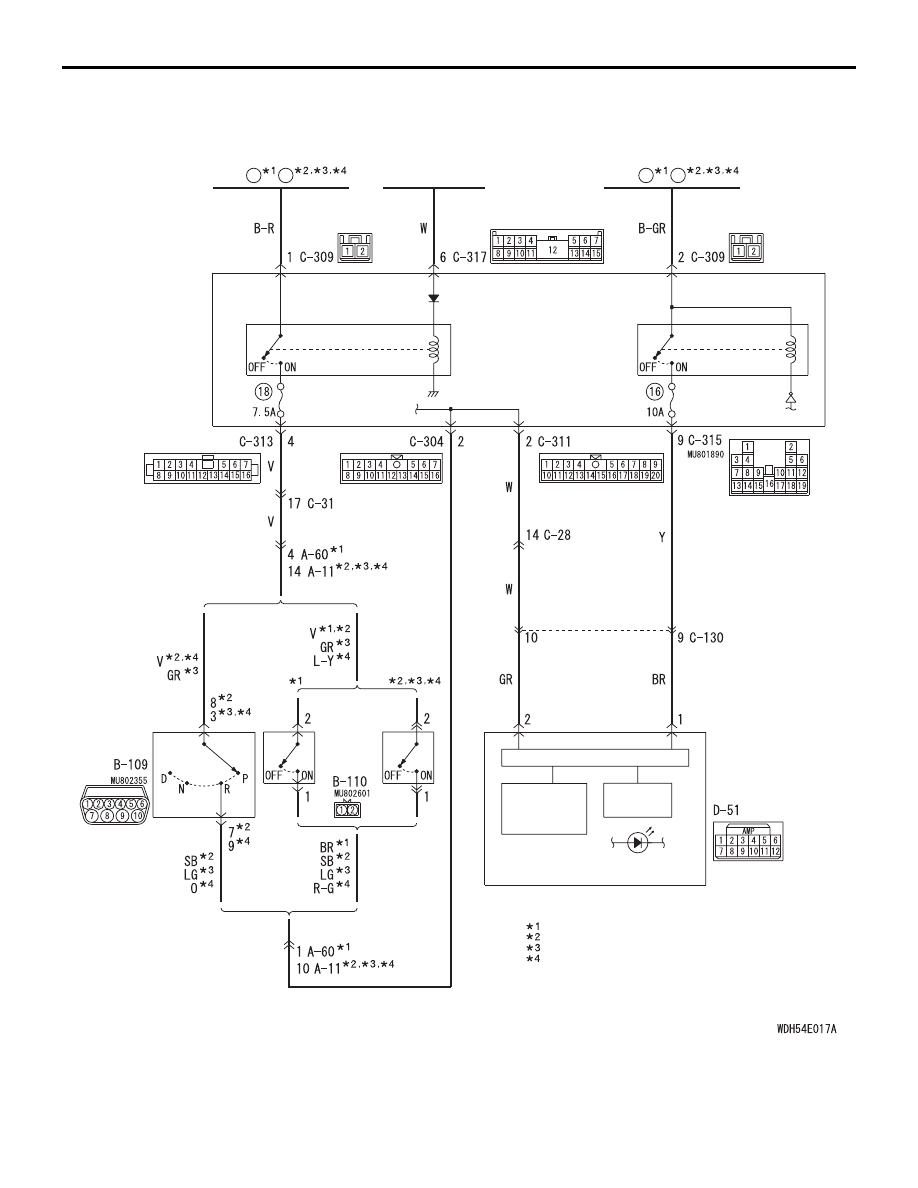

STEP 8. Check the inhibitor switch and the
control cable.
Check that the inhibitor switch and the control cable
are adjusted correctly. (GROUP 23A
− On-vehicle
Service, inhibitor switch and control cable adjustment
<M/T> or GROUP 23C
− On-vehicle Service, inhibitor
switch and control cable adjustment <CVT, A/T>)
Q: Is the check result normal?
YES :
Go to Step 9.
NO :
Adjust the inhibitor switch and the control
cable.
STEP 9. Check the back-up lamp switch <M/T> or
inhibitor switch <CVT>.
• Check the continuity of the back-up lamp switch.
<M/T> (Refer to GROUP 22B
− Transmission,
Transmission inspection )
• Check the continuity of the inhibitor switch. <CVT,
A/T> (Refer to GROUP 23A
− On-vehicle service,
Inhibitor switch continuity check )
Q: Is the check result normal?
YES :
The trouble can be an intermittent
malfunction (Refer to GROUP 00
− How to
use Troubleshooting/inspection Service
Points
− How to Cope with Intermittent
Malfunction ).
NO :
Replace the back-up lamp switch <M/T> or
inhibitor switch <CVT, A/T>
STEP 10. Confirmation in MMCS service mode.
(1) Display the VEHICLE SIGNAL CHECK screen.
(Refer to .)
(2) Move the selector lever <CVT, A/T> or shift lever
<M/T> to the R position and check whether "ON"
is displayed.
Q: Is the check result normal?
YES :
Go to Step 13.
NO :
Go to Step 11.
STEP 11. Connector check: C-143 multivision
display connector and C-311 ETACS-ECU
connector.
Q: Is the check result normal?
YES :
Go to Step 12.
NO :
Repair the defective connector.
STEP 12. Check the wiring harness between C-
311 ETACS-ECU connector terminal No. 2 and C-
143 multivision display connector terminal No.
24.
• Check the communication lines for open circuit
and short circuit.
NOTE: Before the wiring harness inspection, inspect
the C-28 and C-133 intermediate connector ,and
repair if necessary.
Q: Is the check result normal?
YES :
Go to step 13.
NO :
Repair the wiring harness.
STEP 13. Confirmation in MMCS service mode
Perform "Network/Connect Line Check" in the
MMCS service mode to check that the communica-
tion and wire connection with the rear view camera
are OK (Refer to ).
NOTE: The rear view camera is shown as "rear cam-
era" on the "Network/Connect Line Check" in the
service mode of MMCS.
Q: Is the check result normal?
YES :
Go to Step 16.
NO :
Go to Step 14.
STEP 14. Connector check: F-51 rear view
camera connector and C-152 multivision display
connector.
Q: Is the check result normal?
YES :
Go to Step 15.
NO :
Repair the defective connector.
STEP 15. Check the wiring harness between F-51
rear view camera connector terminal No. 6, 2, 5, 4
and C-152 multivision display connector terminal
No. 3, 1, 2, 6.
• Check the communication lines for open circuit
and short circuit.
NOTE: Before the wiring harness inspection, inspect
the C-27, C-133, D-39, F-27 <LANCER> and F-40
<LANCER SPORTBACK> intermediate connectors,
and repair if necessary.
Q: Is the check result normal?
YES :
Go to Step 16.
NO :
Repair the wiring harness.
STEP 16. Confirmation in MMCS service mode.
(1) Display the VEHICLE SIGNAL CHECK screen.
(Refer to .)
(2) Move the selector lever <CVT, A/T> or shift lever
