Mitsubishi Lancer (4A9 engine). Manual - part 125

HEADLAMP AUTOMATIC LEVELLING SYSTEM

CHASSIS ELECTRICAL

54A-162

HEADLAMP AUTOMATIC LEVELLING MOTOR DRIVE TEST

M1540302100306

With this inspection, the headlamp automatic level-
ling motor incorporated in the headlamp assembly is
forcibly activated and checking the motor for normal
operation is possible.

DRIVE TEST PROCEDURE (WHEN THE
M.U.T.-III IS USED)

1. Connect the M.U.T.-III to the diagnosis connector

(For how to connect the M.U.T.-III, refer to
GROUP 00

− Diagnosis function ).

2. Turn the ignition switch to "ON" position. (Do not

start up the engine.)

3. Turn ON the headlamp switch.
4. Select the M.U.T.-III screen menu as follows.

(1) Select "AFS" displayed on the "System

selection" screen.

(2) Select "Actuator test."
(3) Select "Levelling actuator."
(4) The headlamp beam moves downward if

"20%" is set for the "Vehicle select" and
upward if "80%" is set for the "Vehicle select".

5. The drive test is completed.

DRIVE TEST PROCEDURE (WHEN THE
M.U.T.-III IS NOT USED)

1. Turn the hazard warning lamp switch to the ON

position.

2. Within 10 seconds after turning the ignition switch

from OFF to the ON position (do not start up the
engine), turn the headlamp switch from OFF to
ON 5 times repeatedly. When the operation is
successfully completed, the headlamp automatic
levelling warning is displayed on the multi
information display in the combination meter. If
not displayed, turn the ignition switch OFF and
perform the operation again.

3. Within 30 seconds after the headlamp automatic

levelling warning is displayed, turn the hazard
warning lamp switch OFF.

4. The headlamp beam moves downward for

approximately 3 seconds and upward for 3
seconds. Then the beam returns to the position
applicable to the present vehicle posture.

5. The drive test is completed. (The headlamp

automatic levelling warning is not displayed.)

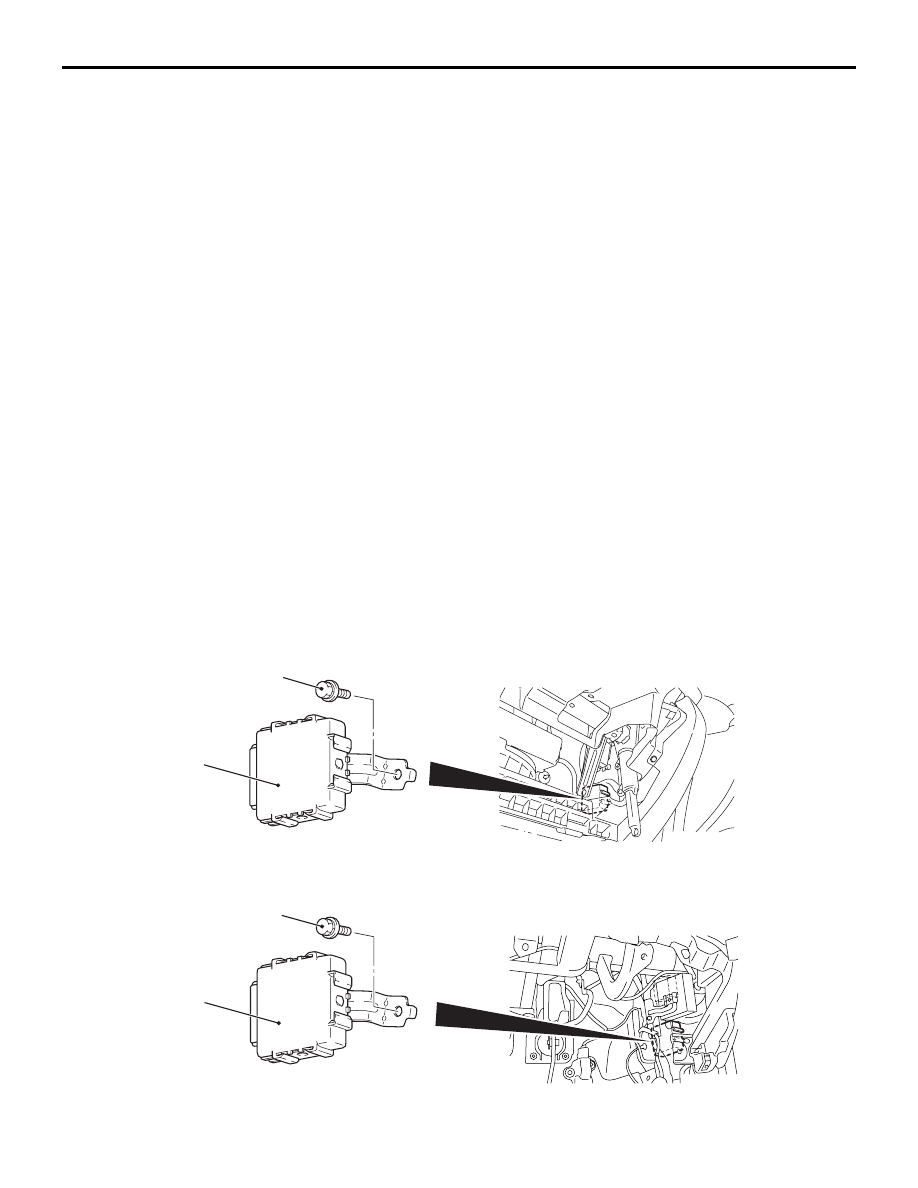

HEADLAMP AUTOMATIC LEVELLING-ECU REMOVAL AND INSTALLATION

M1540302300236

AC701271AC

1

4.5 ± 1.5 N·m

1

4.5 ± 1.5 N·m

<L. H. drive vehicles>

<R. H. drive vehicles>

HEADLAMP AUTOMATIC LEVELLING SYSTEM

CHASSIS ELECTRICAL

54A-163

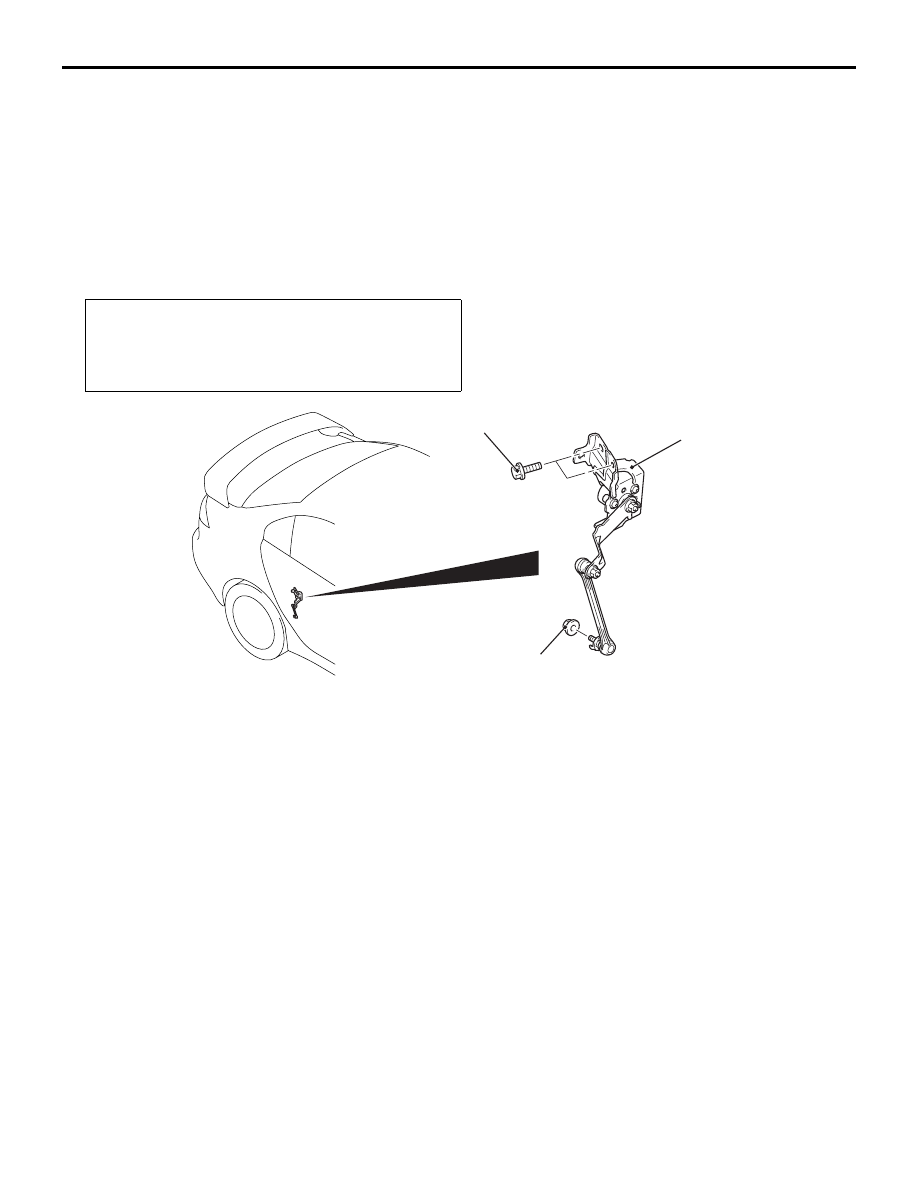

HEIGHT SENSOR REMOVAL AND INSTALLATION

M1540302700416

<LANCER>

Removal Steps

•

Glove box (Refer to GROUP 52A

−

Glove Box ) <L. H. drive vehicles>
or Instrument lower panel (Refer to
GROUP 52A

− Instrument Lower

Panel ) <R. H. drive vehicles>

1.

Headlamp automatic levelling-ECU

Post-installation operation
• Initialisation of headlamp automatic levelling-ECU (Refer

to  .)

• Check the beam direction of the headlamp (Refer to

Headlamp Aiming ).

ACB01896AB

9.5 ± 2.5 N·m

8.0 ± 2.0 N·m

1

Removal

1.

Rear height sensor

HEADLAMP AUTOMATIC LEVELLING SYSTEM

CHASSIS ELECTRICAL

54A-164

<LANCER SPORTBACK>

INSPECTION

HEIGHT SENSOR CHECK

M1540302600312

REAR HEIGHT SENSOR CHECK

1. Disconnect the sensor connector and connect the

special tool test harness (MB991658) as shown.

2. Turn the ignition switch to the ON position.
3. Measure the voltage of sensor connector terminal

No. 2.

4. Check that voltages show the values described in

the graph according to the sensor operation
angle.

Post-installation operation
• Initialisation of headlamp automatic levelling-ECU (Refer

to  .)

• Check the beam direction of the headlamp (Refer to

Headlamp Aiming ).

ACB01897AB

9.5 ± 2.5 N·m

8.0 ± 2.0 N·m

1

Removal

1.

Rear height sensor

AC809168

Harness
side

Sensor side

AB

MB991658

AC611525

4.5

2.5

0.5

–60 –45 –30 –15

0

15

30

45

60

AC

(-) angle

(+) angle

Voltage (V)

Operation angle of sensor (degree)

Base point line
of sensor
(0 degree point)
