COMBINATION METER

CHASSIS ELECTRICAL

54A-30

4WD Nominal

resistance of the
fuel gauge unit

main

Stopper position "F"

6.5

± 1.0

Stopper position "E"

41.9

± 1.0

sub

Stopper position "F"

6.5

± 1.0

Stopper position "E"

78.1

± 1.0

Fuel gauge unit
float height mm

main

Stopper position "F"

140.9

± 4.0

Stopper position "E"

39.1

± 4.0

sub

Stopper position "F"

14.2

± 3.0

Stopper position "E"

179.3

± 3.0

Item

Standard value

Limit
value

COMBINATION METER

CHASSIS ELECTRICAL

54A-31

SPECIAL TOOLS

M1540200300192

COMBINATION METER

CHASSIS ELECTRICAL

54A-32

Tool

Number

Name

Use

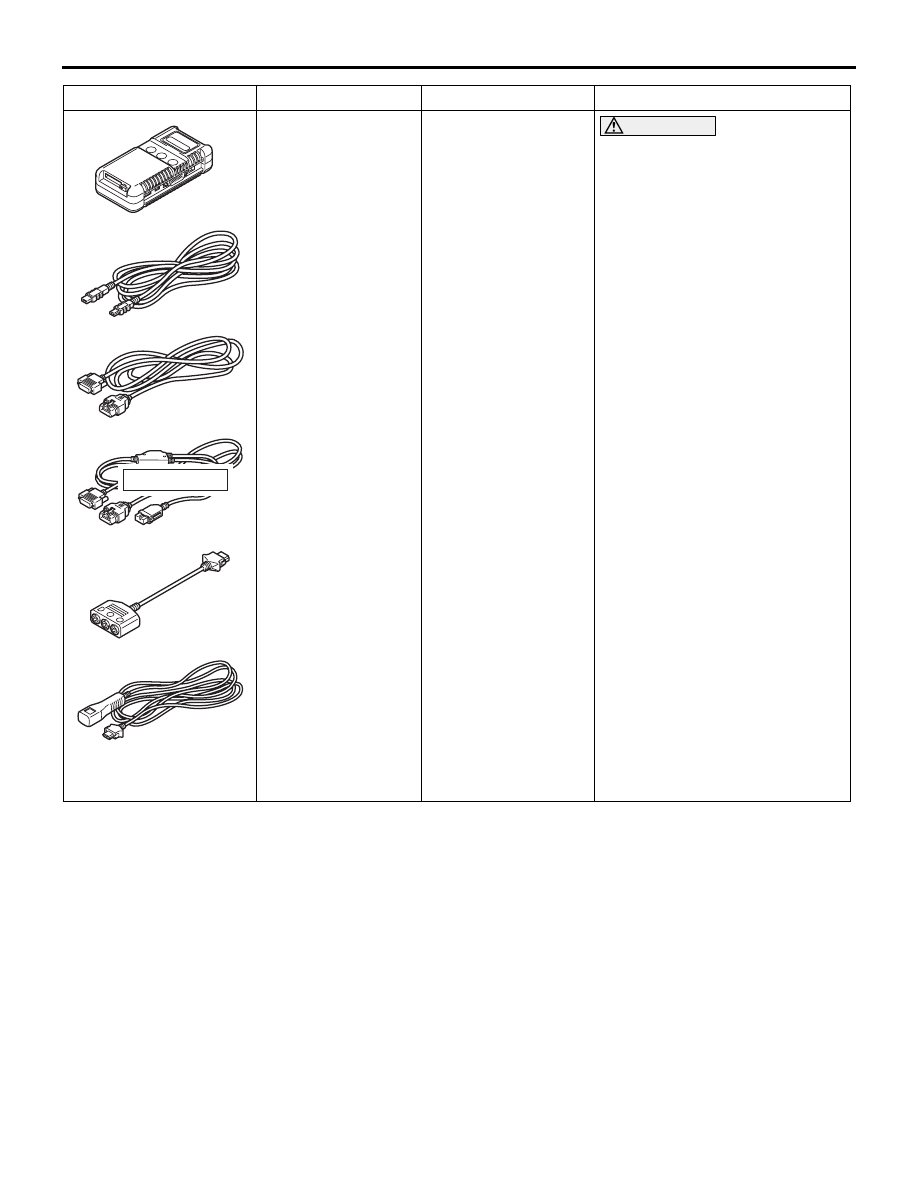

MB991955

a. MB991824
b. MB991827
c. MB991910
d. MB991911
e. MB991825
f. MB991826

M.U.T.-III sub-
assembly

a. Vehicle

Communication
Interface (V.C.I.)

b. M.U.T.-III USB

cable

c. M.U.T.-III main

harness A
(Vehicles with CAN
communication
system)

d. M.U.T.-III main

harness B
(Vehicles without
CAN
communication
system)

e. M.U.T.-III measure

adapter

f. M.U.T.-III trigger

harness

CAUTION

For vehicles with CAN
communication, use M.U.T.-III
main harness A to send
simulated vehicle speed. If you
connect M.U.T.-III main harness
B instead, the CAN
communication does not
function correctly.
Combination meter check
(Diagnosis code, service data,
actuator test)

MB991910

MB991826

MB991955

MB991911

MB991824

MB991827

MB991825

a

b

c

d

e

f

DO NOT USE

COMBINATION METER

CHASSIS ELECTRICAL

54A-33

TROUBLESHOOTING

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING

M1540203800204

Refer to GROUP 00

− Contents of troubleshooting .

DIAGNOSIS FUNCTION

M1540200500129

HOW TO READ DIAGNOSIS CODE

Refer to GROUP 00

− Diagnosis function .

HOW TO ERASE DIAGNOSIS CODE

Refer to GROUP 00

− Diagnosis function .

CHECK OF FREEZE FRAME DATA

The freeze frame data can be checked by using the
M.U.T.-III.
When detecting fault and storing the diagnosis code,
the ECU connected to CAN bus line obtains the data
before the determination of the diagnosis code and
the data when the diagnosis code is determined, and
then stores the ECU status of that time. By analysing
each data from M.U.T.-III, the troubleshooting can be
performed more efficiently. The displayed items are
as the table below.

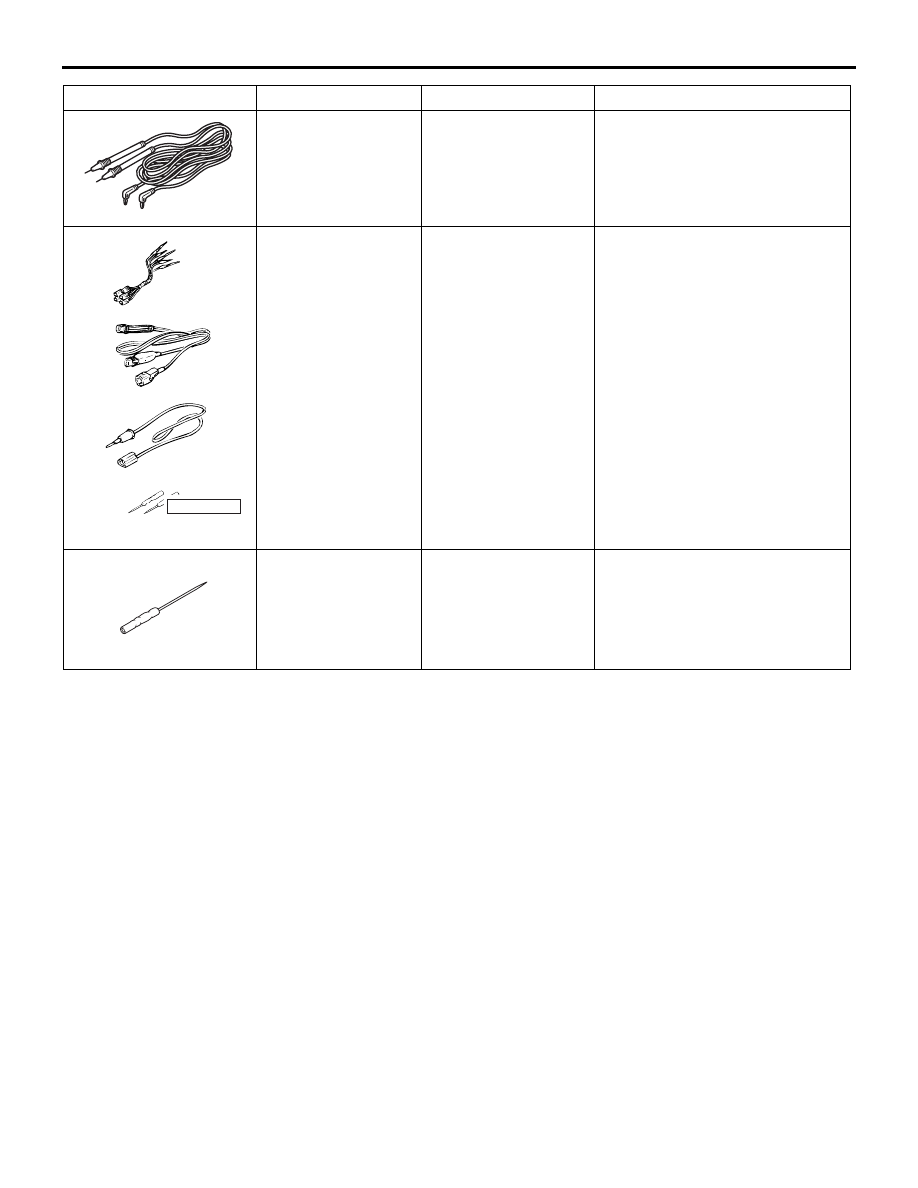

MB991499

Measurement probe

Measurements of voltage and
resistance value
NOTE: M.U.T.-II attached probe
(Commercial probes can also be
used.)

MB991223

a. MB991219
b. MB991220
c. MB991221
d. MB991222

Harness set

a. Check harness
b. LED harness
c. LED harness

adapter

d. Probe

Continuity check and voltage
measurement at harness wire or
connector

a. For checking connector pin

contact pressure

b. For checking power supply

circuit

c. For checking power supply

circuit

d. For connecting a locally

sourced tester

MB992006

Extra fine probe

Continuity check and voltage
measurement at harness wire or
connector

Tool

Number

Name

Use

MB991499

MB991223

a

d

c

b

DO NOT USE

BA

MB992006
