RADIO AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-281

RADIO AND CD PLAYER

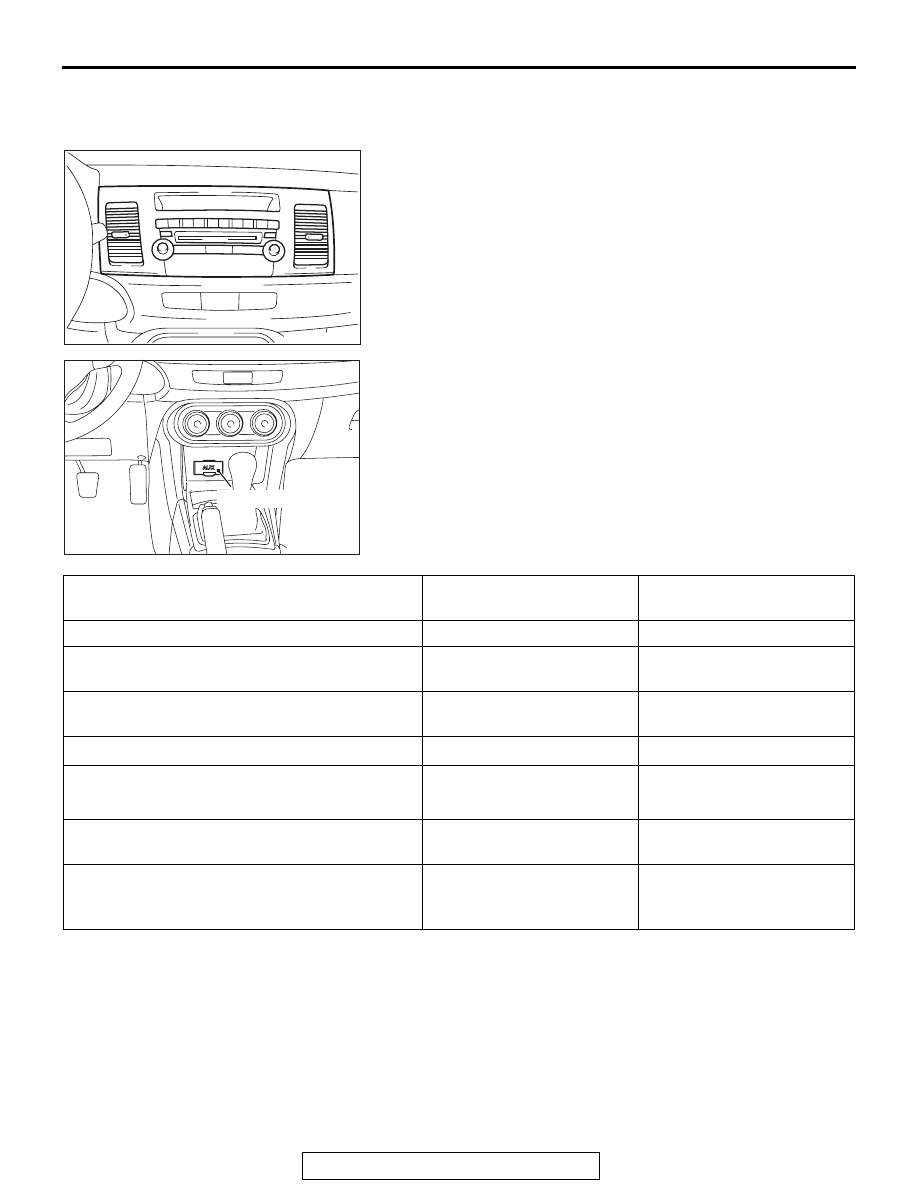

GENERAL INFORMATION

M1544000100408

• Two types of radio and CD player, radio and CD player or

CD changer built-in type radio and CD player , have been
established. The radio and CD player was designed to cre-
ate a uniformity impression with the instrument panel. Also,
a new function automatically corrects the sound quality and
volume during driving.

• For the vehicles with Rockford Fosgate ® premium sound

system, the audio adapter has been established onto the
center tray. With this modification, portable music player
can be connected.

NOTE:

.

•

*1

: CD-R/CD-RW may not be played.

•

*2

: Some may not be played.

AC608345AB

AC608417AB

Audio adapter

Item

radio and CD player

CD changer built-in type
radio and CD player

Electronic tuning radio

Equipped

Equipped

SIRIUS satellite radio

−

Equipped (Only the vehicles
with the satellite radio tuner)

Hands free cellular phone system

Equipped (Only the vehicles
with the hands free module)

Equipped (Only the vehicles
with the hands free module)

CD player

*1

 (compatible with MP3

*2

)

Equipped

Equipped

6-disk CD autochanger

*1

 (compatible with

MP3

*2

)

−

Equipped

Audio integrated 4-ch power amplifier and
digital signal processor (DSP)

General 140 W

General 140 W

Audio amplifier-integrated 8-ch power amplifier
and digital signal processor (DSP) <Rockford
Fosgate

® premium sound system>

−

General 650 W (maximum)

RADIO AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-282

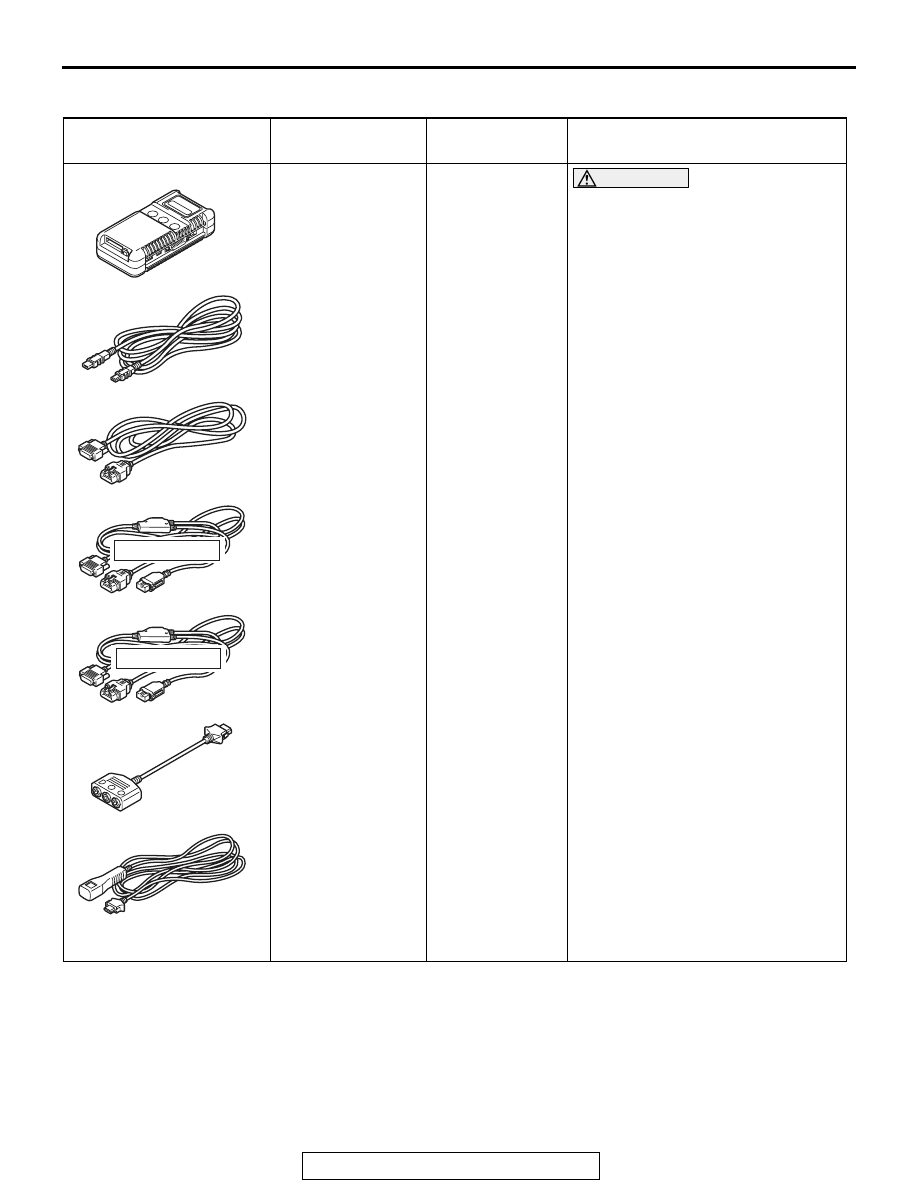

SPECIAL TOOLS

M1542000602629

Tool

Tool number and
name

Supersession

Application

MB991958

a. MB991824
b. MB991827
c. MB991910
d. MB991911
e. MB991914
f. MB991825
g. MB991826

M.U.T.-III
sub-assembly

a. Vehicle

communication
interface (V.C.I.)

b. M.U.T.-III USB

cable

c. M.U.T.-III main

harness A
(Vehicles with
CAN
communication
system)

d. M.U.T.-III main

harness B
(Vehicles without
CAN
communication
system)

e. M.U.T.-III main

harness C (for
Daimler Chrysler
models only)

f. M.U.T.-III

measurement
adapter

g. M.U.T.-III trigger

harness

MB991824-KIT
NOTE: G:
MB991826
M.U.T.-III Trigger
Harness is not
necessary when
pushing V.C.I.
ENTER key.

CAUTION

M.U.T.-III main harness A
(MB991910) should be used.
M.U.T.-III main harness B and C
should not be used for this
vehicle.
DTC and data list.

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

a

b

c

d

e

f

g

DO NOT USE

RADIO AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-283

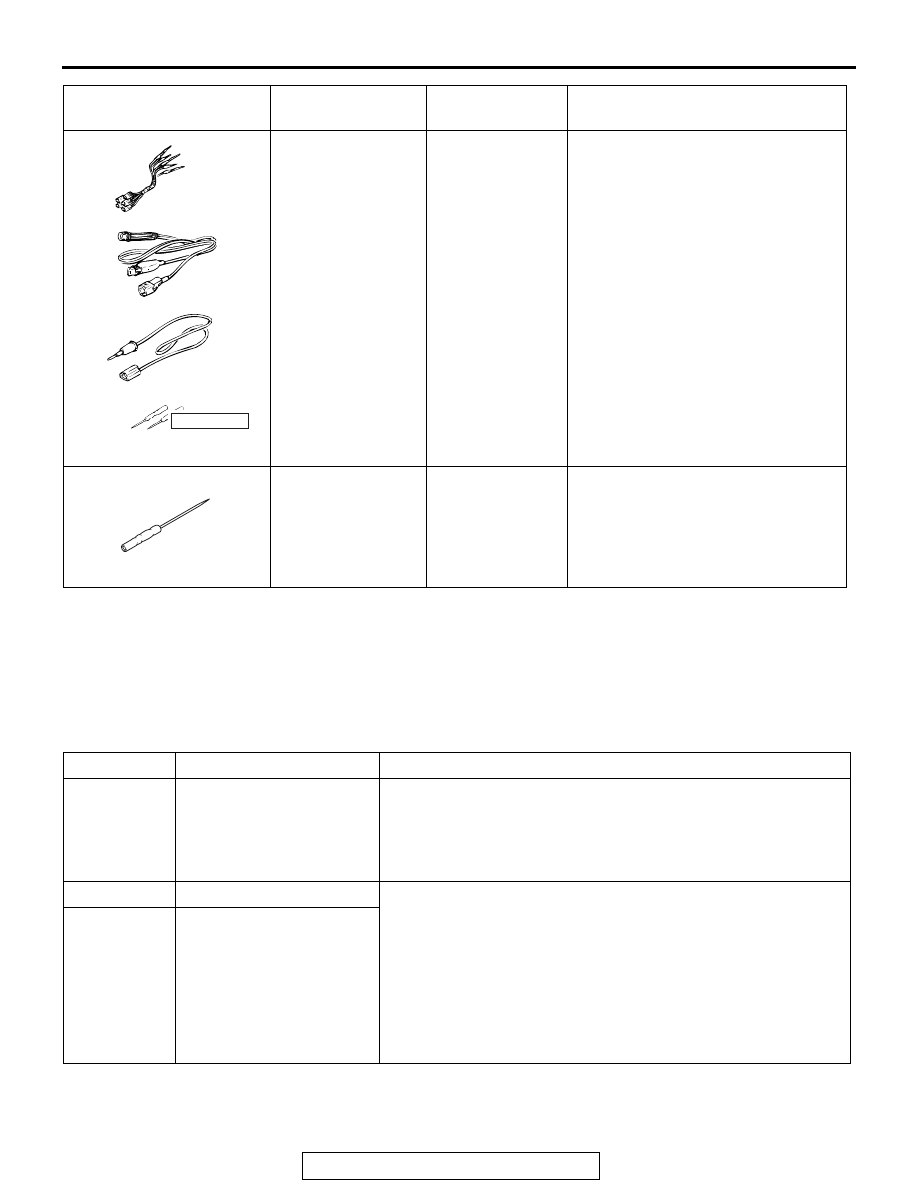

DIAGNOSIS

INTRODUCTION TO AUDIO SYSTEM DIAGNOSIS

M1544004700350

RADIO AND CD PLAYER ERROR CODES

If the radio and CD player detects any malfunction in
itself or the inserted CD, the error codes below will
be shown on the display.

MB991223

a. MB991219
b. MB991220
c. MB991221
d. MB991222

Harness set

a. Check harness
b. LED harness
c. LED harness

adapter

d. Probe

General service
tool (jumper)

Continuity check and voltage
measurement at harness wire or
connector

a. For checking connector pin

contact pressure

b. For checking power supply circuit
c. For checking power supply circuit
d. For connecting a locally sourced

tester

MB992006
Extra fine probe

−

Continuity check and voltage
measurement at harness wire or
connector

Tool

Tool number and
name

Supersession

Application

MB991223

a

d

c

b

DO NOT USE

BA

MB992006

Error code

Cause

Cause of trouble and its solution

ERROR

Power supply error

This error code will be shown if there is any problem in the
power supply system of the radio and CD player. Check the
connectors and wiring harness of the power supply system, and
check that the battery voltage is normal. Check that the same
error does not appear.

ERROR 01

Focus error

These error codes will be shown if there is any problem with the
CD or there is excessive vibration on the vehicle. If the error
codes are not displayed when the vehicle is stopped and
another CD is inserted, there is a problem with the CD. Check if
there is any of the following problems with the CD.

• Contamination, scratch, or deformation

• Formation of moisture or grease

Repair the CD and insert it again. Then, check that no error
appears.

ERROR 02

Abnormal disk

RADIO AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-284

SATE LLITE RADIO ERROR CODES <Vehicles with satellite radio tuner>

The display displays the error codes below if an
abnormality related to the satellite radio is detected.

ERROR 03

Mechanical error

This error codes will be shown if there is any internal
mechanical or electrical problem in the radio and CD player.
Replace the radio and CD player check that no error codes are
shown.

ERROR HOT Protection against high

temperature

If the internal temperature is extremely high, this error code will
be shown. Turn off the radio and CD player and wait until they
cool down. Wait for a while, and then turn on the unit again.
Check that the same error does not appear.

ERROR DC

Detection abnormal output
to the speaker

This error code will be shown if the radio and CD player or the
audio amplifier has an internal error or is contaminated with the
foreign material, and there is a problem with output to the
speaker. If it is contaminated with the foreign material, turn OFF
the power. Dry the foreign material if it is liquid, and remove it if
it is solid. Then, check if the error code is displayed. If the error
code is displayed, replace the radio and CD player or the audio
amplifier.

Error code

Cause

Cause of trouble and its solution

Error code

Cause

Cause of trouble and its solution

ANTENNA ERROR

Antenna error

This code is displayed when there is a failure, improper
connection, or open circuit in the satellite antenna base
and the satellite radio tuner cannot receive normal
voltage value or current value. Check the satellite radio
tuner, the satellite antenna base and the antenna feeder
cable, and replace if necessary. (Refer to

P.54A-555

.)

ACQUIRING SIGNAL Cannot pick up signal

This code is displayed when the signal is too weak and it
cannot be received. Move to a place where the signal
can be received easily, or check if there is foreign
material that interferes with signal reception on the
satellite antenna base, and remove if necessary.

CALL
888-539-SIRIUS

Unauthorized channel

This code is displayed when the channel to be received
is not included in the contract with SIRIUS

™ satellite

radio. Contact SIRIUS

™ satellite radio and make a

contract for the channel.

 NO CHANNEL

There is no selectable
channel

There is no channel that can be selected. Cancel the
SKIP settings so that the channels can be selected.

INVALID CHANNEL

Channel is invalid

No program is broadcast on this channel now, or this
channel cannot be received. Ask SIRIUS

™ satellite

radio.

SAT ERROR

Mechanical fault or bad
connection

This code is displayed when the satellite radio tuner has
a mechanical problem or when an error occurs in the
communication with radio and CD player. Check the
radio and CD player, the satellite radio tuner, and each
harness and connector, and replace if necessary. (Refer
to

P.54A-555

.)
