Mitsubishi Evolution X. Manual - part 972





DOME LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-249

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

STEP 1. Front dome light operation check
Check that the front dome light illuminates and extinguishes
normally.
Q: Does rear dome light work normally?

YES : Go to Step 2.
NO :  Replace the ETACS-ECU.

STEP 2. Using scan tool MB991958, read the diagnostic
trouble code.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

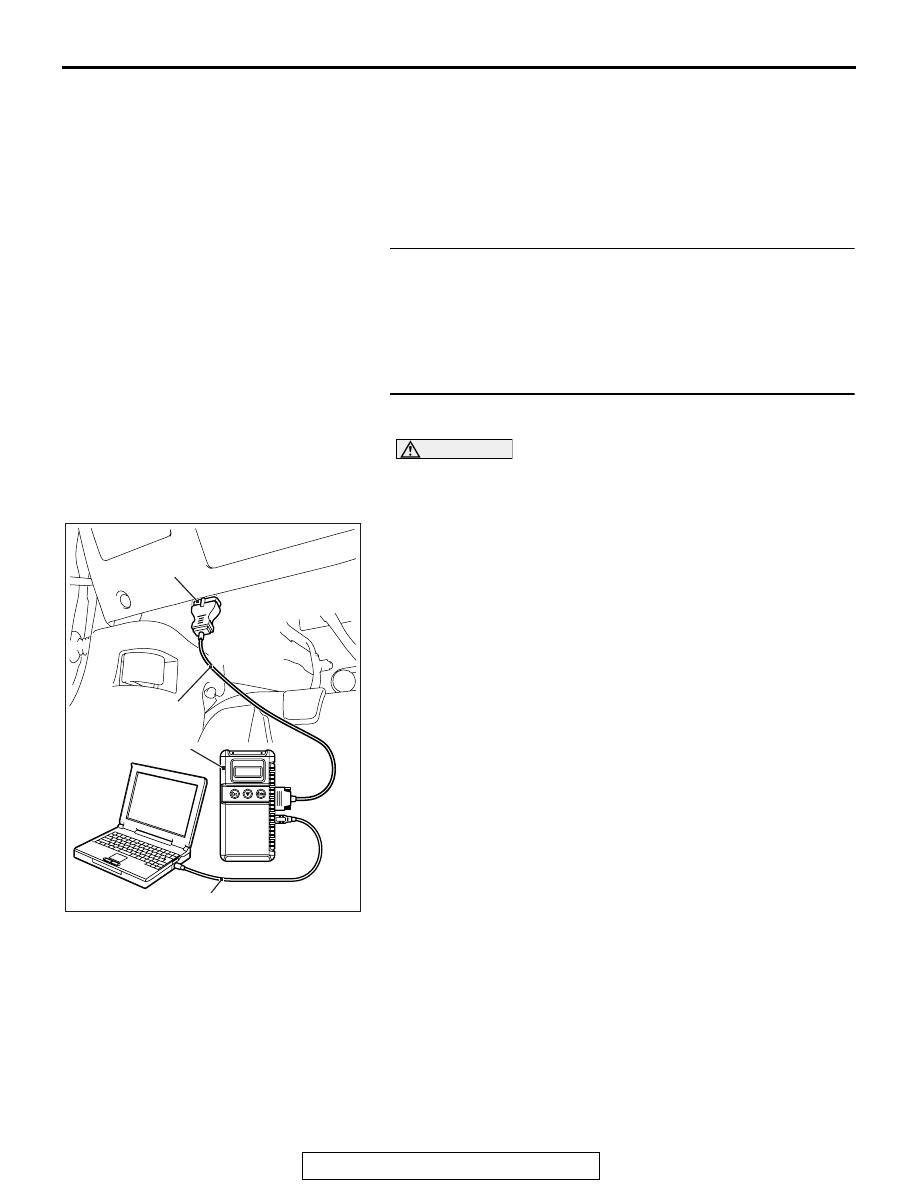

(1) Connect scan tool MB991958. Refer to "How to connect

scan tool (M.U.T.-III)

P.54A-241

."

(2) Turn the ignition switch to the "ON" position.
(3) Check whether the ETACS-ECU related DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Diagnose the ETACS-ECU. Refer to ETACS,

Diagnosis

P.54A-582

.

NO :  Go to Step 3.

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

DOME LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-250

STEP 3. Using scan tool MB991958, check data list.
Use the ETACS-ECU data list to check the signals related to
the rear dome light.

• Turn the ignition switch to the "LOCK" (OFF) position.

• Remove the ignition key from the ignition key cylinder.

• Open each door.

Q: Does scan tool MB991958 display the items "Dr door

unlock", "IG voltage", "Dr door ajar switch", "As door
ajar switch", "RR door ajar switch", "RL door ajar
switch" and "Handle lock switch" as normal condition?
YES :
(Normal conditions are displayed for all items.) Go to

Step 4.

NO  :  (Normal condition is not displayed.) Troubleshoot the

ETACS-ECU. Refer to ETACS, Diagnosis, Input
signal chart

P.54A-639

.

STEP 4. Check rear dome light connector D-07 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is rear dome light connector D-07 in good condition?

YES : Go to Step 5.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

.

STEP 5. Rear dome light bulb check
Check that the rear dome light bulb is normal.
Q: Is rear dome light bulb normal?

YES : Go to Step 6.
NO :  Replace the rear dome light bulb.

STEP 6. Check ETACS-ECU connector C-316 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is ETACS-ECU connectors C-316 in good condition?

YES : Go to Step 7.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

.

Item No.

Item name

Normal condition

Item 228

Dr door unlock

ON

Item 254

IG voltage

0 V

Item 256

Dr door ajar switch

Open

Item 257

As door ajar switch

Open

Item 258

RR door ajar switch

Open

Item 259

RL door ajar switch

Open

Item 264

Handle lock switch

Key in

→ Key out

DOME LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-251

STEP 7. Check the wiring harness between rear dome light
D-07 connector (terminal 1, 2) and ETACS-ECU connector
C-316 (terminal 6, 5)
Q: Is wiring harness between rear dome light D-07

connector (terminal 1, 2) and ETACS-ECU connector
C-316 (terminal 6, 5) in good condition?
YES :
Go to Step 8.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary.

STEP 8. Retest the system
Check that the rear dome light illuminates and extinguishes
normally.
Q: Does rear dome light work normal?

YES : The trouble can be an intermittent malfunction (Refer

to GROUP 00, How to use
Troubleshooting/inspection Service Points, How to
Cope with Intermittent Malfunction

P.00-15

).

NO :  Replace the ETACS-ECU.

DOME LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-252

Inspection Procedure 3: The luggage compartment light does not illuminate normally.

CAUTION

Whenever the ECU is replaced, ensure that the power supply circuit, the ground circuit and the com-
munication circuit are normal.

.

TROUBLE JUDGMENT

The ETACS-ECU illuminates and extinguishes the
luggage compartment light in accordance with the
input signals from trunk lid latch switch.

.

TECHNICAL DESCRIPTION (COMMENT)

If this does not work normally, the trunk lid latch
switch input circuit, luggage compartment light, or
ETACS-ECU may have a problem.

.

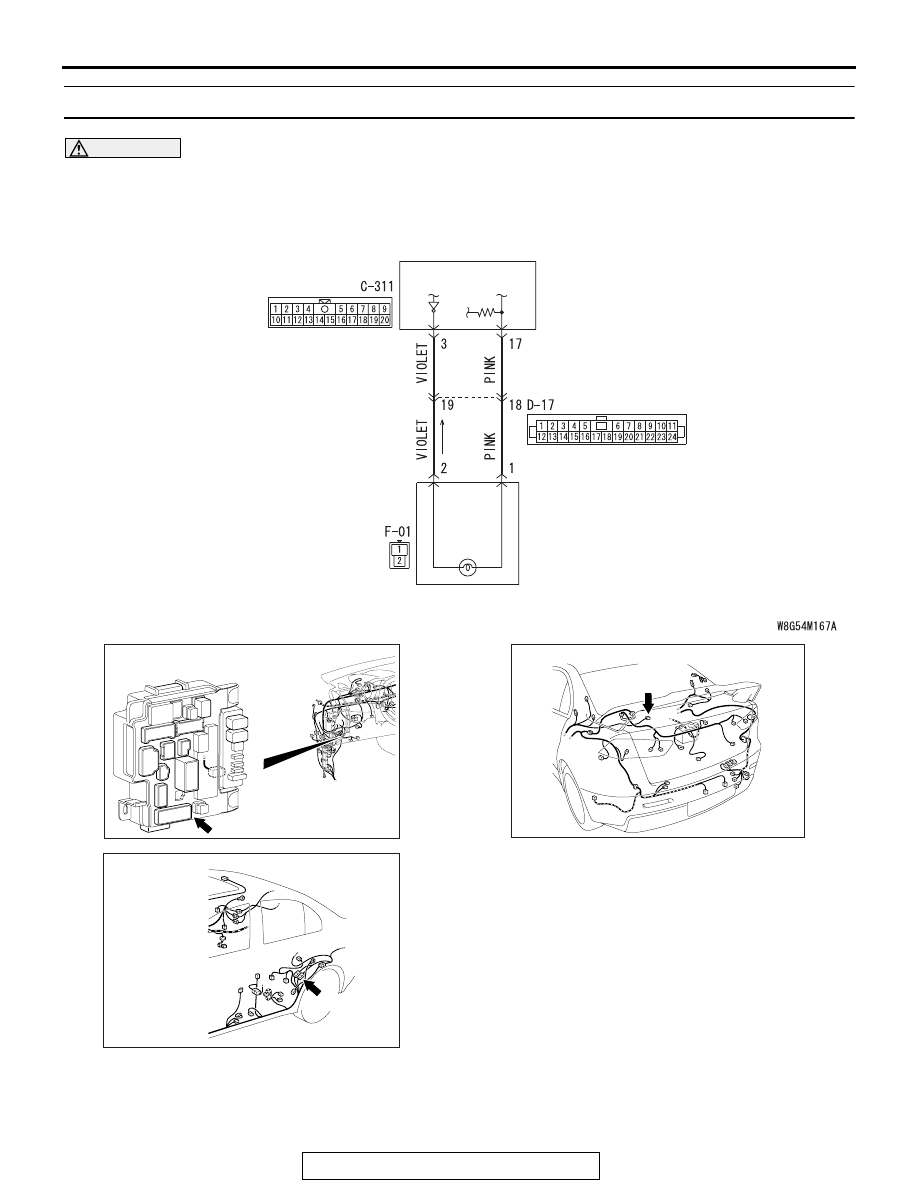

Luggage Compartment Light Circuit

ETACS-ECU

LUGGAGE
COMPARTMENT
LIGHT

AC708972AC

Connector: C-311

ETACS-ECU

AC708955AL

Connector: D-17

D-17 (BR)

AC708970AR

Connector: F-01
