Mitsubishi Evolution X. Manual - part 915





IGNITION SWITCH

TSB Revision

CHASSIS ELECTRICAL

54A-21

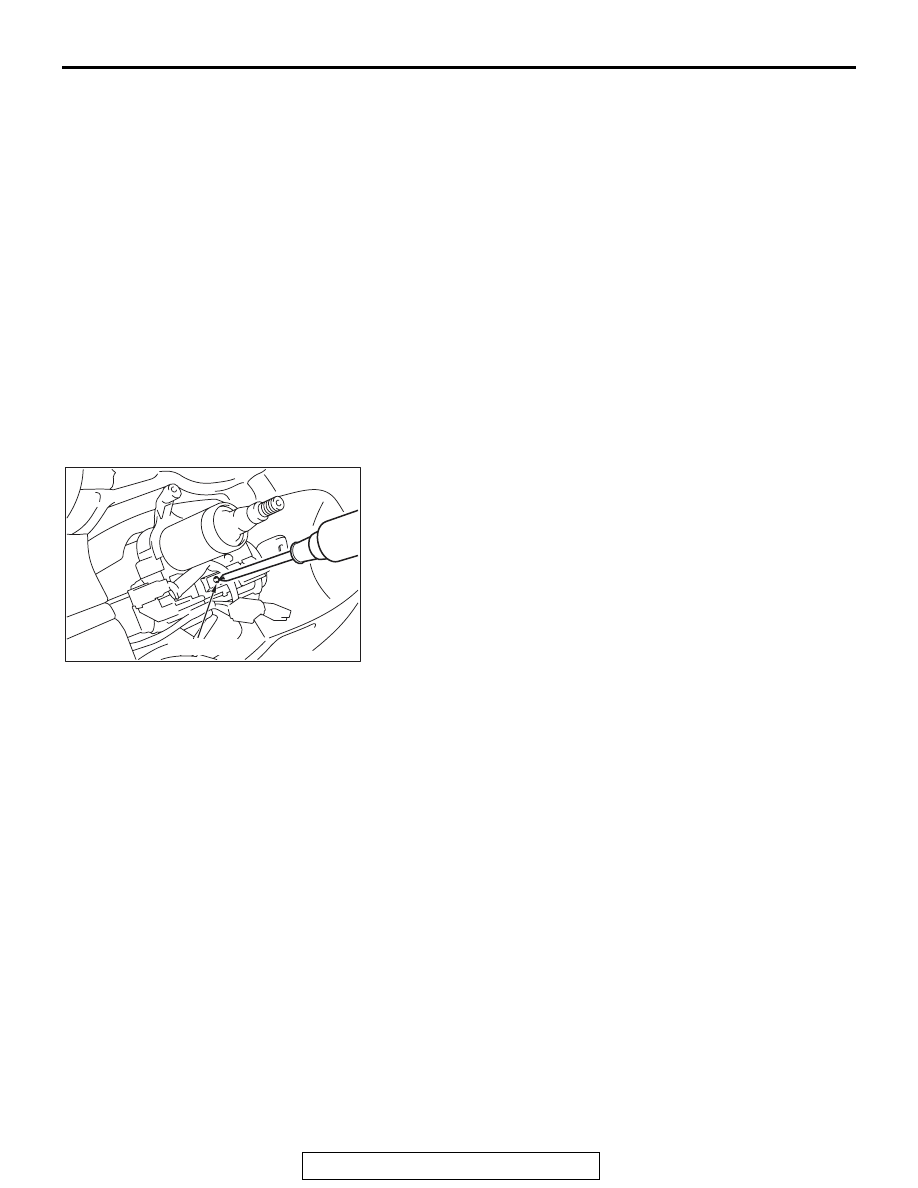

REMOVAL SERVICE POINT

.

 <<A>> STEERING LOCK CYLINDER REMOVAL
<VEHICLES WITH WCM>

1. Insert the key into the steering lock cylinder, and turn the

ignition key to the ACC position.

2. With using a cross-headed screw driver (small) or similar

items to press in the lock pin, remove the ignition key, and
then remove the steering lock cylinder.

INSTALLATION SERVICE POINT

.

>>A<< WIRELESS CONTROL MODULE (WCM)
<VEHICLES WITH WCM>/RECEIVER ANTENNA
MODULE <VEHICLES WITH KOS> INSTALLATION

Check that the top claw of receiver antenna module is fixed
securely to the boss of steering lock and the antenna is not
floated on the key cylinder.

5.

Ignition switch

6.

Key reminder switch

>>

A

<<

7.

Wireless control module (WCM)
<Vehicles with WCM>/receiver
antenna module <Vehicles with
KOS>

8.

Paddle shift assembly <Vehicles
with WCM and paddle shift>

9.

Column switch assembly <Vehicles
with WCM>



<



<

A

>



>

10. Steering lock cylinder <Vehicles

with WCM>

Removal Steps (Continued)

AC604821 AC

Lock pin

IGNITION SWITCH

TSB Revision

CHASSIS ELECTRICAL

54A-22

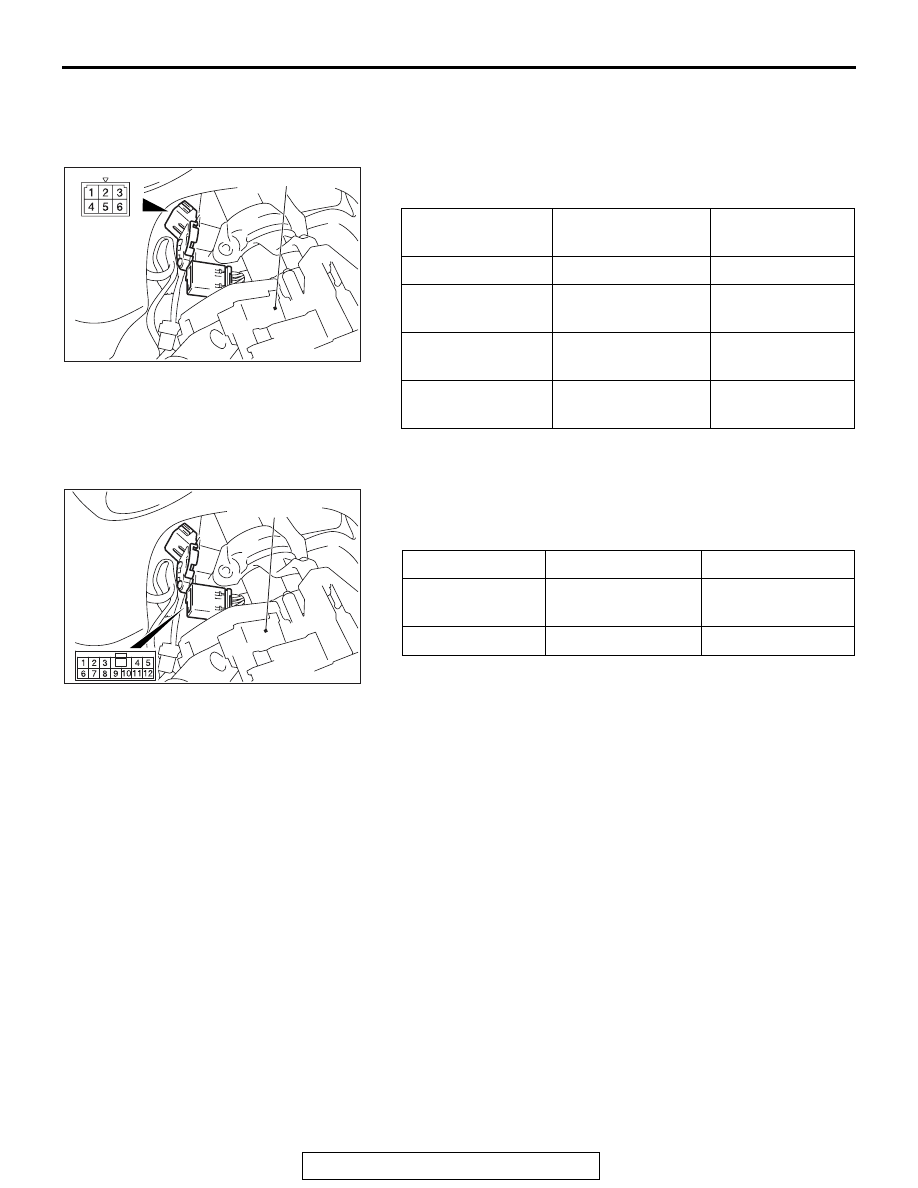

INSPECTION

IGNITION SWITCH CONTINUITY CHECK

M1541200400095

With the ignition switch mounted to the vehicle, disconnect and
check the ignition switch connection connector.

KEY REMINDER SWITCH INSPECTION

M1541200500092

With the key reminder switch mounted to the vehicle, discon-
nect the key reminder switch connection connector, and then
perform the continuity check.

Ignition key
position

Terminal number

Normal condition

LOCK

− 2, 1 − 4, 1 − 5, 1 − 6 No continuity

ACC

− 6

Continuity exists
(2 ohms or less)

ON

− 2 − 4 − 6

Continuity exists
(2 ohms or less)

START

− 2 − 5

Continuity exists
(2 ohms or less)

AC506506AB

Column switch

Key status

Terminal number

Normal condition

Key removed

− 3

Continuity exists



(2 ohms or less)

Key inserted

− 3

No continuity

AC506506AC

Column switch

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-23

COMBINATION METER

SERVICE SPECIFICATIONS

M1540200200407

Item

Standard Value

Speedometer indication tolerance {mph (km/h)}
<Except vehicles for CANADA>

10 (16)

8.5

− 11.5 (13.6 − 18.4)

25 (40)

23.5

− 26.5 (37.6 − 42.4)

50 (80)

48.5

− 51.5 (77.6 − 82.4)

75 (120)

73.5

− 76.5 (117.6 − 122.4)

100 (161)

98.5

− 102.5 (158.6 − 165.0)

125 (201)

123.5

− 127.5 (198.6 − 205.0)

150 (241)

148.5

− 153.5 (239.0 − 247.0)

175 (282)

173.5

− 179.0 (279.2 − 288.0)

Speedometer indication tolerance {km/h (mph)}
<Vehicles for CANADA>

20 (12.4)

19

− 24 (11.8 − 14.9)

40 (24.8)

40

− 44 (24.8 − 27.3)

80 (49.7)

80

− 85 (49.7 − 52.8)

120 (74.6)

120.5

− 125.5 (74.9 − 78.0)

160 (99.4)

160.5

− 165.5 (99.7 − 102.8)

200 (124.3)

200.5

− 207.0 (124.6 − 128.6)

240 (149.1)

240.5

− 247.0 (149.4 − 153.5)

280 (174.0)

280.5

− 289.0 (174.3 − 179.6)

Tachometer indication tolerance (r/min)
(The value in parentheses is a reference value.)

600

550

− 650

(2,000)

(1,950

− 2,050)

3,000

2,950

− 3,050

(4,000)

(3,950

− 4,050)

5,000

4,950

− 5,050

6,000

5,950

− 6,050

(7,000)

(6,950

− 7,050)

(8,000)

(7,950

− 8,050)

Fuel level sensor resistance (ohms)

main

Stopper position "F"

6.5

± 1.0

Stopper position "E"

41.9

± 1.0

sub

Stopper position "F"

6.5

± 1.0

Stopper position "E"

78.1

± 1.0

Fuel level sensor float height {mm (in)} main

Stopper position "F"

140.9 (5.5)

Stopper position "E"

39.1 (1.5)

sub

Stopper position "F"

14.2

± 3.0 (0.5 ± 0.1)

Stopper position "E"

179.3

± 3.0 (7.0 ± 0.1)

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-24

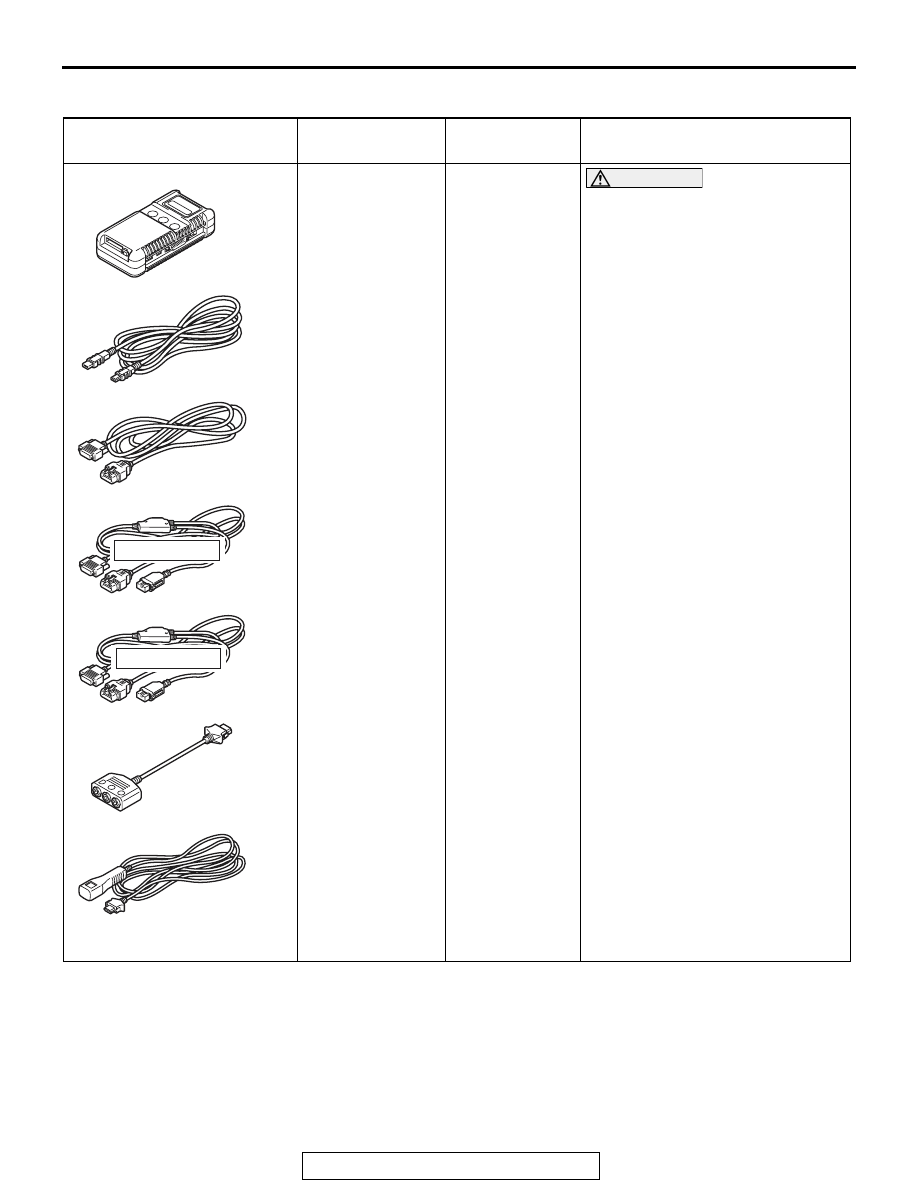

SPECIAL TOOLS

M1540200300147

Tool

Tool number and
name

Supersession

Application

MB991958

a. MB991824
b. MB991827
c. MB991910
d. MB991911
e. MB991914
f. MB991825
g. MB991826

M.U.T.-III
sub-assembly

a. Vehicle

communication
interface (V.C.I.)

b. M.U.T.-III USB

cable

c. M.U.T.-III main

harness A
(Vehicles with
CAN
communication
system)

d. M.U.T.-III main

harness B
(Vehicles
without CAN
communication
system)

e. M.U.T.-III main

harness C (for
Daimler
Chrysler
models only)

f. M.U.T.-III

measurement
adapter

g. M.U.T.-III trigger

harness

MB991824-KIT
NOTE: G:
MB991826
M.U.T.-III Trigger
Harness is not
necessary when
pushing V.C.I.
ENTER key.

CAUTION

M.U.T.-III main harness A
(MB991910) should be used.
M.U.T.-III main harness B and C
should not be used for this
vehicle.
DTC, data list and actuator test
check.

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

a

b

c

d

e

f

g

DO NOT USE
