DIFFERENTIAL CARRIER ASSEMBLY

TSB Revision

REAR AXLE

27-53

Required Special Tools:

• MB990847: Base

• MB991218: Bearing

• MB991162: Bolt

• MB992234: Bearing

• MB992235: Adapter

• MB992253: Remover and Installer

• MB992254: Base

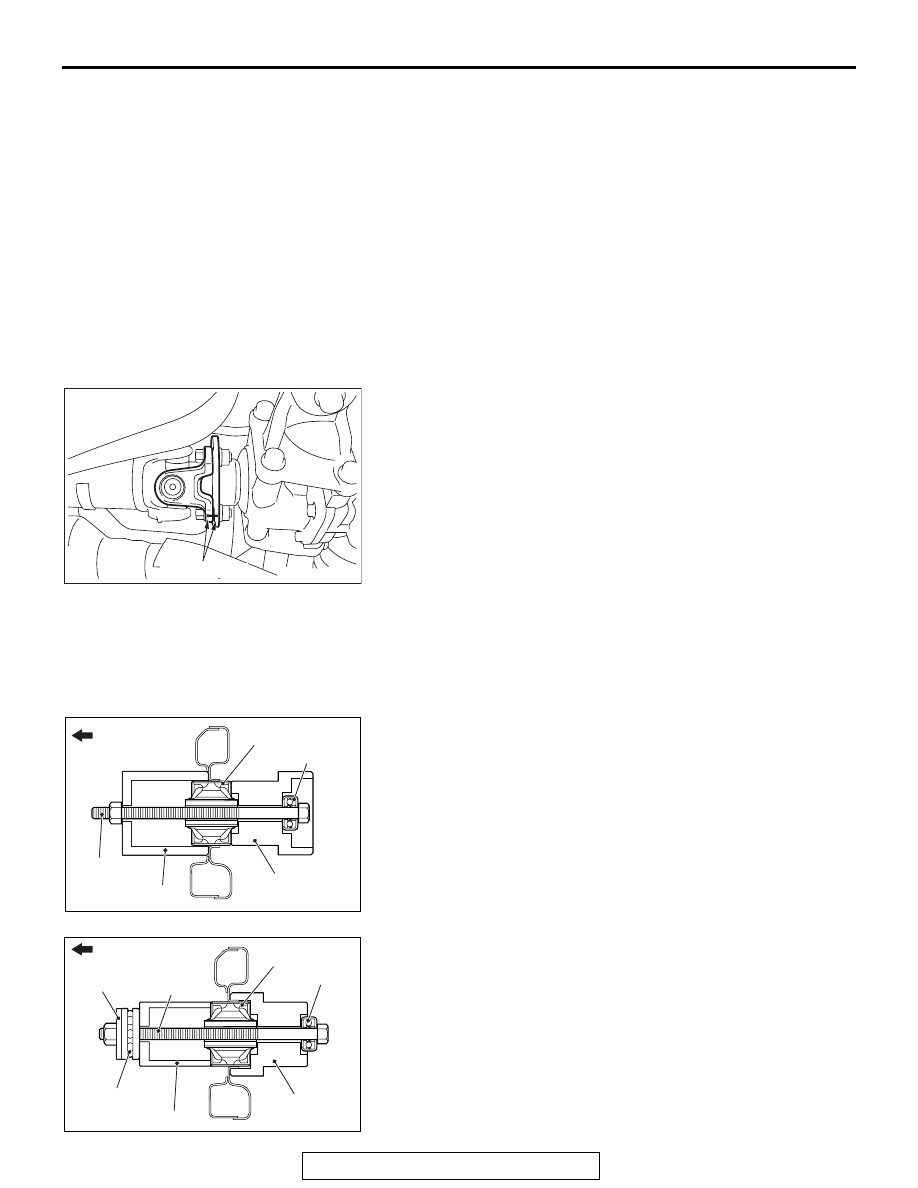

REMOVAL SERVICE POINT

.

<<A>> PROPELLER SHAFT DISCONNECTION

AC704938 AB

Mating marks

1. Put mating marks on the flange yoke and the differential

companion flange and remove the connecting nuts.

2. Suspend the disconnected propeller shaft from the body

with a wire to prevent bending.

REAR SUSPENSION CROSSMEMBER BUSHING
(FOR REAR DIFFERENTIAL MOUNT)
REPLACEMENT

1. Remove the rear differential

AC710573AB

MB992254

MB992253

MB991218

MB991162

Bushing

Backward of
vehicle

2. Use special tools MB991162, MB991218, MB992253 and

MB992254 to remove the bushing.
NOTE: When removing the bushing, insert special tool
MB991162 from the forward of vehicle and fix the nut with a
wrench.

AC710573

AC710574 AB

MB990847

MB992253

MB991218

Bushing

Backward of
vehicle

MB991162

MB992234

MB992235

3. Use special tools MB990847, MB991162, MB991218,

MB992234, MB992235 and MB992253 to press-fit the
bushing.
NOTE: When installing the bushing, insert special tool
MB991162 from the forward of vehicle and fix the nut with a
wrench.

4. Install the rear differential.

7.

Differential mount bracket
assembly (LH/RH) and stay

8.

Stay

9.

Lower stopper

10. Upper stopper
11. Differential mount bracket (LH/RH)
12. Differential carrier assembly
•

Rear suspension crossmember
bushing (for rear differential
mount) replacement

13. Differential mount bracket
14. Differential support bracket

Removal steps (Continued)

DIFFERENTIAL CARRIER ASSEMBLY

TSB Revision

REAR AXLE

27-54

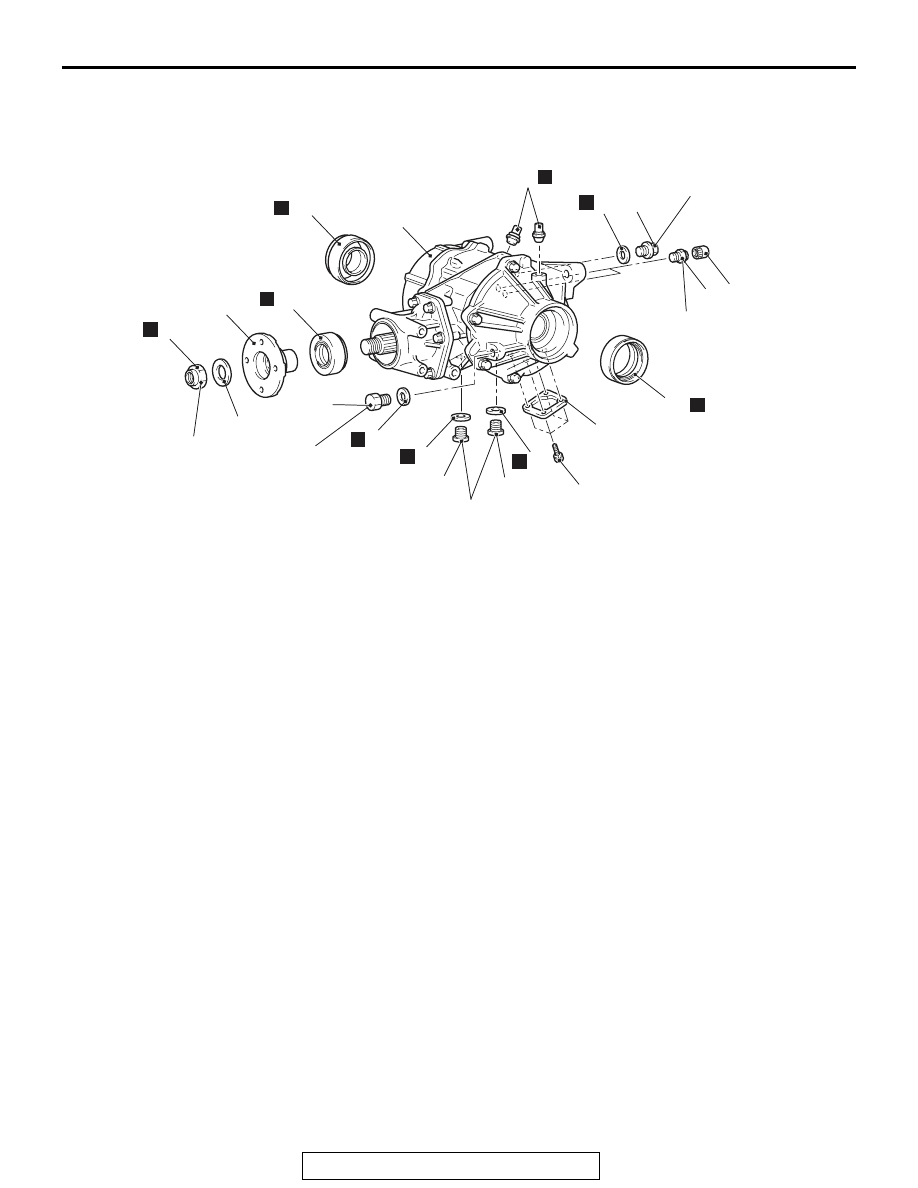

DISASSEMBLY AND REASSEMBLY

M1272008400012

AC705311

3

1

2

9

4

7

5

6

8

10

11

12

13

14

9.0 ± 1.0 N·m
80 ± 9 in-lb

186 ± 29 N·m
137 ± 21 ft-lb

32 ± 2 N·m
24 ± 1 ft-lb

AB

AB

N

N

N

N

N

N

N

2

N

15

3

4

N

49 ± 10 N·m
37 ± 7 ft-lb

1

5.0 ± 1.0 N·m
44 ± 9 in-lb

49 ± 10 N·m
37 ± 7 ft-lb

Disassembly steps

1.

Drain plug

2.

Gasket

3.

Filler plug

4.

Gasket

5.

Vent plug

6.

Bleeder cap

7.

Bleeder screw

8.

Cover

<<

A

>>

9.

Self-locking nut

10. Washer
11. Companion flange

>>

C

<< 12. Oil seal

>>

B

<< 13. Oil seal

>>

A

<< 14. Oil seal

15. Differential carrier assembly

Required Special Tools:

• MB990727: Oil Seal Installer

• MB990850: End Yoke Holder

• MB990938: Installer Bar

• MB991245: Lower Arm Bush Ring

• MB991551: Bearing Outer Race Installer

Disassembly steps (Continued)

DIFFERENTIAL CARRIER ASSEMBLY

TSB Revision

REAR AXLE

27-55

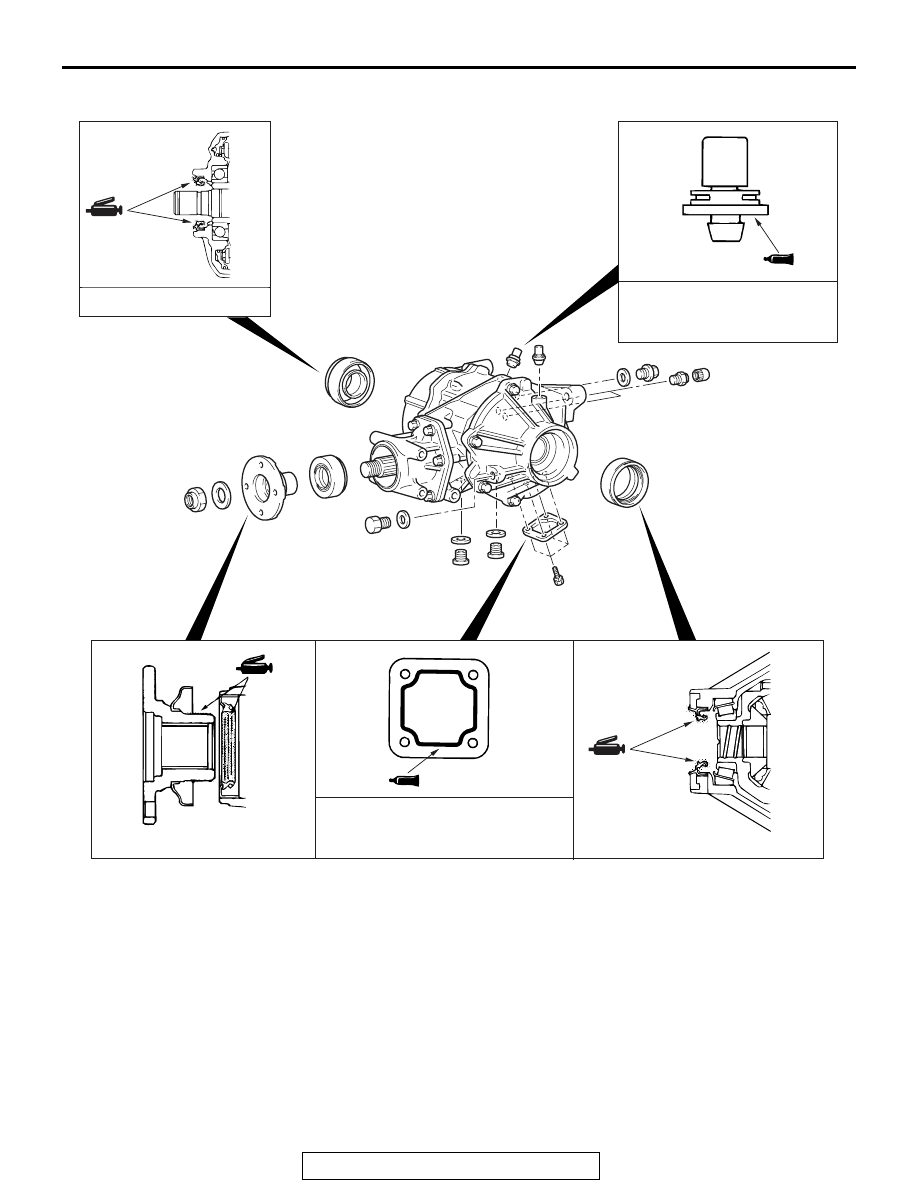

LUBRICATION AND ADHESIVE POINTS

AC708698 AB

Semi-drying sealant:

3M

TM

 AAD Part No. 8672, 8679, 8678,

8661, 8663 or equivalent

Semi-drying sealant:

3M

TM

 AAD Part No. 8672, 8679,

8678, 8661, 8663 or equivalent

Grease: Vaseline

DIFFERENTIAL CARRIER ASSEMBLY

TSB Revision

REAR AXLE

27-56

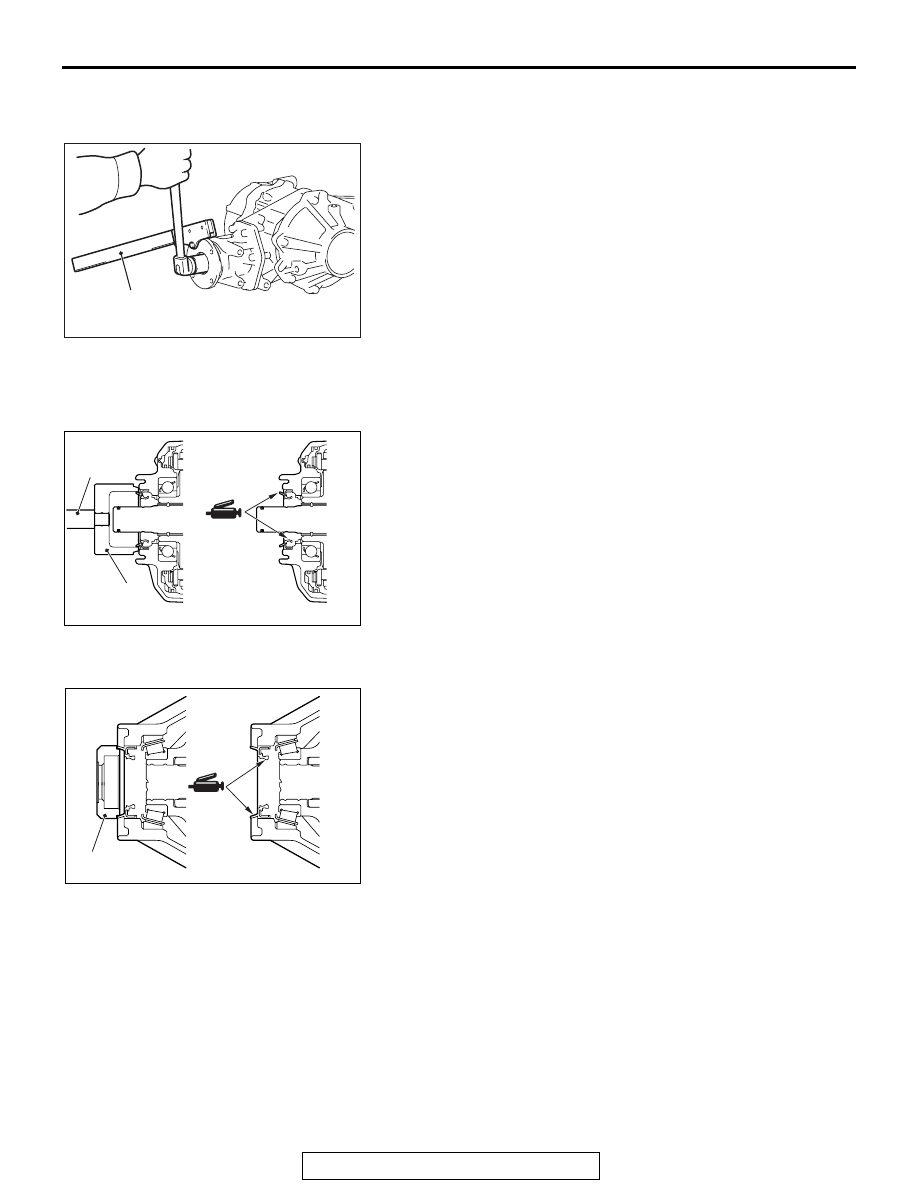

DISASSEMBLY SERVICE POINT

.

<<A>> SELF-LOCKING NUT REMOVAL

AC310763AC

MB990850

Use special tool MB990850 to hold the companion flange, and
then remove the companion flange self-locking nut.

ASSEMBLY SERVICE POINTS

.

>>A<< OIL SEAL INSTALLATION

AC708666

AC

MB991551

MB990938

1. Use special tools MB990938 and MB991551 to press-fit the

oil seal.

2. Apply specified grease to the oil seal lip and driveshaft oil

seal seating area.

Specified grease: Vaseline

.

>>B<< OIL SEAL INSTALLATION

AC708667

AC

MB991245

1. Use special tool MB991245 to press-fit the oil seal.
2. Apply multi-purpose grease to the oil seal lip and driveshaft

oil seal seating area.

.
