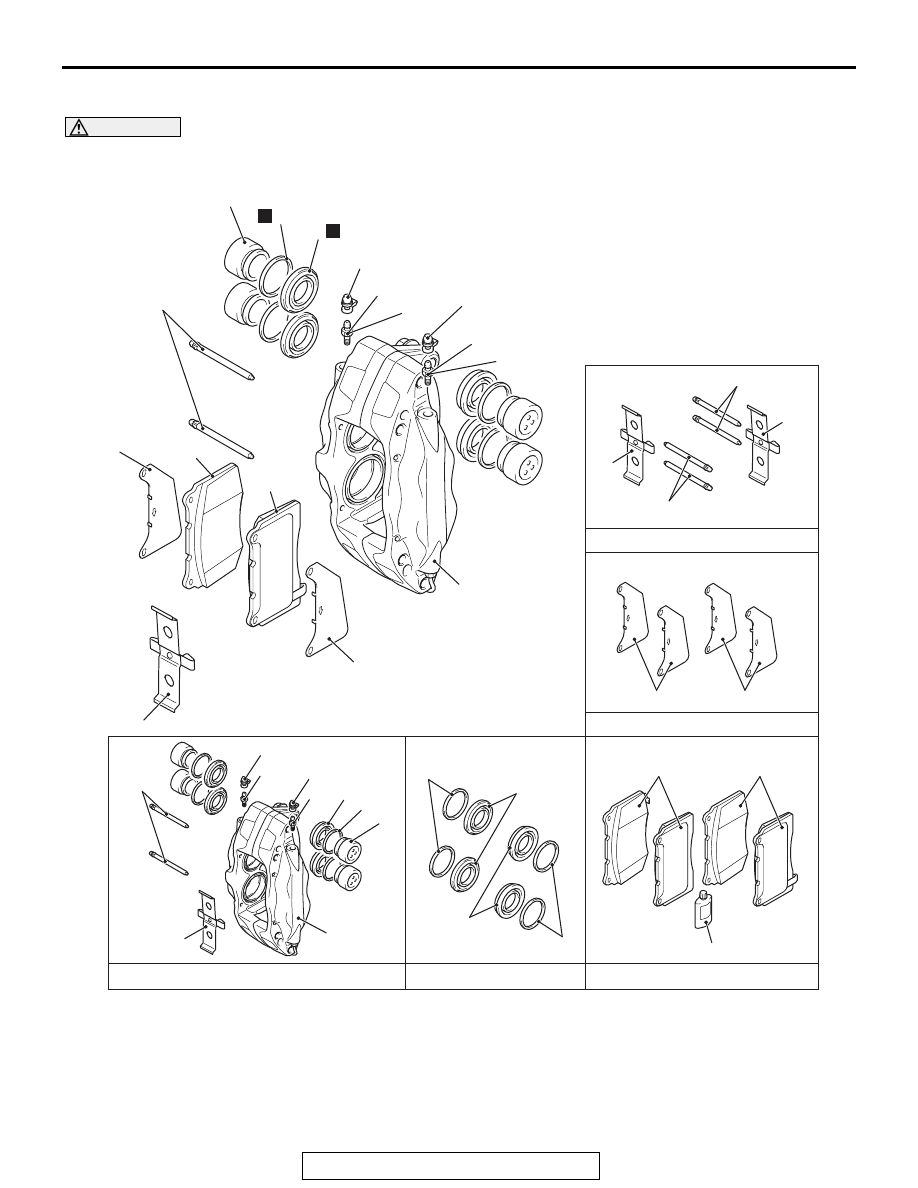

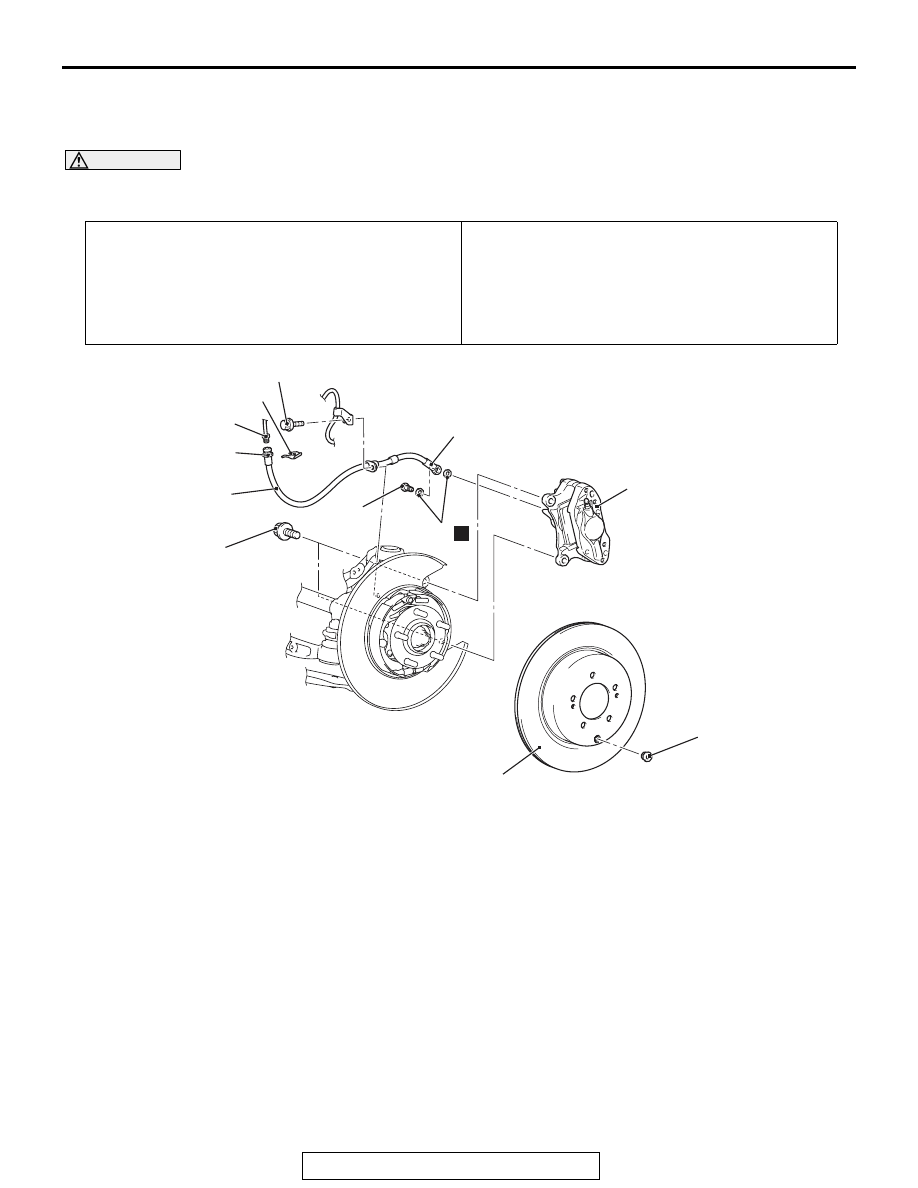

FRONT DISC BRAKE ASSEMBLY TSB Revision BASIC BRAKE SYSTEM 35A-35 DISASSEMBLY AND ASSEMBLY M1351006201341 CAUTION Take care not to contact the parts or tools to the caliper because the paint of caliper will be scratched. AC707016AB 19 ± 1 N·m 19 ± 1 N·m 1 2 1 7 9 8 10 3 4 4 6 5 5 6 8 10 9 7 1 2 1 2 4 4 N N 2 3 3 6 5 9 3 9 7 7 5 6 Clip set Shim kit Pad set Repair kit grease Seal and boot kit Brake caliper kit <Right side> <Left side> <Right side> <Left side> <Right side> <Left side> Disassembly steps 1. Bleeder cap 2. Bleeder 3. Pin 4. Cross spring 5. Brake pad assembly 6. Shim << A >> 7. Piston boot << A >> 8. Piston << B >> 9. Piston seal

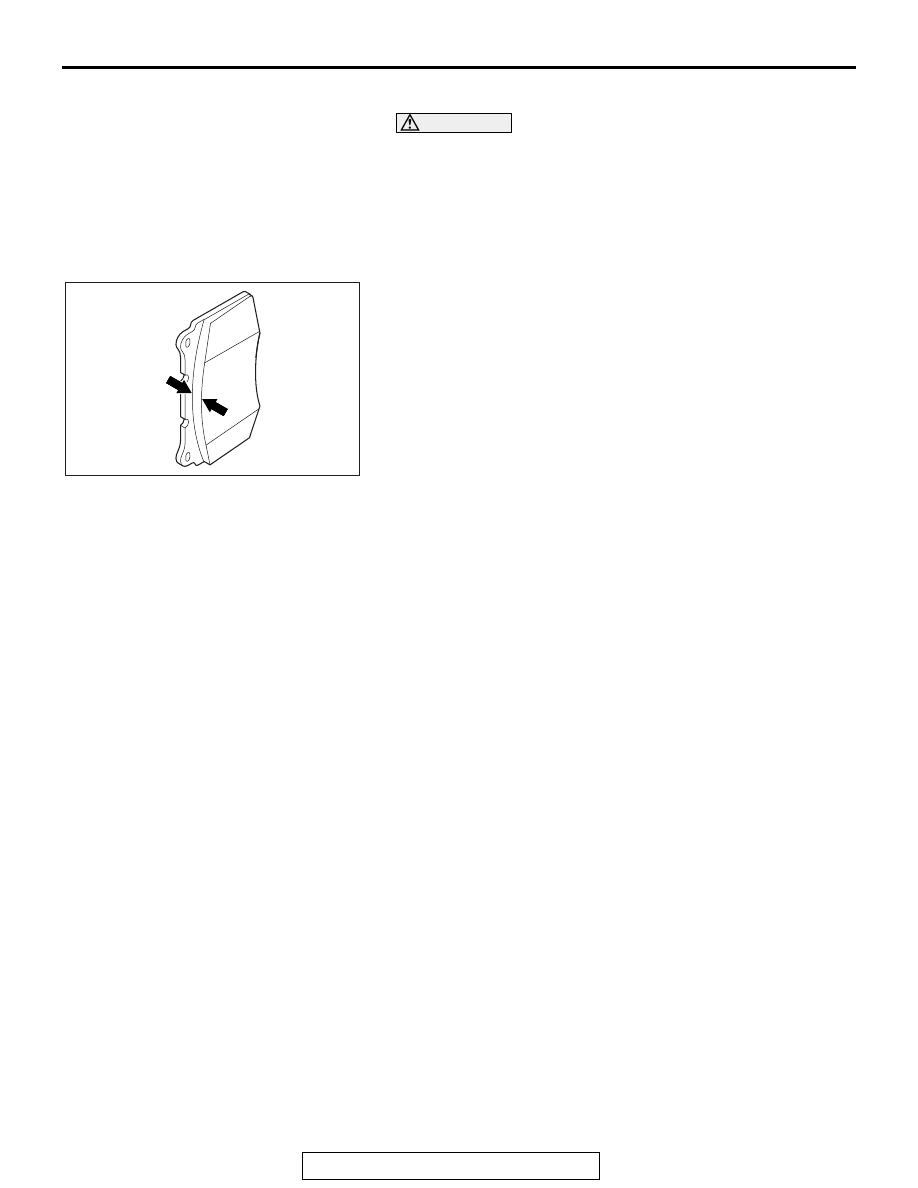

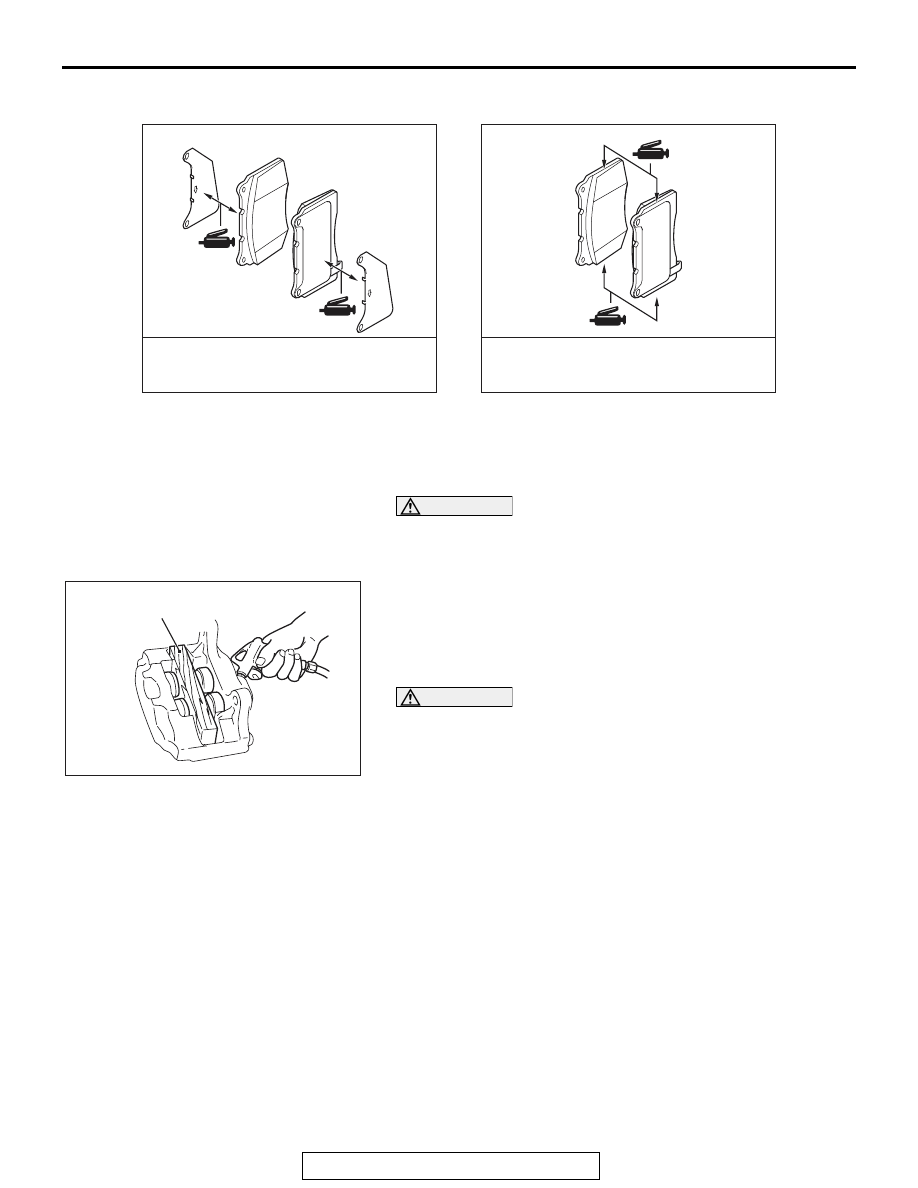

10. Caliper body NOTE: Install the brake pad assembly (with wear Disassembly steps (Continued) |
