Mitsubishi Evolution X. Manual - part 795





DIAGNOSIS

TSB Revision

ACTIVE SKID CONTROL SYSTEM (ASC)

35C-187

DTC C121A: Abnormality in steering wheel sensor initialization

CAUTION

• If there is any problem in the CAN bus lines, an incor-

rect diagnostic trouble code may be set. Prior to this
diagnosis, diagnose the CAN bus lines.

• Whenever the ECU is replaced, ensure that the CAN

bus lines are normal.

• When the steering wheel sensor is replaced, always

perform calibration to make ASC-ECU learn the neutral
point. (Refer to

P.35C-267

.)

• When the hydraulic unit (integrated with ASC-ECU) is

replaced, after turning the ignition switch ON and OFF
(vehicle information from ETACS-ECU is registered),
always perform the calibration of steering wheel sen-
sor, G and yaw rate sensor, brake fluid pressure sen-
sor, cut valve, and inlet valve.(Refer to

P.35C-266

P.35C-267

P.35C-268

, and

P.35C-269

.)

.

CIRCUIT OPERATION

Steering wheel sensor stores the neutral position learned using
scan tool MB991958. When the neutral position has not been
learned, the steering wheel sensor outputs the signal indicating
that the learning has not been performed.

.

DTC SET CONDITIONS

This diagnostic trouble code is set when it is detected that the
steering wheel sensor has not learned the neutral position.

.

PROBABLE CAUSES

• Neutral position of steering wheel sensor not learned

• Steering wheel sensor malfunction

• ASC-ECU malfunction

DIAGNOSIS

Required Special Tools:

• MB991958 Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827 M.U.T.-III USB Cable

• MB991910 M.U.T.-III Main Harness A

STEP 1. Using scan tool MB991958, diagnose the CAN bus
lines.
Using scan tool MB991958, diagnose the CAN bus lines.
Q: Is the check result normal?

YES : Go to Step 3.
NO :  Repair the CAN bus lines. (Refer to GROUP 54C

−

Troubleshooting

P.54C-14

.) After repairing the CAN

bus line, go to Step 2.

DIAGNOSIS

TSB Revision

ACTIVE SKID CONTROL SYSTEM (ASC)

35C-188

STEP 2. DTC recheck after repairing the CAN bus line
Q: Is DTC C121A set?

YES : Go to Step 3.
NO :  The procedure is complete.

STEP 3. Steering wheel sensor calibration
Perform calibration of the steering wheel sensor. ( Refer to

P.35C-267

.)

Q: Has the calibration succeeded?

YES : Go to Step 4.
NO :  Replace the steering wheel sensor.(Refer to

P.35C-279

.) Then go to Step 4.

STEP 4. Check whether the DTC is reset.
Q: Is DTC C121A set?

YES : Replace the hydraulic unit (incorporates in

ASC-ECU).(Refer to

P.35C-272

.) Then go to Step 5.

NO :  The procedure is complete.

STEP 5. Check whether the DTC is reset.
Q: Is DTC C121A set?

YES : Return to Step 1.
NO :  The procedure is complete.

DTC C2205: Internal malfunction of steering wheel sensor

CAUTION

• If there is any problem in the CAN bus lines, an incor-

rect diagnostic trouble code may be set. Prior to this
diagnosis, diagnose the CAN bus lines.

• Whenever the ECU is replaced, ensure that the CAN

bus lines are normal.

• When the steering wheel sensor is replaced, always

perform calibration to make ASC-ECU learn the neutral
point. (Refer to

P.35C-267

.)

• When the hydraulic unit (integrated with ASC-ECU) is

replaced, after turning the ignition switch ON and OFF
(vehicle information from ETACS-ECU is registered),
always perform the calibration of steering wheel sen-
sor, G and yaw rate sensor, brake fluid pressure sen-
sor, cut valve, and inlet valve.(Refer to

P.35C-266

P.35C-267

P.35C-268

, and

P.35C-269

.)

.

CIRCUIT OPERATION

Steering wheel sensor sends its status signal to ASC-ECU.

.

DIAGNOSIS

TSB Revision

ACTIVE SKID CONTROL SYSTEM (ASC)

35C-189

DTC SET CONDITIONS

This diagnostic trouble code is set when ASC-ECU detects that
the steering wheel sensor has a malfunction.

.

PROBABLE CAUSES

• Steering wheel sensor malfunction

• ASC-ECU malfunction

• External noise interference

DIAGNOSIS

Required Special Tools:

• MB991958 Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827 M.U.T.-III USB Cable

• MB991910 M.U.T.-III Main Harness A

STEP 1. Using scan tool MB991958, diagnose the CAN bus
lines.
Using scan tool MB991958, diagnose the CAN bus lines.
Q: Is the check result normal?

YES : Go to Step 2.
NO :  Repair the CAN bus lines. (Refer to GROUP 54C

−

Troubleshooting

P.54C-14

.) After repairing the CAN

bus line, go to Step 4.

STEP 2. Check whether the DTC is reset.
Q: Is DTC C2205 set?

YES : Replace the steering wheel sensor.(Refer to

P.35C-279

.) Then go to Step 3.

NO :  The procedure is complete.

STEP 3. Check whether the DTC is reset.
Q: Is DTC C2205 set?

YES : Replace the hydraulic unit (incorporates in

ASC-ECU).(Refer to

P.35C-272

.) Then go to Step 4.

NO :  The procedure is complete.

STEP 4. Check whether the DTC is reset.
Q: Is DTC C2205 set?

YES : Go to Step 1.
NO :  The procedure is complete.

DIAGNOSIS

TSB Revision

ACTIVE SKID CONTROL SYSTEM (ASC)

35C-190

DTC C1608: Implausible diagnosis data

CAUTION

• If there is any problem in the CAN bus lines, an incor-

rect diagnostic trouble code may be set. Prior to this
diagnosis, diagnose the CAN bus lines.

• Whenever the ECU is replaced, ensure that the CAN

bus lines are normal.

• When the hydraulic unit (integrated with ASC-ECU) is

replaced, after turning the ignition switch ON and OFF
(vehicle information from ETACS-ECU is registered),
always perform the calibration of steering wheel sen-
sor, G and yaw rate sensor, brake fluid pressure sen-
sor, cut valve, and inlet valve.(Refer to

P.35C-266

P.35C-267

P.35C-268

, and

P.35C-269

.)

• When the ASC-ECU connector or battery terminal is

disconnected with the ignition switch ON, this diagnos-
tic trouble code may be set.

• When this diagnostic trouble code is set, no other fail-

ure information will be set.

.

CIRCUIT OPERATION

The ASC-ECU stores diagnostic trouble codes and failure infor-
mation in the EEPROM

*

.

NOTE:

*

:EEPROM (Electrical Erasable and Programmable

ROM)

.

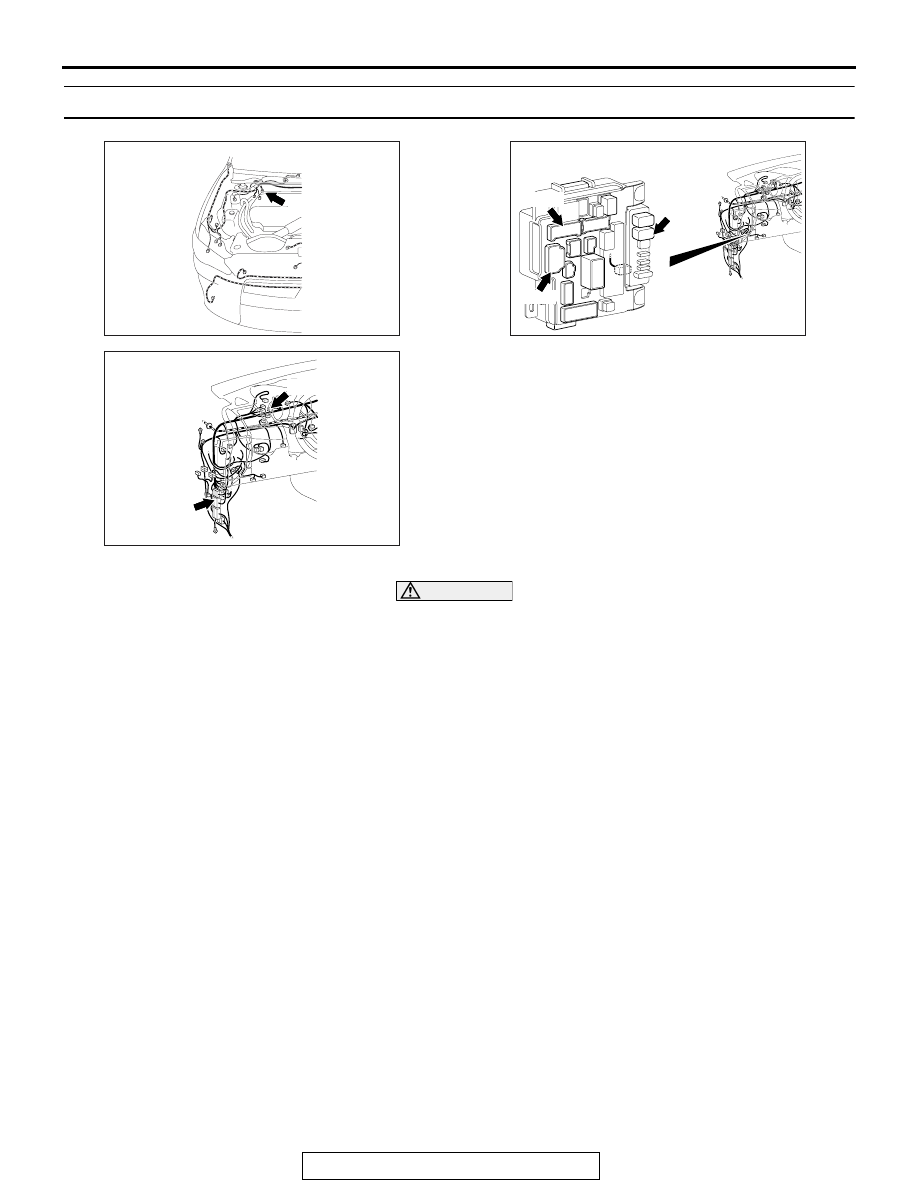

AC708948

Connector: A-05

A-05 (B)

AB

AC708950

Connectors: C-103, 130

AJ

C-103 (B)

C-130 (BR)

AC708972AS

Connectors: C-309, C-315, C-317

ETACS-ECU

C-315

C-317

C-309 (B)
