DIAGNOSIS

TSB Revision

ACTIVE SKID CONTROL SYSTEM (ASC)

35C-99

PROBABLE CAUSES

• Damaged wiring harness and connectors

• External noise interference

• Malfunction of wheel speed sensor

• ABS-ECU malfunction

• Excessive gap between the wheel speed sensor and the

wheel speed detection encoder

• Adhesion of foreign materials on the wheel speed sensor

• Adhesion of foreign materials on the wheel speed detection

encoder

• Wheel bearing malfunction

• Improper installation of the wheel speed sensor

• Deformation of the wheel speed detection encoder

• Disturbance of magnetization pattern for wheel speed

detection encoder

• Missing teeth of the wheel speed detection encoder

DIAGNOSIS

Required Special Tools:

• MB991958 Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827 M.U.T.-III USB Cable

• MB991910 M.U.T.-III Main Harness A

• MB991997: ASC check harness

STEP 1. Using scan tool MB991958, diagnose the CAN bus
lines.
Using scan tool MB991958, diagnose the CAN bus lines.
Q: Is the check result normal?

YES : Go to Step 3.
NO :  Repair the CAN bus lines. (Refer to GROUP 54C

−

Troubleshooting

P.54C-14

.) After repairing the CAN

bus line, go to Step 2.

STEP 2. DTC recheck after repairing the CAN bus line
Q: Is DTC C1047 set?

YES : Go to Step 3.
NO :  This diagnosis is complete.

STEP 3. Scan tool diagnostic trouble code
Check that the diagnostic trouble codes No. C1015, C101C,
C101F, and C1042 are simultaneously set.
Q: Are DTC C1015, C101C, C101F, and C1042 also set?

YES : Carry out the diagnosis for the diagnostic trouble

codes that are set, and then go to Step 5.

NO :  Go to Step 4.

DIAGNOSIS

TSB Revision

ACTIVE SKID CONTROL SYSTEM (ASC)

35C-100

STEP 4. Scan tool service data
Check the following service data. (Refer to

P.35C-255

.)

• Item No.02: FR wheel speed sensor

Q: Is the check result normal?

YES : Go to Step 16.
NO :  Go to Step 5.

STEP 5. Voltage measurement at A-05 ASC-ECU connector
(1) Disconnect the ASC-ECU connector, connect the ASC

check harness (Special tool: MB991997) to the wiring
harness-side connector, and then measure at the special
tool connector side.
NOTE: Do not connect the special tool to ASC-ECU.

(2) Turn the ignition switch to the ON position.
(3) Measure the voltage between the wheel speed sensor

power supply terminal (signal terminal) No. 34 and the body
ground as well as between the ground terminal No. 33 and
the body ground.

OK: 1 volt or less

Q: Is the check result normal?

YES  : Go to Step 6.
NO (Not normal at terminal 34 or 33) : Go to Step 7.

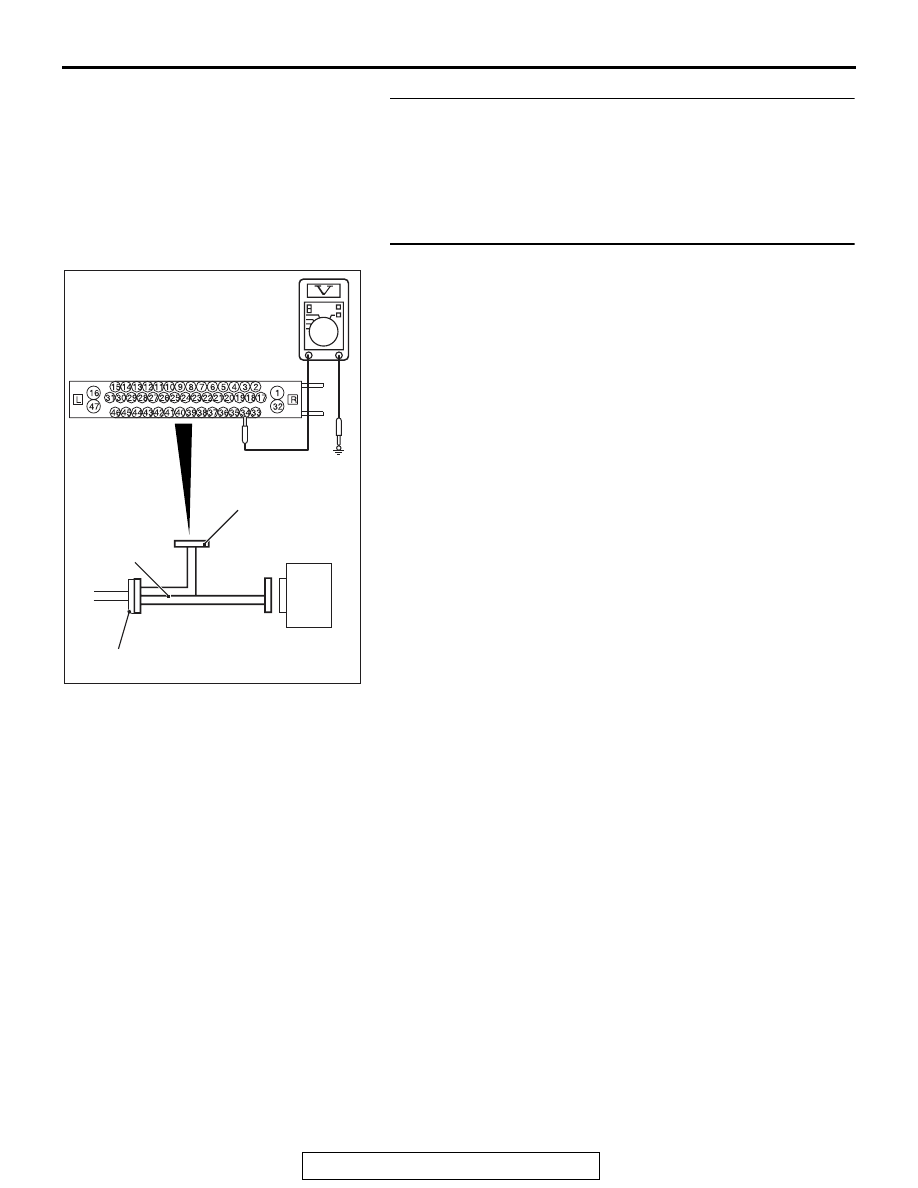

AC400817CE

ASC-ECU

MB991997

Check harness

A-05 ASC-ECU
harness connector

DIAGNOSIS

TSB Revision

ACTIVE SKID CONTROL SYSTEM (ASC)

35C-101

STEP 6. Resistance measurement at A-05 ASC-ECU
connector
(1) Disconnect the ASC-ECU connector, connect the ASC

check harness (Special tool: MB991997) to the wiring
harness-side connector, and then measure at the special
tool connector side.
NOTE: Do not connect the special tool to ASC-ECU.

(2) Measure the resistance between the wheel speed sensor

circuit power supply terminal (signal terminal) No. 34 and
the body ground as well as between the ground terminal
No. 33 and the body ground.

OK: No continuity

Q: Is the check result normal?

YES  : Go to Step 9.
NO (Not normal at terminal 34 or 33) : Go to Step 7.

STEP 7. Connector check: A-05 ASC-ECU connector, A-03
wheel speed sensor <FR> connector
Q: Is the check result normal?

YES : Go to Step 8.
NO :  Repair the defective connector. Then go to Step 17.

STEP 8. Wiring harness check between A-05 ASC-ECU
connector terminal No. 34 and A-03 wheel speed sensor
<FR> connector terminal No. 1, and between A-05
ASC-ECU connector terminal No. 33 and A-03 wheel speed
sensor <FR> connector terminal No. 2

• Short circuit check of wheel speed sensor <FR> circuit

Q: Is the check result normal?

YES : Replace the wheel speed sensor <FR>. (Refer to

P.35C-274

.) Then go to Step 17.

NO :  Repair the wiring harness. Then go to Step 17.

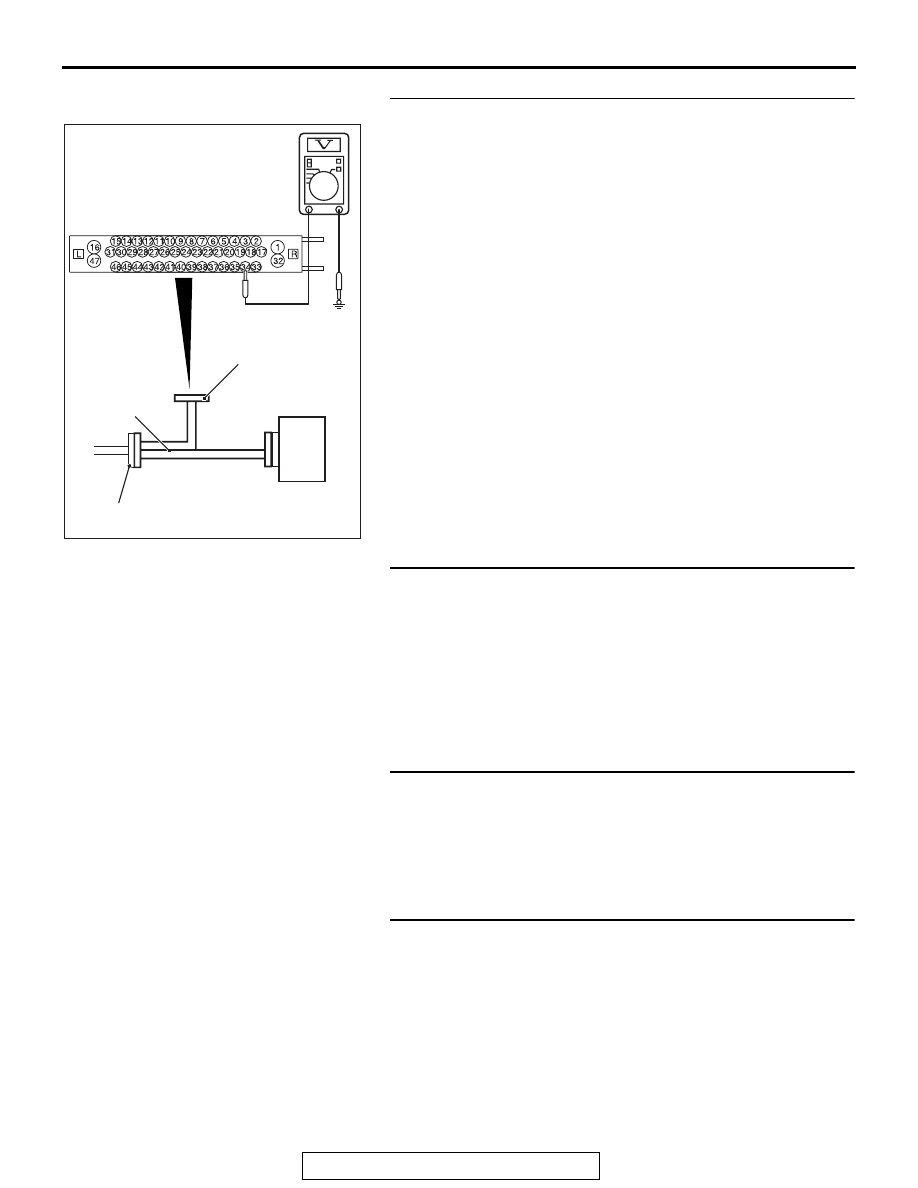

AC400817CF

ASC-ECU

MB991997

Check harness

A-05 ASC-ECU
harness connector

DIAGNOSIS

TSB Revision

ACTIVE SKID CONTROL SYSTEM (ASC)

35C-102

STEP 9. Voltage measurement at A-05 ASC-ECU connector
(1) Disconnect the ASC-ECU connector, connect the ASC

check harness (Special tool: MB991997) to the
ASC-ECU-side connector and the wiring harness-side
connector, and then measure at the special tool connector
side.

(2) Turn the ignition switch to the ON position.
(3) Measure the voltage between the wheel speed sensor

circuit power supply terminal (signal terminal) No. 34 and
the body ground.

OK: System voltage

Q: Is the check result normal?

YES : Go to Step 10.
NO :  Go to Step 12.

STEP 10. Wiring harness check between A-05 ASC-ECU
connector terminal No. 34 and A-03 wheel speed sensor
<FR> connector terminal No. 1, and between A-05
ASC-ECU connector terminal No. 33 and A-03 wheel speed
sensor <FR> connector terminal No. 2

• Open circuit check of wheel speed sensor <FR> circuit

Q: Is the check result normal?

YES : Go to Step 11.
NO :  Repair the wiring harness. Then go to Step 17.

STEP 11. Check of wheel speed sensor as a single unit
Refer to

P.35C-277

.

Q: Is the check result normal?

YES : Go to Step 13.
NO :  Replace the wheel speed sensor <FR>. (Refer to

P.35C-274

.) Then go to Step 17.

STEP 12. Connector check: A-05 ASC-ECU connector,
A-03 wheel speed sensor <FR> connector
Q: Is the check result normal?

YES : Go to Step 16.
NO :  Repair the defective connector. Then go to Step 17.

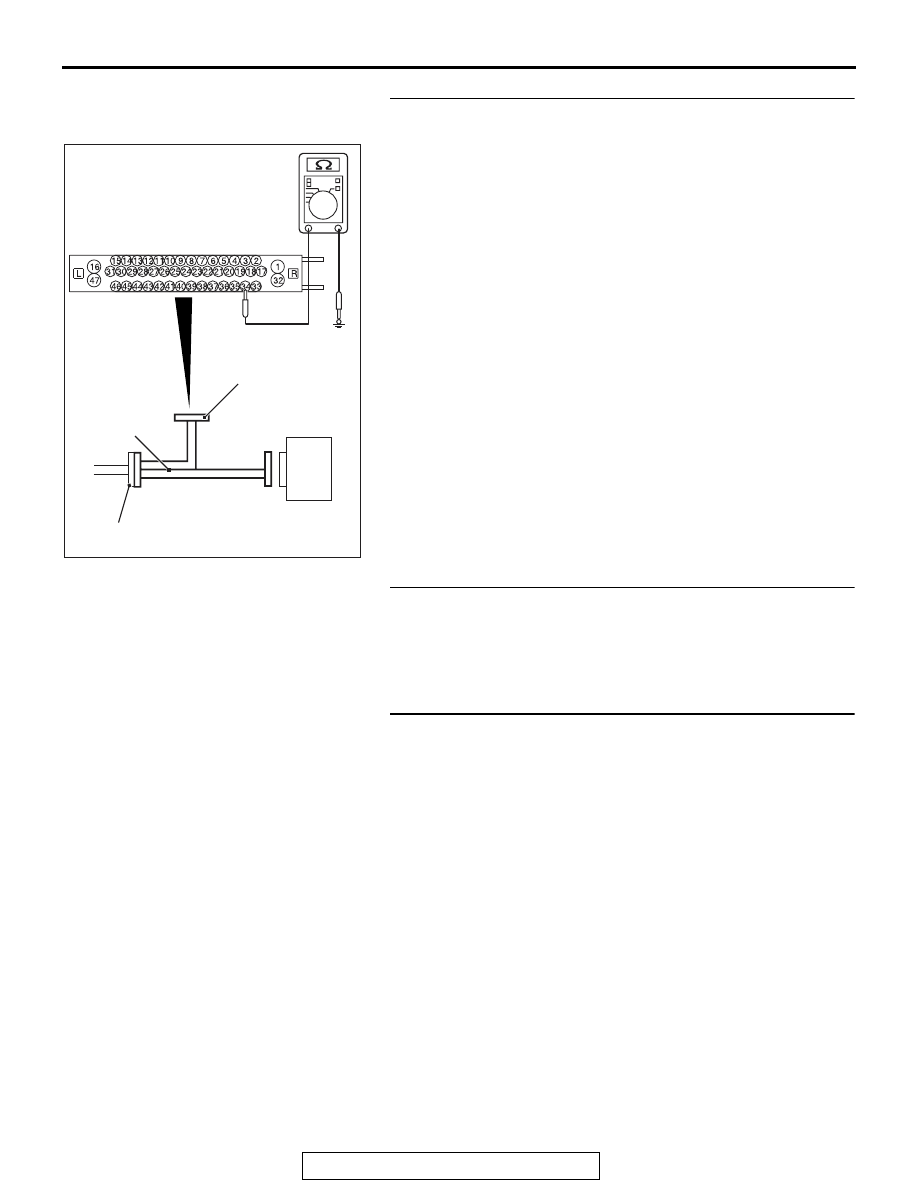

AC400817CG

ASC-ECU

MB991997

Check harness

A-05 ASC-ECU
harness connector
